Advanced (Recording pictures)
71VQT1B25

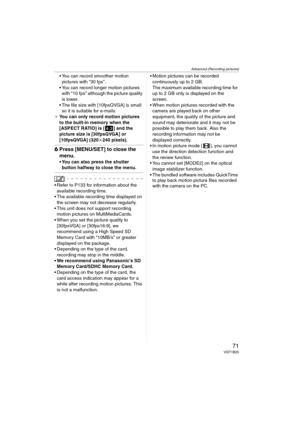

 You can record smoother motion
pictures with “30 fps”.
 You can record longer motion pictures
with “10 fps” although the picture quality
is lower.
 The file size with [10fpsQVGA] is small
so it is suitable for e-mails.
¢You can only record motion pictures
to the built-in memory when the
[ASPECT RATIO] is [ ] and the
picture size is [30fpsQVGA] or
[10fpsQVGA] (320k240 pixels).
6Press [MENU/SET] to close the
menu.
 You can also press the shutter
button...

Advanced (Recording pictures)
72VQT1B25

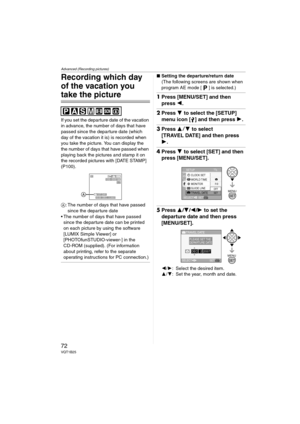

Recording which day
of the vacation you
take the picture
If you set the departure date of the vacation
in advance, the number of days that have
passed since the departure date (which
day of the vacation it is) is recorded when
you take the picture. You can display the
the number of days that have passed when
playing back the pictures and stamp it on
the recorded pictures with [DATE STAMP]
(P100).
A: The number of days that have passed
since the departure...

Advanced (Recording pictures)

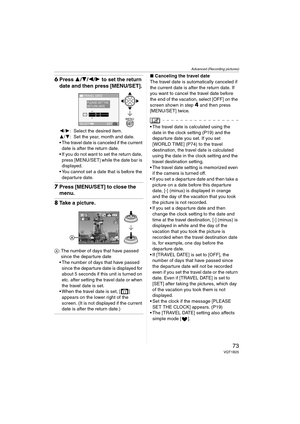

73VQT1B25
6Press 3/4/2/1 to set the return
date and then press [MENU/SET].
2/1: Select the desired item.
3/4: Set the year, month and date.
 The travel date is canceled if the current
date is after the return date.
 If you do not want to set the return date,
press [MENU/SET
] while the date bar is
displayed.
 You cannot set a date that is before the
departure date.
7Press [MENU/SET] to close the
menu.
8Take a picture.
A: The number of days that have passed
since the...

Advanced (Recording pictures)
74VQT1B25

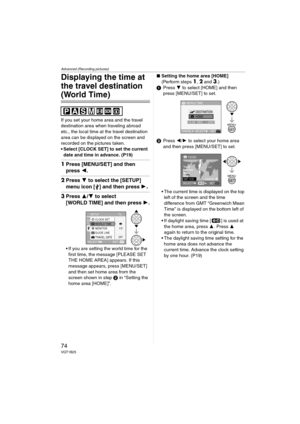

Displaying the time at
the travel destination
(World Time)
If you set your home area and the travel
destination area when traveling abroad
etc., the local time at the travel destination
area can be displayed on the screen and
recorded on the pictures taken.
 Select [CLOCK SET] to set the current
date and time in advance. (P19)
1Press [MENU/SET] and then
press 2.
2Press 4 to select the [SETUP]
menu icon [ ] and then press 1
.
3Press 3/4 to select
[WORLD...

Advanced (Recording pictures)
75VQT1B25

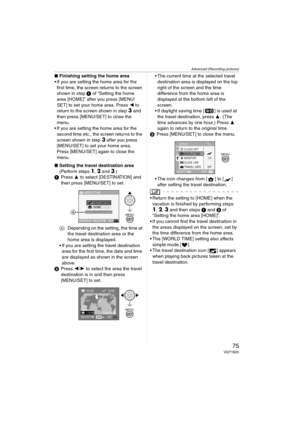

∫Finishing setting the home area
 If you are setting the home area for the
first time, the screen returns to the screen
shown in step 1 of “Setting the home
area [HOME]” after you press [MENU/
SET] to set your home area. Press 2 to
return to the screen shown in step
3 and
then press [MENU/SET] to close the
menu.
 If you are setting the home area for the
second time etc., the screen returns to the
screen shown in step
3 after you press
[MENU/SET] to set...

Advanced (Recording pictures)
76VQT1B25

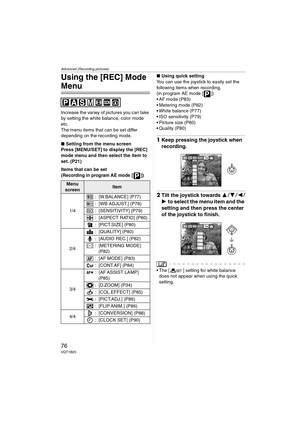

Using the [REC] Mode
Menu
Increase the variey of pictures you can take
by setting the white balance, color mode
etc.
The menu items that can be set differ
depending on the recording mode.
∫Setting from the menu screen
Press [MENU/SET] to display the [REC]
mode menu and then select the item to
set. (P21)
Items that can be set
(
Recording in program AE mode [])∫Using quick setting
You can use the joystick to easily set the
following items when recording.
(in...

Advanced (Recording pictures)

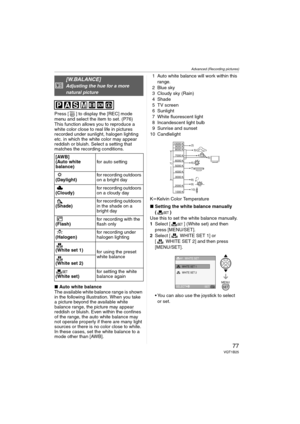

77VQT1B25
Press [ ] to display the [REC] mode
menu and select the item to set. (P76)
This function allows you to reproduce a
white color close to real life in pictures
recorded under sunlight, halogen lighting
etc. in which the white color may appear
reddish or bluish. Select a setting that
matches the recording conditions.
∫Auto white balance
The available white balance range is shown
in the following illustration. When you take
a picture beyond the available white...

Advanced (Recording pictures)
78VQT1B25

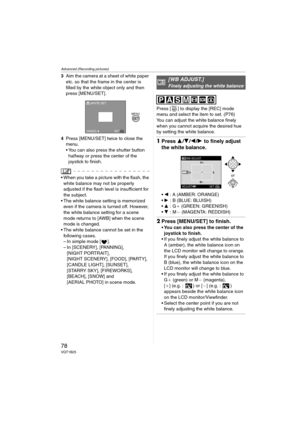

3Aim the camera at a sheet of white paper
etc. so that the frame in the center is
filled by the white object only and then
press [MENU/SET].
4Press [MENU/SET] twice to close the
menu.
 You can also press the shutter button
halfway or press the center of the
joystick to finish.
 When you take a picture with the flash, the
white balance may not be properly
adjusted if the flash level is insufficient for
the subject.
 The white balance setting is memorized...

Advanced (Recording pictures)
79VQT1B25

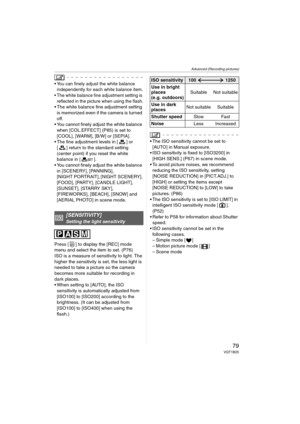

 You can finely adjust the white balance
independently for each white balance item.
 The white balance fine adjustment setting is
reflected in the picture when using the flash.
 The white balance fine adjustment setting
is memorized even if the camera is turned
off.
 You cannot finely adjust the white balance
when [COL.EFFECT] (P85) is set to
[COOL], [WARM], [B/W] or [SEPIA].
 The fine adjustment levels in [ ] or
[ ] return to the standard setting
(center...

Advanced (Recording pictures)
80VQT1B25
Press [ ] to display the [REC] mode
menu and select the item to set. (P76)

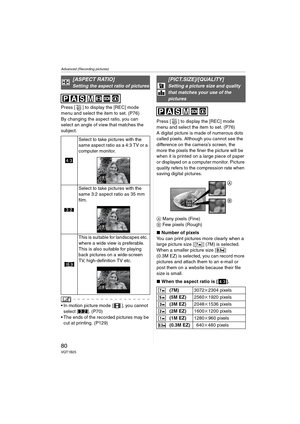

By changing the aspect ratio, you can
select an angle of view that matches the
subject.
 In motion picture mode [ ], you cannot
select [ ]. (P70)
 The ends of the recorded pictures may be
cut at printing. (P129)Press [ ] to display the [REC] mode
menu and select the item to set. (P76)
A digital picture is made of numerous dots
called pixels. Although you cannot see the
difference on...
