Advanced (Playback)

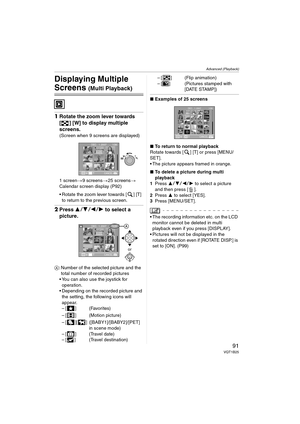

91VQT1B25
Advanced (Playback)
Displaying Multiple
Screens (Multi Playback)
1Rotate the zoom lever towards
[ ] [W] to display multiple
screens.
(Screen when 9 screens are displayed)
1 screen>9 screens>25 screens>
Calendar screen display (P92)
 Rotate the zoom lever towards [ ] [T]
to return to the previous screen.
2Press 3421 to select a
picture.
A: Number of the selected picture and the
total number of recorded pictures
 You can also use the joystick for
operation....

Advanced (Playback)

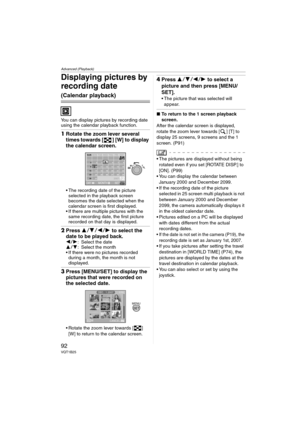

92VQT1B25
Displaying pictures by
recording date
(Calendar playback)
You can display pictures by recording date
using the calendar playback function.
1Rotate the zoom lever several
times towards [ ] [W] to display
the calendar screen.
 The recording date of the picture
selected in the playback screen
becomes the date selected when the
calendar screen is first displayed.
 If there are multiple pictures with the
same recording date, the first picture
recorded on that day is...

Advanced (Playback)
93VQT1B25

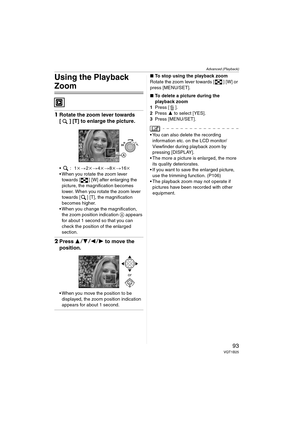

Using the Playback
Zoom
1Rotate the zoom lever towards
[ ] [T] to enlarge the picture.
k>2k>4k>8k>16k
 When you rotate the zoom lever
towards [ ] [W] after enlarging the
picture, the magnification becomes
lower. When you rotate the zoom lever
towards [ ] [T], the magnification
becomes higher.
 When you change the magnification,
the zoom position indication A appears
for about 1 second so that you can
check the position of the enlarged
section.
2Press 3421 to...

Advanced (Playback)

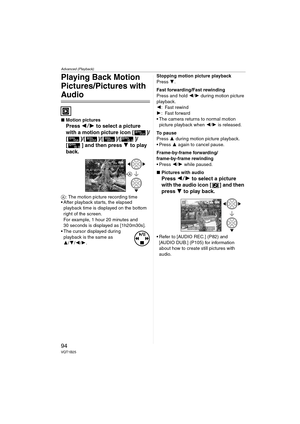

94VQT1B25
Playing Back Motion
Pictures/Pictures with
Audio
∫Motion pictures
Press 21 to select a picture
with a motion picture icon [ ]/
[]/[]/[]/[ ]/
[ ] and then press 4 to play
back.
A: The motion picture recording time
 After playback starts, the elapsed
playback time is displayed on the bottom
right of the screen.
For example, 1 hour 20 minutes and
30 seconds is displayed as [1h20m30s].
 The cursor displayed during
playback is the same as
3/4/2/1.Stopping motion picture...

Advanced (Playback)

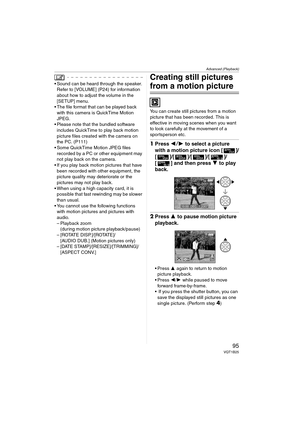

95VQT1B25
 Sound can be heard through the speaker.
Refer to [VOLUME] (P24) for information
about how to adjust the volume in the
[SETUP] menu.
 The file format that can be played back
with this camera is QuickTime Motion
JPEG.
 Please note that the bundled software
includes QuickTime to play back motion
picture files created with the camera on
the PC. (P111)
 Some QuickTime Motion JPEG files
recorded by a PC or other equipment may
not play back on the camera.
 If you play...

Advanced (Playback)

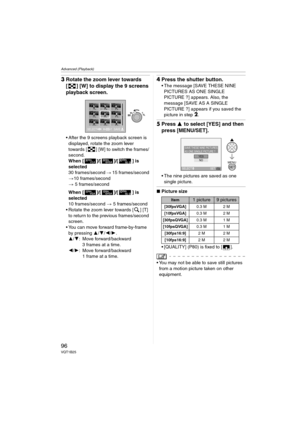

96VQT1B25
3Rotate the zoom lever towards
[ ] [W] to display the 9 screens
playback screen.
 After the 9 screens playback screen is
displayed, rotate the zoom lever
towards [ ] [W] to switch the frames/
second.
When [ ]/[ ]/[ ] is
selected
30 frames/second > 15 frames/second
>10 frames/second
> 5 frames/second
When [ ]/[ ]/[ ] is
selected
10 frames/second > 5 frames/second
 Rotate the zoom lever towards [ ] [T]
to return to the previous frames/second
screen.
 You can move...

Advanced (Playback)

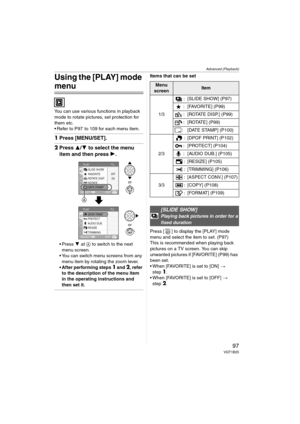

97VQT1B25
Using the [PLAY] mode
menu
You can use various functions in playback
mode to rotate pictures, set protection for
them etc.
 Refer to P97  to 109 for each menu item.
1Press [MENU/SET].
2Press 3/4 to select the menu
item and then press 1.
4 at A to switch to the next
menu screen.
 You can switch menu screens from any
menu item by rotating the zoom lever.
 After performing steps
1 and 2, refer
to the description of the menu item
in the operating instructions and
then...

Advanced (Playback)

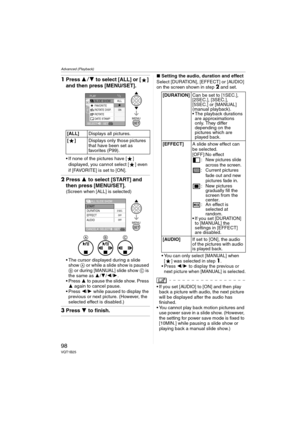

98VQT1B25
1Press 34 to select [ALL] or [ ]
and then press [MENU/SET].
 If none of the pictures have [ ]
displayed, you cannot select [ ] even
if [FAVORITE] is set to [ON].
2Press 3 to select [START] and
then press [MENU/SET].
(Screen when [ALL] is selected)
 The cursor displayed during a slide
show A or while a slide show is paused
B or during [MANUAL] slide show C is
the same as 3/4/2/1.
 Press 3 to pause the slide show. Press
3 again to cancel pause.
 Press 2/1 while paused...

Advanced (Playback)
99VQT1B25

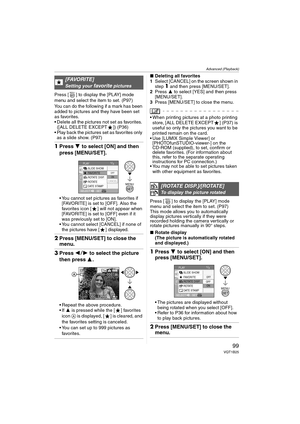

Press [ ] to display the [PLAY] mode
menu and select the item to set. (P97)
You can do the following if a mark has been
added to pictures and they have been set
as favorites.
 Delete all the pictures not set as favorites.
([ALL DELETE EXCEPT ]) (P36)
 Play back the pictures set as favorites only
as a slide show. (P97)
1Press 4 to select [ON] and then
press [MENU/SET].
 You cannot set pictures as favorites if
[FAVORITE] is set to [OFF]. Also the
favorites icon [ ]...

Advanced (Playback)

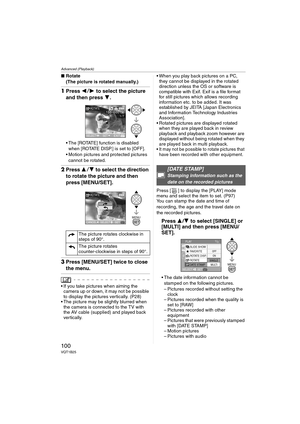

100VQT1B25
∫Rotate
(The picture is rotated manually.)
1Press 21 to select the picture
and then press 4.
 The [ROTATE] function is disabled
when [ROTATE DISP.] is set to [OFF].
 Motion pictures and protected pictures
cannot be rotated.
2Press 34 to select the direction
to rotate the picture and then
press [MENU/SET].
3Press [MENU/SET] twice to close
the menu.
 If you take pictures when aiming the
camera up or down, it may not be possible
to display the pictures vertically....
