Panasonic Dmc Fz8 Operating Instructions Manual

Others

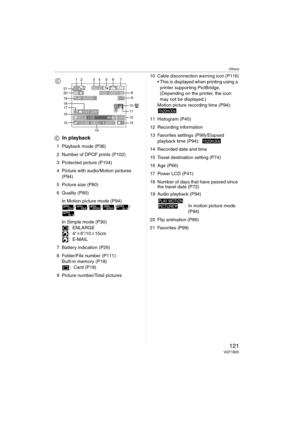

121VQT1B25
CIn playback
1 Playback mode (P36)
2 Number of DPOF prints (P102)
3 Protected picture (P104)
4 Picture with audio/Motion pictures
(P94)
5 Picture size (P80)
6 Quality (P80)
In Motion picture mode (P94)
//// /
In Simple mode (P30)
:ENLARGE
:4qk6q/10k15cm
:E-MAIL
7 Battery indication (P26)
8 Folder/File number (P111)
Built-in memory (P18)
: Card (P18)
9 Picture number/Total pictures
10 Cable disconnection warning icon (P116)
 This is displayed when printing using a
printer supporting...

Others

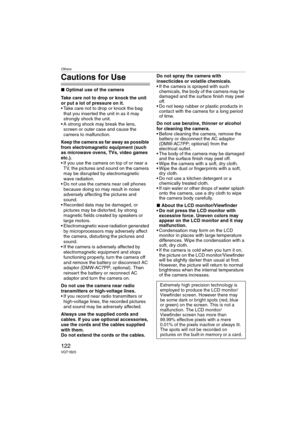

122VQT1B25
Cautions for Use
∫Optimal use of the camera
Take care not to drop or knock the unit
or put a lot of pressure on it.
 Take care not to drop or knock the bag
that you inserted the unit in as it may
strongly shock the unit.
 A strong shock may break the lens,
screen or outer case and cause the
camera to malfunction.
Keep the camera as far away as possible
from electromagnetic equipment (such
as microwave ovens, TVs, video games
etc.).
 If you use the camera on top of or near a
TV,...

Others

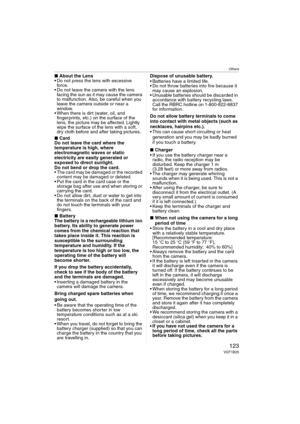

123VQT1B25
∫About the Lens
 Do not press the lens with excessive
for ce.
 Do not leave the camera with the lens
facing the sun as it may cause the camera
to malfunction. Also, be careful when you
leave the camera outside or near a
window.
 When there is dirt (water, oil, and
fingerprints, etc.) on the surface of the
lens, the picture may be affected. Lightly
wipe the surface of the lens with a soft,
dry cloth before and after taking pictures.
∫Card
Do not leave the card where the...

Others
124VQT1B25

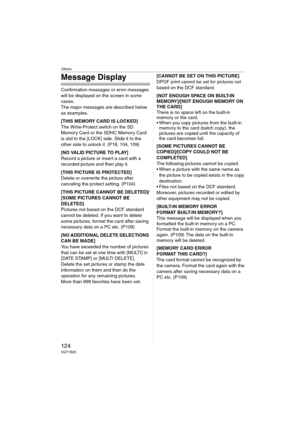

Message Display
Confirmation messages or error messages
will be displayed on the screen in some
cases.
The major messages are described below
as examples.
[THIS MEMORY CARD IS LOCKED]
The Write-Protect switch on the SD
Memory Card or the SDHC Memory Card
is slid to the [LOCK] side. Slide it to the
other side to unlock it. (P18, 104, 109)
[NO VALID PICTURE TO PLAY]
Record a picture or insert a card with a
recorded picture and then play it.
[THIS PICTURE IS PROTECTED]
Delete or...

Others

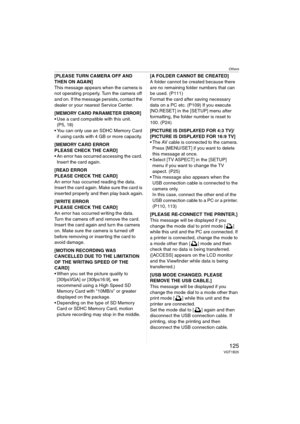

125VQT1B25
[PLEASE TURN CAMERA OFF AND
THEN ON AGAIN]
This message appears when the camera is
not operating properly. Turn the camera off
and on. If the message persists, contact the
dealer or your nearest Service Center.
[MEMORY CARD PARAMETER ERROR]
 Use a card compatible with this unit.
(P5, 18)
 You can only use an SDHC Memory Card
if using cards with 4 GB or more capacity.
[MEMORY CARD ERROR
PLEASE CHECK THE CARD]
 An error has occurred accessing the card.
Insert the card again.
[READ...

Others
126VQT1B25

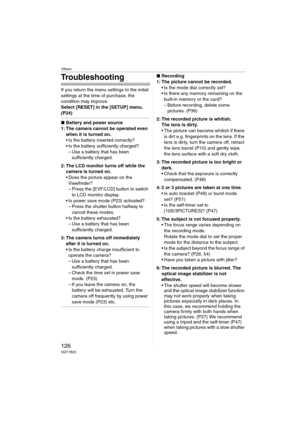

Troubleshooting
If you return the menu settings to the initial
settings at the time of purchase, the
condition may improve.
Select [RESET] in the [SETUP] menu.
(P24)
∫Battery and power source
1: The camera cannot be operated even
when it is turned on.
 Is the battery inserted correctly?
 Is the battery sufficiently charged?
– Use a battery that has been
sufficiently charged.
2: The LCD monitor turns off while the
camera is turned on.
 Does the picture appear on the
Viewfinder?
–...

Others

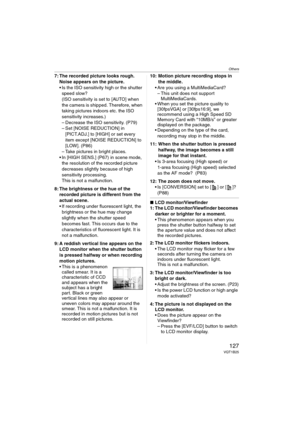

127VQT1B25
7: The recorded picture looks rough.
Noise appears on the picture.
 Is the ISO sensitivity high or the shutter
speed slow?
(ISO sensitivity is set to [AUTO] when
the camera is shipped. Therefore, when
taking pictures indoors etc. the ISO
sensitivity increases.)
– Decrease the ISO sensitivity. (P79)
– Set [NOISE REDUCTION] in
[PICT.ADJ.] to [HIGH] or set every
item except [NOISE REDUCTION] to
[LOW]. (P86)
– Take pictures in bright places.
 In [HIGH SENS.] (P67) in scene mode,...

Others

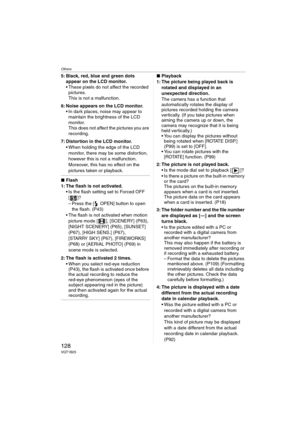

128VQT1B25
5: Black, red, blue and green dots
appear on the LCD monitor.
 These pixels do not affect the recorded
pictures.
This is not a malfunction.
6: Noise appears on the LCD monitor.
 In dark places, noise may appear to
maintain the brightness of the LCD
monitor.
This does not affect the pictures you are
recording.
7: Distortion in the LCD monitor.
 When holding the edge of the LCD
monitor, there may be some distortion,
however this is not a malfunction.
Moreover, this has no effect...

Others

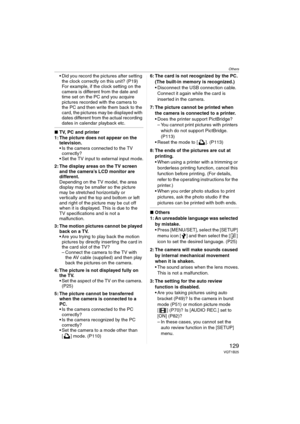

129VQT1B25
 Did you record the pictures after setting
the clock correctly on this unit? (P19)
For example, if the clock setting on the
camera is different from the date and
time set on the PC and you acquire
pictures recorded with the camera to
the PC and then write them back to the
card, the pictures may be displayed with
dates different from the actual recording
dates in calendar playback etc.
∫TV, PC and printer
1: The picture does not appear on the
television.
 Is the camera connected...

Others

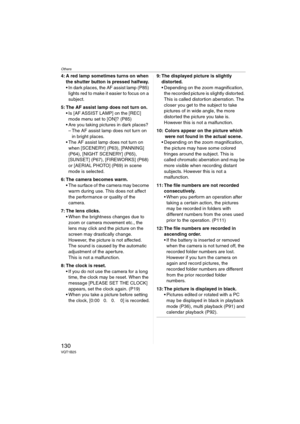

130VQT1B25
4: A red lamp sometimes turns on when
the shutter button is pressed halfway.
 In dark places, the AF assist lamp (P85)
lights red to make it easier to focus on a
subject.
5: The AF assist lamp does not turn on.
 Is [AF ASSIST LAMP] on the [REC]
mode menu set to [ON]? (P85)
 Are you taking pictures in dark places?
– The AF assist lamp does not turn on
in bright places.
 The AF assist lamp does not turn on
when [SCENERY] (P63), [PANNING]
(P64), [NIGHT SCENERY] (P65),
[SUNSET]...
