Panasonic Dmr Bs850 Operating Instructions Manual
Here you can view all the pages of manual Panasonic Dmr Bs850 Operating Instructions Manual. The Panasonic manuals for Blu-ray Duplicator are available online for free. You can easily download all the documents as PDF.

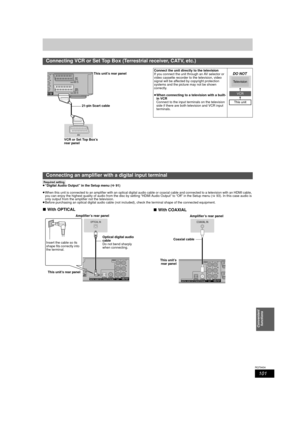

Page 101
![Page 101
101
RQT9434
Convenient functions
[Required^setting]
≥ “Digital Audio Output” in the Setup menu ( >91)
≥ When this unit is connected to an amplifie r with an optical digital audio cable or coaxial cable and connected to a television with an HDMI cable,
you can enjoy the highest quality of audio from the disc by setting “HDMI Audio Output” to “Off” in the Setup menu (> 93). In this case audio is
only output from the amplifier not the television.
≥ Before purchasing an optical digital audi o cable...](http://img.usermanuals.tech/thumb/58/66393/w300_dmr-bs850_en_om_d-100.png "Page 101
101
RQT9434
Convenient functions
[Required^setting]
≥ “Digital Audio Output” in the Setup menu ( >91)
≥ When this unit is connected to an amplifie r with an optical digital audio cable or coaxial cable and connected to a television with an HDMI cable,
you can enjoy the highest quality of audio from the disc by setting “HDMI Audio Output” to “Off” in the Setup menu (> 93). In this case audio is
only output from the amplifier not the television.
≥ Before purchasing an optical digital audi o cable...")
101 RQT9434 Convenient functions [Required^setting] ≥ “Digital Audio Output” in the Setup menu ( >91) ≥ When this unit is connected to an amplifie r with an optical digital audio cable or coaxial cable and connected to a television with an HDMI cable, you can enjoy the highest quality of audio from the disc by setting “HDMI Audio Output” to “Off” in the Setup menu (> 93). In this case audio is only output from the amplifier not the television. ≥ Before purchasing an optical digital audi o cable...

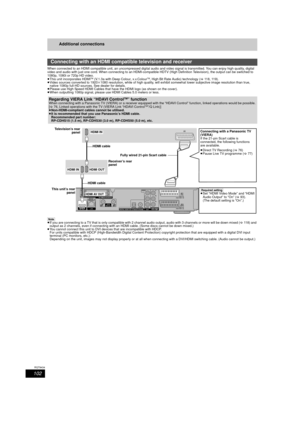

Page 102
102 RQT9434 Additional connections When connected to an HDMI compatible unit, an uncompressed digital audio and video signal is transmitted. You can enjoy high quality, digital video and audio with just one cord. When connecting to an HDMI-comp atible HDTV (High Definition Television), the output can be switched to 1080p, 1080i or 720p HD video. ≥ This unit incorporates HDMI TM (V.1.3a with Deep Colour, x.v.ColourTM, High Bit Rate Audio) technology ( >118, 119). ≥ Video sources converted to 1920 k1080...

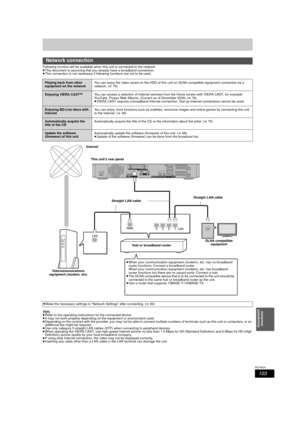

Page 103
![Page 103
103
RQT9434
Convenient functions
Following function will be available when this unit is connected to the network.
≥ This document is assuming that y ou already have a broadband connection.
≥ This connection is not neces sary if following functions are not to be used.
[Note]
≥ Refer to the operating instructions for the connected device.
≥ It may not work properly depending on the equipment or environment used.
≥ Depending on the contract with the provider, you may not be able to connect multiple...](http://img.usermanuals.tech/thumb/58/66393/w300_dmr-bs850_en_om_d-102.png "Page 103
103
RQT9434
Convenient functions
Following function will be available when this unit is connected to the network.
≥ This document is assuming that y ou already have a broadband connection.
≥ This connection is not neces sary if following functions are not to be used.
[Note]
≥ Refer to the operating instructions for the connected device.
≥ It may not work properly depending on the equipment or environment used.
≥ Depending on the contract with the provider, you may not be able to connect multiple...")
103 RQT9434 Convenient functions Following function will be available when this unit is connected to the network. ≥ This document is assuming that y ou already have a broadband connection. ≥ This connection is not neces sary if following functions are not to be used. [Note] ≥ Refer to the operating instructions for the connected device. ≥ It may not work properly depending on the equipment or environment used. ≥ Depending on the contract with the provider, you may not be able to connect multiple...

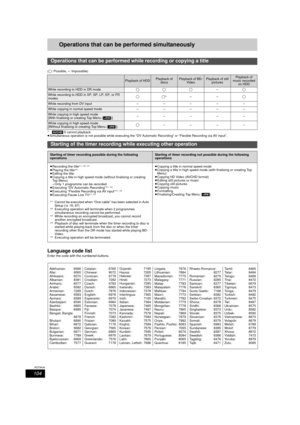

Page 104
![Page 104
104
RQT9434
Operations that can be performed simultaneouslyReference
(≤: Possible, –: Impossible)
§[AVCHD] It cannot playback.
≥ Simultaneous operation is not possible while executing the “DV Au tomatic Recording” or “Flexible Recording via AV input”.
Language code list
Enter the code with the numbered buttons.
Operations that can be performed while record ing or copying a title
Playback of HDDPlayback of
discsPlayback of BD- VideoPlayback of still picturesPlayback of
music recorded on HDD
While...](http://img.usermanuals.tech/thumb/58/66393/w300_dmr-bs850_en_om_d-103.png "Page 104
104
RQT9434
Operations that can be performed simultaneouslyReference
(≤: Possible, –: Impossible)
§[AVCHD] It cannot playback.
≥ Simultaneous operation is not possible while executing the “DV Au tomatic Recording” or “Flexible Recording via AV input”.
Language code list
Enter the code with the numbered buttons.
Operations that can be performed while record ing or copying a title
Playback of HDDPlayback of
discsPlayback of BD- VideoPlayback of still picturesPlayback of
music recorded on HDD
While...")
104 RQT9434 Operations that can be performed simultaneouslyReference (≤: Possible, –: Impossible) §[AVCHD] It cannot playback. ≥ Simultaneous operation is not possible while executing the “DV Au tomatic Recording” or “Flexible Recording via AV input”. Language code list Enter the code with the numbered buttons. Operations that can be performed while record ing or copying a title Playback of HDDPlayback of discsPlayback of BD- VideoPlayback of still picturesPlayback of music recorded on HDD While...

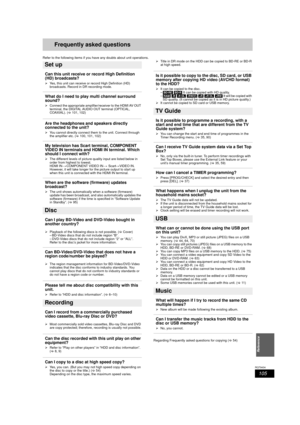

Page 105
105 RQT9434 Reference Frequently asked questions Refer to the following items if you have any doubts about unit operations. Can this unit receive or record High Definition (HD) broadcasts? ¾Yes, this unit can receive or record High Definition (HD) broadcasts. Record in DR recording mode. What do I need to play multi channel surround sound? ¾Connect the appropriate amplifier/receiver to the HDMI AV OUT terminal, the DIGITAL AUDIO OUT terminal (OPTICAL, COAXIAL). ( >101, 102) Are the headphones and...

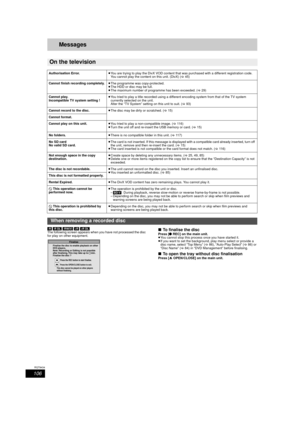

Page 106
![Page 106
106
RQT9434
Messages
[-R] [-R]DL] [-RW‹V›] [+R] [+R]DL]
The following screen appears when you have not processed the disc
for play on other equipment.∫To finalise the discPress [ ¥REC] on the main unit.
≥ You cannot stop this process once you have started it.
≥ If you want to set the background, play menu select or provide a
disc name, select “Top Menu” ( >86), “Auto-Play Select” ( >86) or
“Disc Name” ( >84) in “DVD Management” before finalising.
∫To open the tray without disc finalisationPress [ 45)...](http://img.usermanuals.tech/thumb/58/66393/w300_dmr-bs850_en_om_d-105.png "Page 106
106
RQT9434
Messages
[-R] [-R]DL] [-RW‹V›] [+R] [+R]DL]
The following screen appears when you have not processed the disc
for play on other equipment.∫To finalise the discPress [ ¥REC] on the main unit.
≥ You cannot stop this process once you have started it.
≥ If you want to set the background, play menu select or provide a
disc name, select “Top Menu” ( >86), “Auto-Play Select” ( >86) or
“Disc Name” ( >84) in “DVD Management” before finalising.
∫To open the tray without disc finalisationPress [ 45)...")
106 RQT9434 Messages [-R] [-R]DL] [-RW‹V›] [+R] [+R]DL] The following screen appears when you have not processed the disc for play on other equipment.∫To finalise the discPress [ ¥REC] on the main unit. ≥ You cannot stop this process once you have started it. ≥ If you want to set the background, play menu select or provide a disc name, select “Top Menu” ( >86), “Auto-Play Select” ( >86) or “Disc Name” ( >84) in “DVD Management” before finalising. ∫To open the tray without disc finalisationPress [ 45)...

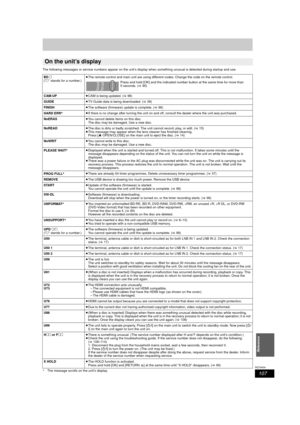

Page 107
![Page 107
107
RQT9434
Reference
The following messages or service numbers appear on the unit’s display when something unusual is detected during startup and us e.
§The message scrolls on the unit’s display.
On the unit’s display
BD
(“ ∑ ” stands for a number.) ≥
The remote control and main unit are using differ ent codes. Change the code on the remote control.
Press and hold [OK] and the indicated number button at the same time for more than
5 seconds. ( >95)
CAM-UP ≥CAM is being updated. ( >98)
GUIDE ≥TV Guide...](http://img.usermanuals.tech/thumb/58/66393/w300_dmr-bs850_en_om_d-106.png "Page 107
107
RQT9434
Reference
The following messages or service numbers appear on the unit’s display when something unusual is detected during startup and us e.
§The message scrolls on the unit’s display.
On the unit’s display
BD
(“ ∑ ” stands for a number.) ≥
The remote control and main unit are using differ ent codes. Change the code on the remote control.
Press and hold [OK] and the indicated number button at the same time for more than
5 seconds. ( >95)
CAM-UP ≥CAM is being updated. ( >98)
GUIDE ≥TV Guide...")
107 RQT9434 Reference The following messages or service numbers appear on the unit’s display when something unusual is detected during startup and us e. §The message scrolls on the unit’s display. On the unit’s display BD (“ ∑ ” stands for a number.) ≥ The remote control and main unit are using differ ent codes. Change the code on the remote control. Press and hold [OK] and the indicated number button at the same time for more than 5 seconds. ( >95) CAM-UP ≥CAM is being updated. ( >98) GUIDE ≥TV Guide...

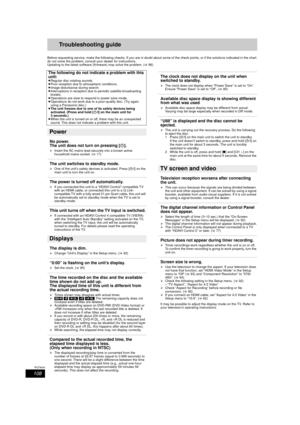

Page 108
![Page 108
108
RQT9434
Troubleshooting guide
Before requesting service, make the following checks. If you are in doubt about some of the check points, or if the solutions indicated in the chart
do not solve the problem, consult your dealer for instructions.
Updating to the latest software (firmware) may solve the problem. ( >98)
No power.
The unit does not turn on pressing [ Í].
¾Insert the AC mains lead securely into a known active
household mains socket. ( >17)
The unit switches to standby mode.
¾ One of the...](http://img.usermanuals.tech/thumb/58/66393/w300_dmr-bs850_en_om_d-107.png "Page 108
108
RQT9434
Troubleshooting guide
Before requesting service, make the following checks. If you are in doubt about some of the check points, or if the solutions indicated in the chart
do not solve the problem, consult your dealer for instructions.
Updating to the latest software (firmware) may solve the problem. ( >98)
No power.
The unit does not turn on pressing [ Í].
¾Insert the AC mains lead securely into a known active
household mains socket. ( >17)
The unit switches to standby mode.
¾ One of the...")
108 RQT9434 Troubleshooting guide Before requesting service, make the following checks. If you are in doubt about some of the check points, or if the solutions indicated in the chart do not solve the problem, consult your dealer for instructions. Updating to the latest software (firmware) may solve the problem. ( >98) No power. The unit does not turn on pressing [ Í]. ¾Insert the AC mains lead securely into a known active household mains socket. ( >17) The unit switches to standby mode. ¾ One of the...

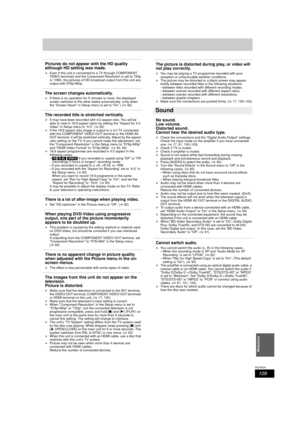

Page 109
109 RQT9434 Reference Pictures do not appear with the HD quality although HD setting was made. ¾Even if this unit is connected to a TV through COMPONENT VIDEO terminals and the Component Resolution is set to 720p or 1080i, the pictures of HD broadcast output from this unit are output with 576p/480p. The screen changes automatically. ¾If there is no operation for 5 minutes or more, the displayed screen switches to the other stat es automatically. (only when the “Screen Saver” in Setup menu is set to...

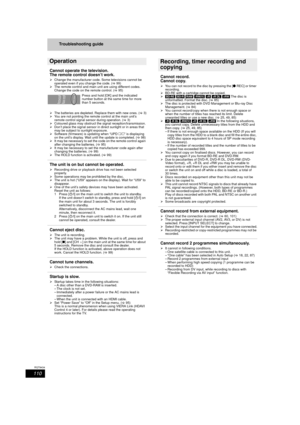

Page 110
![Page 110
110
RQT9434
Troubleshooting guide
Cannot operate the television.
The remote control doesn’t work.
¾ Change the manufacturer code. Some televisions cannot be
operated even if you change the code. (> 99)
¾ The remote control and main unit are using different codes.
Change the code on the remote control. ( >95)
Press and hold [OK] and the indicated
number button at the same time for more
than 5 seconds.
¾ The batteries are depleted. Replace them with new ones. ( >3)
¾ You are not pointing the remote...](http://img.usermanuals.tech/thumb/58/66393/w300_dmr-bs850_en_om_d-109.png "Page 110
110
RQT9434
Troubleshooting guide
Cannot operate the television.
The remote control doesn’t work.
¾ Change the manufacturer code. Some televisions cannot be
operated even if you change the code. (> 99)
¾ The remote control and main unit are using different codes.
Change the code on the remote control. ( >95)
Press and hold [OK] and the indicated
number button at the same time for more
than 5 seconds.
¾ The batteries are depleted. Replace them with new ones. ( >3)
¾ You are not pointing the remote...")
110 RQT9434 Troubleshooting guide Cannot operate the television. The remote control doesn’t work. ¾ Change the manufacturer code. Some televisions cannot be operated even if you change the code. (> 99) ¾ The remote control and main unit are using different codes. Change the code on the remote control. ( >95) Press and hold [OK] and the indicated number button at the same time for more than 5 seconds. ¾ The batteries are depleted. Replace them with new ones. ( >3) ¾ You are not pointing the remote...
