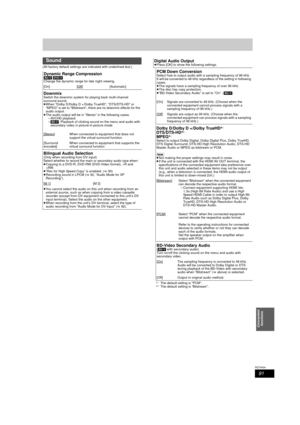

Page 91
![Page 91
91
RQT9434
Convenient functions
(All factory default settings ar e indicated with underlined text.)
§1The default setting is “PCM”.§2The default setting is “Bitstream”.
Sound
Dynamic Range Compression[BD-V] [DVD-V]
Change the dynamic range for late night viewing.
[On] [Off
][Automatic]
DownmixSwitch the downmix system for playing back multi-channel
surround sound.
≥ When “Dolby D/Dolby D +/Dolby TrueHD”, “DTS/DTS-HD” or
“MPEG” is set to “Bitstream”, there are no downmix effects for the
audio...](http://img.usermanuals.tech/thumb/58/66393/w300_dmr-bs850_en_om_d-90.png "Page 91
91
RQT9434
Convenient functions
(All factory default settings ar e indicated with underlined text.)
§1The default setting is “PCM”.§2The default setting is “Bitstream”.
Sound
Dynamic Range Compression[BD-V] [DVD-V]
Change the dynamic range for late night viewing.
[On] [Off
][Automatic]
DownmixSwitch the downmix system for playing back multi-channel
surround sound.
≥ When “Dolby D/Dolby D +/Dolby TrueHD”, “DTS/DTS-HD” or
“MPEG” is set to “Bitstream”, there are no downmix effects for the
audio...")
91 RQT9434 Convenient functions (All factory default settings ar e indicated with underlined text.) §1The default setting is “PCM”.§2The default setting is “Bitstream”. Sound Dynamic Range Compression[BD-V] [DVD-V] Change the dynamic range for late night viewing. [On] [Off ][Automatic] DownmixSwitch the downmix system for playing back multi-channel surround sound. ≥ When “Dolby D/Dolby D +/Dolby TrueHD”, “DTS/DTS-HD” or “MPEG” is set to “Bitstream”, there are no downmix effects for the audio...
Page 92

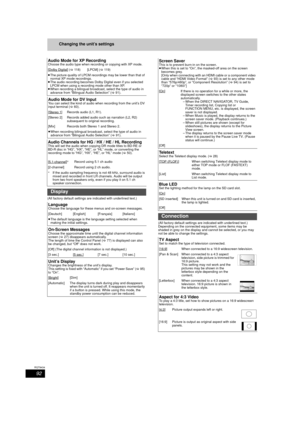

![Page 92
92
RQT9434
Changing the unit’s settings
(All factory default settings are indicated with underlined text.)
(All factory default settings are indicated with underlined text.)
Depending on the connected equipment, some items may be
shaded in grey on the display and cannot be selected, or you may
not be able to change the settings.
Audio Mode for XP RecordingChoose the audio type when recording or copying with XP mode.
[Dolby Digital
] (> 118) [LPCM] ( >119)
≥ The picture quality of LPCM recordings may be...](http://img.usermanuals.tech/thumb/58/66393/w300_dmr-bs850_en_om_d-91.png "Page 92
92
RQT9434
Changing the unit’s settings
(All factory default settings are indicated with underlined text.)
(All factory default settings are indicated with underlined text.)
Depending on the connected equipment, some items may be
shaded in grey on the display and cannot be selected, or you may
not be able to change the settings.
Audio Mode for XP RecordingChoose the audio type when recording or copying with XP mode.
[Dolby Digital
] (> 118) [LPCM] ( >119)
≥ The picture quality of LPCM recordings may be...")
92 RQT9434 Changing the unit’s settings (All factory default settings are indicated with underlined text.) (All factory default settings are indicated with underlined text.) Depending on the connected equipment, some items may be shaded in grey on the display and cannot be selected, or you may not be able to change the settings. Audio Mode for XP RecordingChoose the audio type when recording or copying with XP mode. [Dolby Digital ] (> 118) [LPCM] ( >119) ≥ The picture quality of LPCM recordings may be...
Page 93

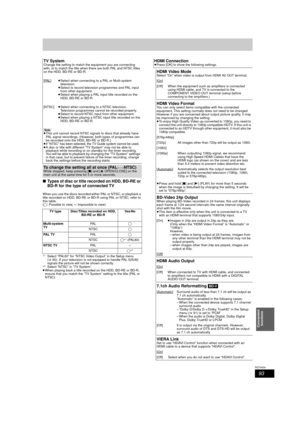

93 RQT9434 Convenient functions ∫ Types of disc or title recorded on HDD, BD-RE or BD-R for the type of connected TV When you use the discs recorded either PAL or NTSC, or playback a title recorded on HDD, BD-RE or BD-R using PAL or NTSC, refer to this table. (≤: Possible to view, –: Impossible to view) § 1Select “PAL60” for “NTSC Video Output” in the Setup menu (> 90). If your television is not equipped to handle PAL 525/60 signals the picture will not be shown correctly. § 2Select “NTSC” in “TV...

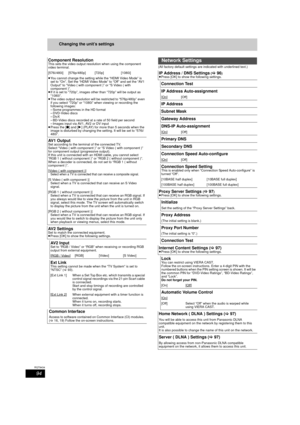

Page 94
![Page 94
94
RQT9434
Changing the unit’s settings
(All factory default settings are indicated with underlined text.)
Component ResolutionThis sets the video output resolution when using the component
video terminal.
[576i/480i] [576p/480p] [720p] [1080i]
≥You cannot change the setting while the “HDMI Video Mode” is
set to “On”. Set the “HDMI Video Mode” to “Off” and set the “AV1
Output” to “Video ( with component )” or “S Video ( with
component )”.
≥ If it is set to “720p”, images other than “720p” will be...](http://img.usermanuals.tech/thumb/58/66393/w300_dmr-bs850_en_om_d-93.png "Page 94
94
RQT9434
Changing the unit’s settings
(All factory default settings are indicated with underlined text.)
Component ResolutionThis sets the video output resolution when using the component
video terminal.
[576i/480i] [576p/480p] [720p] [1080i]
≥You cannot change the setting while the “HDMI Video Mode” is
set to “On”. Set the “HDMI Video Mode” to “Off” and set the “AV1
Output” to “Video ( with component )” or “S Video ( with
component )”.
≥ If it is set to “720p”, images other than “720p” will be...")
94 RQT9434 Changing the unit’s settings (All factory default settings are indicated with underlined text.) Component ResolutionThis sets the video output resolution when using the component video terminal. [576i/480i] [576p/480p] [720p] [1080i] ≥You cannot change the setting while the “HDMI Video Mode” is set to “On”. Set the “HDMI Video Mode” to “Off” and set the “AV1 Output” to “Video ( with component )” or “S Video ( with component )”. ≥ If it is set to “720p”, images other than “720p” will be...

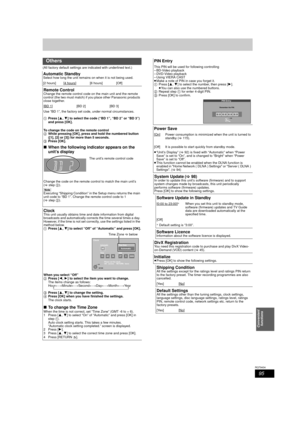

Page 95
![Page 95
95
RQT9434
Convenient functions
(All factory default settings ar e indicated with underlined text.)
Others
Automatic StandbySelect how long the unit remains on when it is not being used.
[2 hours] [4 hours
] [6 hours] [Off]
Remote ControlChange the remote control code on the main unit and the remote
control (the two must match) if you place other Panasonic products
close together.
[BD 1
][BD 2][ BD 3]
Use “BD 1”, the factory set code, under normal circumstances.
1 Press [ 3,4] to select the code (“BD...](http://img.usermanuals.tech/thumb/58/66393/w300_dmr-bs850_en_om_d-94.png "Page 95
95
RQT9434
Convenient functions
(All factory default settings ar e indicated with underlined text.)
Others
Automatic StandbySelect how long the unit remains on when it is not being used.
[2 hours] [4 hours
] [6 hours] [Off]
Remote ControlChange the remote control code on the main unit and the remote
control (the two must match) if you place other Panasonic products
close together.
[BD 1
][BD 2][ BD 3]
Use “BD 1”, the factory set code, under normal circumstances.
1 Press [ 3,4] to select the code (“BD...")
95 RQT9434 Convenient functions (All factory default settings ar e indicated with underlined text.) Others Automatic StandbySelect how long the unit remains on when it is not being used. [2 hours] [4 hours ] [6 hours] [Off] Remote ControlChange the remote control code on the main unit and the remote control (the two must match) if you place other Panasonic products close together. [BD 1 ][BD 2][ BD 3] Use “BD 1”, the factory set code, under normal circumstances. 1 Press [ 3,4] to select the code (“BD...

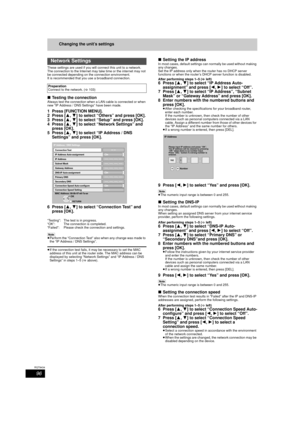

Page 96
![Page 96
96
RQT9434
Changing the unit’s settings
These settings are used if you will connect this unit to a network.
The connection to the Internet may take time or the internet may not
be connected depending on the connection environment.
It is recommended that you use a broadband connection.
∫ Testing the connectionAlways test the connection when a LAN cable is connected or when
new “IP Address / DNS Settings” have been made.
1 Press [FUNCTION MENU].
2 Press [ 3,4] to select “Others” and press [OK].
3 Press [...](http://img.usermanuals.tech/thumb/58/66393/w300_dmr-bs850_en_om_d-95.png "Page 96
96
RQT9434
Changing the unit’s settings
These settings are used if you will connect this unit to a network.
The connection to the Internet may take time or the internet may not
be connected depending on the connection environment.
It is recommended that you use a broadband connection.
∫ Testing the connectionAlways test the connection when a LAN cable is connected or when
new “IP Address / DNS Settings” have been made.
1 Press [FUNCTION MENU].
2 Press [ 3,4] to select “Others” and press [OK].
3 Press [...")
96 RQT9434 Changing the unit’s settings These settings are used if you will connect this unit to a network. The connection to the Internet may take time or the internet may not be connected depending on the connection environment. It is recommended that you use a broadband connection. ∫ Testing the connectionAlways test the connection when a LAN cable is connected or when new “IP Address / DNS Settings” have been made. 1 Press [FUNCTION MENU]. 2 Press [ 3,4] to select “Others” and press [OK]. 3 Press [...

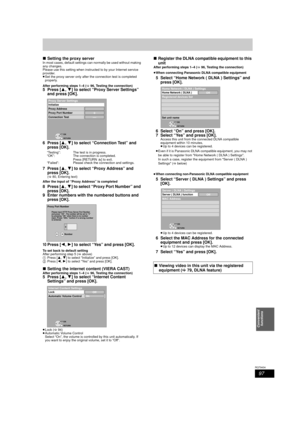

Page 97
![Page 97
97
RQT9434
Convenient functions
∫ Setting the proxy serverIn most cases, default settings can normally be used without making
any changes.
Please use this setting when instruct ed to by your Internet service
provider.
≥ Set the proxy server only after the connection test is completed
properly.
After performing steps 1–4 ( >96, Testing the connection)
5 Press [ 3,4] to select “Proxy Server Settings”
and press [OK].
6 Press [ 3,4] to select “Connection Test” and
press [OK].
7 Press [ 3,4] to select...](http://img.usermanuals.tech/thumb/58/66393/w300_dmr-bs850_en_om_d-96.png "Page 97
97
RQT9434
Convenient functions
∫ Setting the proxy serverIn most cases, default settings can normally be used without making
any changes.
Please use this setting when instruct ed to by your Internet service
provider.
≥ Set the proxy server only after the connection test is completed
properly.
After performing steps 1–4 ( >96, Testing the connection)
5 Press [ 3,4] to select “Proxy Server Settings”
and press [OK].
6 Press [ 3,4] to select “Connection Test” and
press [OK].
7 Press [ 3,4] to select...")
97 RQT9434 Convenient functions ∫ Setting the proxy serverIn most cases, default settings can normally be used without making any changes. Please use this setting when instruct ed to by your Internet service provider. ≥ Set the proxy server only after the connection test is completed properly. After performing steps 1–4 ( >96, Testing the connection) 5 Press [ 3,4] to select “Proxy Server Settings” and press [OK]. 6 Press [ 3,4] to select “Connection Test” and press [OK]. 7 Press [ 3,4] to select...

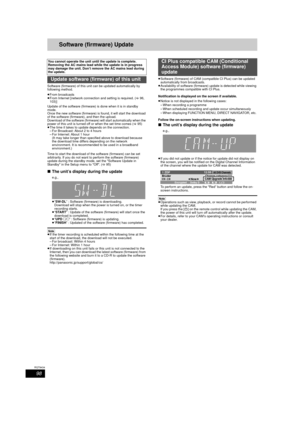

Page 98
![Page 98
98
RQT9434
Software (firmware) Update
Software (firmware) of this unit can be updated automatically by
following method.
≥From broadcasts
≥ From Internet [network connection and setting is required. ( >96,
103)]
Update of the software (firmware) is done when it is in standby
mode.
Once the new software (firmware) is found, it will start the download
of the software (firmware), and then the upload.
Download of the software (firmware) will start automatically when the
power of this unit is turned...](http://img.usermanuals.tech/thumb/58/66393/w300_dmr-bs850_en_om_d-97.png "Page 98
98
RQT9434
Software (firmware) Update
Software (firmware) of this unit can be updated automatically by
following method.
≥From broadcasts
≥ From Internet [network connection and setting is required. ( >96,
103)]
Update of the software (firmware) is done when it is in standby
mode.
Once the new software (firmware) is found, it will start the download
of the software (firmware), and then the upload.
Download of the software (firmware) will start automatically when the
power of this unit is turned...")
98 RQT9434 Software (firmware) Update Software (firmware) of this unit can be updated automatically by following method. ≥From broadcasts ≥ From Internet [network connection and setting is required. ( >96, 103)] Update of the software (firmware) is done when it is in standby mode. Once the new software (firmware) is found, it will start the download of the software (firmware), and then the upload. Download of the software (firmware) will start automatically when the power of this unit is turned...

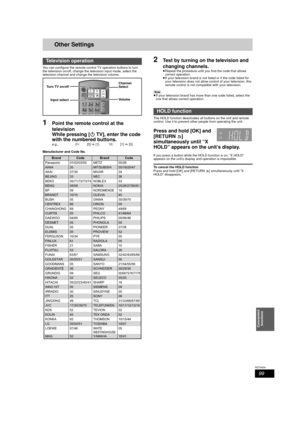

Page 99
![Page 99
99
RQT9434
Convenient functions
Other Settings
You can configure the remote control TV operation buttons to turn
the television on/off, change the television input mode, select the
television channel and change the television volume.
1Point the remote control at the
television
While pressing [ ÍTV], enter the code
with the numbered buttons.
Manufacturer and Code No.
2Test by turning on the television and
changing channels.
≥ Repeat the procedure until you find the code that allows
correct...](http://img.usermanuals.tech/thumb/58/66393/w300_dmr-bs850_en_om_d-98.png "Page 99
99
RQT9434
Convenient functions
Other Settings
You can configure the remote control TV operation buttons to turn
the television on/off, change the television input mode, select the
television channel and change the television volume.
1Point the remote control at the
television
While pressing [ ÍTV], enter the code
with the numbered buttons.
Manufacturer and Code No.
2Test by turning on the television and
changing channels.
≥ Repeat the procedure until you find the code that allows
correct...")
99 RQT9434 Convenient functions Other Settings You can configure the remote control TV operation buttons to turn the television on/off, change the television input mode, select the television channel and change the television volume. 1Point the remote control at the television While pressing [ ÍTV], enter the code with the numbered buttons. Manufacturer and Code No. 2Test by turning on the television and changing channels. ≥ Repeat the procedure until you find the code that allows correct...

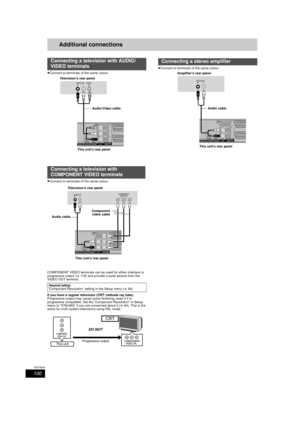

Page 100
100 RQT9434 Additional connections ≥Connect to terminals of the same colour. ≥ Connect to terminals of the same colour. COMPONENT VIDEO terminals can be used for either interlace or progressive output ( >119) and provide a purer picture than the VIDEO OUT terminal. If you have a regular television (CRT: cathode ray tube) Progressive output may cause some flickering, even if it is progressive compatible. Set the “Component Resolution” in Setup menu to “576i/480i” if you are concerned about it ( >94)....
