Panasonic Dmr Bs850 Operating Instructions Manual

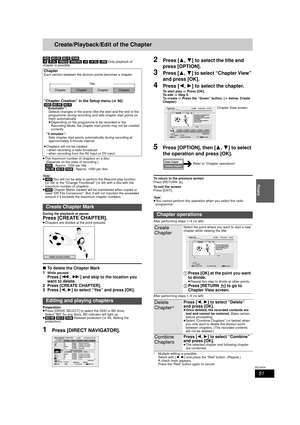

51
RQT9434
Editing
Create/Playback/Edit of the Chapter
[HDD] [BD-RE]  [BD-R] [RAM]
[-R] [-R]DL]  [-RW‹V›] [-RW‹VR›] [+R]  [+R]DL] [+RW] Only playback of
chapter is possible.
≥ The maximum number of chapters on a disc:
 (Depends on the state of recording.)
[HDD]  : Approx. 1000 per title
[BD-RE]  [BD-R] [RAM] : Approx. 1000 per disc
[Note]
≥ [HDD]  You will not be able to perform the Resume play function
( > 39) or the “Change Thumbnail” ( >49) with a title with the
maximum number of chapters.
≥ [HDD]...

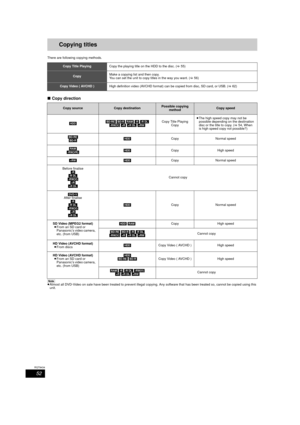

52
RQT9434
Copying titlesCopying
There are following copying methods.
∫Copy direction
[Note]
≥Almost all DVD-Video on sale have been treated to prevent illegal c opying. Any software that has been treated so, cannot be copied using this
unit.
Copy Title Playing Copy the playing title on the HDD to the disc. (> 55)
CopyMake a copying list and then copy.
You can set the unit to copy titles in the way you want. (
>56)
Copy Video ( AVCHD ) High definition video (AVCHD format) can be copied from disc, SD...

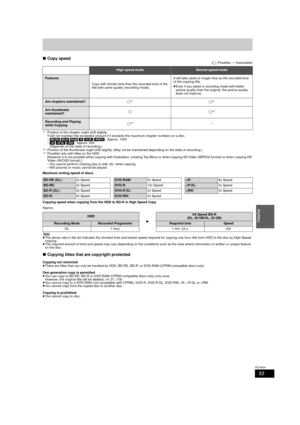

53
RQT9434
Copying
∫Copy speed(≤: Possible, –: Impossible)
§ 1Position of the chapter might shift slightly.
It will not maintain the exceeded amount if it exceeds the maximum chapter numbers on a disc.
–[BD-RE]  [BD-R] [RAM] [-R] [-R]DL]  [-RW‹V›] : Approx. 1000
– [+R]  [+R]DL] [+RW]  : Approx. 254
(Depends on the state of recording.)
§ 2Position of the thumbnails might shift slightly. (May  not be maintained depending on the state of recording.)§3Possible only with titles on the HDD
[However it is not...

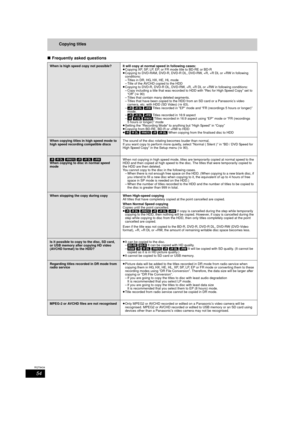

54
RQT9434
Copying titles
∫ Frequently asked questions
When is high speed copy not possible? It w ill copy at normal speed in following cases:
≥ Copying XP, SP, LP, EP, or FR mode title to BD-RE or BD-R
≥ Copying to DVD-RAM, DVD-R, DVD-R DL, DVD-RW, +R, +R DL or +RW in following
conditions:
– Titles in DR, HG, HX, HE, HL  mode
– Title of the AVCHD copied to the HDD
≥ Copying to DVD-R, DVD-R DL, DVD-RW, +R, +R DL or +RW in following conditions:
– Copy including a title that was recorded to HDD with “Rec...

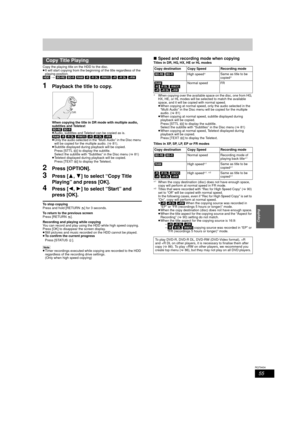

55
RQT9434
Copying
Copy the playing title on the HDD to the disc.
≥It will start copying from the beginning of the title regardless of the
playing position.
[HDD]  > [BD-RE]  [BD-R]  [RAM]  [-R] [-R]DL]  [-RW‹V›]  [+R] [+R]DL]  [+RW]
1Playback the title to copy.
When copying the title in DR mode with multiple audio,
subtitles and Teletext
[BD-RE]  [BD-R]
≥ Audio, subtitles and Teletext can be copied as is.
[RAM] [-R] [-R]DL]  [-RW‹V›] [+R] [+R]DL]  [+RW]
≥ Only the audio selected in the “Multi Audio”...

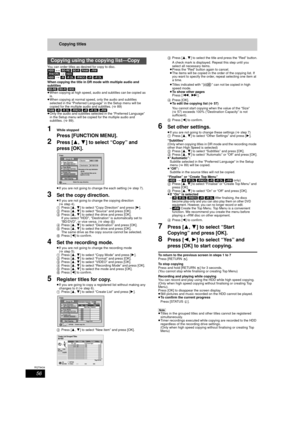

56
RQT9434
Copying titles
You can order titles as desired for copy to disc.
[HDD]  ,-. [BD-RE]  [BD-R] [RAM] [+RW]
[-RW‹VR›] >  [HDD]
[HDD]  > [-R] [-R]DL]  [-RW‹V›] [+R] [+R]DL]
When copying the title in DR mode with multiple audio and
subtitles
[BD-RE]  [BD-R] [HDD]
≥ When copying at high speed, audio  and subtitles can be copied as
is.
≥ When copying at normal speed,  only the audio and subtitles
selected in the “Preferred Language” in the Setup menu will be
copied for the multiple audio and...

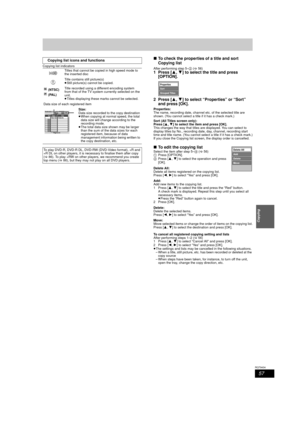

57
RQT9434
Copying
Copying list indicators
∫To check the properties of a title and sort
Copying list
After performing step 5– 2 (> 56)1Press [ 3,4 ] to select the title and press
[OPTION].
2Press [ 3,4 ] to select “Properties” or “Sort”
and press [OK].
Properties:
The name, recording date, channel etc. of the selected title are
shown. (You cannot select a title if it has a check mark.)
Sort (All Titles screen only):
Press [ 3,4] to select the item and press [OK].
This changes the way that titles ar e...

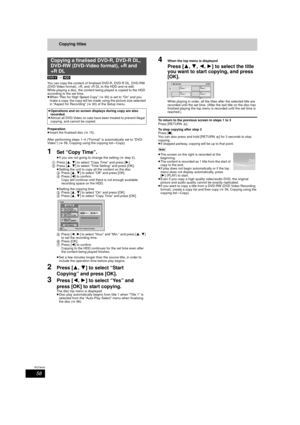

58
RQT9434
Copying titles
[DVD-V] > [HDD]
You can copy the content of fina lised DVD-R, DVD-R DL, DVD-RW
(DVD-Video format), +R, and +R DL to the HDD and re-edit.
While playing a disc, the content bei ng played is copied to the HDD
according to the set time.
≥ When “Rec for High Speed Copy” ( >90) is set to “On” and you
make a copy, the copy will be made using the picture size selected
in “Aspect for Recording” ( >90) of the Setup menu.
Preparation
≥ Insert the finalised disc (> 15).
After performing...

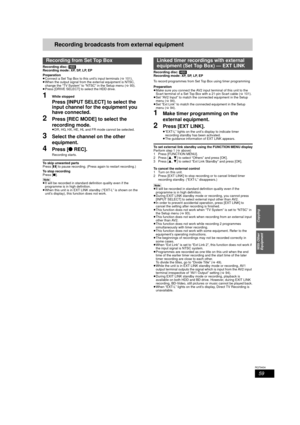

59
RQT9434
With Other
Equipment
Recording broadcasts fr om external equipmentWith Other
Equipment
Recording disc: [HDD]
Recording mode: XP, SP, LP, EP
Preparation
≥ Connect a Set Top Box to this unit’s input terminals ( >101).
≥ When the output signal from the external equipment is NTSC,
change the “TV System” to “NTSC” in the Setup menu ( >93).
≥ Press [DRIVE SELECT] to select the HDD drive.
1While stopped
Press [INPUT SELECT] to select the
input channel for the equipment you
have connected....

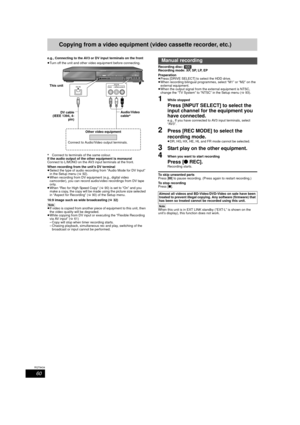

60
RQT9434
Copying from a video equipment (video cassette recorder, etc.)
e.g., Connecting to the AV3 or DV input terminals on the front
≥Turn off the unit and other video equipment before connecting.
§Connect to terminals of the same colour.
If the audio output of the other equipment is monaural
Connect to L/MONO on the AV3 input terminals at the front.
When recording from the unit’s DV terminal
≥ Select the type of audio recording from “Audio Mode for DV Input”
in the Setup menu (> 92).
≥ When...
