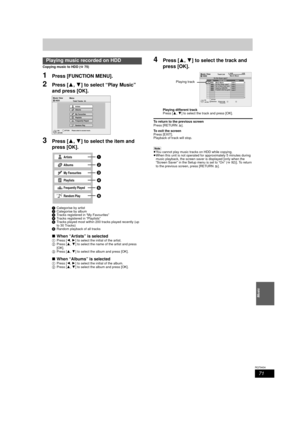

Page 71
![Page 71
71
RQT9434
Music
Copying music to HDD (>75)
1Press [FUNCTION MENU].
2Press [ 3,4] to select “Play Music”
and press [OK].
3Press [ 3,4] to select the item and
press [OK].
1 Categorise by artist
2 Categorise by album
3 Tracks registered in “My Favourites”
4 Tracks registered in “Playlists”
5 Tracks played most within 200 tracks played recently (up
to 30 Tracks)
6 Random playback of all tracks
∫When “Artists” is selected1 Press [ 2,1] to select the initial of the artist.
2 Press [ 3,4] to select the...](http://img.usermanuals.tech/thumb/58/66393/w300_dmr-bs850_en_om_d-70.png "Page 71
71
RQT9434
Music
Copying music to HDD (>75)
1Press [FUNCTION MENU].
2Press [ 3,4] to select “Play Music”
and press [OK].
3Press [ 3,4] to select the item and
press [OK].
1 Categorise by artist
2 Categorise by album
3 Tracks registered in “My Favourites”
4 Tracks registered in “Playlists”
5 Tracks played most within 200 tracks played recently (up
to 30 Tracks)
6 Random playback of all tracks
∫When “Artists” is selected1 Press [ 2,1] to select the initial of the artist.
2 Press [ 3,4] to select the...")
71 RQT9434 Music Copying music to HDD (>75) 1Press [FUNCTION MENU]. 2Press [ 3,4] to select “Play Music” and press [OK]. 3Press [ 3,4] to select the item and press [OK]. 1 Categorise by artist 2 Categorise by album 3 Tracks registered in “My Favourites” 4 Tracks registered in “Playlists” 5 Tracks played most within 200 tracks played recently (up to 30 Tracks) 6 Random playback of all tracks ∫When “Artists” is selected1 Press [ 2,1] to select the initial of the artist. 2 Press [ 3,4] to select the...

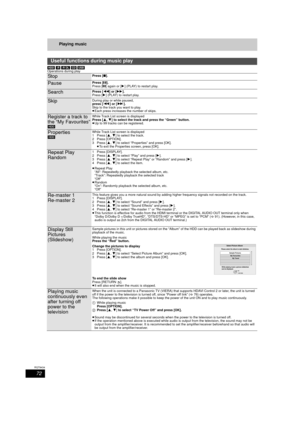

Page 72
![Page 72
72
RQT9434
Playing music
[HDD] [-R] [-R]DL] [CD] [USB]
Operations during play
Useful functions during music play
StopPress [ ∫].
PausePress [ ;].
Press [ ;] again or [ 1] (PLAY) to restart play.
SearchPress [6] or [ 5].
Press [ 1] (PLAY) to restart play.
SkipDuring play or while paused,
press [ :] or [ 9].
Skip to the track you want to play.
≥ Each press increases the number of skips.
Register a track to
the “My Favourites”
[HDD] While Track List screen is displayed
Press [
3,4] to select the track...](http://img.usermanuals.tech/thumb/58/66393/w300_dmr-bs850_en_om_d-71.png "Page 72
72
RQT9434
Playing music
[HDD] [-R] [-R]DL] [CD] [USB]
Operations during play
Useful functions during music play
StopPress [ ∫].
PausePress [ ;].
Press [ ;] again or [ 1] (PLAY) to restart play.
SearchPress [6] or [ 5].
Press [ 1] (PLAY) to restart play.
SkipDuring play or while paused,
press [ :] or [ 9].
Skip to the track you want to play.
≥ Each press increases the number of skips.
Register a track to
the “My Favourites”
[HDD] While Track List screen is displayed
Press [
3,4] to select the track...")
72 RQT9434 Playing music [HDD] [-R] [-R]DL] [CD] [USB] Operations during play Useful functions during music play StopPress [ ∫]. PausePress [ ;]. Press [ ;] again or [ 1] (PLAY) to restart play. SearchPress [6] or [ 5]. Press [ 1] (PLAY) to restart play. SkipDuring play or while paused, press [ :] or [ 9]. Skip to the track you want to play. ≥ Each press increases the number of skips. Register a track to the “My Favourites” [HDD] While Track List screen is displayed Press [ 3,4] to select the track...

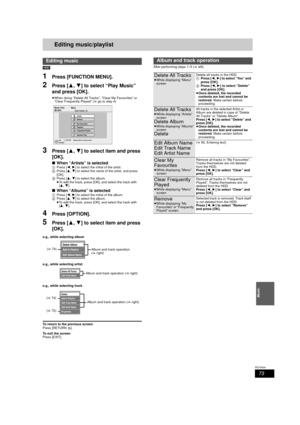

Page 73
![Page 73
73
RQT9434
Music
Editing music/playlist
[HDD]
1Press [FUNCTION MENU].
2Press [3,4] to select “Play Music”
and press [OK].
≥ When doing “Delete All Tracks”, “Clear My Favourites” or
“Clear Frequently Played” ( >go to step 4)
3Press [ 3,4] to select item and press
[OK].
∫ When “Artists” is selected1 Press [ 2,1] to select the initial of the artist.
2 Press [ 3,4] to select the name of the artist, and press
[OK].
3 Press [ 3,4] to select the album.
≥ To edit the track, press [OK], and select the track...](http://img.usermanuals.tech/thumb/58/66393/w300_dmr-bs850_en_om_d-72.png "Page 73
73
RQT9434
Music
Editing music/playlist
[HDD]
1Press [FUNCTION MENU].
2Press [3,4] to select “Play Music”
and press [OK].
≥ When doing “Delete All Tracks”, “Clear My Favourites” or
“Clear Frequently Played” ( >go to step 4)
3Press [ 3,4] to select item and press
[OK].
∫ When “Artists” is selected1 Press [ 2,1] to select the initial of the artist.
2 Press [ 3,4] to select the name of the artist, and press
[OK].
3 Press [ 3,4] to select the album.
≥ To edit the track, press [OK], and select the track...")
73 RQT9434 Music Editing music/playlist [HDD] 1Press [FUNCTION MENU]. 2Press [3,4] to select “Play Music” and press [OK]. ≥ When doing “Delete All Tracks”, “Clear My Favourites” or “Clear Frequently Played” ( >go to step 4) 3Press [ 3,4] to select item and press [OK]. ∫ When “Artists” is selected1 Press [ 2,1] to select the initial of the artist. 2 Press [ 3,4] to select the name of the artist, and press [OK]. 3 Press [ 3,4] to select the album. ≥ To edit the track, press [OK], and select the track...

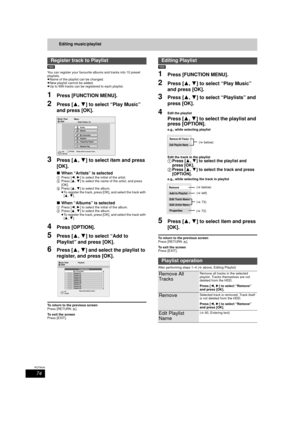

Page 74
![Page 74
74
RQT9434
Editing music/playlist
[HDD]
You can register your favourite albums and tracks into 10 preset
playlists.
≥Name of the playlist can be changed.
≥ New playlist cannot be added.
≥ Up to 999 tracks can be regi stered to each playlist.
1Press [FUNCTION MENU].
2Press [3,4] to select “Play Music”
and press [OK].
3Press [ 3,4] to select item and press
[OK].
∫ When “Artists” is selected1 Press [ 2,1] to select the initial of the artist.
2 Press [ 3,4] to select the name of the artist, and press...](http://img.usermanuals.tech/thumb/58/66393/w300_dmr-bs850_en_om_d-73.png "Page 74
74
RQT9434
Editing music/playlist
[HDD]
You can register your favourite albums and tracks into 10 preset
playlists.
≥Name of the playlist can be changed.
≥ New playlist cannot be added.
≥ Up to 999 tracks can be regi stered to each playlist.
1Press [FUNCTION MENU].
2Press [3,4] to select “Play Music”
and press [OK].
3Press [ 3,4] to select item and press
[OK].
∫ When “Artists” is selected1 Press [ 2,1] to select the initial of the artist.
2 Press [ 3,4] to select the name of the artist, and press...")
74 RQT9434 Editing music/playlist [HDD] You can register your favourite albums and tracks into 10 preset playlists. ≥Name of the playlist can be changed. ≥ New playlist cannot be added. ≥ Up to 999 tracks can be regi stered to each playlist. 1Press [FUNCTION MENU]. 2Press [3,4] to select “Play Music” and press [OK]. 3Press [ 3,4] to select item and press [OK]. ∫ When “Artists” is selected1 Press [ 2,1] to select the initial of the artist. 2 Press [ 3,4] to select the name of the artist, and press...

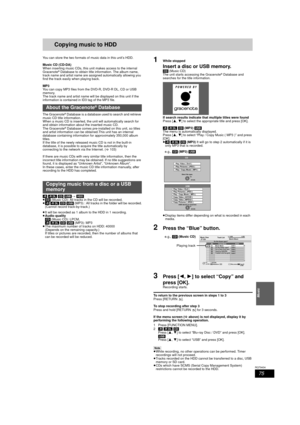

Page 75
75 RQT9434 Music Copying music to HDD You can store the two formats of music data in this unit’s HDD. Music CD (CD-DA) When inserting music CDs, this unit makes access to the internal Gracenote ® Database to obtain title information. The album name, track name and artist name are as signed automatically allowing you find the track easily when playing back. MP3 You can copy MP3 files from the DVD-R, DVD-R DL, CD or USB memory. The track name and artist name will be displayed on this unit if the...

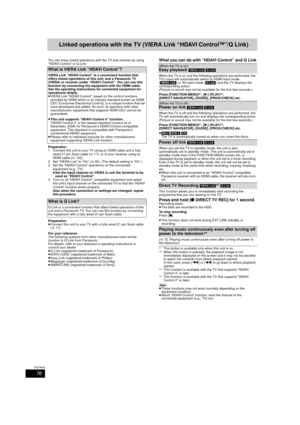

Page 76
76 RQT9434 Linked operations with the TV (VIERA Link “HDAVI ControlTM”/QLink )Others Convenient functions You can enjoy linked operations with the TV and receiver by using “HDAVI Control” or Q Link. What is VIERA Link “HDAVI Control”? VIERA Link “HDAVI Control” is a convenient function that offers linked operations of this unit, and a Panasonic TV (VIERA) or receiver under “HDAVI Control”. You can use this function by connecting the equipment with the HDMI cable. See the operating instructions for...

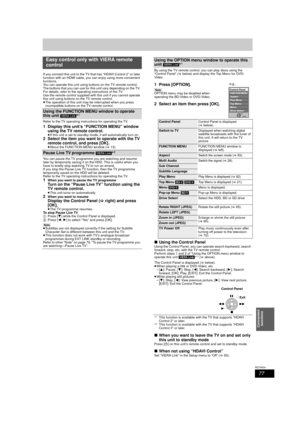

Page 77
77 RQT9434 Convenient functions Easy control only with VIERA remote control If you connect this unit to the TV that has “HDAVI Control 2” or later function with an HDMI cable, you can enjoy using more convenient functions. You can operate this unit using buttons on the TV remote control. The buttons that you can use for this unit vary depending on the TV. For details, refer to the operating instructions of the TV. Use the remote control supplied with this unit if you cannot operate this unit using...

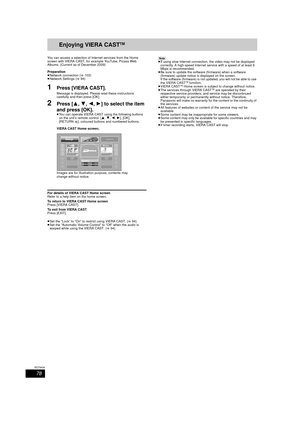

Page 78
![Page 78
78
RQT9434
Enjoying VIERA CASTTM
You can access a selection of Internet services from the Home
screen with VIERA CAST, for example YouTube, Picasa Web
Albums. (Current as of December 2009)
Preparation
≥Network connection ( >103)
≥ Network Settings ( >94)
1Press [VIERA CAST].
Message is displayed. Please read these instructions
carefully and then press [OK].
2Press [ 3,4,2,1] to select the item
and press [OK].
≥ You can operate VIERA CAST using the following buttons
on the unit’s remote control. [...](http://img.usermanuals.tech/thumb/58/66393/w300_dmr-bs850_en_om_d-77.png "Page 78
78
RQT9434
Enjoying VIERA CASTTM
You can access a selection of Internet services from the Home
screen with VIERA CAST, for example YouTube, Picasa Web
Albums. (Current as of December 2009)
Preparation
≥Network connection ( >103)
≥ Network Settings ( >94)
1Press [VIERA CAST].
Message is displayed. Please read these instructions
carefully and then press [OK].
2Press [ 3,4,2,1] to select the item
and press [OK].
≥ You can operate VIERA CAST using the following buttons
on the unit’s remote control. [...")
78 RQT9434 Enjoying VIERA CASTTM You can access a selection of Internet services from the Home screen with VIERA CAST, for example YouTube, Picasa Web Albums. (Current as of December 2009) Preparation ≥Network connection ( >103) ≥ Network Settings ( >94) 1Press [VIERA CAST]. Message is displayed. Please read these instructions carefully and then press [OK]. 2Press [ 3,4,2,1] to select the item and press [OK]. ≥ You can operate VIERA CAST using the following buttons on the unit’s remote control. [...

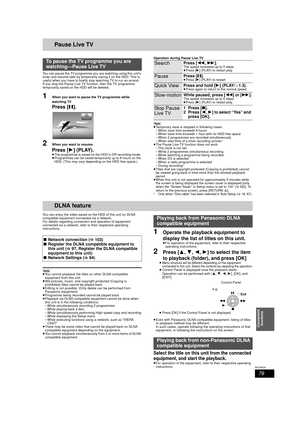

Page 79
![Page 79
79
RQT9434
Convenient functions
Pause Live TV
You can pause the TV programme yo u are watching using this unit’s
tuner and resume later by temporarily saving it on the HDD. This is
useful when you have to briefly stop watching TV to run an errand.
If you stop the Pause Live TV function, then the TV programme
temporarily saved on the HDD will be deleted.
1When you want to pause the TV programme while
watching TV
Press [ ;].
2When you want to resume
Press [1](PLAY).≥The programme is saved on the HDD in...](http://img.usermanuals.tech/thumb/58/66393/w300_dmr-bs850_en_om_d-78.png "Page 79
79
RQT9434
Convenient functions
Pause Live TV
You can pause the TV programme yo u are watching using this unit’s
tuner and resume later by temporarily saving it on the HDD. This is
useful when you have to briefly stop watching TV to run an errand.
If you stop the Pause Live TV function, then the TV programme
temporarily saved on the HDD will be deleted.
1When you want to pause the TV programme while
watching TV
Press [ ;].
2When you want to resume
Press [1](PLAY).≥The programme is saved on the HDD in...")
79 RQT9434 Convenient functions Pause Live TV You can pause the TV programme yo u are watching using this unit’s tuner and resume later by temporarily saving it on the HDD. This is useful when you have to briefly stop watching TV to run an errand. If you stop the Pause Live TV function, then the TV programme temporarily saved on the HDD will be deleted. 1When you want to pause the TV programme while watching TV Press [ ;]. 2When you want to resume Press [1](PLAY).≥The programme is saved on the HDD in...

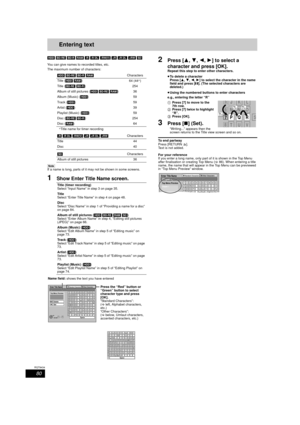

Page 80
![Page 80
80
RQT9434
Entering text
[HDD] [BD-RE] [BD-R] [RAM] [-R] [-R]DL] [-RW‹V›] [+R] [+R]DL] [+RW] [SD]
You can give names to recorded titles, etc.
The maximum number of characters:
§Title name for timer recording
[Note]
If a name is long, parts of it may not be shown in some screens.
1Show Enter Title Name screen.
2Press [ 3,4,2,1] to select a
character and press [OK].
Repeat this step to enter other characters.
≥ To delete a character
Press [ 3,4,2,1] to select the character in the name
field and press...](http://img.usermanuals.tech/thumb/58/66393/w300_dmr-bs850_en_om_d-79.png "Page 80
80
RQT9434
Entering text
[HDD] [BD-RE] [BD-R] [RAM] [-R] [-R]DL] [-RW‹V›] [+R] [+R]DL] [+RW] [SD]
You can give names to recorded titles, etc.
The maximum number of characters:
§Title name for timer recording
[Note]
If a name is long, parts of it may not be shown in some screens.
1Show Enter Title Name screen.
2Press [ 3,4,2,1] to select a
character and press [OK].
Repeat this step to enter other characters.
≥ To delete a character
Press [ 3,4,2,1] to select the character in the name
field and press...")
80 RQT9434 Entering text [HDD] [BD-RE] [BD-R] [RAM] [-R] [-R]DL] [-RW‹V›] [+R] [+R]DL] [+RW] [SD] You can give names to recorded titles, etc. The maximum number of characters: §Title name for timer recording [Note] If a name is long, parts of it may not be shown in some screens. 1Show Enter Title Name screen. 2Press [ 3,4,2,1] to select a character and press [OK]. Repeat this step to enter other characters. ≥ To delete a character Press [ 3,4,2,1] to select the character in the name field and press...
