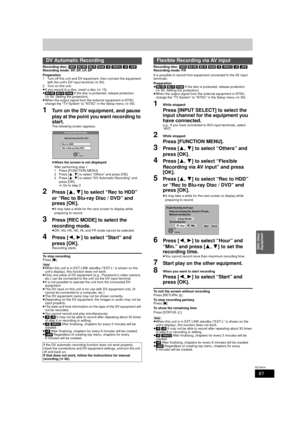

61
RQT9434
With Other
Equipment
Recording disc:  [HDD] [BD-RE]  [BD-R] [RAM]  [-R] [-RW‹V›] [+R]  [+RW]
Recording mode: XP, SP, LP, EP
Preparation
1 Turn off this unit and DV equipment, then connect the equipment
with the unit’s DV input terminal ( >60).
2 Turn on this unit.
≥ If you record to a disc, insert a disc ( >15).
≥ [BD-RE]  [BD-R] [RAM] If the disc is protected, release protection
( > 84, Setting the protection).
≥ When the output signal from the external equipment is NTSC,
change the “TV...

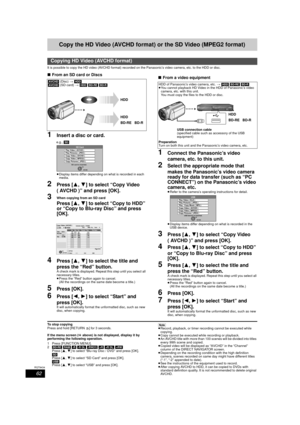

62
RQT9434
Copy the HD Video (AVCHD format) or the SD Video (MPEG2 format)
It is possible to copy the HD video (AVCHD format) recorded on the Panasonic’s video camera, etc. to the HDD or disc.
∫From an SD card or Discs
1Insert a disc or card.
≥Display items differ depending on what is recorded in each
media.
2Press [ 3,4] to select “Copy Video
( AVCHD )” and press [OK].
3When copying from an SD card
Press [ 3,4] to select “Copy to HDD”
or “Copy to Blu-ray Disc” and press
[OK].
4Press [ 3,4] to...

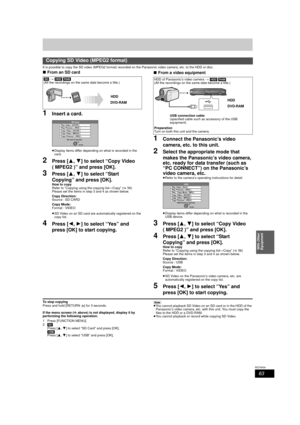

63
RQT9434
With Other
Equipment
It is possible to copy the SD video (MPEG2 format) recor ded on the Panasonic video camera, etc. to the HDD or disc.
∫From an SD card
1Insert a card.
≥Display items differ depending on what is recorded in the
card.
2Press [ 3,4] to select “Copy Video
( MPEG2 )” and press [OK].
3Press [ 3,4] to select “Start
Copying” and press [OK].
How to copy
Refer to “Copying using  the copying list—Copy” ( >56)
Please set the items in step 3 and 4 as shown below.
Copy Direction:...

64
RQT9434
Playing still picturesStill pictures
Still pictures
[HDD] [BD-RE]  [RAM] [-R]  [-R]DL] [CD] [USB]  [SD]
≥ You can play still pictures recorded with a computer onto a BD-RE,
DVD-R, DVD-R DL, CD-R/CD-RW, USB memory and SD card.
≥ You cannot play still pictures  while recording or copying.
1[HDD]
Press [FUNCTION MENU].
[BD-RE] [RAM] [-R]  [-R]DL] [CD]  [USB] [SD]Insert the disc, the SD card or USB memory.The display below automatically appears.
≥Display items differ depending on what is recorded...

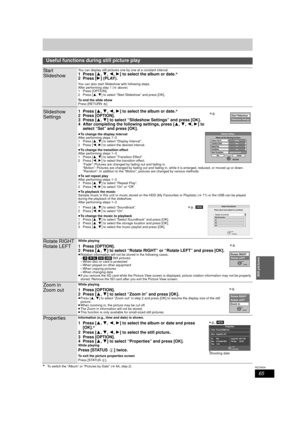

65
RQT9434
Still pictures
§To switch the “Album” or “Pictures by Date” (>64, step 2)
Useful functions during still picture play
Sta r t
SlideshowYou can display still pictures one by one at a constant interval.
1 Press [3,4 ,2 ,1] to select the album or date.§
2 Press [ 1](PLAY).
You can also start Slides how with following steps.
After performing step 1 ( >above)
1 Press [OPTION].
2 Press [ 3,4] to select “Start Slideshow” and press [OK].
To end the slide show
Press [RETURN ].
Slideshow
Settings1...

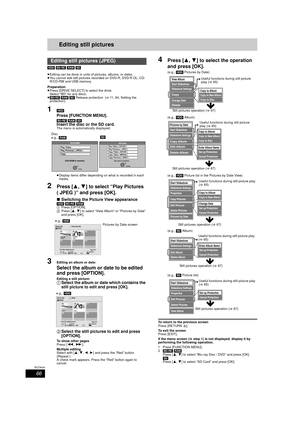

66
RQT9434
Editing still pictures
[HDD] [BD-RE]  [RAM] [SD]
≥ Editing can be done in units of pictures, albums, or dates.
≥ You cannot edit still pictures recorded on DVD-R, DVD-R DL, CD-
R/CD-RW and USB memory.
Preparation
≥ Press [DRIVE SELECT] to select the drive.
Select “BD” for any discs.
≥ [BD-RE]  [RAM] [SD]  Release protection ( >11, 84, Setting the
protection).
1[HDD]
Press [FUNCTION MENU].
[BD-RE]  [RAM] [SD]Insert the disc or the SD card.The menu is automat ically displayed.
≥ Display items...

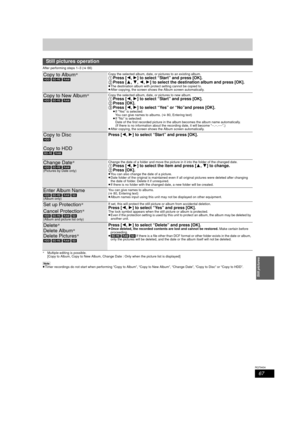

67
RQT9434
Still pictures
After performing steps 1–3 (>66)
§Multiple editing is possible.
[Copy to Album, Copy to New Album, Change Date : Only when the picture list is displayed]
[Note]
≥ Timer recordings do not start when performing “Copy to Album”, “C opy to New Album”, “Change Date”, “Copy to Disc” or “Copy to HDD”.
Still pictures operation
Copy to Album§
[HDD] [BD-RE]  [RAM] Copy the selected album, date, or pictures to an existing album. 1
Press [ 2,1] to select “Start” and press [OK].
2 Press [...

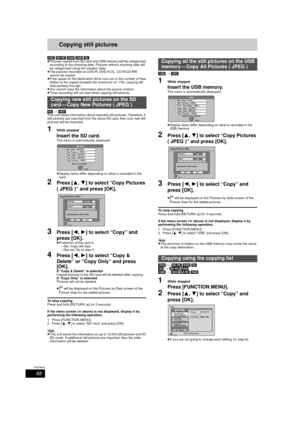

68
RQT9434
Copying still pictures
[HDD] [BD-RE]  [RAM] [USB]  [SD]
≥ Pictures copied from SD card a nd USB memory will be categorised
according to the shooting date. Pi ctures without shooting date will
be categorised using the creation date.
≥ The pictures recorded on DVD-R, DVD-R DL, CD-R/CD-RW
cannot be copied.
≥ If the space on the destination drive runs out or the number of files/
folders to be copied exceeds the maximum ( >116), copying will
stop partway through.
≥ You cannot copy the...

69
RQT9434
Still pictures
3Set the copy direction.
≥If you are not going to change the copying direction
(> step 4).
1 Press [ 3,4] to select “Copy Direction” and press [ 1].
2 Press [ 3,4] to select “Source” and press [OK].
3 Press [ 3,4] to select the drive and press [OK].
4 Press [ 3,4] to select “Destination” and press [OK].
5 Press [ 3,4] to select the drive and press [OK].
The same drive as the copy source cannot be selected.
6 Press [ 2] to confirm.
4Set the copy mode.
≥If you are not going to...

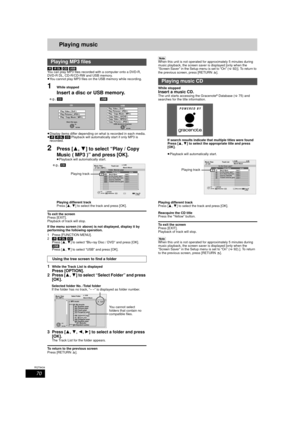

70
RQT9434
Playing musicMusic
Music
[-R] [-R]DL] [CD] [USB]
You can play MP3 files recorded with a computer onto a DVD-R,
DVD-R DL, CD-R/CD-RW and USB memory.
≥ You cannot play MP3 files on t he USB memory while recording.
1While stopped
Insert a disc or USB memory.
≥Display items differ depending on what is recorded in each media.
≥ [-R] [-R]DL] [CD] Playback will automat ically start if only MP3 is
recorded.
2Press [ 3,4] to select “Play / Copy
Music ( MP3 )” and press [OK].
≥ Playback will autom...
