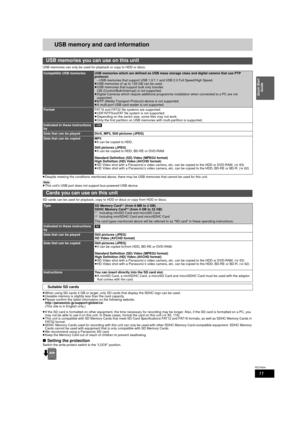

USB memory and card information
USB memories can only be used for play back or copy to HDD or discs.
≥ Despite meeting the conditions mentioned above, there ma y be USB memories that cannot be used for this unit.
[Note]
≥ This unit’s USB port does not support bus-powered USB device.
SD cards can be used for playback, copy to HDD or discs or copy from HDD or discs.
≥ When using SD cards 4 GB or larger, only SD cards that display the SDHC logo can be used.
≥ Useable memory is...](http://img.usermanuals.tech/thumb/58/66393/w300_dmr-bs850_en_om_d-10.png "Page 11
11
RQT9434
Quick Start Guide
USB memory and card information
USB memories can only be used for play back or copy to HDD or discs.
≥ Despite meeting the conditions mentioned above, there ma y be USB memories that cannot be used for this unit.
[Note]
≥ This unit’s USB port does not support bus-powered USB device.
SD cards can be used for playback, copy to HDD or discs or copy from HDD or discs.
≥ When using SD cards 4 GB or larger, only SD cards that display the SDHC logo can be used.
≥ Useable memory is...")
11 RQT9434 Quick Start Guide USB memory and card information USB memories can only be used for play back or copy to HDD or discs. ≥ Despite meeting the conditions mentioned above, there ma y be USB memories that cannot be used for this unit. [Note] ≥ This unit’s USB port does not support bus-powered USB device. SD cards can be used for playback, copy to HDD or discs or copy from HDD or discs. ≥ When using SD cards 4 GB or larger, only SD cards that display the SDHC logo can be used. ≥ Useable memory is...
Page 12
![Page 12
12
RQT9434

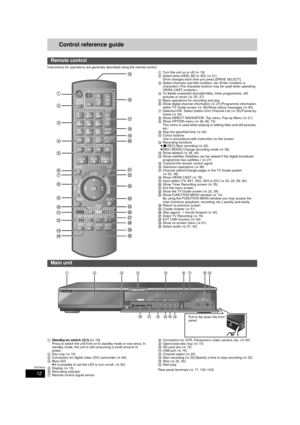

Control reference guide
Instructions for operations are generally described using the remote control.1Turn the unit on or off ( >18)
2 Select drive (HDD, BD or SD) ( >21)
Drive changes each time yo u press [DRIVE SELECT].
3 Select channels and title numbers, etc./Enter numbers or
characters (The character buttons may be used when operating
VIERA CAST contents.)
4 To delete unwanted recorded titles, timer programmes, still
pictures or music (> 25, 37)
5 Basic operations for recording and...](http://img.usermanuals.tech/thumb/58/66393/w300_dmr-bs850_en_om_d-11.png "Page 12
12
RQT9434
Control reference guide
Instructions for operations are generally described using the remote control.1Turn the unit on or off ( >18)
2 Select drive (HDD, BD or SD) ( >21)
Drive changes each time yo u press [DRIVE SELECT].
3 Select channels and title numbers, etc./Enter numbers or
characters (The character buttons may be used when operating
VIERA CAST contents.)
4 To delete unwanted recorded titles, timer programmes, still
pictures or music (> 25, 37)
5 Basic operations for recording and...")
12 RQT9434 Control reference guide Instructions for operations are generally described using the remote control.1Turn the unit on or off ( >18) 2 Select drive (HDD, BD or SD) ( >21) Drive changes each time yo u press [DRIVE SELECT]. 3 Select channels and title numbers, etc./Enter numbers or characters (The character buttons may be used when operating VIERA CAST contents.) 4 To delete unwanted recorded titles, timer programmes, still pictures or music (> 25, 37) 5 Basic operations for recording and...
Page 13

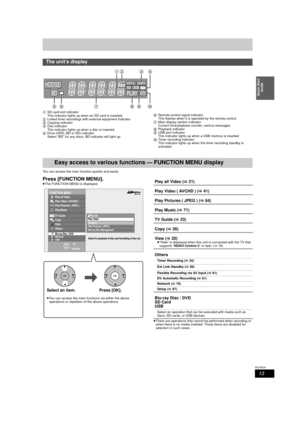

13 RQT9434 Quick Start Guide 1 SD card slot indicator This indicator lights up when an SD card is inserted. 2 Linked timer recordings with external equipment indicator 3 Copying indicator 4 Disc indicator This indicator lights up when a disc is inserted. 5 Drive (HDD, BD or SD) indicator Select “BD” for any discs. BD indicator will light up. 6 Remote control signal indicator This flashes when it is operated by the remote control. 7 Main display section indicator Current time/playback counter, various...
Page 14

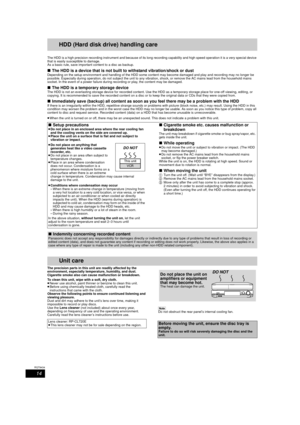

14 RQT9434 HDD (Hard disk drive) handling care The HDD is a high precision recording inst rument and because of its long recording capability and high speed operation it is a very special device that is easily susceptible to damage. As a basic rule, save important content to a disc as backup. ∫ The HDD is a device that is not buil t to withstand vibration/shock or dustDepending on the setup environment and handling of the HDD some content may become damaged and play and recording may no longer be...
Page 15

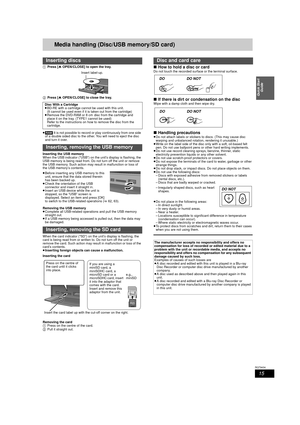

15 RQT9434 Quick Start Guide Media handling (Disc/USB memory/SD card) 1 Press [
Page 16

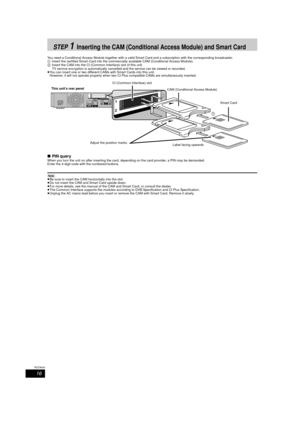

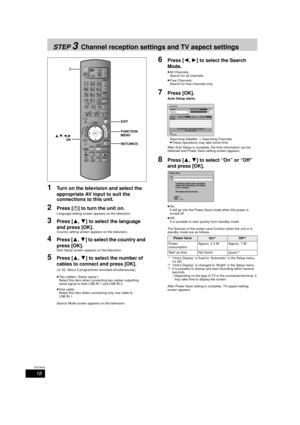

16 RQT9434 STEP1Inserting the CAM (Conditional Access Module) and Smart Card You need a Conditional Access Module together with a valid Smart Card and a subscription with the corresponding broadcaster. 1Insert the certified Smart Card into the comme rcially available CAM (Conditional Access Module). 2 Insert the CAM into the CI (Common Interface) slot of this unit. TV service encryption is automatically cancelled and the service can be viewed or recorded. ≥ You can insert one or two different CAMs with...
Page 17

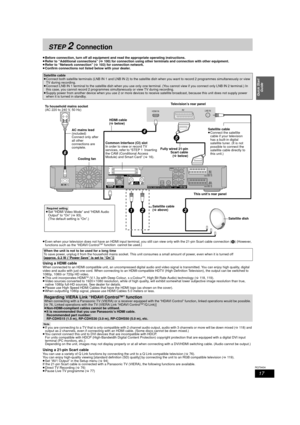

17 RQT9434 Quick Start Guide STEP 2Connection ≥Before connection, turn off all equipment and read the appropriate operating instructions. ≥ Refer to “Additional connections” ( >100) for connection using other terminals and connection with other equipment. ≥ Refer to “Network connection” ( >103) for connection network. ≥ Confirm connections not listed below with your dealer. ≥ Even when your television does not have an HDMI input terminal, y ou still can view only with the 21-pin Scart cable connection...
Page 18
![Page 18
18
RQT9434
STEP 3Channel reception settings and TV aspect settings
1Turn on the television and select the
appropriate AV input to suit the
connections to this unit.
2Press [ Í] to turn the unit on.
Language setting screen appears on the television.
3Press [3,4] to select the language
and press [OK].
Country setting screen appears on the television.
4Press [ 3,4] to select the country and
press [OK].
Dish Setup screen appears on the television.
5Press [ 3,4] to select the number of
cables to connect...](http://img.usermanuals.tech/thumb/58/66393/w300_dmr-bs850_en_om_d-17.png "Page 18
18
RQT9434
STEP 3Channel reception settings and TV aspect settings
1Turn on the television and select the
appropriate AV input to suit the
connections to this unit.
2Press [ Í] to turn the unit on.
Language setting screen appears on the television.
3Press [3,4] to select the language
and press [OK].
Country setting screen appears on the television.
4Press [ 3,4] to select the country and
press [OK].
Dish Setup screen appears on the television.
5Press [ 3,4] to select the number of
cables to connect...")
18 RQT9434 STEP 3Channel reception settings and TV aspect settings 1Turn on the television and select the appropriate AV input to suit the connections to this unit. 2Press [ Í] to turn the unit on. Language setting screen appears on the television. 3Press [3,4] to select the language and press [OK]. Country setting screen appears on the television. 4Press [ 3,4] to select the country and press [OK]. Dish Setup screen appears on the television. 5Press [ 3,4] to select the number of cables to connect...
Page 19
![Page 19
19
RQT9434
Quick Start Guide

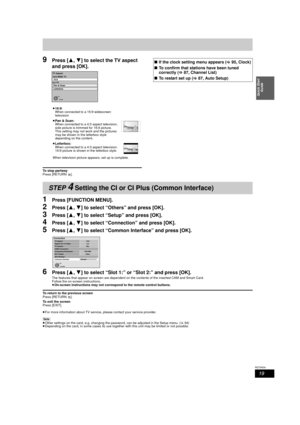

9Press [ 3,4] to select the TV aspect
and press [OK].
To s t o p pa r t w a y
Press [RETURN ].
1Press [FUNCTION MENU].
2Press [ 3,4] to select “Other s” and press [OK].
3Press [3,4] to select “Setup” and press [OK].
4Press [ 3,4] to select “Connect ion” and press [OK].
5Press [3,4] to select “Common Inte rface” and press [OK].
6Press [3,4] to select “Slot 1:” or “Slot 2:” and press [OK].
The features that appear on screen are dependent on the contents of the inserted CAM...](http://img.usermanuals.tech/thumb/58/66393/w300_dmr-bs850_en_om_d-18.png "Page 19
19
RQT9434
Quick Start Guide
9Press [ 3,4] to select the TV aspect
and press [OK].
To s t o p pa r t w a y
Press [RETURN ].
1Press [FUNCTION MENU].
2Press [ 3,4] to select “Other s” and press [OK].
3Press [3,4] to select “Setup” and press [OK].
4Press [ 3,4] to select “Connect ion” and press [OK].
5Press [3,4] to select “Common Inte rface” and press [OK].
6Press [3,4] to select “Slot 1:” or “Slot 2:” and press [OK].
The features that appear on screen are dependent on the contents of the inserted CAM...")
19 RQT9434 Quick Start Guide 9Press [ 3,4] to select the TV aspect and press [OK]. To s t o p pa r t w a y Press [RETURN ]. 1Press [FUNCTION MENU]. 2Press [ 3,4] to select “Other s” and press [OK]. 3Press [3,4] to select “Setup” and press [OK]. 4Press [ 3,4] to select “Connect ion” and press [OK]. 5Press [3,4] to select “Common Inte rface” and press [OK]. 6Press [3,4] to select “Slot 1:” or “Slot 2:” and press [OK]. The features that appear on screen are dependent on the contents of the inserted CAM...
Page 20
![Page 20
20
RQT9434

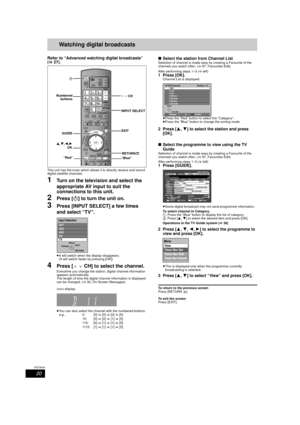

Watching digital broadcastsBasic
