Panasonic Dmr Bs850 Operating Instructions Manual
Here you can view all the pages of manual Panasonic Dmr Bs850 Operating Instructions Manual. The Panasonic manuals for Blu-ray Duplicator are available online for free. You can easily download all the documents as PDF.

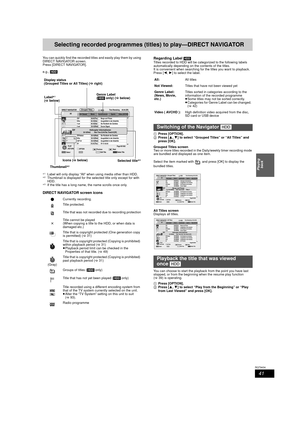

Page 41
![Page 41
41
RQT9434
Playing back
Selecting recorded programmes (titles) to play—DIRECT NAVIGATOR
You can quickly find the recorded titl es and easily play them by using
DIRECT NAVIGATOR screen.
Press [DIRECT NAVIGATOR].
e.g., [HDD]
§1Label will only display “All” w hen using media other than HDD.§2Thumbnail is displayed for the selected title only except for with
HDD.
§3If the title has a long name, the name scrolls once only.
DIRECT NAVIGATOR screen icons Regarding Label
[HDD]
Titles recorded to HDD will be...](http://img.usermanuals.tech/thumb/58/66393/w300_dmr-bs850_en_om_d-40.png "Page 41
41
RQT9434
Playing back
Selecting recorded programmes (titles) to play—DIRECT NAVIGATOR
You can quickly find the recorded titl es and easily play them by using
DIRECT NAVIGATOR screen.
Press [DIRECT NAVIGATOR].
e.g., [HDD]
§1Label will only display “All” w hen using media other than HDD.§2Thumbnail is displayed for the selected title only except for with
HDD.
§3If the title has a long name, the name scrolls once only.
DIRECT NAVIGATOR screen icons Regarding Label
[HDD]
Titles recorded to HDD will be...")
41 RQT9434 Playing back Selecting recorded programmes (titles) to play—DIRECT NAVIGATOR You can quickly find the recorded titl es and easily play them by using DIRECT NAVIGATOR screen. Press [DIRECT NAVIGATOR]. e.g., [HDD] §1Label will only display “All” w hen using media other than HDD.§2Thumbnail is displayed for the selected title only except for with HDD. §3If the title has a long name, the name scrolls once only. DIRECT NAVIGATOR screen icons Regarding Label [HDD] Titles recorded to HDD will be...

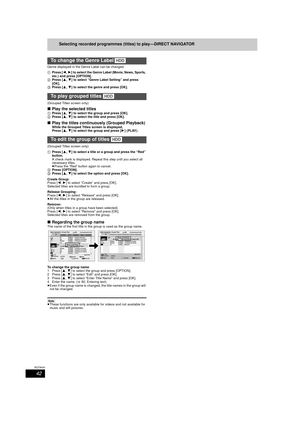

Page 42
![Page 42
42
RQT9434
Selecting recorded programmes (titles) to play—DIRECT NAVIGATOR
Genre displayed in the Genre Label can be changed.
1Press [ 2,1] to select the Genre Label (Movie, News, Sports,
etc.) and press [OPTION].
2 Press [ 3,4] to select “Genre Label Setting” and press
[OK].
3 Press [ 3,4] to select the genre and press [OK].
(Grouped Titles screen only)
∫ Play the selected titles1 Press [ 3,4] to select the group and press [OK].
2 Press [ 3,4] to select the title and press [OK].
∫Play the titles...](http://img.usermanuals.tech/thumb/58/66393/w300_dmr-bs850_en_om_d-41.png "Page 42
42
RQT9434
Selecting recorded programmes (titles) to play—DIRECT NAVIGATOR
Genre displayed in the Genre Label can be changed.
1Press [ 2,1] to select the Genre Label (Movie, News, Sports,
etc.) and press [OPTION].
2 Press [ 3,4] to select “Genre Label Setting” and press
[OK].
3 Press [ 3,4] to select the genre and press [OK].
(Grouped Titles screen only)
∫ Play the selected titles1 Press [ 3,4] to select the group and press [OK].
2 Press [ 3,4] to select the title and press [OK].
∫Play the titles...")
42 RQT9434 Selecting recorded programmes (titles) to play—DIRECT NAVIGATOR Genre displayed in the Genre Label can be changed. 1Press [ 2,1] to select the Genre Label (Movie, News, Sports, etc.) and press [OPTION]. 2 Press [ 3,4] to select “Genre Label Setting” and press [OK]. 3 Press [ 3,4] to select the genre and press [OK]. (Grouped Titles screen only) ∫ Play the selected titles1 Press [ 3,4] to select the group and press [OK]. 2 Press [ 3,4] to select the title and press [OK]. ∫Play the titles...

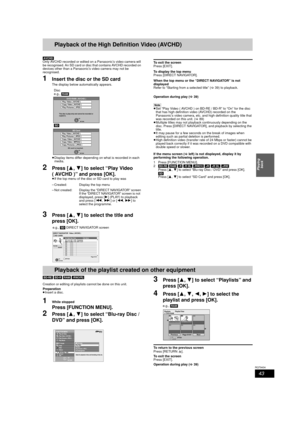

Page 43
![Page 43
43
RQT9434
Playing back
Playback of the High Definition Video (AVCHD)
[AVCHD]
Only AVCHD recorded or edited on a Panasonic’s video camera will
be recognised. An SD card or disc that contains AVCHD recorded on
devices other than a Panasonic’s video camera may not be
recognised.
1Insert the disc or the SD card
The display below automatically appears.
≥ Display items differ depending on what is recorded in each
media.
2Press [ 3,4] to select “Play Video
( AVCHD )” and press [OK].
≥ If the top menu of...](http://img.usermanuals.tech/thumb/58/66393/w300_dmr-bs850_en_om_d-42.png "Page 43
43
RQT9434
Playing back
Playback of the High Definition Video (AVCHD)
[AVCHD]
Only AVCHD recorded or edited on a Panasonic’s video camera will
be recognised. An SD card or disc that contains AVCHD recorded on
devices other than a Panasonic’s video camera may not be
recognised.
1Insert the disc or the SD card
The display below automatically appears.
≥ Display items differ depending on what is recorded in each
media.
2Press [ 3,4] to select “Play Video
( AVCHD )” and press [OK].
≥ If the top menu of...")
43 RQT9434 Playing back Playback of the High Definition Video (AVCHD) [AVCHD] Only AVCHD recorded or edited on a Panasonic’s video camera will be recognised. An SD card or disc that contains AVCHD recorded on devices other than a Panasonic’s video camera may not be recognised. 1Insert the disc or the SD card The display below automatically appears. ≥ Display items differ depending on what is recorded in each media. 2Press [ 3,4] to select “Play Video ( AVCHD )” and press [OK]. ≥ If the top menu of...

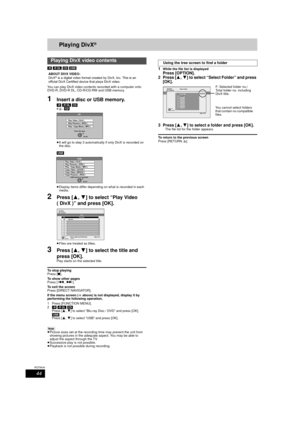

Page 44
![Page 44
44
RQT9434
Playing DivX®
[-R] [-R]DL] [CD] [USB]
You can play DivX video contents recorded with a computer onto
DVD-R, DVD-R DL, CD-R/CD-RW and USB memory.
1Insert a disc or USB memory.
[-R] [-R]DL] [CD]
e.g., [CD]
≥ It will go to step 3 automatically if only DivX is recorded on
the disc.
[USB]
≥ Display items differ depending on what is recorded in each
media.
2Press [ 3,4] to select “Play Video
( DivX )” and press [OK].
≥ Files are treated as titles.
3Press [ 3,4] to select the title and...](http://img.usermanuals.tech/thumb/58/66393/w300_dmr-bs850_en_om_d-43.png "Page 44
44
RQT9434
Playing DivX®
[-R] [-R]DL] [CD] [USB]
You can play DivX video contents recorded with a computer onto
DVD-R, DVD-R DL, CD-R/CD-RW and USB memory.
1Insert a disc or USB memory.
[-R] [-R]DL] [CD]
e.g., [CD]
≥ It will go to step 3 automatically if only DivX is recorded on
the disc.
[USB]
≥ Display items differ depending on what is recorded in each
media.
2Press [ 3,4] to select “Play Video
( DivX )” and press [OK].
≥ Files are treated as titles.
3Press [ 3,4] to select the title and...")
44 RQT9434 Playing DivX® [-R] [-R]DL] [CD] [USB] You can play DivX video contents recorded with a computer onto DVD-R, DVD-R DL, CD-R/CD-RW and USB memory. 1Insert a disc or USB memory. [-R] [-R]DL] [CD] e.g., [CD] ≥ It will go to step 3 automatically if only DivX is recorded on the disc. [USB] ≥ Display items differ depending on what is recorded in each media. 2Press [ 3,4] to select “Play Video ( DivX )” and press [OK]. ≥ Files are treated as titles. 3Press [ 3,4] to select the title and...

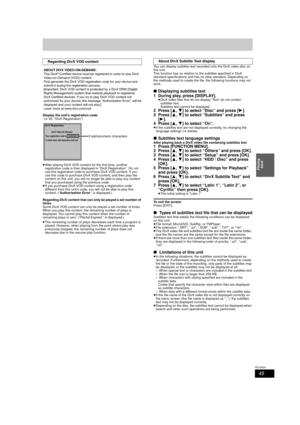

Page 45
45 RQT9434 Playing back Display the unit’s registration code. (> 95, “DivX Registration”) ≥ After playing DivX VOD content for the first time, another registration code is then display ed in “DivX Registration”. Do not use this registration code to pur chase DivX VOD content. If you use this code to purchase DivX VOD content, and then play the content on this unit, you will no l onger be able to play any content that you purchased usi ng the previous code. ≥ If you purchase DivX VOD cont ent using...

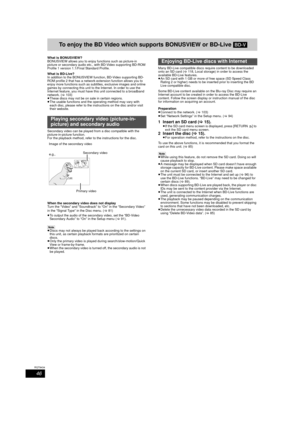

Page 46
![Page 46
46
RQT9434
To enjoy the BD Video which supports BONUSVIEW or BD-Live[BD-V]
What is BONUSVIEW?
BONUSVIEW allows you to enjoy functions such as picture-in
picture or secondary audio etc., with BD-Video supporting BD-ROM
Profile 1 version 1.1/Final Standard Profile.
What is BD-Live?
In addition to the BONUSVIEW function, BD-Video supporting BD-
ROM profile 2 that has a network extension function allows you to
enjoy more functions such as subtitles, exclusive images and online
games by connecting this...](http://img.usermanuals.tech/thumb/58/66393/w300_dmr-bs850_en_om_d-45.png "Page 46
46
RQT9434
To enjoy the BD Video which supports BONUSVIEW or BD-Live[BD-V]
What is BONUSVIEW?
BONUSVIEW allows you to enjoy functions such as picture-in
picture or secondary audio etc., with BD-Video supporting BD-ROM
Profile 1 version 1.1/Final Standard Profile.
What is BD-Live?
In addition to the BONUSVIEW function, BD-Video supporting BD-
ROM profile 2 that has a network extension function allows you to
enjoy more functions such as subtitles, exclusive images and online
games by connecting this...")
46 RQT9434 To enjoy the BD Video which supports BONUSVIEW or BD-Live[BD-V] What is BONUSVIEW? BONUSVIEW allows you to enjoy functions such as picture-in picture or secondary audio etc., with BD-Video supporting BD-ROM Profile 1 version 1.1/Final Standard Profile. What is BD-Live? In addition to the BONUSVIEW function, BD-Video supporting BD- ROM profile 2 that has a network extension function allows you to enjoy more functions such as subtitles, exclusive images and online games by connecting this...

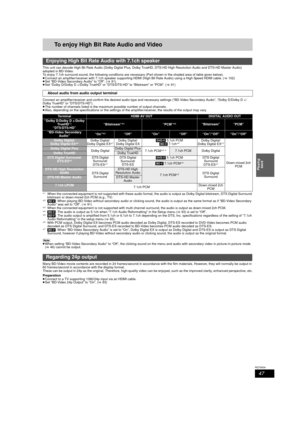

Page 47
47 RQT9434 Playing back To enjoy High Bit Rate Audio and Video This unit can decode High Bit Rate Audio (Dolby Digital Plus, Dolby TrueHD, DTS-HD High Resolution Audio and DTS-HD Master Audi o) adopted in BD-Video. To enjoy 7.1ch surround sound, the followi ng conditions are necessary (Part shown in the shaded area of table given below). ≥ Connect an amplifier/receiver with 7.1ch speaker supporting HDMI (High Bit Rate A udio) using a High Speed HDMI cable. (>102) ≥ Set “BD-Video Secondary Audio” to...

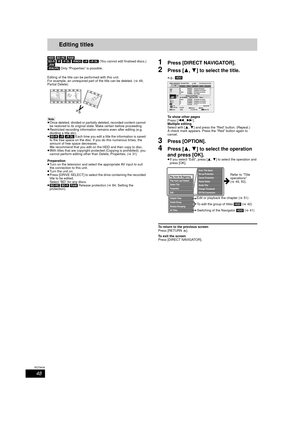

Page 48
![Page 48
48
RQT9434
Editing titlesEditing
[HDD] [BD-RE] [RAM]
[BD-R] [-R] [-R]DL] [-RW‹V›] [+R] [+R]DL] (You cannot edit finalised discs.)
[+RW]
[-RW‹VR›] Only “Properties” is possible.
Editing of the title can be performed with this unit.
For example, an unrequired part of the title can be deleted. ( >49,
Partial Delete)
[Note]
≥ Once deleted, divided or partially deleted, recorded content cannot
be restored to its original state. Make certain before proceeding.
≥ Restricted recording information...](http://img.usermanuals.tech/thumb/58/66393/w300_dmr-bs850_en_om_d-47.png "Page 48
48
RQT9434
Editing titlesEditing
[HDD] [BD-RE] [RAM]
[BD-R] [-R] [-R]DL] [-RW‹V›] [+R] [+R]DL] (You cannot edit finalised discs.)
[+RW]
[-RW‹VR›] Only “Properties” is possible.
Editing of the title can be performed with this unit.
For example, an unrequired part of the title can be deleted. ( >49,
Partial Delete)
[Note]
≥ Once deleted, divided or partially deleted, recorded content cannot
be restored to its original state. Make certain before proceeding.
≥ Restricted recording information...")
48 RQT9434 Editing titlesEditing [HDD] [BD-RE] [RAM] [BD-R] [-R] [-R]DL] [-RW‹V›] [+R] [+R]DL] (You cannot edit finalised discs.) [+RW] [-RW‹VR›] Only “Properties” is possible. Editing of the title can be performed with this unit. For example, an unrequired part of the title can be deleted. ( >49, Partial Delete) [Note] ≥ Once deleted, divided or partially deleted, recorded content cannot be restored to its original state. Make certain before proceeding. ≥ Restricted recording information...

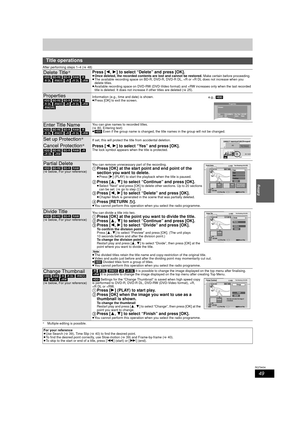

Page 49
![Page 49
49
RQT9434
Editing
After performing steps 1–4 (>48)
§Multiple editing is possible.
Title operations
Delete Title§
[HDD] [BD-RE] [BD-R] [RAM] [-R]
[-R]DL] [-RW‹V›] [+R] [+R]DL] [+RW]
Press [ 2,1] to select “Delete” and press [OK].≥ Once deleted, the recorded contents are lost and cannot be restored. Make certain before proceeding.
≥ The available recording space on BD-R, DVD-R, DVD-R DL, +R or +R DL does not increase when you
delete titles.
≥ Available recording space on DVD-RW (DVD-Video form at)...](http://img.usermanuals.tech/thumb/58/66393/w300_dmr-bs850_en_om_d-48.png "Page 49
49
RQT9434
Editing
After performing steps 1–4 (>48)
§Multiple editing is possible.
Title operations
Delete Title§
[HDD] [BD-RE] [BD-R] [RAM] [-R]
[-R]DL] [-RW‹V›] [+R] [+R]DL] [+RW]
Press [ 2,1] to select “Delete” and press [OK].≥ Once deleted, the recorded contents are lost and cannot be restored. Make certain before proceeding.
≥ The available recording space on BD-R, DVD-R, DVD-R DL, +R or +R DL does not increase when you
delete titles.
≥ Available recording space on DVD-RW (DVD-Video form at)...")
49 RQT9434 Editing After performing steps 1–4 (>48) §Multiple editing is possible. Title operations Delete Title§ [HDD] [BD-RE] [BD-R] [RAM] [-R] [-R]DL] [-RW‹V›] [+R] [+R]DL] [+RW] Press [ 2,1] to select “Delete” and press [OK].≥ Once deleted, the recorded contents are lost and cannot be restored. Make certain before proceeding. ≥ The available recording space on BD-R, DVD-R, DVD-R DL, +R or +R DL does not increase when you delete titles. ≥ Available recording space on DVD-RW (DVD-Video form at)...

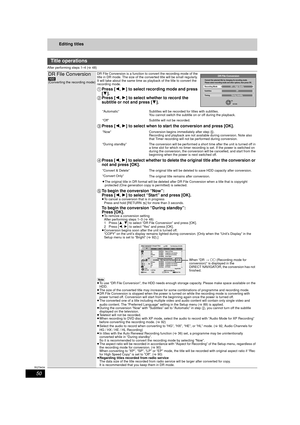

Page 50
![Page 50
50
RQT9434
Editing titles
After performing steps 1–4 (>48)
Title operations
DR File Conversion[HDD]
(Converting the recording mode) DR File Conversion is a function to convert the recording mode of the
title in DR mode. The size of the c
onverted title will be small regularly.
It will take about the same time as playback of the title to convert the
recording mode.
1 Press [ 2,1] to select recording mode and press
[ 4 ].
2 Press [ 2,1 ] to select whether to record the
subtitle or not and press [...](http://img.usermanuals.tech/thumb/58/66393/w300_dmr-bs850_en_om_d-49.png "Page 50
50
RQT9434
Editing titles
After performing steps 1–4 (>48)
Title operations
DR File Conversion[HDD]
(Converting the recording mode) DR File Conversion is a function to convert the recording mode of the
title in DR mode. The size of the c
onverted title will be small regularly.
It will take about the same time as playback of the title to convert the
recording mode.
1 Press [ 2,1] to select recording mode and press
[ 4 ].
2 Press [ 2,1 ] to select whether to record the
subtitle or not and press [...")
50 RQT9434 Editing titles After performing steps 1–4 (>48) Title operations DR File Conversion[HDD] (Converting the recording mode) DR File Conversion is a function to convert the recording mode of the title in DR mode. The size of the c onverted title will be small regularly. It will take about the same time as playback of the title to convert the recording mode. 1 Press [ 2,1] to select recording mode and press [ 4 ]. 2 Press [ 2,1 ] to select whether to record the subtitle or not and press [...
