Panasonic Dmr Bs850 Operating Instructions Manual
Here you can view all the pages of manual Panasonic Dmr Bs850 Operating Instructions Manual. The Panasonic manuals for Blu-ray Duplicator are available online for free. You can easily download all the documents as PDF.
Page 31

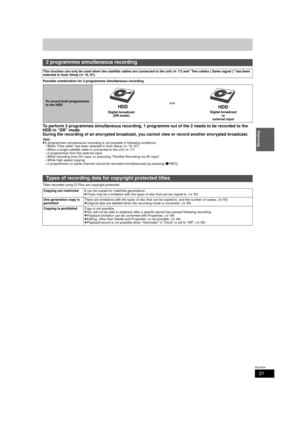

![Page 31
31
RQT9434
Recording
Possible combination for 2 programmes simultaneous recording
To perform 2 programmes simultaneous recording, 1 programme out of the 2 needs to be recorded to the
HDD in “DR” mode.
During the recording of an encrypted broadcast, you cannot view or record another encrypted broadcast.
[Note]
≥ 2 programmes simultaneous recording is not possible in following conditions:
– When “One cable” has been selected in Auto Setup ( >18, 87).
– When a single satellite cable is connected to the...](http://img.usermanuals.tech/thumb/58/66393/w300_dmr-bs850_en_om_d-30.png "Page 31
31
RQT9434
Recording
Possible combination for 2 programmes simultaneous recording
To perform 2 programmes simultaneous recording, 1 programme out of the 2 needs to be recorded to the
HDD in “DR” mode.
During the recording of an encrypted broadcast, you cannot view or record another encrypted broadcast.
[Note]
≥ 2 programmes simultaneous recording is not possible in following conditions:
– When “One cable” has been selected in Auto Setup ( >18, 87).
– When a single satellite cable is connected to the...")
31 RQT9434 Recording Possible combination for 2 programmes simultaneous recording To perform 2 programmes simultaneous recording, 1 programme out of the 2 needs to be recorded to the HDD in “DR” mode. During the recording of an encrypted broadcast, you cannot view or record another encrypted broadcast. [Note] ≥ 2 programmes simultaneous recording is not possible in following conditions: – When “One cable” has been selected in Auto Setup ( >18, 87). – When a single satellite cable is connected to the...
Page 32

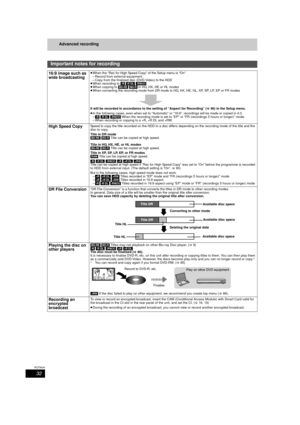

![Page 32
32
RQT9434
Advanced recording
Important notes for recording
16:9 image such as
wide broadcasting ≥When the “Rec for High Speed Copy” of the Setup menu is “On”
– Record from external equipment.
– Copy from the finalised disc (DVD-Video) to the HDD
≥ When recording to [-R] [-R]DL] [-RW‹V›]
≥ When copying to [BD-RE] [BD-R] in HG, HX, HE or HL modes
≥ When converting the recording mode from DR mode to HG, HX, HE, HL, XP, SP, LP, EP or FR modes
It will be recorded in accordance to the setting of “Aspect...](http://img.usermanuals.tech/thumb/58/66393/w300_dmr-bs850_en_om_d-31.png "Page 32
32
RQT9434
Advanced recording
Important notes for recording
16:9 image such as
wide broadcasting ≥When the “Rec for High Speed Copy” of the Setup menu is “On”
– Record from external equipment.
– Copy from the finalised disc (DVD-Video) to the HDD
≥ When recording to [-R] [-R]DL] [-RW‹V›]
≥ When copying to [BD-RE] [BD-R] in HG, HX, HE or HL modes
≥ When converting the recording mode from DR mode to HG, HX, HE, HL, XP, SP, LP, EP or FR modes
It will be recorded in accordance to the setting of “Aspect...")
32 RQT9434 Advanced recording Important notes for recording 16:9 image such as wide broadcasting ≥When the “Rec for High Speed Copy” of the Setup menu is “On” – Record from external equipment. – Copy from the finalised disc (DVD-Video) to the HDD ≥ When recording to [-R] [-R]DL] [-RW‹V›] ≥ When copying to [BD-RE] [BD-R] in HG, HX, HE or HL modes ≥ When converting the recording mode from DR mode to HG, HX, HE, HL, XP, SP, LP, EP or FR modes It will be recorded in accordance to the setting of “Aspect...

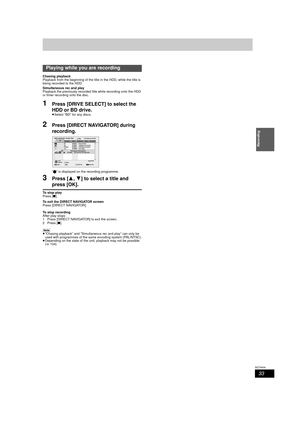

Page 33
![Page 33
33
RQT9434
Recording
Chasing playback
Playback from the beginning of the title in the HDD, while the title is
being recorded to the HDD.
Simultaneous rec and play
Playback the previously recorded title while recording onto the HDD
or timer recording onto the disc.
1Press [DRIVE SELECT ] to select the
HDD or BD drive.
≥ Select “BD” for any discs.
2Press [DIRECT NAVIGATOR] during
recording.
“[” is displayed on the recording programme.
3Press [ 3,4] to select a title and
press [OK].
To stop play...](http://img.usermanuals.tech/thumb/58/66393/w300_dmr-bs850_en_om_d-32.png "Page 33
33
RQT9434
Recording
Chasing playback
Playback from the beginning of the title in the HDD, while the title is
being recorded to the HDD.
Simultaneous rec and play
Playback the previously recorded title while recording onto the HDD
or timer recording onto the disc.
1Press [DRIVE SELECT ] to select the
HDD or BD drive.
≥ Select “BD” for any discs.
2Press [DIRECT NAVIGATOR] during
recording.
“[” is displayed on the recording programme.
3Press [ 3,4] to select a title and
press [OK].
To stop play...")
33 RQT9434 Recording Chasing playback Playback from the beginning of the title in the HDD, while the title is being recorded to the HDD. Simultaneous rec and play Playback the previously recorded title while recording onto the HDD or timer recording onto the disc. 1Press [DRIVE SELECT ] to select the HDD or BD drive. ≥ Select “BD” for any discs. 2Press [DIRECT NAVIGATOR] during recording. “[” is displayed on the recording programme. 3Press [ 3,4] to select a title and press [OK]. To stop play...

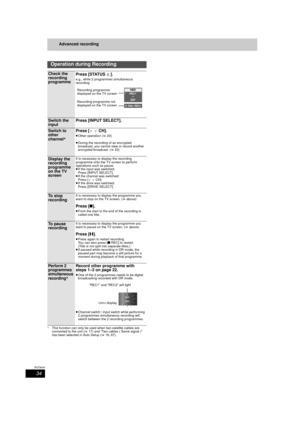

Page 34
![Page 34
34
RQT9434
Advanced recording
§This function can only be used when two satellite cables are
connected to the unit ( >17) and “Two cables ( Same signal )”
has been selected in Auto Setup ( >18, 87).
Operation during Recording
Check the
recording
programme Press [STATUS ].
e.g., while 2 programmes simultaneous
recording
Switch the
input
Press [INPUT SELECT].
Switch to
other
channel
§
Press [
WXCH].
≥Other operation ( >20)
≥ During the recording of an encrypted
broadcast, you cannot view or record...](http://img.usermanuals.tech/thumb/58/66393/w300_dmr-bs850_en_om_d-33.png "Page 34
34
RQT9434
Advanced recording
§This function can only be used when two satellite cables are
connected to the unit ( >17) and “Two cables ( Same signal )”
has been selected in Auto Setup ( >18, 87).
Operation during Recording
Check the
recording
programme Press [STATUS ].
e.g., while 2 programmes simultaneous
recording
Switch the
input
Press [INPUT SELECT].
Switch to
other
channel
§
Press [
WXCH].
≥Other operation ( >20)
≥ During the recording of an encrypted
broadcast, you cannot view or record...")
34 RQT9434 Advanced recording §This function can only be used when two satellite cables are connected to the unit ( >17) and “Two cables ( Same signal )” has been selected in Auto Setup ( >18, 87). Operation during Recording Check the recording programme Press [STATUS ]. e.g., while 2 programmes simultaneous recording Switch the input Press [INPUT SELECT]. Switch to other channel § Press [ WXCH]. ≥Other operation ( >20) ≥ During the recording of an encrypted broadcast, you cannot view or record...
Page 35

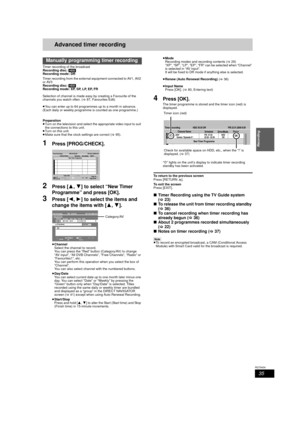

![Page 35
35
RQT9434
Recording
Advanced timer recording
Timer recording of the broadcast
Recording disc: [HDD]
Recording mode: DR
Timer recording from the external equipment connected to AV1, AV2
or AV3
Recording disc: [HDD]
Recording mode: XP, SP, LP, EP, FR
Selection of channel is made easy by creating a Favourite of the
channels you watch often. ( >87, Favourites Edit)
≥ You can enter up to 64 programmes up to a month in advance.
(Each daily or weekly programme is counted as one programme.)
Preparation
≥...](http://img.usermanuals.tech/thumb/58/66393/w300_dmr-bs850_en_om_d-34.png "Page 35
35
RQT9434
Recording
Advanced timer recording
Timer recording of the broadcast
Recording disc: [HDD]
Recording mode: DR
Timer recording from the external equipment connected to AV1, AV2
or AV3
Recording disc: [HDD]
Recording mode: XP, SP, LP, EP, FR
Selection of channel is made easy by creating a Favourite of the
channels you watch often. ( >87, Favourites Edit)
≥ You can enter up to 64 programmes up to a month in advance.
(Each daily or weekly programme is counted as one programme.)
Preparation
≥...")
35 RQT9434 Recording Advanced timer recording Timer recording of the broadcast Recording disc: [HDD] Recording mode: DR Timer recording from the external equipment connected to AV1, AV2 or AV3 Recording disc: [HDD] Recording mode: XP, SP, LP, EP, FR Selection of channel is made easy by creating a Favourite of the channels you watch often. ( >87, Favourites Edit) ≥ You can enter up to 64 programmes up to a month in advance. (Each daily or weekly programme is counted as one programme.) Preparation ≥...
Page 36

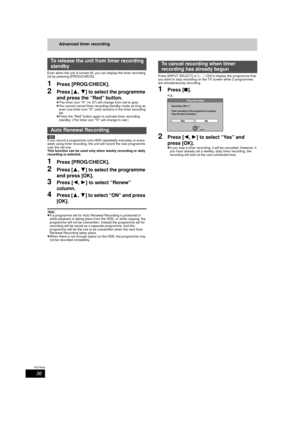

![Page 36
36
RQT9434
Advanced timer recording
Even when the unit is turned off, you can display the timer recording
list by pressing [PROG/CHECK].
1Press [PROG/CHECK].
2Press [3,4] to select the programme
and press the “Red” button.
≥ The timer icon “ F” ( > 37) will change from red to grey.
≥ You cannot cancel timer reco rding standby mode as long as
even one timer icon “ F” (red) remains in the timer recording
list.
≥ Press the “Red” button again to activate timer recording
standby. (The timer icon “ F”...](http://img.usermanuals.tech/thumb/58/66393/w300_dmr-bs850_en_om_d-35.png "Page 36
36
RQT9434
Advanced timer recording
Even when the unit is turned off, you can display the timer recording
list by pressing [PROG/CHECK].
1Press [PROG/CHECK].
2Press [3,4] to select the programme
and press the “Red” button.
≥ The timer icon “ F” ( > 37) will change from red to grey.
≥ You cannot cancel timer reco rding standby mode as long as
even one timer icon “ F” (red) remains in the timer recording
list.
≥ Press the “Red” button again to activate timer recording
standby. (The timer icon “ F”...")
36 RQT9434 Advanced timer recording Even when the unit is turned off, you can display the timer recording list by pressing [PROG/CHECK]. 1Press [PROG/CHECK]. 2Press [3,4] to select the programme and press the “Red” button. ≥ The timer icon “ F” ( > 37) will change from red to grey. ≥ You cannot cancel timer reco rding standby mode as long as even one timer icon “ F” (red) remains in the timer recording list. ≥ Press the “Red” button again to activate timer recording standby. (The timer icon “ F”...
Page 37

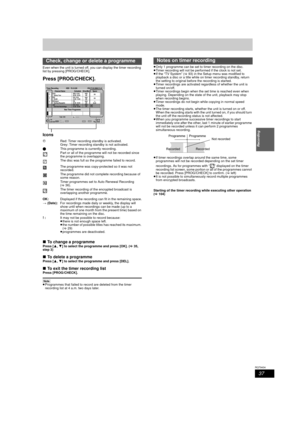

![Page 37
37
RQT9434
Recording
Even when the unit is turned off, you can display the timer recording
list by pressing [PROG/CHECK].
Press [PROG/CHECK].
Icons
∫To change a programme
Press [ 3,4] to select the programme and press [OK]. ( >35,
step 3)
∫ To delete a programmePress [ 3,4] to select the programme and press [DEL].
∫To exit the timer recording listPress [PROG/CHECK].
[Note]
≥Programmes that failed to record are deleted from the timer
recording list at 4 a.m. two days later. ≥
Only 1 programme can be...](http://img.usermanuals.tech/thumb/58/66393/w300_dmr-bs850_en_om_d-36.png "Page 37
37
RQT9434
Recording
Even when the unit is turned off, you can display the timer recording
list by pressing [PROG/CHECK].
Press [PROG/CHECK].
Icons
∫To change a programme
Press [ 3,4] to select the programme and press [OK]. ( >35,
step 3)
∫ To delete a programmePress [ 3,4] to select the programme and press [DEL].
∫To exit the timer recording listPress [PROG/CHECK].
[Note]
≥Programmes that failed to record are deleted from the timer
recording list at 4 a.m. two days later. ≥
Only 1 programme can be...")
37 RQT9434 Recording Even when the unit is turned off, you can display the timer recording list by pressing [PROG/CHECK]. Press [PROG/CHECK]. Icons ∫To change a programme Press [ 3,4] to select the programme and press [OK]. ( >35, step 3) ∫ To delete a programmePress [ 3,4] to select the programme and press [DEL]. ∫To exit the timer recording listPress [PROG/CHECK]. [Note] ≥Programmes that failed to record are deleted from the timer recording list at 4 a.m. two days later. ≥ Only 1 programme can be...
Page 38

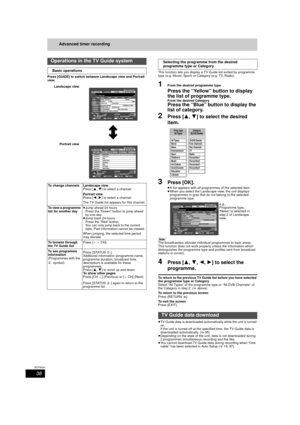

![Page 38
38
RQT9434
Advanced timer recording
Press [GUIDE] to switch between Landscape view and Portrait
view.This function lets you display a TV Guide list sorted by programme
type (e.g. Movie, Sport) or Category (e.g. TV, Radio).
1From the desired programme type
Press the “Yellow” button to display
the list of pr
ogramme type.
From the desired Category
Press the “Blue” button to display the
list of category.
2Press [3,4] to select the desired
item.
3Press [OK].
≥ A list appears with all programmes of the...](http://img.usermanuals.tech/thumb/58/66393/w300_dmr-bs850_en_om_d-37.png "Page 38
38
RQT9434
Advanced timer recording
Press [GUIDE] to switch between Landscape view and Portrait
view.This function lets you display a TV Guide list sorted by programme
type (e.g. Movie, Sport) or Category (e.g. TV, Radio).
1From the desired programme type
Press the “Yellow” button to display
the list of pr
ogramme type.
From the desired Category
Press the “Blue” button to display the
list of category.
2Press [3,4] to select the desired
item.
3Press [OK].
≥ A list appears with all programmes of the...")
38 RQT9434 Advanced timer recording Press [GUIDE] to switch between Landscape view and Portrait view.This function lets you display a TV Guide list sorted by programme type (e.g. Movie, Sport) or Category (e.g. TV, Radio). 1From the desired programme type Press the “Yellow” button to display the list of pr ogramme type. From the desired Category Press the “Blue” button to display the list of category. 2Press [3,4] to select the desired item. 3Press [OK]. ≥ A list appears with all programmes of the...
Page 39

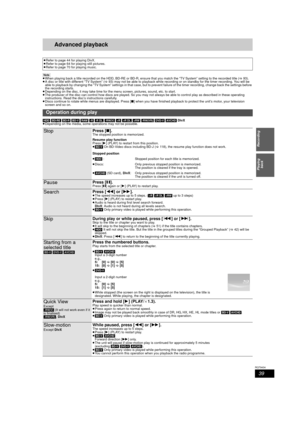

![Page 39
39
RQT9434
Playing back
Advanced playbackPlaying back
[Note]
≥ When playing back a title recorded on the HDD, BD-RE or BD-R, ensure that you match the “TV System” setting to the recorded tit le (>93).
≥ A disc or title with different “TV System” ( >93) may not be able to playback while recording or on standby for the timer recording. You will be
able to playback by changing the “TV System” settings in that case, but to prevent failure of the timer recording, change back the settings before
the...](http://img.usermanuals.tech/thumb/58/66393/w300_dmr-bs850_en_om_d-38.png "Page 39
39
RQT9434
Playing back
Advanced playbackPlaying back
[Note]
≥ When playing back a title recorded on the HDD, BD-RE or BD-R, ensure that you match the “TV System” setting to the recorded tit le (>93).
≥ A disc or title with different “TV System” ( >93) may not be able to playback while recording or on standby for the timer recording. You will be
able to playback by changing the “TV System” settings in that case, but to prevent failure of the timer recording, change back the settings before
the...")
39 RQT9434 Playing back Advanced playbackPlaying back [Note] ≥ When playing back a title recorded on the HDD, BD-RE or BD-R, ensure that you match the “TV System” setting to the recorded tit le (>93). ≥ A disc or title with different “TV System” ( >93) may not be able to playback while recording or on standby for the timer recording. You will be able to playback by changing the “TV System” settings in that case, but to prevent failure of the timer recording, change back the settings before the...
Page 40

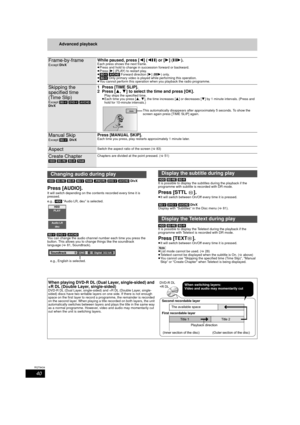

![Page 40
40
RQT9434
Advanced playback
[HDD] [BD-RE] [BD-R] [BD-V] [RAM] [-RW‹VR›] [DVD-V] [AVCHD] DivX
Press [AUDIO].
It will switch depending on the cont ents recorded every time it is
pressed.
e.g., [HDD] “Audio LR, deu” is selected.
[BD-V] [DVD-V] [AVCHD]
You can change the audio channel number each time you press the
button. This allows you to change things like the soundtrack
language ( >81, Soundtrack). [HDD]
[BD-RE] [BD-R]
It is possible to display the subt itles during the playback if the...](http://img.usermanuals.tech/thumb/58/66393/w300_dmr-bs850_en_om_d-39.png "Page 40
40
RQT9434
Advanced playback
[HDD] [BD-RE] [BD-R] [BD-V] [RAM] [-RW‹VR›] [DVD-V] [AVCHD] DivX
Press [AUDIO].
It will switch depending on the cont ents recorded every time it is
pressed.
e.g., [HDD] “Audio LR, deu” is selected.
[BD-V] [DVD-V] [AVCHD]
You can change the audio channel number each time you press the
button. This allows you to change things like the soundtrack
language ( >81, Soundtrack). [HDD]
[BD-RE] [BD-R]
It is possible to display the subt itles during the playback if the...")
40 RQT9434 Advanced playback [HDD] [BD-RE] [BD-R] [BD-V] [RAM] [-RW‹VR›] [DVD-V] [AVCHD] DivX Press [AUDIO]. It will switch depending on the cont ents recorded every time it is pressed. e.g., [HDD] “Audio LR, deu” is selected. [BD-V] [DVD-V] [AVCHD] You can change the audio channel number each time you press the button. This allows you to change things like the soundtrack language ( >81, Soundtrack). [HDD] [BD-RE] [BD-R] It is possible to display the subt itles during the playback if the...
