Panasonic Document Scanner Kv S1057c_s1027c_sl1066_sl1056_sl1055_sl1036_sl1035 Operating Manual

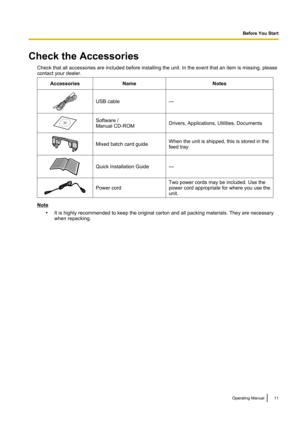

Check the AccessoriesCheck that all accessories are included before installing the unit. In the event that an item is missing, please
contact your dealer.AccessoriesNameNotes
USB cable—Software /
Manual CD-ROMDrivers, Applications, Utilities, DocumentsMixed batch card guideWhen the unit is shipped, this is stored in the
feed tray.Quick Installation Guide—Power cord
Two power cords may be included. Use the
power cord appropriate for where you use the
unit.
Note
•It is highly recommended to keep the...

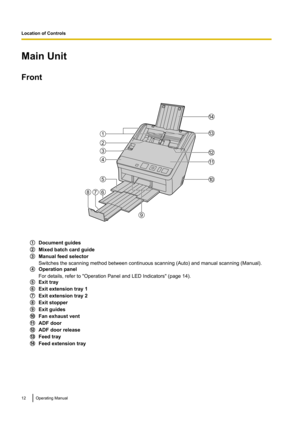

Main Unit
Front
Document guides
Mixed batch card guide
Manual feed selector
Switches the scanning method between continuous scanning (Auto) and manual scanning (Manual).
Operation panel
For details, refer to "Operation Panel and LED Indicators" (page 14).
Exit tray
Exit extension tray 1
Exit extension tray 2
Exit stopper
Exit guides
Fan exhaust vent
ADF door
ADF door release
Feed tray
Feed extension tray
12Operating ManualL
o
c
a
t
i
o
n
o
f
C
o
n
t
r
o
l
s
Location of Controls1
2
3
5
4
678
9
10...

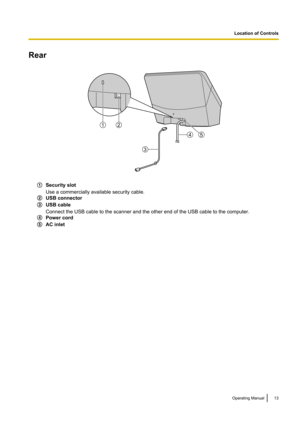

Rear
Security slot
Use a commercially available security cable.
USB connector
USB cable
Connect the USB cable to the scanner and the other end of the USB cable to the computer.
Power cord
AC inlet
Operating Manual13
Location of Controls12
3
45

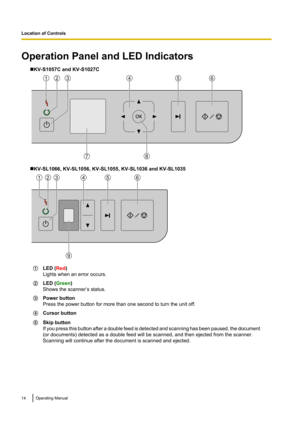

Operation Panel and LED IndicatorsnKV-S1057C and KV-S1027C
nKV-SL1066, KV-SL1056, KV-SL1055, KV-SL1036 and KV-SL1035
ALED ( Red)
Lights when an error occurs.BLED ( Green )
Shows the scanner’s status.CPower button
Press the power button for more than one second to turn the unit off.DCursor buttonESkip button
If you press this button after a double feed is detected and scanning has been paused, the document
(or documents) detected as a double feed will be scanned, and then ejected from the scanner....

FStart/Stop button
• If you set [Wait Key] for "Manual Feed Mode" in your application software, pushing this button
starts scanning. For details about "Manual Feed Mode", refer to the Image Capture Plus,
TWAIN, or ISIS help.
• During scanning, pushing this button stops scanning.
• If you press this button after a double feed is detected and scanning has been paused, the
document (or documents) detected as a double feed will be ejected from the scanner without
being scanned. Scanning will...

About LEDThe status of the scanner is displayed by the LED (Red) (A) and the LED  (Green) (B), as shown in the
table below:A  LED ( Red)B LED ( Green )StatusOFFOFFPower OFF *1OFFONReady mode or ScanningOFFBlinking (Slow, Long ON)Sleep mode *2Blinking (Slow)ONWarningONOFFError*3OFFBlinking (Fast)Warming upOFFBlinking (Fast, 2 times consecutively)Double Feed Skip mode
*1
If the power off feature in sleep mode is enabled, and if no operation is performed for a certain period of time, the scanner will be...

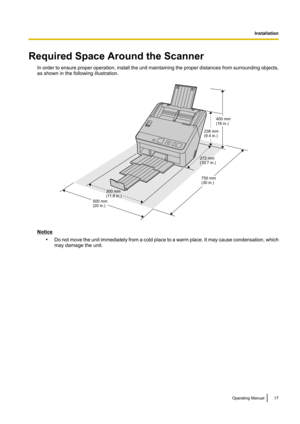

Required Space Around the ScannerIn order to ensure proper operation, install the unit maintaining the proper distances from surrounding objects,
as shown in the following illustration.
Notice
•Do not move the unit immediately from a cold place to a warm place. It may cause condensation, which
may damage the unit.
Operating Manual17I
n
s
t
a
l
l
a
t
i
o
n
Installation272 mm (10.7 in.)
300 mm
(11.8 in.)
500 mm(20 in.) 750 mm(30 in.)238 mm(9.4 in.)
400 mm(16 in.)

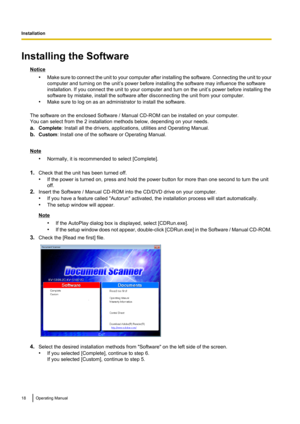

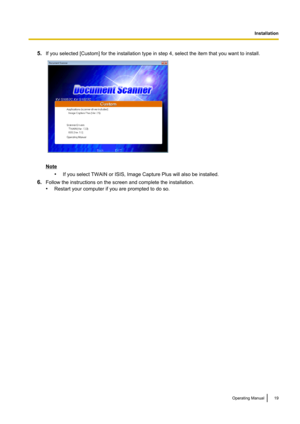

Installing the Software
Notice•Make sure to connect the unit to your computer after installing the software. Connecting the unit to your
computer and turning on the unit’s power before installing the software may influence the software
installation. If you connect the unit to your computer and turn on the unit’s power before installing the
software by mistake, install the software after disconnecting the unit from your computer.
• Make sure to log on as an administrator to install the software.
The...

5.If you selected [Custom] for the installation type in step 4, select the item that you want to install.
Note
•If you select TWAIN or ISIS, Image Capture Plus will also be installed.
6. Follow the instructions on the screen and complete the installation.
• Restart your computer if you are prompted to do so.
Operating Manual19
Installation

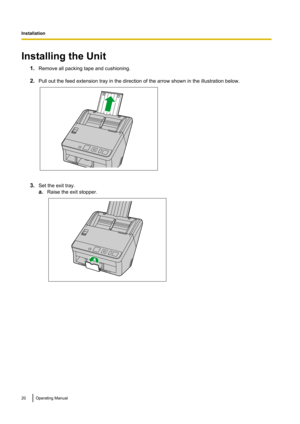

Installing the Unit1.Remove all packing tape and cushioning.
2. Pull out the feed extension tray in the direction of the arrow shown in the illustration below.
3.Set the exit tray.
a. Raise the exit stopper.
20Operating Manual
Installation
