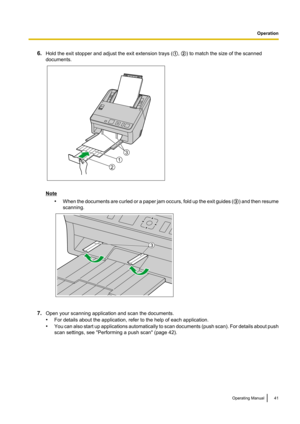

6.Hold the exit stopper and adjust the exit extension trays ( A, B ) to match the size of the scanned
documents.
Note
•When the documents are curled or a paper jam occurs, fold up the exit guides  (C ) and then resume
scanning.
7. Open your scanning application and scan the documents.
• For details about the application, refer to the help of each application.
• You can also start up applications automatically to scan documents  (push scan). For details about push
scan settings, see "Performing a push...

Performing a push scanThe following push scan functions are available for each scanner as shown below:KV-S1057C
KV-S1027C
KV-SL1066
KV-SL1056
KV-SL1055
KV-SL1036
KV-SL1035Touch Free ScanningYesYesPush scan using the LCDYesNoPush scan using the 7-segment LEDNoYes
Touch Free Scanning
Setting the application to start up
Set whether an application will automatically start up and select under which conditions it will start up in the
Scan Button Setting Tool.
1. Double click the (
) icon in the notification...

Push scan using the LCDIf you are using a KV-S1057C or KV-S1027C with Image Capture Plus, you can perform a push scan using

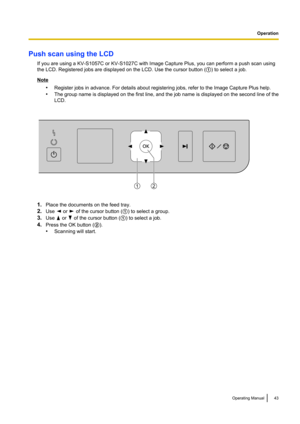

the LCD. Registered jobs are displayed on the LCD. Use the cursor button ( A) to select a job.
Note
•Register jobs in advance. For details about registering jobs, refer to the Image Capture Plus help.
• The group name is displayed on the first line, and the job name is displayed on the second line of the
LCD.
1. Place the documents on the feed tray.
2. Use
 or  of the cursor button...

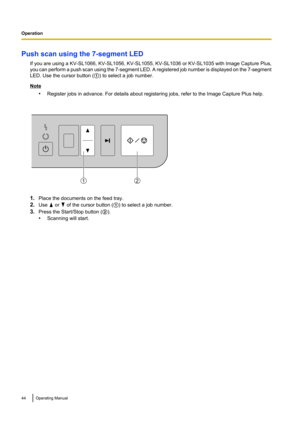

Push scan using the 7-segment LEDIf you are using a  KV-SL1066, KV-SL1056, KV-SL1055, KV-SL1036 or KV-SL1035 with Image Capture Plus,
you can perform a push scan using the 7 -segment LED. A registered job number is displayed on the 7 -segment
LED. Use the cursor button ( A) to select a job number.
Note
•Register jobs in advance. For details about registering jobs, refer to the Image Capture Plus help.
1.Place the documents on the feed tray.
2. Use
 or  of the cursor button ( A) to select a job number....

Checking eventsCheck the following if an application does not start up after being set.
1. Display the Scan properties screen.
• If you are using Windows 8 / Windows 7:
[Control Panel]  ® [View devices and printers], right-click the scanner icon, and display the [Scan
properties] screen.
• If you are using Windows Vista:
[Control Panel]  ® [Scanners and Cameras], select the scanner icon, and then click the Properties
button.
• If you are using Windows XP:
[Control Panel]  ® [Scanners and Cameras],...

Using Control SheetsPlacing a control sheet in the middle of documents lets you change the scanning conditions for pages scanned
after the control sheet. Also, you can change the folder used to save the scan data of documents scanned
after the control sheet.
• Print out control sheets from the included CD-ROM.
Control sheet functions
Simplex, Duplex, Binary, 256 level gray, Color, Dynamic Threshold, Dither, Error diffusion, Separation
Sheet
• For details about control sheets, refer to "Detect Control...

About Printing Control Sheets•Print the control sheet at the specified size; do not enlarge or reduce the size.
• When printing the control sheet, make sure that the pattern is 25 mm (1 in.) from the top of the page and
centered horizontally.
• Use the control sheet that is the same size as the document you are scanning.
• Be careful not to get the control sheet dirty. Do not fold or crease the control sheet. Scanning will not be
performed properly.
• For details about control sheets, refer to...

Clearing Paper JamsTorn paper, thin paper or paper that is creased on the top edge may cause paper jams. If a paper jam occurs,
remove the jammed sheet according to the following procedure.
1. Remove all documents from the feed tray.

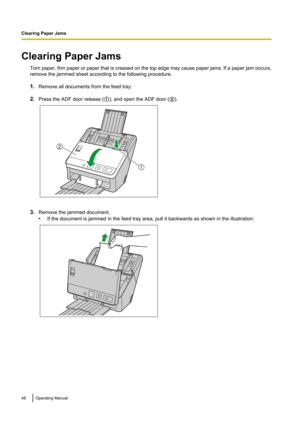

2. Press the ADF door release ( A), and open the ADF door ( B).
3. Remove the jammed document.
• If the document is jammed in the feed tray area, pull it backwards as shown in the illustration.
48Operating ManualC
l
e
a
r
i
n
g
P
a
p
e
r
J
a
m
s
Clearing Paper Jams2
1

•If the document is jammed in the exit area, pull it forward as shown in the illustration.
4.Close the ADF door.
• Push both sides of the ADF door down slowly until it clicks into place.
Notice
•Close the ADF door after confirming that no documents remain inside the unit.
Operating Manual49
Clearing Paper Jams

Cleaning the Outside of the Scanner
Notice•Before moving the unit, be sure to unplug the power cord and USB cable.
• Do not use commercially available cleaners, detergent, thinner, or benzine. (Doing so may cause
deformation, discoloration or damage.)
• Clean the scanner at least once a month.

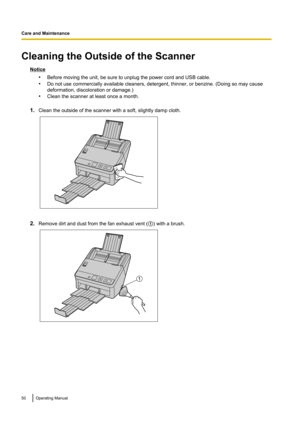

1. Clean the outside of the scanner with a soft, slightly damp cloth.
2.Remove dirt and dust from the fan exhaust vent ( A) with a brush.
50Operating ManualC
a
r
e
a
n
d
M
a
i
n
t
e
n
a
n
c
e
Care and Maintenance 1
