Panasonic Dual DIN Hdd Mobile Navigation System Cn Nvd905u Operating Instructions

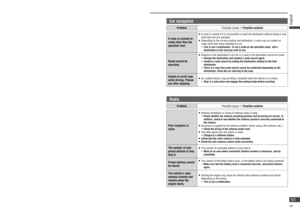

Car navigation
ProblemPossible cause  Possible solution
The vehicle position is
not displayed.
   The display is on Map mode screen.

 Press .
The vehicle position
is not displayed
correctly.
The GPS mark is not
displayed.
   The vehicle position changed while ACC was off. Movement of the vehicle by ferry
or car train, rotation by parking lot turntable, towing, etc.

 Drive for a while on a road with good reception.   Error in the signal from the GPS satellite is excessive.

 Drive for a...

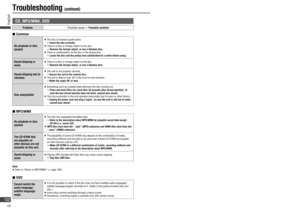

CD, MP3/WMA, DVD
ProblemPossible cause  Possible solution
 Common
No playback or disc
ejected
   The disc is inserted upside down.

  Insert the disc correctly.   There is a fl aw or foreign object on the disc.

  Remove the foreign object, or use a fl awless disc.   There is condensation on the disc or the pickup lens.

  Leave the disc and the pickup lens undisturbed for a while before using.
Sound skipping or
noise    There is a fl aw or foreign object on the disc.

  Remove the foreign...

CD, MP3/WMA, DVD
ProblemPossible cause  Possible solution
 Common
No playback or disc
ejected
   The disc is inserted upside down.

  Insert the disc correctly.   There is a fl aw or foreign object on the disc.

  Remove the foreign object, or use a fl awless disc.   There is condensation on the disc or the pickup lens.

  Leave the disc and the pickup lens undisturbed for a while before using.
Sound skipping or
noise    There is a fl aw or foreign object on the disc.

  Remove the foreign...

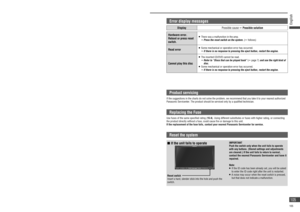

  If the unit fails to operate IMPORTANT
Push the switch only when the unit fails to operate
with any buttons. (Stored settings and adjustments
are cleared.) If the unit fails to return to normal,
contact the nearest Panasonic Servicenter and have it
repaired.
Note:
   If the ID code has been already set, you will be asked
to enter the ID code right after the unit is restarted.
   A noise may occur when the reset switch is pressed,
but that does not indicate a malfunction.
Error display...

  If the unit fails to operate IMPORTANT
Push the switch only when the unit fails to operate
with any buttons. (Stored settings and adjustments
are cleared.) If the unit fails to return to normal,
contact the nearest Panasonic Servicenter and have it
repaired.
Note:
   If the ID code has been already set, you will be asked
to enter the ID code right after the unit is restarted.
   A noise may occur when the reset switch is pressed,
but that does not indicate a malfunction.
Error display...

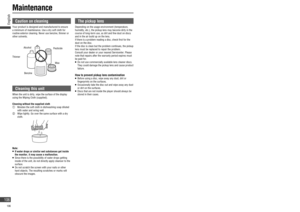

Caution on cleaning
Your product is designed and manufactured to ensure
a minimum of maintenance. Use a dry soft cloth for
routine exterior cleaning. Never use benzine, thinner or
other solvents.
Note:
   If water drops or similar wet substances get inside
the monitor, it may cause a malfunction.
   Since there is the possibility of water drops getting
inside of the unit, do not directly apply cleanser to the
surface.
   Do not scratch the screen with your nails or other
hard objects. The...

Caution on cleaning
Your product is designed and manufactured to ensure
a minimum of maintenance. Use a dry soft cloth for
routine exterior cleaning. Never use benzine, thinner or
other solvents.
Note:
   If water drops or similar wet substances get inside
the monitor, it may cause a malfunction.
   Since there is the possibility of water drops getting
inside of the unit, do not directly apply cleanser to the
surface.
   Do not scratch the screen with your nails or other
hard objects. The...

2 1
34
 



5
6
818
7
–
–

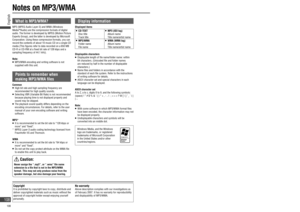

What is MP3/WMA?
MP3 (MPEG Audio Layer-3) and WMA (Windows
Media™Audio) are the compression formats of digital
audio. The former is developed by MPEG (Motion Picture
Experts Group), and the latter is developed by Microsoft
Corporation. Using these compression formats, you can
record the contents of about 10 music CD on a single CD
media (This fi gures refer to data recorded on a 650 MB
CD-R or CD-RW at a fi xed bit rate of 128 kbps and a
sampling frequency of 44.1...

2 1
34
 



5
6
818
7
–
–
What is MP3/WMA?
MP3 (MPEG Audio Layer-3) and WMA (Windows
Media™Audio) are the compression formats of digital
audio. The former is developed by MPEG (Motion Picture
Experts Group), and the latter is developed by Microsoft
Corporation. Using these compression formats, you can
record the contents of about 10 music CD on a single CD
media (This fi gures refer to data recorded on a 650 MB
CD-R or CD-RW at a fi xed bit rate of 128 kbps and a
sampling frequency of 44.1...

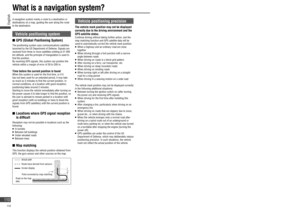

A navigation system marks a route to a destination or
destinations on a map, guiding the user along the route
to the destination.
Vehicle positioning system
   GPS (Global Positioning System)
The positioning system uses communications satellites
launched by the US Department of Defense. Signals are
received from three or more satellites orbiting at 21 000
km altitude, and the principle of triangulation is used to
fi nd the position.
By receiving GPS signals, this system can position the
vehicle...
