Panasonic Dual DIN Hdd Mobile Navigation System Cn Nvd905u Operating Instructions

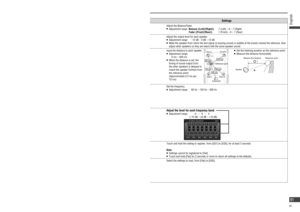

Surround effectsSettings
 [Balance  Fader]
Adjusts output levels for left/right (Balance) and front/rear (Fader).
 default: 0Adjust the Balance/Fader.  Adjustment range: Balance ([Left]/[Right]):    7 (Left) – 0 – 7 (Right)
         Fader ([Front]/[Rear]):     7 (Front) – 0 – 7 (Rear)
 [Speaker  Setting]
Adjusts the output level for each speaker.
     default:  Speaker Level:  0 dB
         Speaker Delay:  0 cm
         Subwoofer:  120 Hz
[ Speaker  Level]
Adjusts the output level for
each...

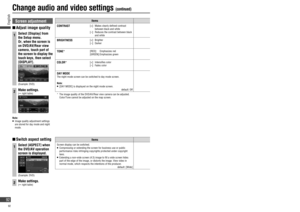

ItemsSettings
 CONTRAST
[+]:   Makes clearly defi ned contrast
between black and white
[–]:   Reduces the contrast between black
and white  Adjust contrast.
   Adjustment range:    1 – 6 – 11
 default: 6Select [OK].
 BRIGHTNESS[+]:  Brighter
[–]:  Darker  Adjust brightness.
   Adjustment range:    1 – 6 – 11
 default: 11Select [OK].
 TONE*[RED]:    Emphasizes  red
[GREEN]:  Emphasizes green  Adjust color.
   Adjustment range:    1 (Red) – 6 – 11 (Green)
 default: 6Select [OK].
 COLOR*[+]:   Intensifi...

ItemsSettings
 CONTRAST
[+]:   Makes clearly defi ned contrast
between black and white
[–]:   Reduces the contrast between black
and white  Adjust contrast.
   Adjustment range:    1 – 6 – 11
 default: 6Select [OK].
 BRIGHTNESS[+]:  Brighter
[–]:  Darker  Adjust brightness.
   Adjustment range:    1 – 6 – 11
 default: 11Select [OK].
 TONE*[RED]:    Emphasizes  red
[GREEN]:  Emphasizes green  Adjust color.
   Adjustment range:    1 (Red) – 6 – 11 (Green)
 default: 6Select [OK].
 COLOR*[+]:   Intensifi...

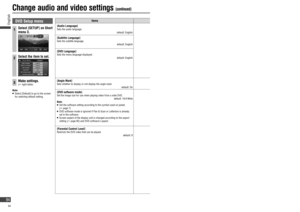

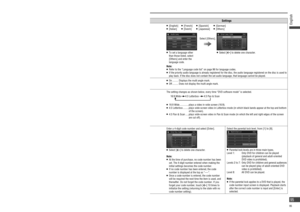

ItemsSettings
[ Audio  Language]
Sets the audio language.
 default: English
  [English]    [French]    [Spanish]     [German]  [Italian]     [Dutch]     [Japanese]    [Others]
Select [Others].[ Subtitle  Language]
Sets the subtitle language.
 default: English
[ DVD  Language]
Sets the menu language displayed.
 default: English   To set a language other
than those listed, select
[Others] and enter the
language code.  Select [] to delete one character.
Note:
   Refer to the “Language code...

ItemsSettings
[ Audio  Language]
Sets the audio language.
 default: English
  [English]    [French]    [Spanish]     [German]  [Italian]     [Dutch]     [Japanese]    [Others]
Select [Others].[ Subtitle  Language]
Sets the subtitle language.
 default: English
[ DVD  Language]
Sets the menu language displayed.
 default: English   To set a language other
than those listed, select
[Others] and enter the
language code.  Select [] to delete one character.
Note:
   Refer to the “Language code...

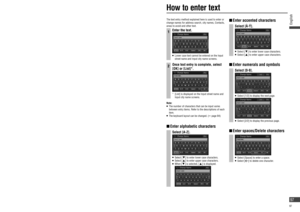

The text entry method explained here is used to enter or
change names for address search, city names, Contacts,
areas to avoid and other text.
1Enter the text.
   Lower case text cannot be entered on the Input
street name and Input city name screens.
2Once text entry is complete, select
[OK] or [List]*.
*   [List] is displayed on the Input street name and
Input city name screens.
Note:
   The number of characters that can be input varies
between entry items. Refer to the descriptions of each...

The text entry method explained here is used to enter or
change names for address search, city names, Contacts,
areas to avoid and other text.
1Enter the text.
   Lower case text cannot be entered on the Input
street name and Input city name screens.
2Once text entry is complete, select
[OK] or [List]*.
*   [List] is displayed on the Input street name and
Input city name screens.
Note:
   The number of characters that can be input varies
between entry items. Refer to the descriptions of each...

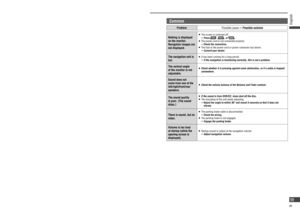

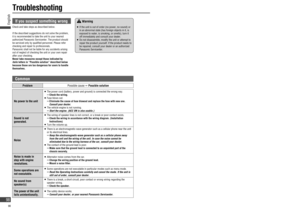

If you suspect something wrong
Check and take steps as described below.
If the described suggestions do not solve the problem,
it is recommended to take the unit to your nearest
authorized Panasonic Servicenter. The product should
be serviced only by qualifi ed personnel. Please refer
checking and repair to professionals.
Panasonic shall not be liable for any accidents arising
out of neglect of checking the unit or your own repair
after your checking.
Never take measures except those indicated by...

If you suspect something wrong
Check and take steps as described below.
If the described suggestions do not solve the problem,
it is recommended to take the unit to your nearest
authorized Panasonic Servicenter. The product should
be serviced only by qualifi ed personnel. Please refer
checking and repair to professionals.
Panasonic shall not be liable for any accidents arising
out of neglect of checking the unit or your own repair
after your checking.
Never take measures except those indicated by...

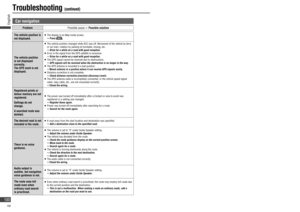

Car navigation
ProblemPossible cause  Possible solution
The vehicle position is
not displayed.
   The display is on Map mode screen.

 Press .
The vehicle position
is not displayed
correctly.
The GPS mark is not
displayed.
   The vehicle position changed while ACC was off. Movement of the vehicle by ferry
or car train, rotation by parking lot turntable, towing, etc.

 Drive for a while on a road with good reception.   Error in the signal from the GPS satellite is excessive.

 Drive for a...
