Switch audiovisual source
1Press .
   The Audiovisual source operation screen is
displayed.
2Select an audiovisual source.
   The system switches to the selected source.

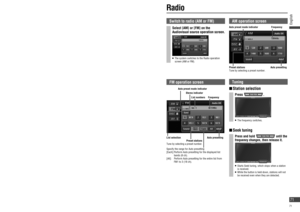

   [AM]:       Switches to AM radio.
   [FM]:       Switches to FM radio.
  [DISC]*1:    Switches to a corresponding disc.
(DVD, CD, MP3/WMA)

 [XM]*2:     Switches to XM Satellite Radio.
  [SIRIUS]*3:  Switches to SIRIUS Satellite
Radio.

 [iPod]*4:     Switches to iPod.
  [AV]:    Switches to Line-in.
 *1  This system is...

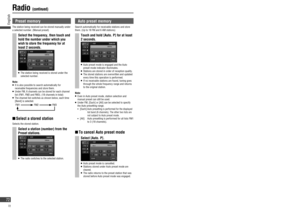

 Preset  memory
The station being received can be stored manually under
a selected number. (Manual preset)
Select the frequency, then touch and
hold the number under which you
wish to store the frequency for at
least 2 seconds.
   The station being received is stored under the
selected number.
Note:
   It is also possible to search automatically for
receivable frequencies and store them.
   Under FM, 6 channels can be stored for each channel
list (FM1, FM2 and FM3). (18 channels in total)
...

 Preset  memory
The station being received can be stored manually under
a selected number. (Manual preset)
Select the frequency, then touch and
hold the number under which you
wish to store the frequency for at
least 2 seconds.
   The station being received is stored under the
selected number.
Note:
   It is also possible to search automatically for
receivable frequencies and store them.
   Under FM, 6 channels can be stored for each channel
list (FM1, FM2 and FM3). (18 channels in total)
...

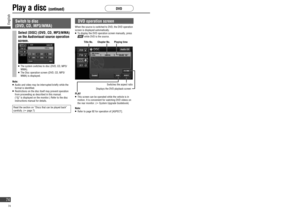

Switch to disc
(DVD, CD, MP3/WMA)
Select [DISC] (DVD, CD, MP3/WMA)
on the Audiovisual source operation
screen.
   The system switches to disc (DVD, CD, MP3/
WMA).
   The Disc operation screen (DVD, CD, MP3/
WMA) is displayed.
Note:
   Audio and video may be interrupted briefl y while the
format is identifi ed.
   Restrictions on the disc itself may prevent operation
from proceeding as described in this manual.
(“
” is displayed on the monitor.) Refer to the disc
instructions manual for details....

Switch to disc
(DVD, CD, MP3/WMA)
Select [DISC] (DVD, CD, MP3/WMA)
on the Audiovisual source operation
screen.
   The system switches to disc (DVD, CD, MP3/
WMA).
   The Disc operation screen (DVD, CD, MP3/
WMA) is displayed.
Note:
   Audio and video may be interrupted briefl y while the
format is identifi ed.
   Restrictions on the disc itself may prevent operation
from proceeding as described in this manual.
(“
” is displayed on the monitor.) Refer to the disc
instructions manual for details....

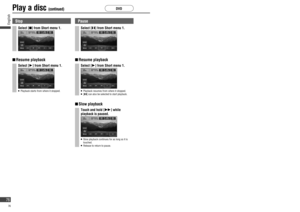

Play a disc (continued)
Stop
Select [] from Short menu 1.
  Resume  playback
Select [] from Short menu 1.
   Playback starts from where it stopped.

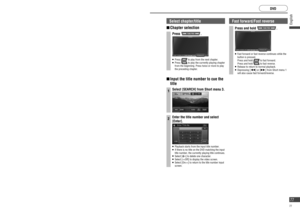

Fast forward/Fast reverse
Press and hold .
   Fast forward or fast reverse continues while the
button is pressed.
  Press and hold
 to fast forward.
  Press and hold
 to fast reverse.   Release to return to normal playback.  Depressing [] or [] from Short menu 1
will also cause fast forward/reverse.
Select chapter/title
  Chapter  selection...

Play a disc (continued)
Stop
Select [] from Short menu 1.
  Resume  playback
Select [] from Short menu 1.
   Playback starts from where it stopped.
Fast forward/Fast reverse
Press and hold .
   Fast forward or fast reverse continues while the
button is pressed.
  Press and hold
 to fast forward.
  Press and hold
 to fast reverse.   Release to return to normal playback.  Depressing [] or [] from Short menu 1
will also cause fast forward/reverse.
Select chapter/title
  Chapter  selection...

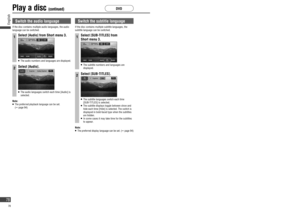

Play a disc (continued)
Switch the audio  language
If the disc contains multiple audio languages, the audio
language can be switched.
1Select [Audio] from Short menu 3.
   The audio numbers and languages are displayed.
2Select [Audio].
   The audio languages switch each time [Audio] is
selected.
Note:
   The preferred playback language can be set.
(
 page 94)
Switch the  subtitle language
If the disc contains multiple subtitle languages, the
subtitle language can be switched.
1Select [SUB-TITLES]...

Play a disc (continued)
Switch the audio  language
If the disc contains multiple audio languages, the audio
language can be switched.
1Select [Audio] from Short menu 3.
   The audio numbers and languages are displayed.
2Select [Audio].
   The audio languages switch each time [Audio] is
selected.
Note:
   The preferred playback language can be set.
(
 page 94)
Switch the  subtitle language
If the disc contains multiple subtitle languages, the
subtitle language can be switched.
1Select [SUB-TITLES]...

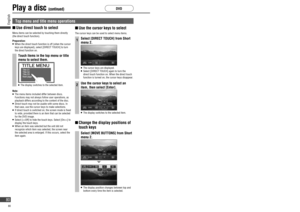

Play a disc (continued)
Top menu and title menu operations
  Use  direct touch to select
Menu items can be selected by touching them directly
(the direct touch function).
Preparation:
   When the direct touch function is off (when the cursor
keys are displayed), select [DIRECT TOUCH] to turn
the direct function on.
Touch items in the top menu or title
menu to select them.
   The display switches to the selected item.
Note:
   The menu items included differ between discs.
Functions may not always...
