Panasonic Dual DIN Hdd Mobile Navigation System Cn Nvd905u Operating Instructions

Play a disc (continued)
Top menu and title menu operations
  Use  direct touch to select
Menu items can be selected by touching them directly
(the direct touch function).
Preparation:
   When the direct touch function is off (when the cursor
keys are displayed), select [DIRECT TOUCH] to turn
the direct function on.
Touch items in the top menu or title
menu to select them.
   The display switches to the selected item.
Note:
   The menu items included differ between discs.
Functions may not always...

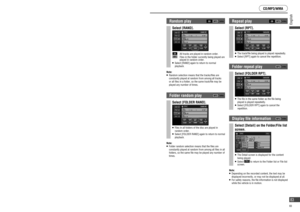

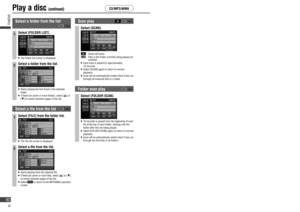

Select a folder from the list

1Select [FOLDER LIST].
   The Folder list screen is displayed.
2Select a folder from the list.
   Starts playing the fi rst track in the selected
folder.
   If there are seven or more folders, select [] or
[] to switch between pages of the list.
Select a fi le from the list
1Select [FILE] from the folder list.
   The File list screen is displayed.
2Select a fi le from the list.
   Starts playing from the selected fi le.   If there are seven or more fi les, select...

Select a folder from the list

1Select [FOLDER LIST].
   The Folder list screen is displayed.
2Select a folder from the list.
   Starts playing the fi rst track in the selected
folder.
   If there are seven or more folders, select [] or
[] to switch between pages of the list.
Select a fi le from the list
1Select [FILE] from the folder list.
   The File list screen is displayed.
2Select a fi le from the list.
   Starts playing from the selected fi le.   If there are seven or more fi les, select...

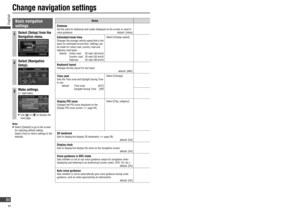

 Basic  navigation
settings
1Select [Setup] from the
Navigation menu.
2Select [Navigation
Setup].
3Make settings.( right table)
  Use [] or [] to display the
next page.
Note:
   Select [Default] to go to the screen
for selecting default setting.
   Select [Yes] to return settings to the
defaults.

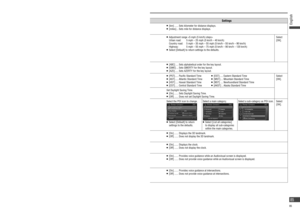

ItemsSettings
 Distance
Set the units for distances and scales displayed on the screen or used in
voice guidance.  default: [miles]
   [km] ...... Sets kilometer for distance displays.   [miles] ......

 Basic  navigation
settings
1Select [Setup] from the
Navigation menu.
2Select [Navigation
Setup].
3Make settings.( right table)
  Use [] or [] to display the
next page.
Note:
   Select [Default] to go to the screen
for selecting default setting.
   Select [Yes] to return settings to the
defaults.
ItemsSettings
 Distance
Set the units for distances and scales displayed on the screen or used in
voice guidance.  default: [miles]
   [km] ...... Sets kilometer for distance displays.   [miles] ......

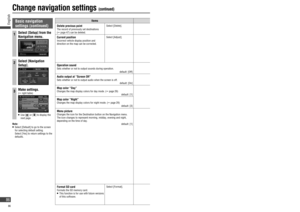

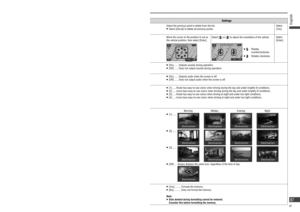

ItemsSettings
 Delete previous point
The record of previously set destinations
(
 page 47) can be deleted.Select [Delete]. Select the previous point to delete from the list.
   Select [Del.all] to delete all previous points.Select
[Yes].
 Current  position
Incorrect vehicle display position and
direction on the map can be corrected.Select [Adjust]. Move the cursor to the position to set as
the vehicle position, then select [Enter].
Select [] or [] to adjust the orientation of the vehicle.Select...

ItemsSettings
 Delete previous point
The record of previously set destinations
(
 page 47) can be deleted.Select [Delete]. Select the previous point to delete from the list.
   Select [Del.all] to delete all previous points.Select
[Yes].
 Current  position
Incorrect vehicle display position and
direction on the map can be corrected.Select [Adjust]. Move the cursor to the position to set as
the vehicle position, then select [Enter].
Select [] or [] to adjust the orientation of the vehicle.Select...

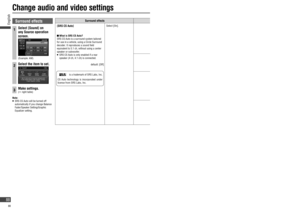

Surround effectsSettings
 [SRS CS Auto]
 What is SRS CS Auto?
SRS CS Auto is a surround system tailored
for use in a vehicle, using a Circle Surround
decoder. It reproduces a sound fi eld
equivalent to 5.1 ch, without using a center
speaker or subwoofer.
   SRS CS Auto is only enabled if a rear
speaker (4 ch, 4.1 ch) is connected.
 default: [Off]Select [On].
[ Focus]
Adjusts so that the sound seems to be coming from ear height.
Actual height at which sound is generated from the speakers
 default:...

Surround effectsSettings
 [SRS CS Auto]
 What is SRS CS Auto?
SRS CS Auto is a surround system tailored
for use in a vehicle, using a Circle Surround
decoder. It reproduces a sound fi eld
equivalent to 5.1 ch, without using a center
speaker or subwoofer.
   SRS CS Auto is only enabled if a rear
speaker (4 ch, 4.1 ch) is connected.
 default: [Off]Select [On].

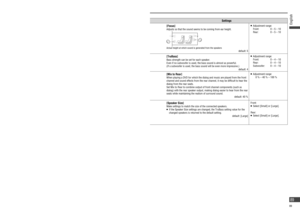

[ Focus]
Adjusts so that the sound seems to be coming from ear height.
Actual height at which sound is generated from the speakers
 default:...

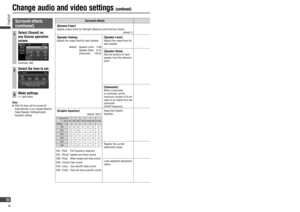

Surround effectsSettings
 [Balance  Fader]
Adjusts output levels for left/right (Balance) and front/rear (Fader).
 default: 0Adjust the Balance/Fader.  Adjustment range: Balance ([Left]/[Right]):    7 (Left) – 0 – 7 (Right)
         Fader ([Front]/[Rear]):     7 (Front) – 0 – 7 (Rear)
 [Speaker  Setting]
Adjusts the output level for each speaker.
     default:  Speaker Level:  0 dB
         Speaker Delay:  0 cm
         Subwoofer:  120 Hz
[ Speaker  Level]
Adjusts the output level for
each...
