Panasonic Ey4541 Operating Instructions Manual

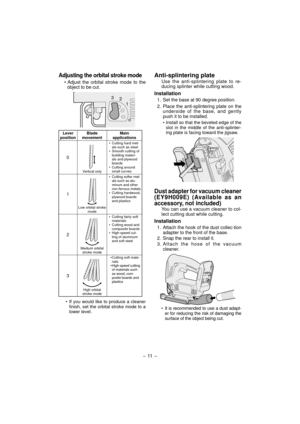

Adjusting the orbital stroke mode
• Adjust the orbital stroke mode to the
object to be cut.
3
2
1
0
Lever
positionBlade
movementMain
applications
0
Vertical only•  Cutting hard met-
als such as steel
•  Smooth cutting of
building materi-
als and plywood
boards
• Cutting around
small curves
1
Low orbital stroke
mode•  Cutting softer met-
als such as alu-
minum and other
non-ferrous metals
•  Cutting hardwood,
plywood boards
and plastics
2
Medium orbital
stroke mode•  Cutting fairly soft...

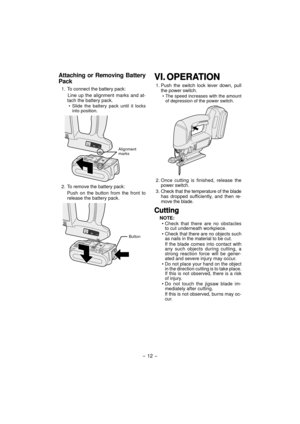

Attaching or Removing Battery
Pack
1.  To connect the battery pack:
Line up the alignment marks and at-
tach the battery pack.
• Slide the battery pack until it locks
into position.
Alignment
marks
2.  To remove the battery pack:
Push on the button from the front to
release the battery pack.
Button
VI.VI. OPERATIONOPERATION
1. Push the switch lock lever down, pull
the power switch.
• The speed increases with the amount
of depression of the power switch.
2. Once cutting is finished, release the...

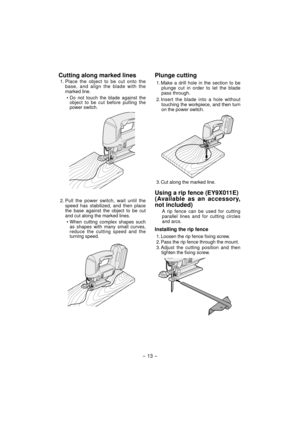

Cutting along marked lines
1. Place the object to be cut onto the
base, and align the blade with the
marked line.
• Do not touch the blade against the
object to be cut before pulling the
power switch.
2. Pull the power switch, wait until the
speed has stabilized, and then place
the base against the object to be cut
and cut along the marked lines.
• When cutting complex shapes such
as shapes with many small curves,
reduce the cutting speed and the
turning speed.
Plunge cutting
1. Make a drill...

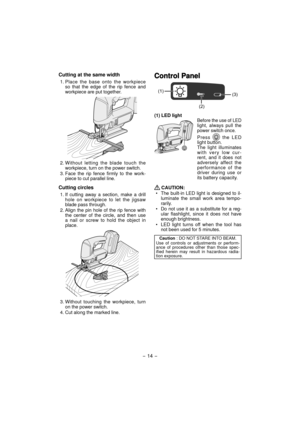

Cutting at the same width
1. Place the base onto the workpiece
so that the edge of the rip fence and
workpiece are put together.
2. Without letting the blade touch the
workpiece, turn on the power switch.
3. Face the rip fence firmly to the work-
piece to cut parallel line.
Cutting circles
1. If cutting away a section, make a drill
hole on workpiece to let the jigsaw
blade pass through.
2. Align the pin hole of the rip fence with
the center of the circle, and then use
a nail or screw to hold the...

- 15 -

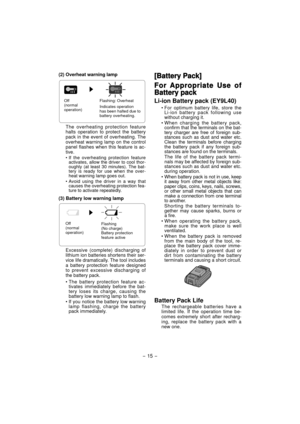

(2) Overheat warning lamp
Off
(normal
operation)Flashing: Overheat
Indicates operation
has been halted due to
battery overheating.
The overheating protection feature
halts operation to protect the battery
pack in the event of overheating. The
overheat warning lamp on the control
panel flashes when this feature is ac-
tive.
• If the overheating protection feature
activates, allow the driver to cool thor-
oughly (at least 30 minutes). The bat-
tery is ready for use when the over-
heat...

- 16 -

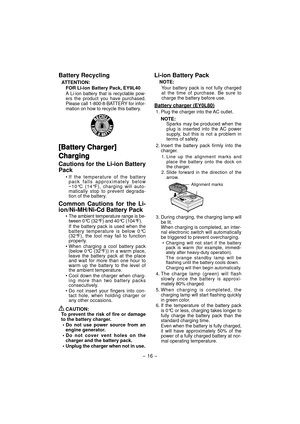

Battery Recycling
ATTENTION:
FOR Li-ion Battery Pack, EY9L40
A Li-ion battery that is recyclable pow-
ers the product you have purchased.
Please call 1-800-8-BATTERY for infor-
mation on how to recycle this battery.
[Battery Charger][Battery Charger]
ChargingCharging
Cautions for the Li-ion Battery
Pack
• If the temperature of the battery
pack falls approximately below
−10°C (14°F), charging will auto-
matically stop to prevent degrada-
tion of the battery.
Common Cautions for the Li-...

- 17 -

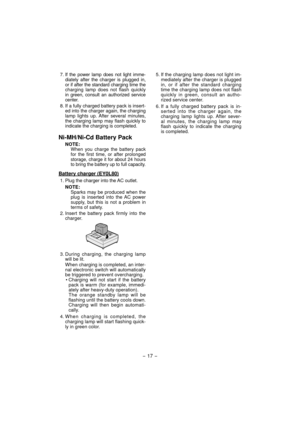

7. If the power lamp does not light imme-
diately after the charger is plugged in,
or if after the standard charging time the
charging lamp does not flash quickly
in green, consult an authorized service
center.
8. If a fully charged battery pack is insert-
ed into the charger again, the charging
lamp lights up. After several minutes,
the charging lamp may flash quickly to
indicate the charging is completed.
Ni-MH/Ni-Cd Battery Pack
NOTE:When you charge the battery pack
for the first...

- 18 -

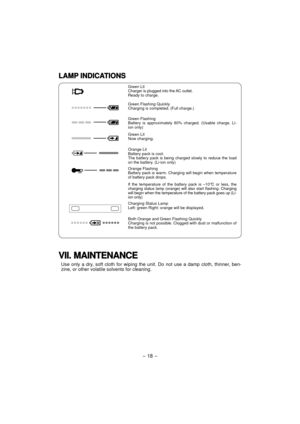

VII.  M AIN TE N ANCEVII. MAINTENANCE
Use only a dry, soft cloth for wiping the unit. Do not use a damp cloth, thinner, ben-
zine, or other volatile solvents for cleaning.
LA M P IN DIC ATIO NSLAMP INDICATIONS
Green Lit
Charger is plugged into the AC outlet.
Ready to charge.
Green Flashing Quickly
Charging is completed. (Full charge.)
Green Flashing
Battery is approximately 80% charg  ed. (Usable charge. Li-
ion only)
Green Lit
Now charging.
Orange Lit
Battery pack is cool.
The battery pack is...

- 19 -

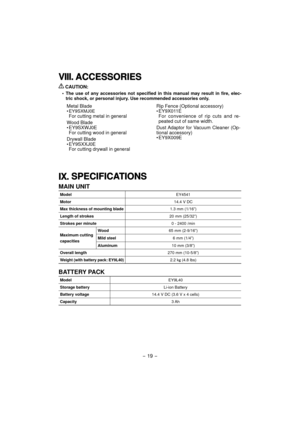

VIII.VIII. A CCESSO RIE SACCESSORIES

CAUTION:
•  The use of any accessories not specified in this manual may result in fi\
re, elec-
tric shock, or personal injury. Use recommended accessories only.
Metal Blade
• EY9SXMJ0EFor cutting metal in general
Wood Blade
• EY9SXWJ0E
For cutting wood in general
Drywall Blade
• EY9SXXJ0E
For cutting drywall in general Rip Fence (Optional accessory)
• EY9X011E
For convenience of rip cuts and re-
peated cut of same width.
Dust Adaptor for Vacuum Cleaner...

- 20 -

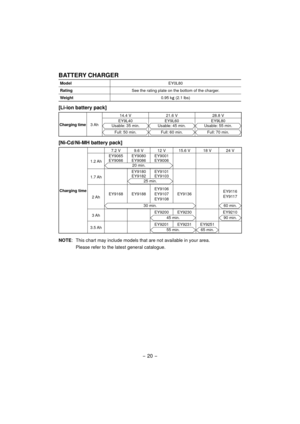

BATTERY CHARGER
ModelEY0L80
RatingSee the rating plate on the bottom of the charger.
Weight0.95 kg
(2.1 lbs)
[Li-ion battery pack]
Charging time3 Ah14.4 V 21.6 V 28.8 V
EY9L40Usable: 35 min.
Full: 50 min.
EY9L60Usable: 45 min.
Full: 60 min.
EY9L80Usable: 55 min.
Full: 70 min.
[Ni-Cd/Ni-MH battery pack]
Charging time7.2 V 9.6 V 12 V 15.6 V 18 V 24 V
1.2 AhEY9065
EY9066EY9080
EY9086EY9001
EY9006
20 min.
1.7 AhEY9180
EY9182EY9101
EY910325 min.
2 AhEY9168 EY9188EY9106
EY9107
EY9108EY9136EY9116...
