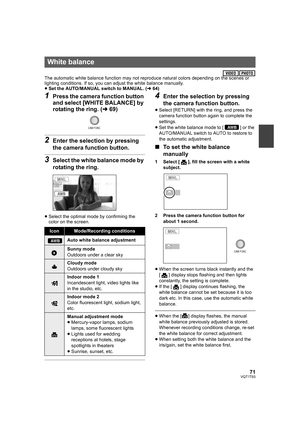

Panasonic Hdc Hs100 Operating Instructions

71VQT1T93
The automatic white balance function may not reproduce natural colors depending on the scenes or
lighting conditions. If so, you can adjust the white balance manually.
≥Set the AUTO/MANUAL switch to MANUAL. (l64)
1Press the camera function button
and select [WHITE BALANCE] by
rotating the ring. (l69)
2Enter the selection by pressing
the camera function button.
3Select the white balance mode by
rotating the ring.
≥Select the optimal mode by confirming the
color on the screen.
4Enter the...

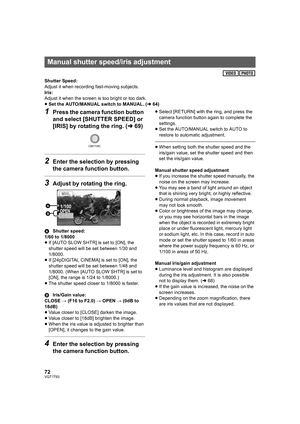

72VQT1T93
Shutter Speed:
Adjust it when recording fast-moving subjects.
Iris:
Adjust it when the screen is too bright or too dark.
≥Set the AUTO/MANUAL switch to MANUAL. (l64)
1Press the camera function button
and select [SHUTTER SPEED] or
[IRIS] by rotating the ring. (l69)
2Enter the selection by pressing
the camera function button.
3Adjust by rotating the ring.
AShutter speed:
1/60 to 1/8000
≥If [AUTO SLOW SHTR] is set to [ON], the
shutter speed will be set between 1/30 and
1/8000.
≥If [24pDIGITAL...

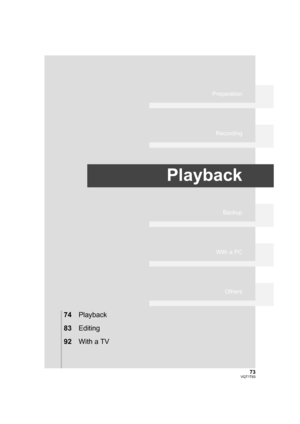

73VQT1T93
Preparation
Recording
Playback
Backup
With a PC
Others
74Playback
83Editing
92With a TV
HDCHS100P-VQT1T93_ENG.book  73 ページ  ２００８年７月１４日　月曜日　午後１時３６分

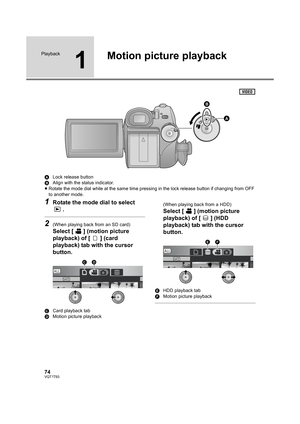

74VQT1T93
Playback
1
Motion picture playback
ALock release button
BAlign with the status indicator.
≥Rotate the mode dial while at the same time pressing in the lock release button if changing from OFF
to another mode.
1Rotate the mode dial to select
.
2(When playing back from an SD card)
Select [ ] (motion picture
playback) of [ ] (card
playback) tab with the cursor
button.
CCard playback tab
DMotion picture playback(When playing back from a HDD)
Select [ ] (motion picture
playback) of [ ] (HDD...

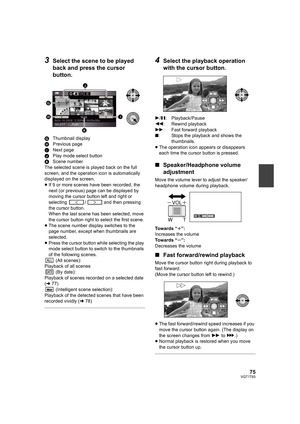

75VQT1T93
3Select the scene to be played
back and press the cursor
button.
GThumbnail display
HPrevious page
INext page
JPlay mode select button
KScene number
The selected scene is played back on the full
screen, and the operation icon is automatically
displayed on the screen.
≥If 9 or more scenes have been recorded, the
next (or previous) page can be displayed by
moving the cursor button left and right or
selecting  /  and then pressing
the cursor button.
When the last scene has been selected,...

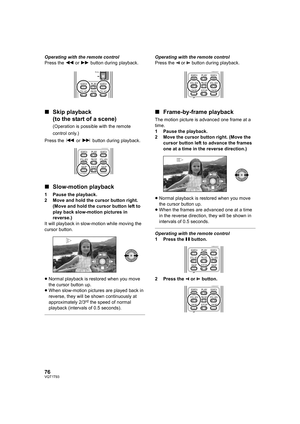

76VQT1T93
Operating with the remote control
Press the 6 or 5 button during playback.
∫Skip playback
(to the start of a scene)
(Operation is possible with the remote
control only.)
Press the : or 9 button during playback.
∫Slow-motion playback
1 Pause the playback.
2 Move and hold the cursor button right.
(Move and hold the cursor button left to
play back slow-motion pictures in
reverse.)
It will playback in slow-motion while moving the
cursor button.
≥Normal playback is restored when you move
the...

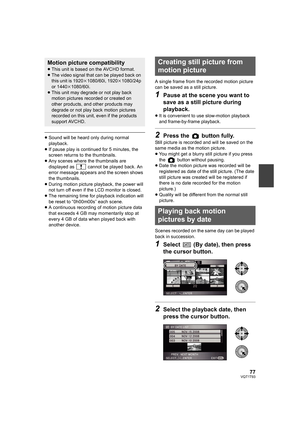

77VQT1T93
≥Sound will be heard only during normal
playback.
≥If pause play is continued for 5 minutes, the
screen returns to the thumbnails.
≥Any scenes where the thumbnails are
displayed as   cannot be played back. An
error message appears and the screen shows
the thumbnails.
≥During motion picture playback, the power will
not turn off even if the LCD monitor is closed.
≥The remaining time for playback indication will
be reset to “0h00m00s” each scene.
≥A continuous recording of motion picture...

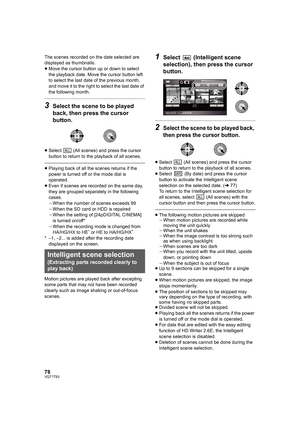

78VQT1T93
The scenes recorded on the date selected are
displayed as thumbnails.
≥Move the cursor button up or down to select
the playback date. Move the cursor button left
to select the last date of the previous month,
and move it to the right to select the last date of
the following month.
3Select the scene to be played
back, then press the cursor
button.
≥Select   (All scenes) and press the cursor
button to return to the playback of all scenes.
≥Playing back of all the scenes returns if the...

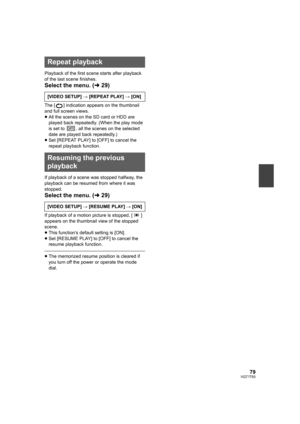

79VQT1T93
Playback of the first scene starts after playback
of the last scene finishes.
Select the menu. (l29)
The [ ] indication appears on the thumbnail
and full screen views.
≥All the scenes on the SD card or HDD are
played back repeatedly. (When the play mode
is set to  , all the scenes on the selected
date are played back repeatedly.)
≥Set [REPEAT PLAY] to [OFF] to cancel the
repeat playback function.
If playback of a scene was stopped halfway, the
playback can be resumed from where it was...

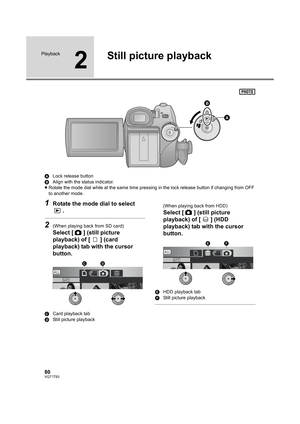

80VQT1T93
Playback
2
Still picture playback
ALock release button
BAlign with the status indicator.
≥Rotate the mode dial while at the same time pressing in the lock release button if changing from OFF
to another mode.
1Rotate the mode dial to select
.
2(When playing back from SD card)
Select [ ] (still picture
playback) of [ ] (card
playback) tab with the cursor
button.
CCard playback tab
DStill picture playback(When playing back from HDD)
Select [ ] (still picture
playback) of [ ] (HDD
playback)...
