Panasonic Hdc Hs100 Operating Instructions

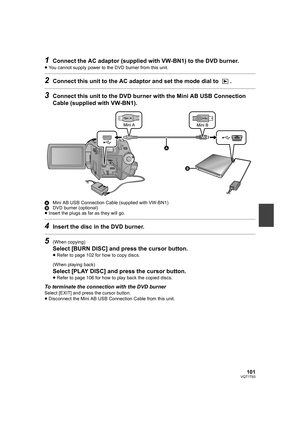

101VQT1T93
1Connect the AC adaptor (supplied with VW-BN1) to the DVD burner.
≥You cannot supply power to the DVD burner from this unit.
2Connect this unit to the AC adaptor and set the mode dial to  .
3Connect this unit to the DVD burner with the Mini AB USB Connection
Cable (supplied with VW-BN1).
AMini AB USB Connection Cable (supplied with VW-BN1)
BDVD burner (optional)
≥Insert the plugs as far as they will go.
4Insert the disc in the DVD burner.
5(When copying)
Select [BURN DISC] and press the...

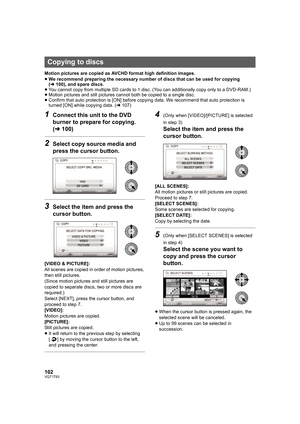

102VQT1T93
Motion pictures are copied as AVCHD format high definition images.
≥We recommend preparing the necessary number of discs that can be used for copying
(l100), and spare discs.
≥You cannot copy from multiple SD cards to 1 disc. (You can additionally copy only to a DVD-RAM.)
≥Motion pictures and still pictures cannot both be copied to a single disc.
≥Confirm that auto protection is [ON] before copying data. We recommend that auto protection is
turned [ON] while copying data. (l107)
1Connect...

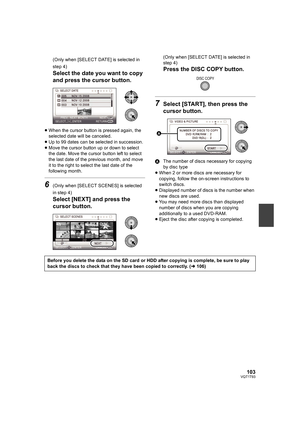

103VQT1T93
(Only when [SELECT DATE] is selected in
step 4)
Select the date you want to copy
and press the cursor button.
≥When the cursor button is pressed again, the
selected date will be canceled.
≥Up to 99 dates can be selected in succession.
≥Move the cursor button up or down to select
the date. Move the cursor button left to select
the last date of the previous month, and move
it to the right to select the last date of the
following month.
6(Only when [SELECT SCENES] is selected
in step 4)...

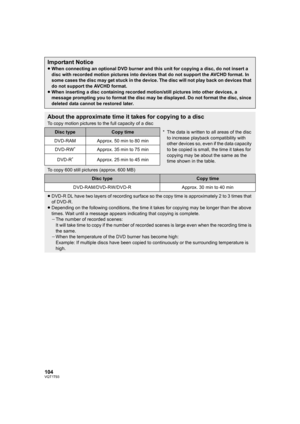

104VQT1T93
Important Notice
≥When connecting an optional DVD burner and this unit for copying a disc, do not insert a
disc with recorded motion pictures into devices that do not support the AVCHD format. In
some cases the disc may get stuck in the device. The disc will not play back on devices that
do not support the AVCHD format.
≥When inserting a disc containing recorded motion/still pictures into other devices, a
message prompting you to format the disc may be displayed. Do not format the disc,...

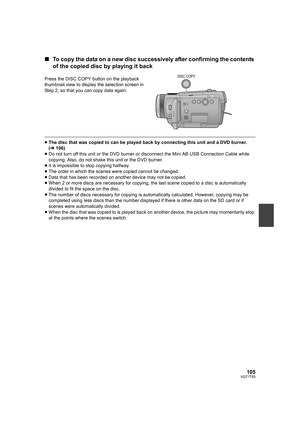

105VQT1T93
∫To copy the data on a new disc successively after confirming the contents
of the copied disc by playing it back
≥The disc that was copied to can be played back by connecting this unit and a DVD burner.
(l106)
≥Do not turn off this unit or the DVD burner or disconnect the Mini AB USB Connection Cable while
copying. Also, do not shake this unit or the DVD burner.
≥It is impossible to stop copying halfway.
≥The order in which the scenes were copied cannot be changed.
≥Data that has been...

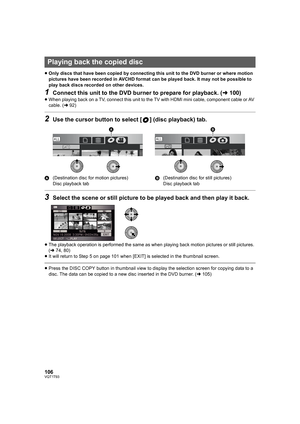

106VQT1T93
≥Only discs that have been copied by connecting this unit to the DVD burner or where motion
pictures have been recorded in AVCHD format can be played back. It may not be possible to
play back discs recorded on other devices.
1Connect this unit to the DVD burner to prepare for playback. (l100)
≥When playing back on a TV, connect this unit to the TV with HDMI mini cable, component cable or AV
cable. (l92)
2Use the cursor button to select [ ] (disc playback) tab.
A(Destination disc for motion...

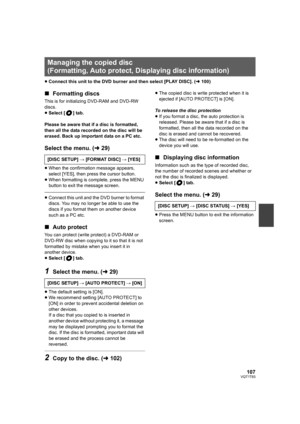

107VQT1T93
≥Connect this unit to the DVD burner and then select [PLAY DISC]. (l100)
∫Formatting discs
This is for initializing DVD-RAM and DVD-RW
discs.
≥Select [ ] tab.
Please be aware that if a disc is formatted,
then all the data recorded on the disc will be
erased. Back up important data on a PC etc.
Select the menu. (l29)
≥When the confirmation message appears,
select [YES], then press the cursor button.
≥When formatting is complete, press the MENU
button to exit the message screen.
≥Connect...

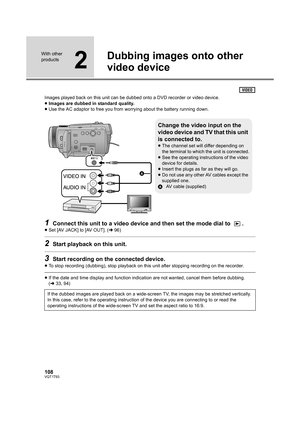

108VQT1T93
With other
products
2
Dubbing images onto other
video device
Images played back on this unit can be dubbed onto a DVD recorder or video device.
≥Images are dubbed in standard quality.
≥Use the AC adaptor to free you from worrying about the battery running down.
1Connect this unit to a video device and then set the mode dial to  .
≥Set [AV JACK] to [AV OUT]. (l96)
2Start playback on this unit.
3Start recording on the connected device.
≥To stop recording (dubbing), stop playback on this unit...

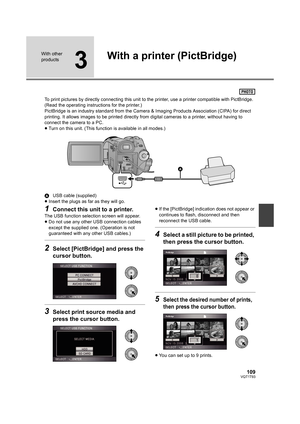

109VQT1T93
With other
products
3
With a printer (PictBridge)
To print pictures by directly connecting this unit to the printer, use a printer compatible with PictBridge.
(Read the operating instructions for the printer.)
PictBridge is an industry standard from the Camera & Imaging Products Association (CIPA) for direct
printing. It allows images to be printed directly from digital cameras to a printer, without having to
connect the camera to a PC.
≥Turn on this unit. (This function is available in...

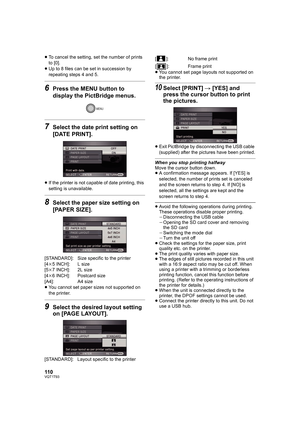

110VQT1T93
≥To cancel the setting, set the number of prints
to [0].
≥Up to 8 files can be set in succession by
repeating steps 4 and 5.
6Press the MENU button to
display the PictBridge menus.
7Select the date print setting on
[DATE PRINT].
≥If the printer is not capable of date printing, this
setting is unavailable.
8Select the paper size setting on
[PAPER SIZE].
[STANDARD]: Size specific to the printer
[4k5 INCH]: L size
[5k7 INCH]: 2L size
[4k6 INCH]: Postcard size
[A4]: A4 size
≥You cannot set...
