Panasonic Hdc Hs100 Operating Instructions

111VQT1T93
Preparation
Recording
Playback
Backup

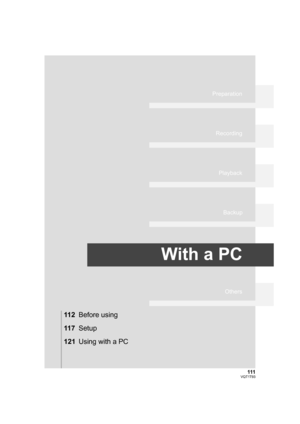

With a PC
Others
11 2Before using
11 7Setup
121Using with a PC
HDCHS100P-VQT1T93_ENG.book  111 ページ  ２００８年７月１４日　月曜日　午後１時３６分

112VQT1T93
Before using
1

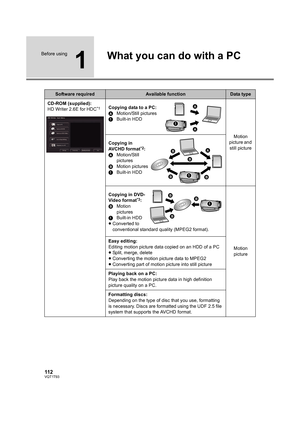

What you can do with a PC
Software requiredAvailable functionData type
CD-ROM (supplied):
HD Writer 2.6E for HDC
*1Copying data to a PC:
AMotion/Still pictures
1Built-in HDD
Motion
picture and
still picture Copying in
AVCHD format
*2:
AMotion/Still
pictures
BMotion pictures
1Built-in HDD
Copying in DVD-
Video format
*3:
BMotion
pictures
1Built-in HDD
≥Converted to
conventional standard quality (MPEG2 format).
Motion
picture Easy editing:
Editing motion picture data copied...

11 3VQT1T93

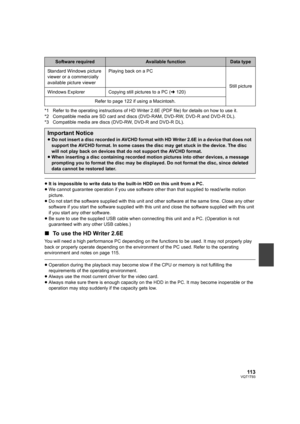

*1 Refer to the operating instructions of HD Writer 2.6E (PDF file) for details on how to use it.
*2 Compatible media are SD card and discs (DVD-RAM, DVD-RW, DVD-R and DVD-R DL).
*3 Compatible media are discs (DVD-RW, DVD-R and DVD-R DL).
≥It is impossible to write data to the built-in HDD on this unit from a PC.
≥We cannot guarantee operation if you use software other than that supplied to read/write motion
picture.
≥Do not start the software supplied with this unit and other software at...

114VQT1T93

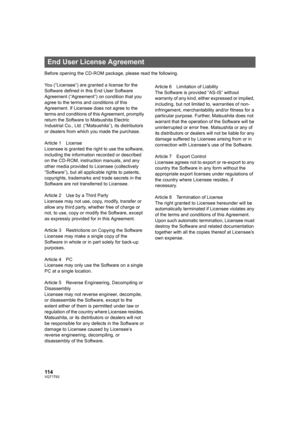

Before opening the CD-ROM package, please read the following.
You (“Licensee”) are granted a license for the
Software defined in this End User Software
Agreement (“Agreement”) on condition that you
agree to the terms and conditions of this
Agreement. If Licensee does not agree to the
terms and conditions of this Agreement, promptly
return the Software to Matsushita Electric
Industrial Co., Ltd. (“Matsushita”), its distributors
or dealers from which you made the purchase.
Article 1...

11 5VQT1T93
Before using
2

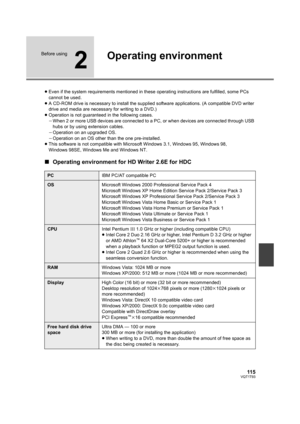

Operating environment
≥Even if the system requirements mentioned in these operating instructions are fulfilled, some PCs
cannot be used.
≥A CD-ROM drive is necessary to install the supplied software applications. (A compatible DVD writer
drive and media are necessary for writing to a DVD.)
≥Operation is not guaranteed in the following cases.
jWhen 2 or more USB devices are connected to a PC, or when devices are connected through USB
hubs or by using extension cables....

116VQT1T93

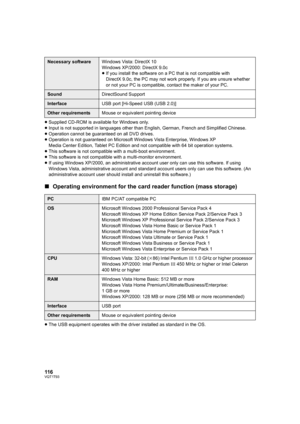

≥Supplied CD-ROM is available for Windows only.
≥Input is not supported in languages other than English, German, French and Simplified Chinese.
≥Operation cannot be guaranteed on all DVD drives.
≥Operation is not guaranteed on Microsoft Windows Vista Enterprise, Windows XP
Media Center Edition, Tablet PC Edition and not compatible with 64 bit operation systems.
≥This software is not compatible with a multi-boot environment.
≥This software is not compatible with a multi-monitor environment....

11 7VQT1T93
Setup
1

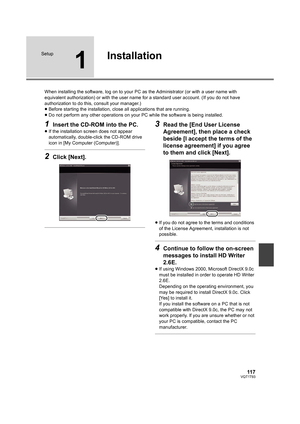

Installation
When installing the software, log on to your PC as the Administrator (or with a user name with
equivalent authorization) or with the user name for a standard user account. (If you do not have
authorization to do this, consult your manager.)
≥Before starting the installation, close all applications that are running.
≥Do not perform any other operations on your PC while the software is being installed.
1Insert the CD-ROM into the PC.
≥If the installation screen does not...

118VQT1T93

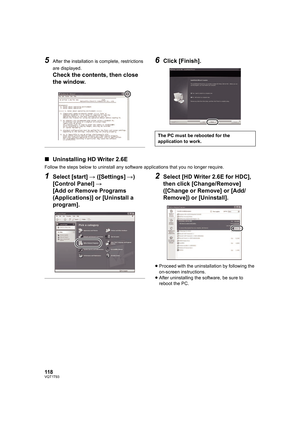

5After the installation is complete, restrictions
are displayed.
Check the contents, then close
the window.
6Click [Finish].
∫Uninstalling HD Writer 2.6E
Follow the steps below to uninstall any software applications that you no longer require.
1Select [start] # ([Settings] #)
[Control Panel] #
[Add or Remove Programs
(Applications)] or [Uninstall a
program].2Select [HD Writer 2.6E for HDC],
then click [Change/Remove]
([Change or Remove] or [Add/
Remove]) or [Uninstall].
≥Proceed with...

11 9VQT1T93
Setup
2

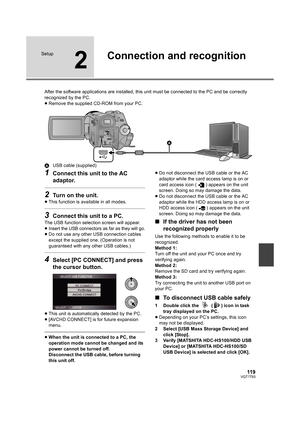

Connection and recognition
After the software applications are installed, this unit must be connected to the PC and be correctly
recognized by the PC.
≥Remove the supplied CD-ROM from your PC.
AUSB cable (supplied)
1Connect this unit to the AC
adaptor.
2Turn on the unit.
≥This function is available in all modes.
3Connect this unit to a PC.
The USB function selection screen will appear.
≥
Insert the USB connectors as far as they will go.≥Do not use any other USB connection cables...

120VQT1T93

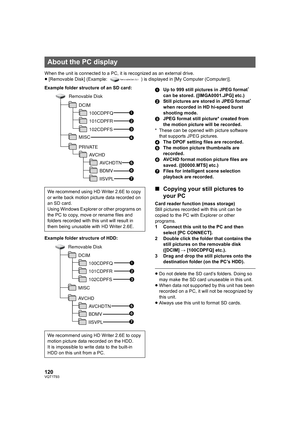

When the unit is connected to a PC, it is recognized as an external drive.
≥[Removable Disk] (Example:  ) is displayed in [My Computer (Computer)].
Example folder structure of an SD card:
Example folder structure of HDD:1Up to 999 still pictures in JPEG format
*
can be stored. ([IMGA0001.JPG] etc.)
2Still pictures are stored in JPEG format*
when recorded in HD hi-speed burst
shooting mode.
3JPEG format still picture* created from
the motion picture will be recorded.
* These can be opened...
