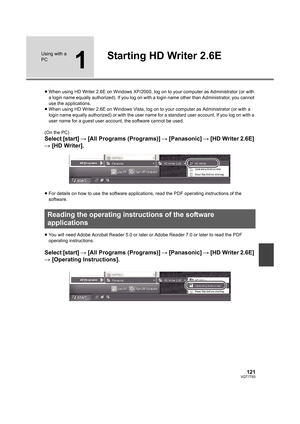

Panasonic Hdc Hs100 Operating Instructions

121VQT1T93
Using with a
PC
1
Starting HD Writer 2.6E
≥When using HD Writer 2.6E on Windows XP/2000, log on to your computer as Administrator (or with
a login name equally authorized). If you log on with a login name other than Administrator, you cannot
use the applications.
≥When using HD Writer 2.6E on Windows Vista, log on to your computer as Administrator (or with a
login name equally authorized) or with the user name for a standard user account. If you log on with a
user name for a guest user...

122VQT1T93
Using with a
PC
2

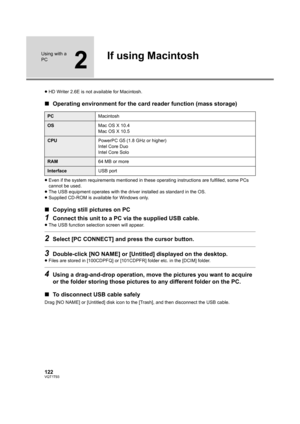

If using Macintosh
≥HD Writer 2.6E is not available for Macintosh.
∫Operating environment for the card reader function (mass storage)
≥Even if the system requirements mentioned in these operating instructions are fulfilled, some PCs
cannot be used.
≥The USB equipment operates with the driver installed as standard in the OS.
≥Supplied CD-ROM is available for Windows only.
∫Copying still pictures on PC
1Connect this unit to a PC via the supplied USB cable.
≥The USB function...

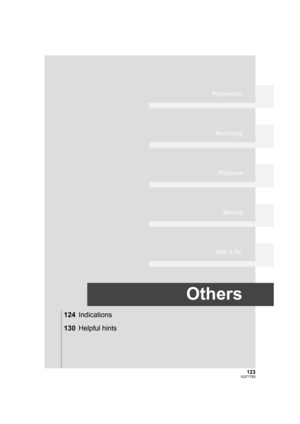

123VQT1T93
Preparation
Recording
Playback
Backup
With a PC
Others
124Indications
130Helpful hints
HDCHS100P-VQT1T93_ENG.book  123 ページ  ２００８年７月１４日　月曜日　午後１時３６分

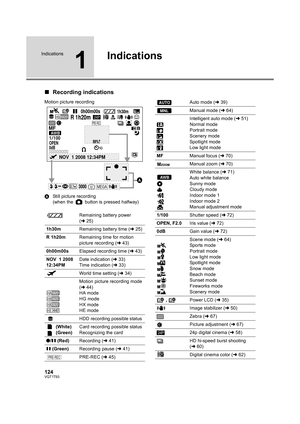

124VQT1T93
Indications
1
Indications
∫Recording indications
Motion picture recording
AStill picture recording
(when the   button is pressed halfway)
Remaining battery power
(l25)
1h30mRemaining battery time (l25)
R 1h20mRemaining time for motion
picture recording (l43)
0h00m00sElapsed recording time (l43)
NOV 1 2008
12:34PMDate indication (l33)
Time indication (l33)
World time setting (l34)
Motion picture recording mode
(l44)
HA mode
HG mode
HX mode
HE mode
HDD recording possible status
 (White)...

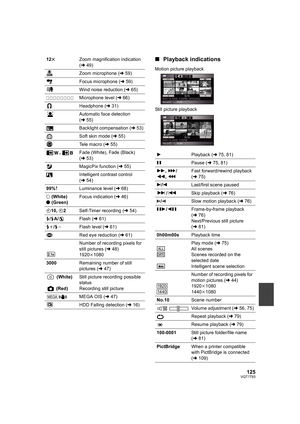

125VQT1T93
∫Playback indications12tZoom magnification indication
(l49)
Zoom microphone (l59)
Focus microphone (l59)
Wind noise reduction (l65)
Microphone level (l66)
Headphone (l31)
Automatic face detection
(l55)
Backlight compensation (l53)
Soft skin mode (l55)
Tele macro (l55)
, Fade (White), Fade (Black)
(l53)
MagicPix function (l55)
Intelligent contrast control
(l54)
99%Luminance level (l68)
± (White)
¥ (Green)Focus indication (l46)
Ø10, Ø2Self-Timer recording (l54)
ß/ßA/Flash (l61)
ßi/ßjFlash...

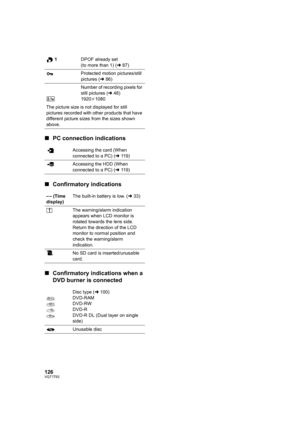

126VQT1T93
∫PC connection indications
∫Confirmatory indications
∫Confirmatory indications when a
DVD burner is connected
1DPOF already set
(to more than 1) (l87)
Protected motion pictures/still
pictures (l86)
Number of recording pixels for
still pictures (l48)
1920k1080
The picture size is not displayed for still
pictures recorded with other products that have
different picture sizes from the sizes shown
above.
Accessing the card (When
connected to a PC) (l119)
Accessing the HDD (When
connected...

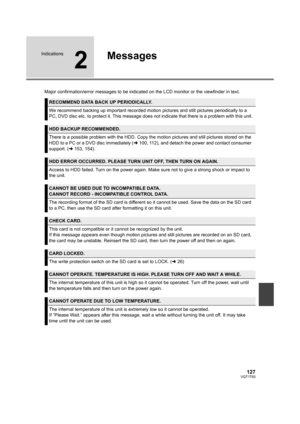

127VQT1T93
Indications
2
Messages
Major confirmation/error messages to be indicated on the LCD monitor or the viewfinder in text.
RECOMMEND DATA BACK UP PERIODICALLY.
We recommend backing up important recorded motion pictures and still pictures periodically to a
PC, DVD disc etc. to protect it. This message does not indicate that there is a problem with this unit.
HDD BACKUP RECOMMENDED.
There is a possible problem with the HDD. Copy the motion pictures and still pictures stored on the
HDD to a PC or a...

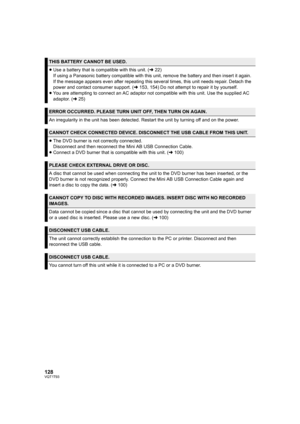

128VQT1T93
THIS BATTERY CANNOT BE USED.
≥Use a battery that is compatible with this unit. (l22)
If using a Panasonic battery compatible with this unit, remove the battery and then insert it again.
If the message appears even after repeating this several times, this unit needs repair. Detach the
power and contact consumer support. (l153, 154) Do not attempt to repair it by yourself.
≥You are attempting to connect an AC adaptor not compatible with this unit. Use the supplied AC
adaptor. (l25)
ERROR...

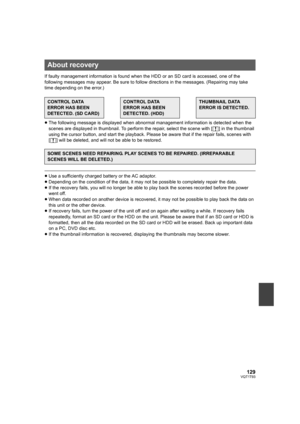

129VQT1T93
If faulty management information is found when the HDD or an SD card is accessed, one of the
following messages may appear. Be sure to follow directions in the messages. (Repairing may take
time depending on the error.)
≥The following message is displayed when abnormal management information is detected when the
scenes are displayed in thumbnail. To perform the repair, select the scene with [°] in the thumbnail
using the cursor button, and start the playback. Please be aware that if the...

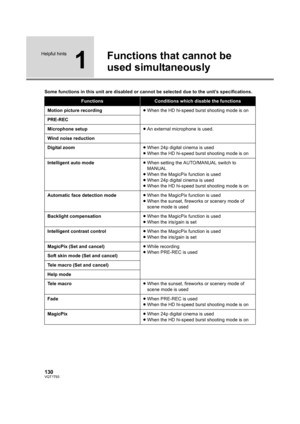

130VQT1T93
Helpful hints
1
Functions that cannot be
used simultaneously
Some functions in this unit are disabled or cannot be selected due to the unit’s specifications.
FunctionsConditions which disable the functions
Motion picture recording≥When the HD hi-speed burst shooting mode is on
PRE-REC
Microphone setup≥An external microphone is used.
Wind noise reduction
Digital zoom≥When 24p digital cinema is used
≥When the HD hi-speed burst shooting mode is on
Intelligent auto mode≥When setting the...
