Panasonic Hdc Hs100 Operating Instructions

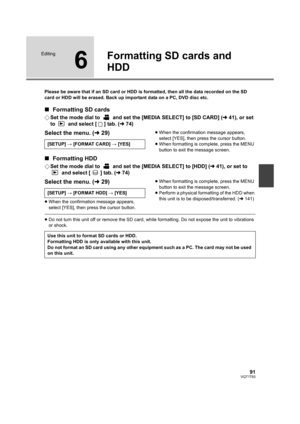

91VQT1T93
Editing
6
Formatting SD cards and
HDD
Please be aware that if an SD card or HDD is formatted, then all the data recorded on the SD
card or HDD will be erased. Back up important data on a PC, DVD disc etc.
∫Formatting SD cards
¬Set the mode dial to   and set the [MEDIA SELECT] to [SD CARD] (l41), or set
to   and select [ ] tab. (l74)
Select the menu. (l29)≥When the confirmation message appears,
select [YES], then press the cursor button.
≥When formatting is complete, press the MENU
button...

92VQT1T93
With a TV
1

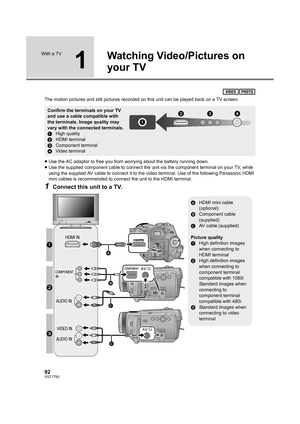

Watching Video/Pictures on
your TV
The motion pictures and still pictures recorded on this unit can be played back on a TV screen.
≥Use the AC adaptor to free you from worrying about the battery running down.
≥Use the supplied component cable to connect the unit via the component terminal on your TV, while
using the supplied AV cable to connect it to the video terminal. Use of the following Panasonic HDMI
mini cables is recommended to connect the unit to the HDMI terminal....

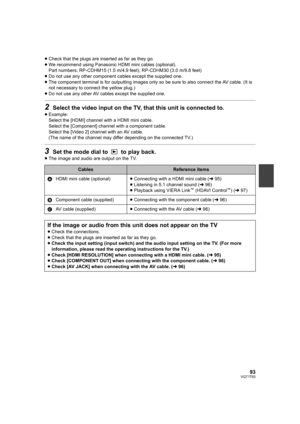

93VQT1T93
≥Check that the plugs are inserted as far as they go.
≥We recommend using Panasonic HDMI mini cables (optional).
Part numbers: RP-CDHM15 (1.5 m/4.9 feet), RP-CDHM30 (3.0 m/9.8 feet)
≥Do not use any other component cables except the supplied one.
≥The component terminal is for outputting images only so be sure to also connect the AV cable. (It is
not necessary to connect the yellow plug.)
≥Do not use any other AV cables except the supplied one.
2Select the video input on the TV, that this unit...

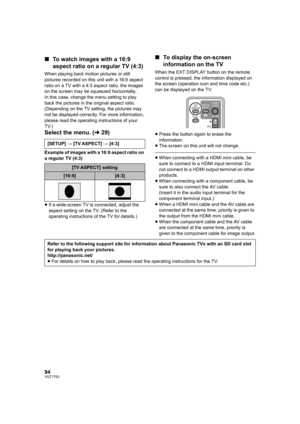

94VQT1T93
∫To watch images with a 16:9
aspect ratio on a regular TV (4:3)
When playing back motion pictures or still
pictures recorded on this unit with a 16:9 aspect
ratio on a TV with a 4:3 aspect ratio, the images
on the screen may be squeezed horizontally.
In this case, change the menu setting to play
back the pictures in the original aspect ratio.
(Depending on the TV setting, the pictures may
not be displayed correctly. For more information,
please read the operating instructions of your...

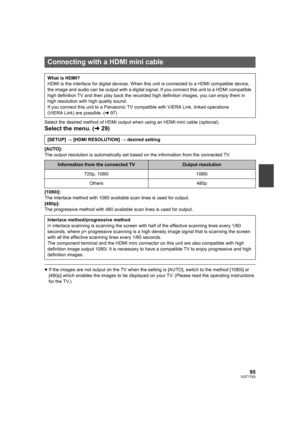

95VQT1T93
Select the desired method of HDMI output when using an HDMI mini cable (optional).
Select the menu. (l29)
[AUTO]:
The output resolution is automatically set based on the information from the connected TV.
[1080i]:
The interlace method with 1080 available scan lines is used for output.
[480p]:
The progressive method with 480 available scan lines is used for output.
≥If the images are not output on the TV when the setting is [AUTO], switch to the method [1080i] or
[480p] which enables the images...

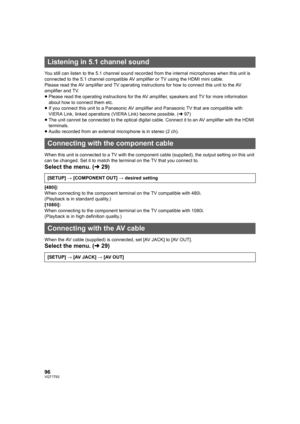

96VQT1T93
You still can listen to the 5.1 channel sound recorded from the internal microphones when this unit is
connected to the 5.1 channel compatible AV amplifier or TV using the HDMI mini cable.
Please read the AV amplifier and TV operating instructions for how to connect this unit to the AV
amplifier and TV.
≥Please read the operating instructions for the AV amplifier, speakers and TV for more information
about how to connect them etc.
≥If you connect this unit to a Panasonic AV amplifier and...

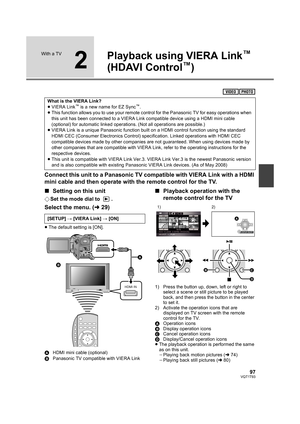

97VQT1T93
With a TV
2
Playback using VIERA Link™
(HDAVI Control
™)
Connect this unit to a Panasonic TV compatible with VIERA Link with a HDMI
mini cable and then operate with the remote control for the TV.
∫Setting on this unit
¬Set the mode dial to  .
Select the menu. (l29)
≥The default setting is [ON].
AHDMI mini cable (optional)
BPanasonic TV compatible with VIERA Link
∫Playback operation with the
remote control for the TV
1) Press the button up, down, left or right to
select a scene or still...

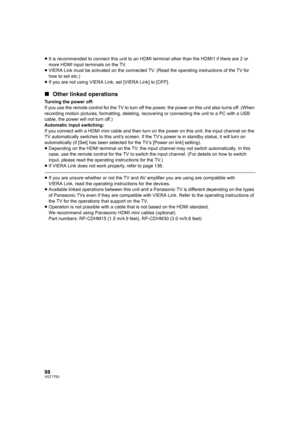

98VQT1T93
≥It is recommended to connect this unit to an HDMI terminal other than the HDMI1 if there are 2 or
more HDMI input terminals on the TV.
≥VIERA Link must be activated on the connected TV. (Read the operating instructions of the TV for
how to set etc.)
≥If you are not using VIERA Link, set [VIERA Link] to [OFF].
∫Other linked operations
Turning the power off:
If you use the remote control for the TV to turn off the power, the power on this unit also turns off. (When
recording motion pictures,...

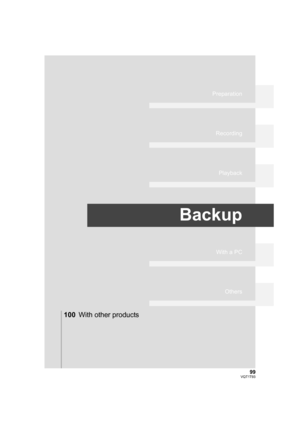

99VQT1T93
Preparation
Recording
Playback
Backup
With a PC
Others
100With other products
HDCHS100P-VQT1T93_ENG.book  99 ページ  ２００８年７月１４日　月曜日　午後１時３６分

100VQT1T93
With other
products
1

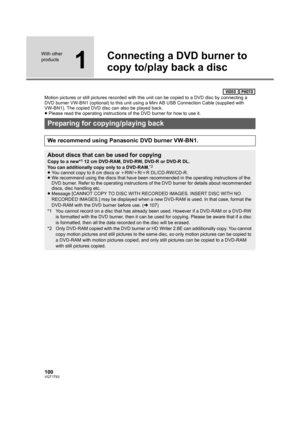

Connecting a DVD burner to
copy to/play back a disc
Motion pictures or still pictures recorded with this unit can be copied to a DVD disc by connecting a
DVD burner VW-BN1 (optional) to this unit using a Mini AB USB Connection Cable (supplied with
VW-BN1). The copied DVD disc can also be played back.
≥Please read the operating instructions of the DVD burner for how to use it.
Preparing for copying/playing back
We recommend using Panasonic DVD burner VW-BN1.
About...
