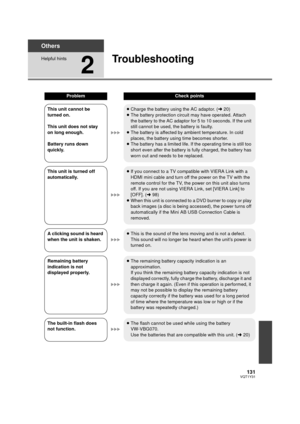

Panasonic Hdc Hs250 Operating Instructions

131VQT1Y31
Others
Helpful hints
2
Troubleshooting
ProblemCheck points
This unit cannot be
turned on.
This unit does not stay
on long enough.
Battery runs down
quickly. ≥
Charge the battery using the AC adaptor. ( l20)
≥ The battery protection circuit may have operated. Attach
the battery to the AC adaptor for 5 to 10 seconds. If the unit
still cannot be used, the battery is faulty.
≥ The battery is affected by ambient temperature. In cold
places, the battery usi ng time becomes shorter.
≥ The...

132VQT1Y31

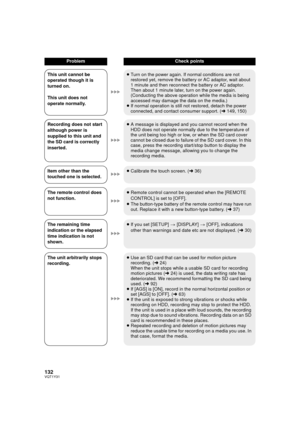

ProblemCheck points
This unit cannot be
operated though it is
turned on.
This unit does not
operate normally. ≥
Turn on the power again. If normal conditions are not
restored yet, remove the battery or AC adaptor, wait about
1 minute and then reconnect the battery or AC adaptor.
Then about 1 minute later, turn on the power again.
(Conducting the above operation while the media is being
accessed may damage the data on the media.)
≥ If normal operation is still not restored, detach the...

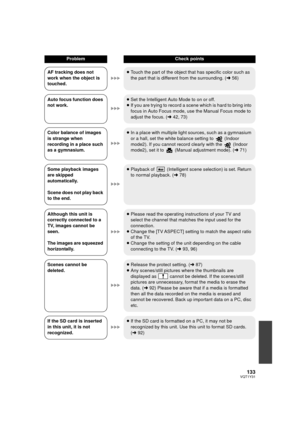

133VQT1Y31
AF tracking does not
work when the object is
touched.≥
Touch the part of the object that has specific color such as
the part that is different from the surrounding. ( l56)
Auto focus function does
not work. ≥
Set the Intelligent Auto Mode to on or off.
≥ If you are trying to record a scene which is hard to bring into
focus in Auto Focus mode, use the Manual Focus mode to
adjust the focus. ( l42, 73)
Color balance of images
is strange when
recording in a place such
as a gymnasium. ≥
In...

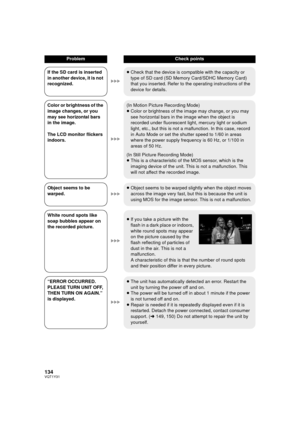

134VQT1Y31
If the SD card is inserted
in another device, it is not
recognized.≥
Check that the device is compatible with the capacity or
type of SD card (SD Memory Card/SDHC Memory Card)
that you inserted. Refer to the operating instructions of the
device for details.
Color or brightness of the
image changes, or you
may see horizontal bars
in the image.
The LCD monitor flickers
indoors. (In Motion Picture Recording Mode)
≥
Color or brightness of the image may change, or you may
see horizontal...

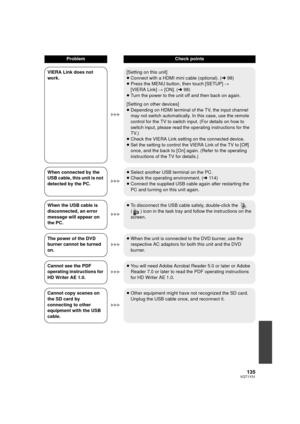

135VQT1Y31
VIERA Link does not
work.[Setting on this unit]
≥
Connect with a HDMI mini cable (optional). ( l98)
≥ Press the MENU button, then touch [SETUP]  #
[VIERA Link]  # [ON]. ( l98)
≥ Turn the power to the unit off and then back on again.
[Setting on other devices]
≥ Depending on HDMI terminal of the TV, the input channel
may not switch automatically. In this case, use the remote
control for the TV to switch input. (For details on how to
switch input, please read the operating instructions for...

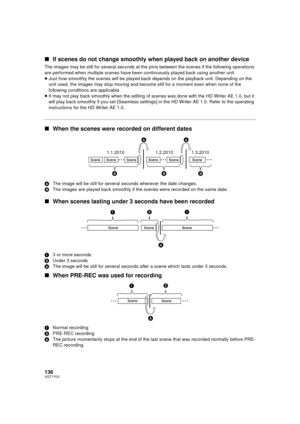

136VQT1Y31
∫If scenes do not change smoothly when played back on another device
The images may be still for several seconds at the joins between the scenes if the following operations
are performed when multiple scenes have be en continuously played back using another unit.
≥ Just how smoothly the scenes will be played back depends on the playback unit. Depending on the
unit used, the images may stop moving and become still for a moment even when none of the
following conditions are applicable.
≥ It...

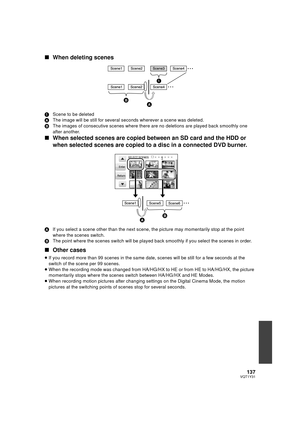

137VQT1Y31
∫When deleting scenes
1 Scene to be deleted
A The image will be still for several seconds wherever a scene was deleted.
B The images of consecutive scenes where there  are no deletions are played back smoothly one
after another.
∫ When selected scenes are copied  between an SD card and the HDD or
when selected scenes are copied to a disc in a connected DVD burner.
A If you select a scene other than the next scene,  the picture may momentarily stop at the point
where the scenes switch.
B The...

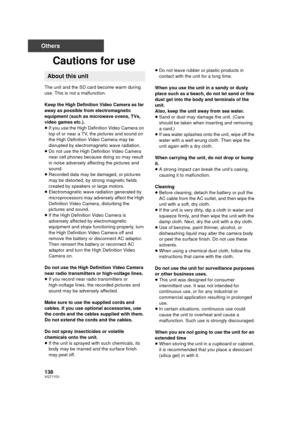

138VQT1Y31
Others
Cautions for use
The unit and the SD card become warm during
use. This is not a malfunction.
Keep the High Definition Video Camera as far
away as possible from electromagnetic
equipment (such as microwave ovens, TVs,
video games etc.).
≥If you use the High Definition Video Camera on
top of or near a TV, the pictures and sound on
the High Definition Video Camera may be
disrupted by electromagnetic wave radiation.
≥ Do not use the High Definition Video Camera
near cell phones...

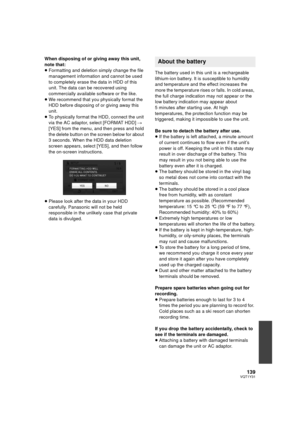

139VQT1Y31
When disposing of or giving away this unit,
note that:
≥Formatting and deletion simply change the file
management information and cannot be used
to completely erase the data in HDD of this
unit. The data can be recovered using
commercially available software or the like.
≥ We recommend that you physically format the
HDD before disposing of or giving away this
unit.
≥ To physically format the HDD, connect the unit
via the AC adaptor, select [FORMAT HDD]  #
[YES] from the menu, and then...

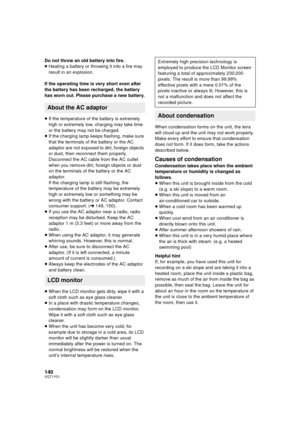

140VQT1Y31
Do not throw an old battery into fire.
≥Heating a battery or throwing it into a fire may
result in an explosion.
If the operating time is very short even after
the battery has been recharged, the battery
has worn out. Please purchase a new battery.
≥ If the temperature of the battery is extremely
high or extremely low, charging may take time
or the battery may not be charged.
≥ If the charging lamp keeps flashing, make sure
that the terminals of the battery or the AC
adaptor are not...
