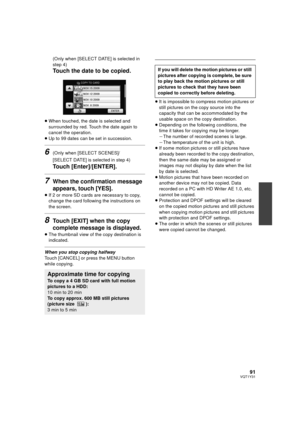

91VQT1Y31
(Only when [SELECT DATE] is selected in
step 4)
Touch the date to be copied.
≥When touched, the date is selected and
surrounded by red. Touch the date again to
cancel the operation.
≥ Up to 99 dates can be set in succession.
6(Only when [SELECT SCENES]/
[SELECT DATE] is selected in step 4)
Touch [Enter]/[ENTER].
7When the confirmation message
appears, touch [YES].
≥If 2 or more SD cards are necessary to copy,
change the card following the instructions on
the screen.
8Touch [EXIT] when the...

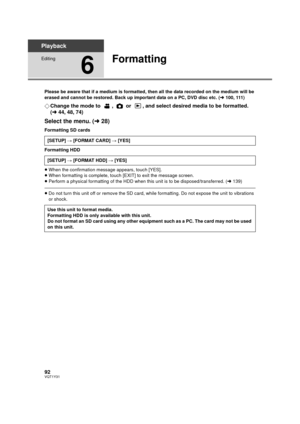

92VQT1Y31
Playback
Editing
6
Formatting
Please be aware that if a medium is formatted, then all the data recorded on the medium will be
erased and cannot be restored. Back up important data on a PC, DVD disc etc. (l100, 111)
¬Change the mode to  ,  or  , and select desired media to be formatted.
(l 44, 48, 74)
Select the menu. ( l28)
Formatting SD cards
Formatting HDD
≥When the confirmation message appears, touch [YES].
≥ When formatting is complete, touch [EXIT] to exit the message screen.
≥ Perform a...

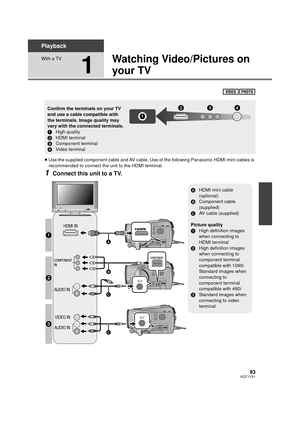

93VQT1Y31
Playback
With a TV
1
Watching Video/Pictures on
your TV
≥Use the supplied component cable and AV cable. Us e of the following Panasonic HDMI mini cables is
recommended to connect the unit to the HDMI terminal.
1Connect this unit to a TV.
Confirm the terminals on your TV
and use a cable compatible with
the terminals. Image quality may
vary with the connected terminals.
1 High quality
2 HDMI terminal
3 Component terminal
4 Video terminal
A/V
A/V
AHDMI mini cable
(optional)
B Component cable...

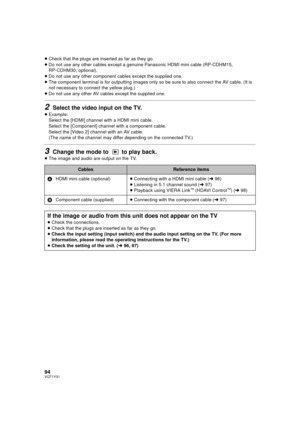

94VQT1Y31
≥Check that the plugs are inserted as far as they go.
≥ Do not use any other cables except a genuine Panasonic HDMI mini cable (RP-CDHM15,
RP-CDHM30; optional).
≥ Do not use any other component cables except the supplied one.
≥ The component terminal is for outputting images only so  be sure to also connect the AV cable. (It is
not necessary to connect the yellow plug.)
≥ Do not use any other AV c ables except the supplied one.
2Select the video input on the TV.
≥Example:
Select the [HDMI]...

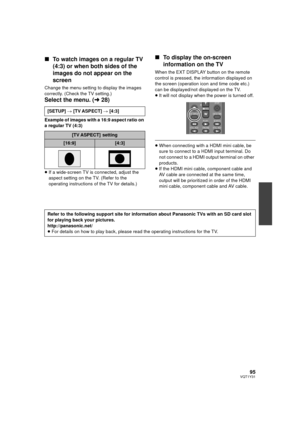

95VQT1Y31
∫To watch images on a regular TV
(4:3) or when both sides of the
images do not appear on the
screen
Change the menu setting to display the images
correctly. (Check the TV setting.)
Select the menu. ( l28)
Example of images with a 16:9 aspect ratio on
a regular TV (4:3)
≥If a wide-screen TV is connected, adjust the
aspect setting on the TV. (Refer to the
operating instructions of the TV for details.)
∫ To display the on-screen
information on the TV
When the EXT DISPLAY button on the...

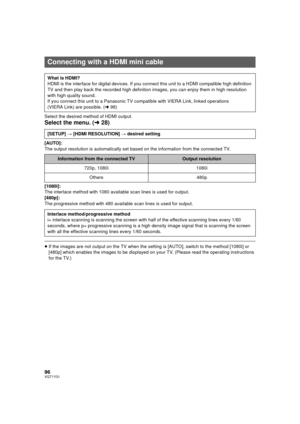

96VQT1Y31
Select the desired method of HDMI output.
Select the menu. (l28)
[AUTO]:
The output resolution is automatically set bas ed on the information from the connected TV.
[1080i]:
The interlace method with 1080 available scan lines is used for output.
[480p]:
The progressive method with 480 available scan lines is used for output.
≥ If the images are not output on the TV when the se tting is [AUTO], switch to the method [1080i] or
[480p] which enables the images to be displayed on  your TV. (Please...

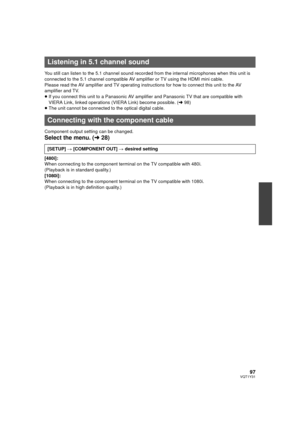

97VQT1Y31
You still can listen to the 5.1 channel sound recorded from the internal microphones when this unit is
connected to the 5.1 channel compatible AV amplifier or TV using the HDMI mini cable.
Please read the AV amplifier and TV operating instructions for how to connect this unit to the AV
amplifier and TV.
≥ If you connect this unit to a Panasonic AV amplifier and Panasonic TV that are compatible with
VIERA Link, linked operations (VIERA Link) become possible. (l 98)
≥ The unit cannot be...

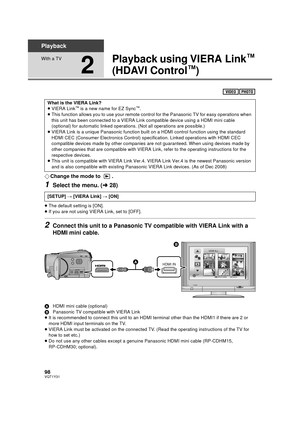

98VQT1Y31
Playback
With a TV
2
Playback using VIERA Link™
(HDAVI Control
™)
¬ Change the mode to  .
1Select the menu. ( l28)
≥The default setting is [ON].
≥ If you are not using VIERA Link, set to [OFF].
2Connect this unit to a Panasonic TV compatible with VIERA Link with a
HDMI mini cable.
A HDMI mini cable (optional)
B Panasonic TV compatible with VIERA Link
≥ It is recommended to connect this unit to an HDMI terminal other than the HDMI1 if there are 2 or
more HDMI input terminals on the TV.
≥...

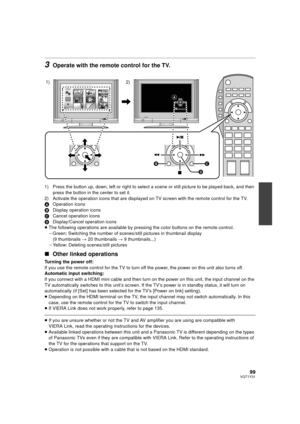

99VQT1Y31
3Operate with the remote control for the TV.
1) Press the button up, down, left or right to select a scene or still picture to be played back, and then press the button in the center to set it.
2) Activate the operation icons that are displayed on TV screen with the remote control for the TV.
A Operation icons
B Display operation icons
C Cancel operation icons
D Display/Cancel operation icons
≥ The following operations are av ailable by pressing the color buttons on the remote control.
j Green:...

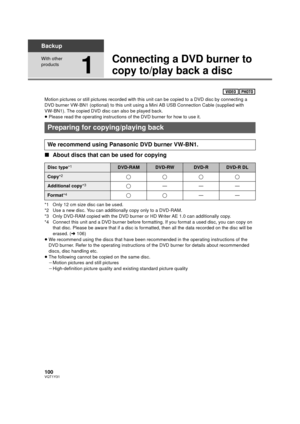

100VQT1Y31
Backup
With other
products
1
Connecting a DVD burner to
copy to/play back a disc
Motion pictures or still pictures recorded with this unit can be copied to a DVD disc by connecting a
DVD burner VW-BN1 (optional) to this unit using a Mini AB USB Connection Cable (supplied with
VW-BN1). The copied DVD disc can also be played back.
≥ Please read the operating instructions of the DVD burner for how to use it.
∫ About discs that can be used for copying
*1 Only 12 cm size disc can be used.
*2...
