Panasonic Hdc Hs250 Operating Instructions

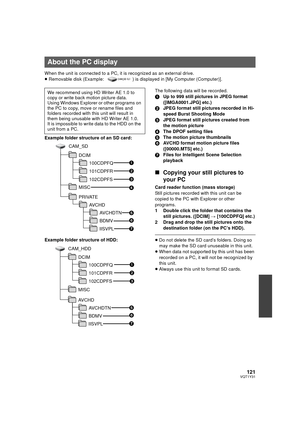

121VQT1Y31
When the unit is connected to a PC, it is recognized as an external drive.
≥Removable disk (Example:  ) is displayed in [My Computer (Computer)].
Example folder structure of an SD card:
Example folder structure of HDD: The following data will be recorded.
1
Up to 999 still pictures in JPEG format
([IMGA0001.JPG] etc.)
2 JPEG format still pictures recorded in Hi-
speed Burst Shooting Mode
3 JPEG format still pictures created from
the motion picture
4 The DPOF setting files
5 The motion...

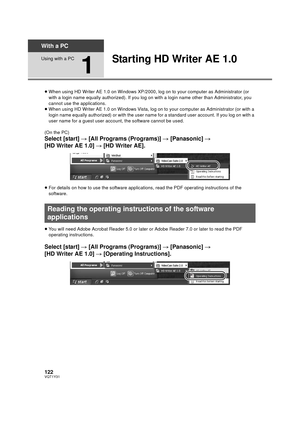

122VQT1Y31
With a PC
Using with a PC
1
Starting HD Writer AE 1.0
≥When using HD Writer AE 1.0 on Windows XP/2000, log on to your computer as Administrator (or
with a login name equally authorized). If you log on wi th a login name other than Administrator, you
cannot use the applications.
≥ When using HD Writer AE 1.0 on Windows Vista, log on to your computer as Administrator (or with a
login name equally authorized) or with the user nam e for a standard user account. If you log on with a
user name...

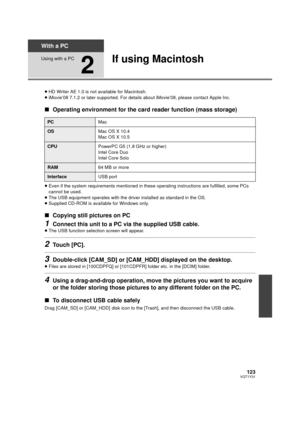

123VQT1Y31
With a PC
Using with a PC
2
If using Macintosh
≥HD Writer AE 1.0 is not available for Macintosh.
≥ iMovie’08 7.1.2 or later supported. For deta ils about iMovie’08, please contact Apple Inc.
∫Operating environment for the card reader function (mass storage)
≥Even if the system requirements mentioned in these operating instructions are fulfilled, some PCs
cannot be used.
≥ The USB equipment operates with the driver installed as standard in the OS.
≥ Supplied CD-ROM is available for Windows...

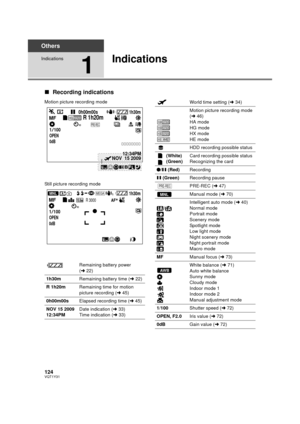

124VQT1Y31
Others
Indications
1
Indications
∫Recording indications
Motion picture recording mode
Still picture recording mode
Remaining battery power
(l22)
1h30m Remaining battery time ( l22)
R 1h20m Remaining time for motion
picture recording ( l45)
0h00m00s Elapsed recording time ( l45)
NOV 15 2009
12:34PM Date indication (
l33)
Time indication ( l33)
0h00m00s
1/100
OPEN
0dB
MFR 1h20m1h30mA
HG1920
PRE-REC
12:34PM
NOV  15 2009
1/100
OPEN
0dB
MNLMEGA
10.6MMFR 3000
1h30mA
World time setting ( l34)...

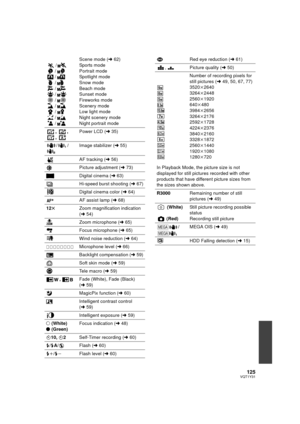

125VQT1Y31
5/
/
/
/
/
/
/
/
/
/
/ Scene mode (
l62)
Sports mode
Portrait mode
Spotlight mode
Snow mode
Beach mode
Sunset mode
Fireworks mode
Scenery mode
Low light mode
Night scenery mode
Night portrait mode
, ,
,  Power LCD (
l35)
// Image stabilizer ( l55)
AF tracking ( l56)
Picture adjustment ( l73)
Digital cinema ( l63)
Hi-speed burst shooting ( l67)
Digital cinema color ( l64)
AF assist lamp ( l68)
12t Zoom magnification indication
(l54)
Zoom microphone ( l65)
Focus microphone ( l65)
Wind noise...

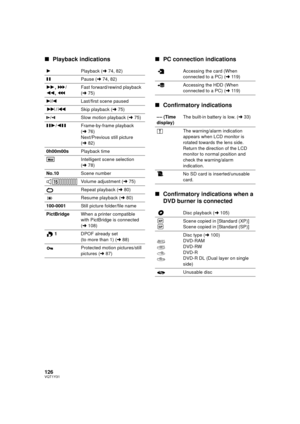

126VQT1Y31
∫Playback indications ∫PC connection indications
∫ Confirmatory indications
∫ Confirmatory indications when a
DVD burner is connected
1 Playback (l74, 82)
; Pause (l74, 82)
5 , /
6 ,  Fast forward/rewind playback
(l
75)
7 /8 Last/first scene paused
9 /: Skip playback (l 75)
D /E Slow motion playback ( l75)
;1 /2; Frame-by-frame playback
(l76)
Next/Previous still picture
(l 82)
0h00m00s Playback time
Intelligent scene selection
(l78)
No.10 Scene number
Volume adjustment ( l75)
Repeat...

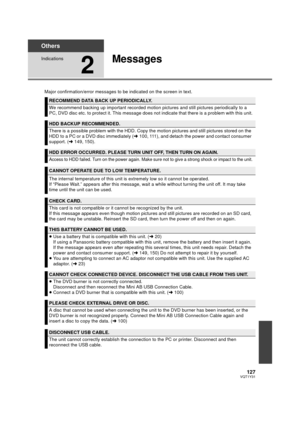

127VQT1Y31
Others
Indications
2
Messages
Major confirmation/error messages to be indicated on the screen in text.
RECOMMEND DATA BACK UP PERIODICALLY.
We recommend backing up important recorded motion pictures and still pictures periodically to a
PC, DVD disc etc. to protect it. This message does no t indicate that there is a problem with this unit.
HDD BACKUP RECOMMENDED.
There is a possible problem with the HDD. Copy the motion pictures and still pictures stored on the
HDD to a PC or a DVD disc...

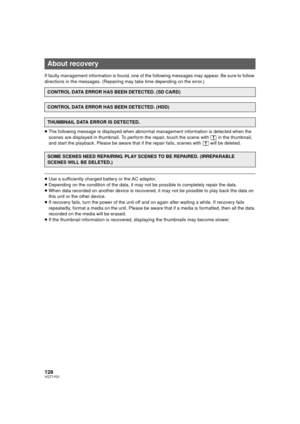

128VQT1Y31
If faulty management information is found, one of the following messages may appear. Be sure to follow
directions in the messages. (Repairing may take time depending on the error.)
≥The following message is displayed when abnormal management information is detected when the
scenes are displayed in thumbnail. To perform the repair, touch the scene with  ° in the thumbnail,
and start the playback. Please be aware t hat if the repair fails, scenes with ° will be deleted.
≥Use a sufficiently...

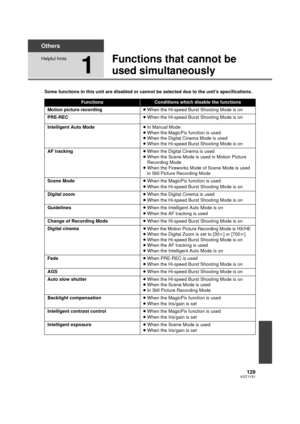

129VQT1Y31
Others
Helpful hints
1
Functions that cannot be
used simultaneously
Some functions in this unit are disabled or cannot be selected due to the unit’s specifications.
FunctionsConditions which disable the functions
Motion picture recording ≥When the Hi-speed Burst Shooting Mode is on
PRE-REC ≥When the Hi-speed Burst Shooting Mode is on
Intelligent Auto Mode ≥In Manual Mode
≥ When the MagicPix function is used
≥ When the Digital Cinema Mode is used
≥ When the Hi-speed Burst Shooting Mode is on...

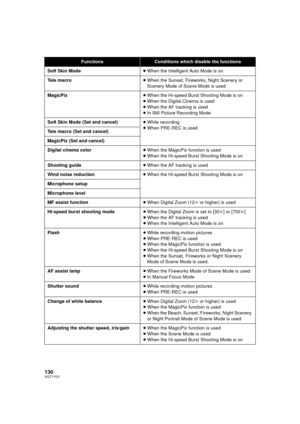

130VQT1Y31
FunctionsConditions which disable the functions
Soft Skin Mode ≥When the Intelligent Auto Mode is on
Tele macro ≥When the Sunset, Fireworks, Night Scenery or
Scenery Mode of Scene Mode is used
MagicPix ≥When the Hi-speed Burst Shooting Mode is on
≥ When the Digital Cinema is used
≥ When the AF tracking is used
≥ In Still Picture Recording Mode
Soft Skin Mode (Set and cancel) ≥While recording
≥ When PRE-REC is used
Tele macro (Set and cancel)
MagicPix (Set and cancel)
Digital cinema color...
