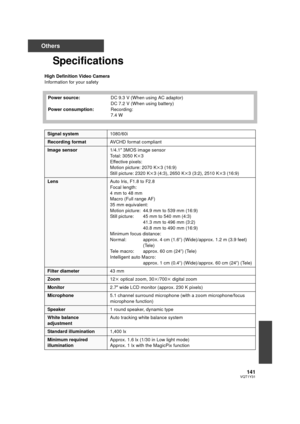

Page 141
141VQT1Y31 Others Specifications High Definition Video Camera Information for your safetyPower source: Power consumption: DC 9.3 V (When using AC adaptor) DC 7.2 V (When using battery) Recording: 7.4 W Signal system 1080/60i Recording formatAVCHD format compliant Image sensor1/4.1z 3MOS image sensor Total: 3050 K k3 Effective pixels: Motion picture: 2070 K k3 (16:9) Still picture: 2320 K k3 (4:3), 2650 K k3 (3:2), 2510 K k3 (16:9) Lens Auto Iris, F1.8 to F2.8 Focal length: 4 mm to 48 mm Macro (Full range...

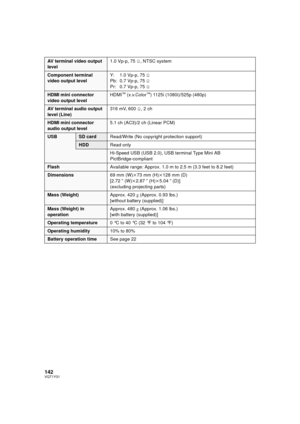

Page 142
142VQT1Y31 AV terminal video output level1.0 Vp-p, 75 h, NTSC system Component terminal video output level Y: 1.0 Vp-p, 75 h Pb: 0.7 Vp-p, 75 h Pr: 0.7 Vp-p, 75 h HDMI mini connector video output level HDMI™ (x.v.Color™) 1125i (1080i)/525p (480p) AV terminal audio output level (Line)316 mV, 600 h, 2 ch HDMI mini connector audio output level 5.1 ch (AC3)/2 ch (Linear PCM) USBSD card Read/Write (No copyright protection support) HDDRead only Hi-Speed USB (USB 2.0), USB terminal Type Mini AB...

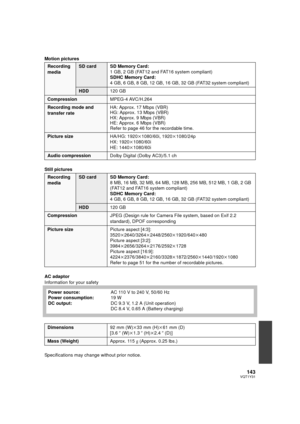

Page 143
143VQT1Y31 Motion pictures Still pictures AC adaptor Information for your safety Specifications may change without prior notice. Recording mediaSD card SD Memory Card:1 GB, 2 GB (FAT12 and FAT16 system compliant) SDHC Memory Card: 4 GB, 6 GB, 8 GB, 12 GB, 16 GB, 32 GB (FAT32 system compliant) HDD120 GB Compression MPEG-4 AVC/H.264 Recording mode and transfer rateHA: Approx. 17 Mbps (VBR) HG: Approx. 13 Mbps (VBR) HX: Approx. 9 Mbps (VBR) HE: Approx. 6 Mbps (VBR) Refer to page 46 for the recordable...

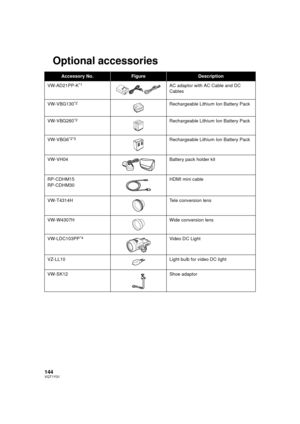

Page 144
144VQT1Y31 Optional accessories Accessory No.FigureDescription VW-AD21PP-K *1AC adaptor with AC Cable and DC Cables VW-VBG130 *2Rechargeable Lithium Ion Battery Pack VW-VBG260 *2Rechargeable Lithium Ion Battery Pack VW-VBG6 *2*3Rechargeable Lithium Ion Battery Pack VW-VH04 Battery pack holder kit RP-CDHM15 RP-CDHM30 HDMI mini cable VW-T4314H Tele conversion lens VW-W4307H Wide conversion lens VW-LDC103PP *4Video DC Light VZ-LL10 Light bulb for video DC light VW-SK12 Shoe adaptor...

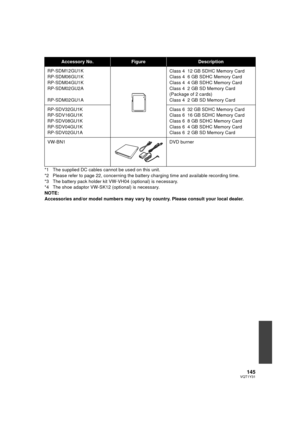

Page 145
145VQT1Y31 *1 The supplied DC cables cannot be used on this unit. *2 Please refer to page 22, concerning the battery charging time and available recording time. *3 The battery pack holder kit VW-VH04 (optional) is necessary. *4 The shoe adaptor VW-SK12 (optional) is necessary. NOTE: Accessories and/or model numbers may vary by country. Please consult your local dealer. Accessory No.FigureDescription RP-SDM12GU1K RP-SDM06GU1K RP-SDM04GU1K RP-SDM02GU2A RP-SDM02GU1A Class 4 12 GB SDHC Memory Card Class 4 6...

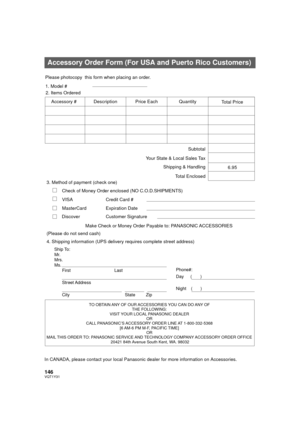

Page 146
![Page 146
146VQT1Y31
In CANADA, please contact your local Panasonic dealer for more information on Accessories.
Accessory Order Form (For USA and Puerto Rico Customers)
TO OBTAIN ANY OF OUR ACCESSORIES YOU CAN DO ANY OF
THE FOLLOWING:
VISIT YOUR LOCAL PANASONIC DEALER OR
CALL PANASONIC’S ACCESSORY ORDER LINE AT 1-800-332-5368 [6 AM-6 PM M-F, PACIFIC TIME] OR
MAIL THIS ORDER TO: PANASONIC SERVICE AND TECHNOLOGY COMPANY ACCESSORY ORDER OFFICE
20421 84th
Avenue South Kent, WA. 98032
Ship To:
Mr.
Mrs.
Ms....](http://img.usermanuals.tech/thumb/58/64336/w300_hdc-hs250_mul_om_d-145.png "Page 146
146VQT1Y31
In CANADA, please contact your local Panasonic dealer for more information on Accessories.
Accessory Order Form (For USA and Puerto Rico Customers)
TO OBTAIN ANY OF OUR ACCESSORIES YOU CAN DO ANY OF
THE FOLLOWING:
VISIT YOUR LOCAL PANASONIC DEALER OR
CALL PANASONIC’S ACCESSORY ORDER LINE AT 1-800-332-5368 [6 AM-6 PM M-F, PACIFIC TIME] OR
MAIL THIS ORDER TO: PANASONIC SERVICE AND TECHNOLOGY COMPANY ACCESSORY ORDER OFFICE
20421 84th
Avenue South Kent, WA. 98032
Ship To:
Mr.
Mrs.
Ms....")
146VQT1Y31 In CANADA, please contact your local Panasonic dealer for more information on Accessories. Accessory Order Form (For USA and Puerto Rico Customers) TO OBTAIN ANY OF OUR ACCESSORIES YOU CAN DO ANY OF THE FOLLOWING: VISIT YOUR LOCAL PANASONIC DEALER OR CALL PANASONIC’S ACCESSORY ORDER LINE AT 1-800-332-5368 [6 AM-6 PM M-F, PACIFIC TIME] OR MAIL THIS ORDER TO: PANASONIC SERVICE AND TECHNOLOGY COMPANY ACCESSORY ORDER OFFICE 20421 84th Avenue South Kent, WA. 98032 Ship To: Mr. Mrs. Ms....

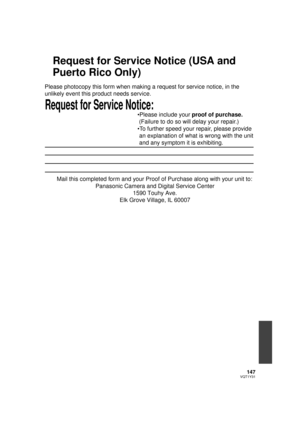

Page 147
![Page 147
147VQT1Y31
Request for Service Notice (USA and
Puerto Rico Only)
Request for Service Notice:
Please photocopy this form when making a request for service notice, in \
the
unlikely event this product needs service.
Please include your proof of purchase.
(Failure to do so will delay your repair.)
To further speed your repair, please provide
an explanation of what is wrong with the unit
and any symptom it is exhibiting.
Mail this completed form and your Proof of Purchase along with your unit to:...](http://img.usermanuals.tech/thumb/58/64336/w300_hdc-hs250_mul_om_d-146.png "Page 147
147VQT1Y31
Request for Service Notice (USA and
Puerto Rico Only)
Request for Service Notice:
Please photocopy this form when making a request for service notice, in \
the
unlikely event this product needs service.
Please include your proof of purchase.
(Failure to do so will delay your repair.)
To further speed your repair, please provide
an explanation of what is wrong with the unit
and any symptom it is exhibiting.
Mail this completed form and your Proof of Purchase along with your unit to:...")
147VQT1Y31 Request for Service Notice (USA and Puerto Rico Only) Request for Service Notice: Please photocopy this form when making a request for service notice, in \ the unlikely event this product needs service. Please include your proof of purchase. (Failure to do so will delay your repair.) To further speed your repair, please provide an explanation of what is wrong with the unit and any symptom it is exhibiting. Mail this completed form and your Proof of Purchase along with your unit to:...

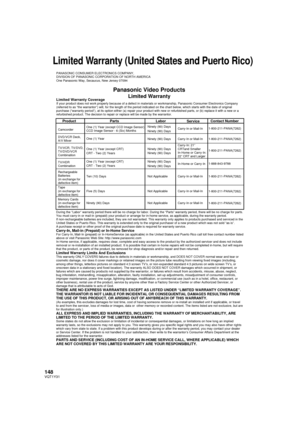

Page 148
148VQT1Y31 Limited Warranty (United States and Puerto Rico) Panasonic Video Products Limited Warranty Product Camcorder DVD/VCR Deck, A/V Mixer TV/VCR, TV/DVD, TV/DVD/VCR Combination TV/HDR Combination Rechargeable Batteries (in exchange for defective item) Tape (in exchange for defective item) Memory Cards (in exchange for defective item) LaborNinety (90) Days Ninety (90) Days Ninety (90) Days Ninety (90) Days Ninety (90) Days Ninety (90) Days Ninety (90) Days Not Applicable Not...

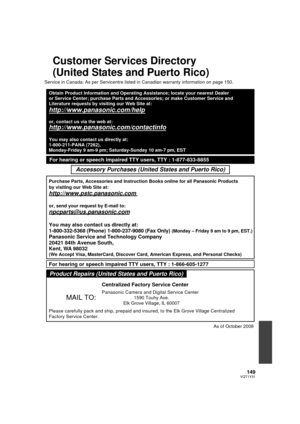

Page 149
![Page 149
149VQT1Y31
Customer Services Directory
(United States and Puerto Rico)
Service in Canada: As per Servicentre listed in Canadian warranty information on page 150.
Obtain Product Information and Operating Assistance; locate your nearest\
Dealer
or Service Center; purchase Parts and Accessories; or make Customer Serv\
ice and
Literature requests by visiting our Web Site at:
http://www.panasonic.com/help
or, contact us via the web at:
http://www.panasonic.com/contactinfo
You may also contact us directly...](http://img.usermanuals.tech/thumb/58/64336/w300_hdc-hs250_mul_om_d-148.png "Page 149
149VQT1Y31
Customer Services Directory
(United States and Puerto Rico)
Service in Canada: As per Servicentre listed in Canadian warranty information on page 150.
Obtain Product Information and Operating Assistance; locate your nearest\
Dealer
or Service Center; purchase Parts and Accessories; or make Customer Serv\
ice and
Literature requests by visiting our Web Site at:
http://www.panasonic.com/help
or, contact us via the web at:
http://www.panasonic.com/contactinfo
You may also contact us directly...")
149VQT1Y31 Customer Services Directory (United States and Puerto Rico) Service in Canada: As per Servicentre listed in Canadian warranty information on page 150. Obtain Product Information and Operating Assistance; locate your nearest\ Dealer or Service Center; purchase Parts and Accessories; or make Customer Serv\ ice and Literature requests by visiting our Web Site at: http://www.panasonic.com/help or, contact us via the web at: http://www.panasonic.com/contactinfo You may also contact us directly...

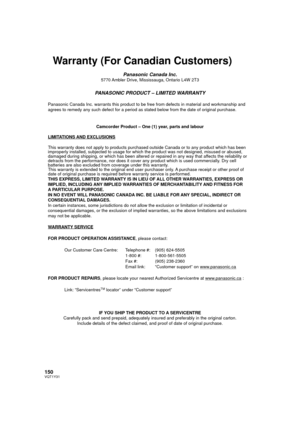

Page 150
![Page 150
150VQT1Y31
Warranty (For Canadian Customers)
Panasonic Canada Inc.5770 Ambler Drive, Mississauga, Ontario L4W 2T3
PANASONIC PRODUCT – LIMITED WARRANTY
Panasonic Canada Inc. warrants this product to be free from defects in m\
aterial and workmanship and
agrees to remedy any such defect for a period as stated below from the d\
ate of original purchase.Camcorder Product – One (1) year, parts and labour
LIMITATIONS AND EXCLUSIONS
This warranty does not apply to products purchased outside Canada or to \
any...](http://img.usermanuals.tech/thumb/58/64336/w300_hdc-hs250_mul_om_d-149.png "Page 150
150VQT1Y31
Warranty (For Canadian Customers)
Panasonic Canada Inc.5770 Ambler Drive, Mississauga, Ontario L4W 2T3
PANASONIC PRODUCT – LIMITED WARRANTY
Panasonic Canada Inc. warrants this product to be free from defects in m\
aterial and workmanship and
agrees to remedy any such defect for a period as stated below from the d\
ate of original purchase.Camcorder Product – One (1) year, parts and labour
LIMITATIONS AND EXCLUSIONS
This warranty does not apply to products purchased outside Canada or to \
any...")
150VQT1Y31 Warranty (For Canadian Customers) Panasonic Canada Inc.5770 Ambler Drive, Mississauga, Ontario L4W 2T3 PANASONIC PRODUCT – LIMITED WARRANTY Panasonic Canada Inc. warrants this product to be free from defects in m\ aterial and workmanship and agrees to remedy any such defect for a period as stated below from the d\ ate of original purchase.Camcorder Product – One (1) year, parts and labour LIMITATIONS AND EXCLUSIONS This warranty does not apply to products purchased outside Canada or to \ any...
