Page 101

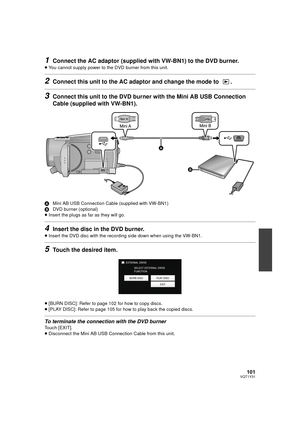

101VQT1Y31 1Connect the AC adaptor (supplied with VW-BN1) to the DVD burner. ≥You cannot supply power to t he DVD burner from this unit. 2Connect this unit to the AC adaptor and change the mode to . 3Connect this unit to the DVD bur ner with the Mini AB USB Connection Cable (supplied with VW-BN1). A Mini AB USB Connection Cable (supplied with VW-BN1) B DVD burner (optional) ≥ Insert the plugs as far as they will go. 4Insert the disc in the DVD burner. ≥Insert the DVD disc with the recording side down...
Page 102

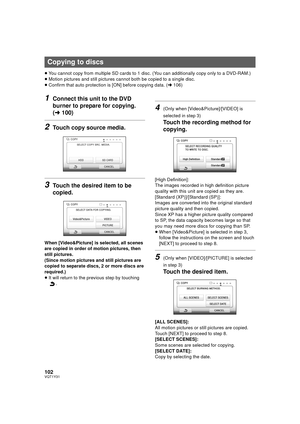

![Page 102
102VQT1Y31
≥You cannot copy from multiple SD cards to 1 disc. (You can additionally copy only to a DVD-RAM.)
≥ Motion pictures and still pictures cannot both be copied to a single disc.
≥ Confirm that auto protection is [ON] before copying data. ( l106)
1Connect this unit to the DVD
burner to prepare for copying.
(l 100)
2Touch copy source media.
3Touch the desired item to be
copied.
When [Video&Picture] is selected, all scenes
are copied in order of motion pictures, then
still pictures.
(Since...](http://img.usermanuals.tech/thumb/58/64336/w300_hdc-hs250_mul_om_d-101.png "Page 102
102VQT1Y31
≥You cannot copy from multiple SD cards to 1 disc. (You can additionally copy only to a DVD-RAM.)
≥ Motion pictures and still pictures cannot both be copied to a single disc.
≥ Confirm that auto protection is [ON] before copying data. ( l106)
1Connect this unit to the DVD
burner to prepare for copying.
(l 100)
2Touch copy source media.
3Touch the desired item to be
copied.
When [Video&Picture] is selected, all scenes
are copied in order of motion pictures, then
still pictures.
(Since...")
102VQT1Y31 ≥You cannot copy from multiple SD cards to 1 disc. (You can additionally copy only to a DVD-RAM.) ≥ Motion pictures and still pictures cannot both be copied to a single disc. ≥ Confirm that auto protection is [ON] before copying data. ( l106) 1Connect this unit to the DVD burner to prepare for copying. (l 100) 2Touch copy source media. 3Touch the desired item to be copied. When [Video&Picture] is selected, all scenes are copied in order of motion pictures, then still pictures. (Since...
Page 103

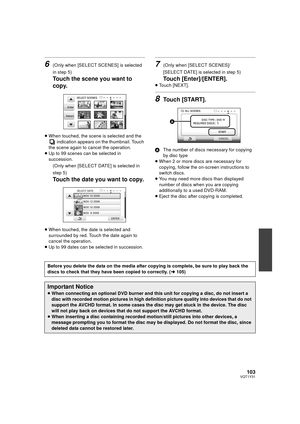

![Page 103
103VQT1Y31
6(Only when [SELECT SCENES] is selected
in step 5)
Touch the scene you want to
copy.
≥When touched, the scene is selected and the
indication appears on the thumbnail. Touch
the scene again to cancel the operation.
≥ Up to 99 scenes can be selected in
succession.
(Only when [SELECT DATE] is selected in
step 5)
Touch the date you want to copy.
≥When touched, the date is selected and
surrounded by red. Touch the date again to
cancel the operation.
≥ Up to 99 dates can be selected in...](http://img.usermanuals.tech/thumb/58/64336/w300_hdc-hs250_mul_om_d-102.png "Page 103
103VQT1Y31
6(Only when [SELECT SCENES] is selected
in step 5)
Touch the scene you want to
copy.
≥When touched, the scene is selected and the
indication appears on the thumbnail. Touch
the scene again to cancel the operation.
≥ Up to 99 scenes can be selected in
succession.
(Only when [SELECT DATE] is selected in
step 5)
Touch the date you want to copy.
≥When touched, the date is selected and
surrounded by red. Touch the date again to
cancel the operation.
≥ Up to 99 dates can be selected in...")
103VQT1Y31 6(Only when [SELECT SCENES] is selected in step 5) Touch the scene you want to copy. ≥When touched, the scene is selected and the indication appears on the thumbnail. Touch the scene again to cancel the operation. ≥ Up to 99 scenes can be selected in succession. (Only when [SELECT DATE] is selected in step 5) Touch the date you want to copy. ≥When touched, the date is selected and surrounded by red. Touch the date again to cancel the operation. ≥ Up to 99 dates can be selected in...

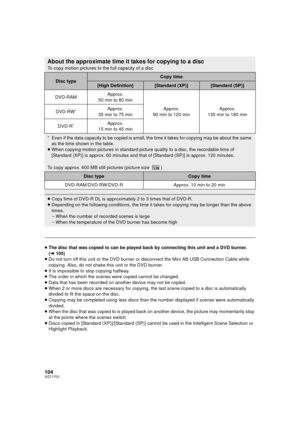

Page 104
104VQT1Y31 ≥The disc that was copied to can be played back by connecting this unit and a DVD burner. (l 105) ≥ Do not turn off this unit or the DVD burner or disconnect the Mini AB USB Connection Cable while copying. Also, do not shake this unit or the DVD burner. ≥ It is impossible to stop copying halfway. ≥ The order in which the scenes were copied cannot be changed. ≥ Data that has been recorded on another device may not be copied. ≥ When 2 or more discs are necessary for copying, the last scene...
Page 105

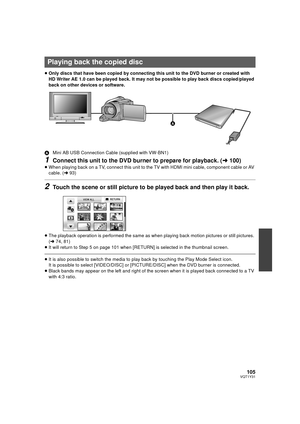

105VQT1Y31 ≥Only discs that have been copied by connecting this unit to the DVD burner or created with HD Writer AE 1.0 can be played back. It may not be possible to play back discs copied/played back on other devices or software. A Mini AB USB Connection Cable (supplied with VW-BN1) 1Connect this unit to the DVD burner to prepare for playback. ( l100) ≥When playing back on a TV, connect this unit to the TV with HDMI mini cable, component cable or AV cable. ( l93) 2Touch the scene or still picture to...
Page 106

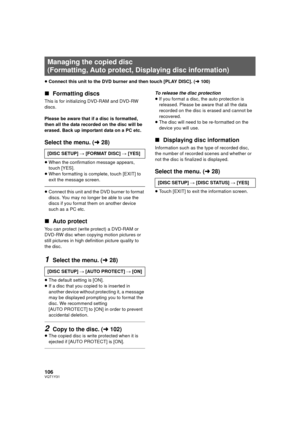

![Page 106
106VQT1Y31
≥Connect this unit to the DVD burner and then touch [PLAY DISC]. ( l100)
∫ Formatting discs
This is for initializ ing DVD-RAM and DVD-RW
discs.
Please be aware that if a disc is formatted,
then all the data recorded on the disc will be
erased. Back up important data on a PC etc.
Select the menu. ( l28)
≥When the confirmation message appears,
touch [YES].
≥ When formatting is complete, touch [EXIT] to
exit the message screen.
≥Connect this unit and the DVD burner to format
discs. You may...](http://img.usermanuals.tech/thumb/58/64336/w300_hdc-hs250_mul_om_d-105.png "Page 106
106VQT1Y31
≥Connect this unit to the DVD burner and then touch [PLAY DISC]. ( l100)
∫ Formatting discs
This is for initializ ing DVD-RAM and DVD-RW
discs.
Please be aware that if a disc is formatted,
then all the data recorded on the disc will be
erased. Back up important data on a PC etc.
Select the menu. ( l28)
≥When the confirmation message appears,
touch [YES].
≥ When formatting is complete, touch [EXIT] to
exit the message screen.
≥Connect this unit and the DVD burner to format
discs. You may...")
106VQT1Y31 ≥Connect this unit to the DVD burner and then touch [PLAY DISC]. ( l100) ∫ Formatting discs This is for initializ ing DVD-RAM and DVD-RW discs. Please be aware that if a disc is formatted, then all the data recorded on the disc will be erased. Back up important data on a PC etc. Select the menu. ( l28) ≥When the confirmation message appears, touch [YES]. ≥ When formatting is complete, touch [EXIT] to exit the message screen. ≥Connect this unit and the DVD burner to format discs. You may...
Page 107

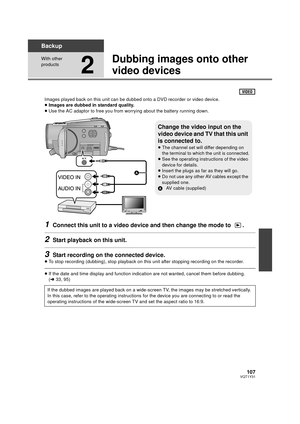

107VQT1Y31 Backup With other products 2 Dubbing images onto other video devices Images played back on this unit can be dubbed onto a DVD recorder or video device. ≥ Images are dubbed in standard quality. ≥ Use the AC adaptor to free you from worrying about the battery running down. 1Connect this unit to a video device and then change the mode to . 2Start playback on this unit. 3Start recording on the connected device. ≥To stop recording (dubbing), stop playback on this unit after stopping recording on...

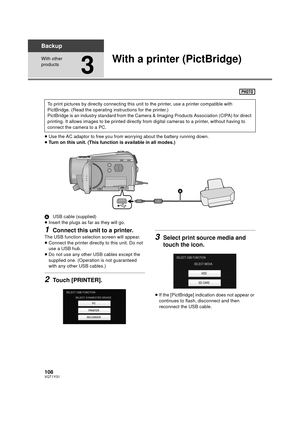

Page 108
108VQT1Y31 Backup With other products 3 With a printer (PictBridge) ≥Use the AC adaptor to free you from worrying about the battery running down. ≥ Turn on this unit. (This function is available in all modes.) A USB cable (supplied) ≥ Insert the plugs as far as they will go. 1Connect this unit to a printer. The USB function selection screen will appear. ≥Connect the printer directly to this unit. Do not use a USB hub. ≥ Do not use any other USB cables except the supplied one. (Operation is not...
Page 109

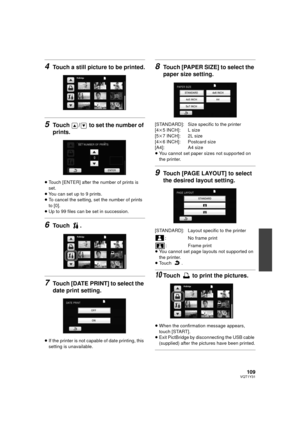

![Page 109
109VQT1Y31
4Touch a still picture to be printed.
5Touch / to set the number of
prints.
≥Touch [ENTER] after the number of prints is
set.
≥ You can set up to 9 prints.
≥ To cancel the setting, set the number of prints
to [0].
≥ Up to 99 files can be set in succession.
6Touch .
7Touch [DATE PRINT] to select the
date print setting.
≥If the printer is not capable of date printing, this
setting is unavailable.
8Touch [PAPER SIZE] to select the
paper size setting.
[STANDARD]: Size specific to the...](http://img.usermanuals.tech/thumb/58/64336/w300_hdc-hs250_mul_om_d-108.png "Page 109
109VQT1Y31
4Touch a still picture to be printed.
5Touch / to set the number of
prints.
≥Touch [ENTER] after the number of prints is
set.
≥ You can set up to 9 prints.
≥ To cancel the setting, set the number of prints
to [0].
≥ Up to 99 files can be set in succession.
6Touch .
7Touch [DATE PRINT] to select the
date print setting.
≥If the printer is not capable of date printing, this
setting is unavailable.
8Touch [PAPER SIZE] to select the
paper size setting.
[STANDARD]: Size specific to the...")
109VQT1Y31 4Touch a still picture to be printed. 5Touch / to set the number of prints. ≥Touch [ENTER] after the number of prints is set. ≥ You can set up to 9 prints. ≥ To cancel the setting, set the number of prints to [0]. ≥ Up to 99 files can be set in succession. 6Touch . 7Touch [DATE PRINT] to select the date print setting. ≥If the printer is not capable of date printing, this setting is unavailable. 8Touch [PAPER SIZE] to select the paper size setting. [STANDARD]: Size specific to the...
Page 110

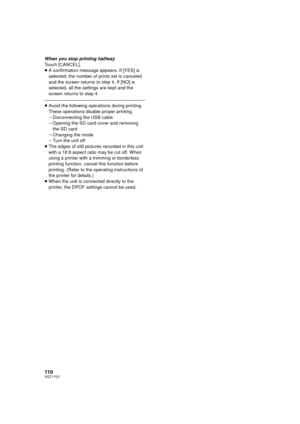

![Page 110
110VQT1Y31
When you stop printing halfway
Touch [CANCEL].
≥A confirmation message appears. If [YES] is
selected, the number of prints set is canceled
and the screen returns to step 4. If [NO] is
selected, all the settings are kept and the
screen returns to step 4.
≥Avoid the following operations during printing.
These operations disable proper printing.
jDisconnecting the USB cable
j Opening the SD card cover and removing
the SD card
j Changing the mode
j Turn the unit off
≥ The edges of still...](http://img.usermanuals.tech/thumb/58/64336/w300_hdc-hs250_mul_om_d-109.png "Page 110
110VQT1Y31
When you stop printing halfway
Touch [CANCEL].
≥A confirmation message appears. If [YES] is
selected, the number of prints set is canceled
and the screen returns to step 4. If [NO] is
selected, all the settings are kept and the
screen returns to step 4.
≥Avoid the following operations during printing.
These operations disable proper printing.
jDisconnecting the USB cable
j Opening the SD card cover and removing
the SD card
j Changing the mode
j Turn the unit off
≥ The edges of still...")
110VQT1Y31 When you stop printing halfway Touch [CANCEL]. ≥A confirmation message appears. If [YES] is selected, the number of prints set is canceled and the screen returns to step 4. If [NO] is selected, all the settings are kept and the screen returns to step 4. ≥Avoid the following operations during printing. These operations disable proper printing. jDisconnecting the USB cable j Opening the SD card cover and removing the SD card j Changing the mode j Turn the unit off ≥ The edges of still...
