Panasonic Hdc Sd10 Operating Instructions

131VQT2H52

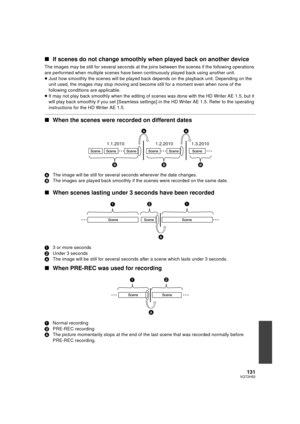

∫If scenes do not change smoothly when played back on another device
The images may be still for several seconds at the joins between the scenes if the following operations
are performed when multiple scenes have be en continuously played back using another unit.
≥ Just how smoothly the scenes will be played back depends on the playback unit. Depending on the
unit used, the images may stop moving and become still for a moment even when none of the
following conditions are applicable.
≥ It...

132VQT2H52

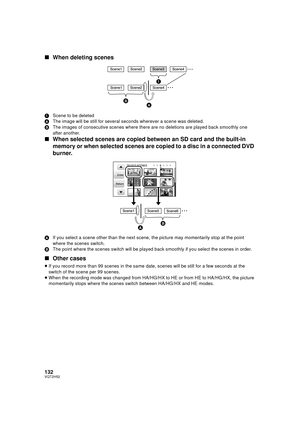

∫When deleting scenes
1 Scene to be deleted
A The image will be still for several seconds wherever a scene was deleted.
B The images of consecutive scenes where there  are no deletions are played back smoothly one
after another.
∫ When selected scenes are copied between an SD card and the built-in
memory or when selected scenes are copied to a disc in a connected DVD
burner.
A If you select a scene other than the next scene,  the picture may momentarily stop at the point
where the scenes...

133VQT2H52
Others

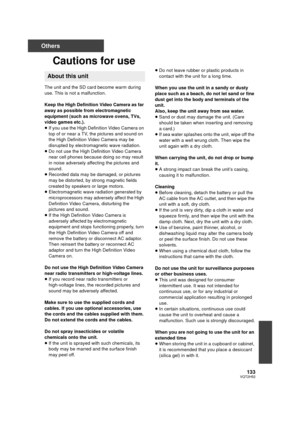

Cautions for use
The unit and the SD card become warm during
use. This is not a malfunction.
Keep the High Definition Video Camera as far
away as possible from electromagnetic
equipment (such as microwave ovens, TVs,
video games etc.).
≥If you use the High Definition Video Camera on
top of or near a TV, the pictures and sound on
the High Definition Video Camera may be
disrupted by electromagnetic wave radiation.
≥ Do not use the High Definition Video Camera
near cell phones...

134VQT2H52
/

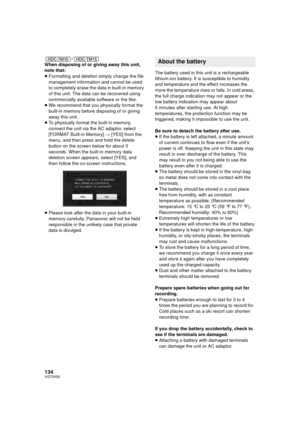

When disposing of or giving away this unit,
note that:
≥ Formatting and deletion simply change the file
management information and cannot be used
to completely erase the data in built-in memory
of this unit. The data can be recovered using
commercially available software or the like.
≥ We recommend that you physically format the
built-in memory before disposing of or giving
away this unit.
≥ To physically format the built-in memory,
connect the unit via the AC adaptor, select...

135VQT2H52

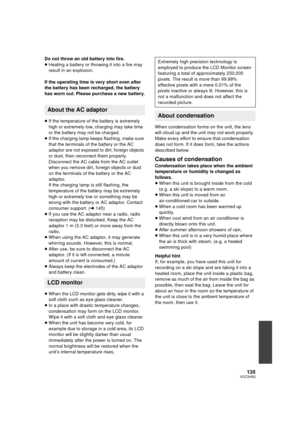

Do not throw an old battery into fire.
≥Heating a battery or throwing it into a fire may
result in an explosion.
If the operating time is very short even after
the battery has been recharged, the battery
has worn out. Please purchase a new battery.
≥ If the temperature of the battery is extremely
high or extremely low, charging may take time
or the battery may not be charged.
≥ If the charging lamp keeps flashing, make sure
that the terminals of the battery or the AC
adaptor are not...

136VQT2H52
Others

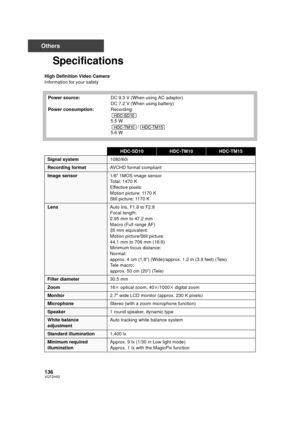

Specifications
High Definition Video Camera
Information for your safetyPower source:
Power consumption: DC 9.3 V (When using AC adaptor)
DC 7.2 V (When using battery)
Recording:
5.5 W
/
5.6 W
HDC-SD10HDC-TM10HDC-TM15
Signal system 1080/60i
Recording formatAVCHD format compliant
Image sensor1/6z 1MOS image sensor
Total: 1470 K
Effective pixels:
Motion picture: 1170 K
Still picture: 1170 K
LensAuto Iris, F1.8 to F2.8
Focal length:
2.95 mm to 47.2 mm
Macro (Full range AF)
35 mm...

137VQT2H52
HDC-SD10HDC-TM10HDC-TM15

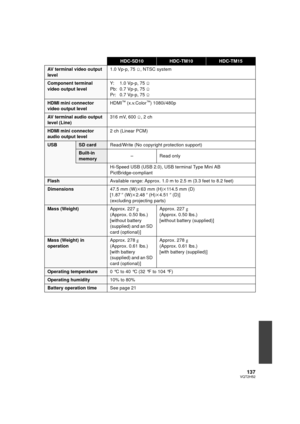

AV terminal video output
level1.0 Vp-p, 75
h, NTSC system
Component terminal
video output level Y:  1.0 Vp-p, 75
h
Pb:  0.7 Vp-p, 75 h
Pr:  0.7 Vp-p, 75 h
HDMI mini connector
video output level HDMI™ (x.v.Color™) 1080i/480p
AV terminal audio output
level (Line)316 mV, 600
h, 2 ch
HDMI mini connector
audio output level 2 ch (Linear PCM)
USBSD card
Read/Write (No copyright protection support)
Built-in
memory –
Read only
Hi-Speed USB (USB 2.0), USB terminal Type...

138VQT2H52

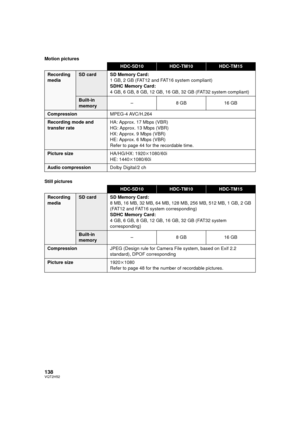

Motion pictures
Still pictures
HDC-SD10HDC-TM10HDC-TM15
Recording
mediaSD card SD Memory Card:1 GB, 2 GB (FAT12 and FAT16 system compliant)
SDHC Memory Card:
4 GB, 6 GB, 8 GB, 12 GB, 16 GB, 32 GB (FAT32 system compliant)
Built-in
memory –8
GB1 6GB
Compression MPEG-4 AVC/H.264
Recording mode and
transfer rateHA: Approx. 17 Mbps (VBR)
HG: Approx. 13 Mbps (VBR)
HX: Approx. 9 Mbps (VBR)
HE: Approx. 6 Mbps (VBR)
Refer to page 44 for the recordable time.
Picture size
HA/HG/HX: 1920k1080/60i
HE:...

139VQT2H52

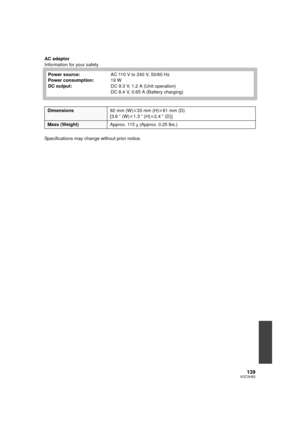

AC adaptor
Information for your safety
Specifications may change without prior notice.Power source:
Power consumption:
DC output:
AC 110 V to 240 V, 50/60 Hz
19 W
DC 9.3 V, 1.2 A (Unit operation)
DC 8.4 V, 0.65 A (Battery charging)
Dimensions
92 mm (W)k33 mm (H) k61 mm (D)
[3.6 q (W)k 1.3q (H) k2.4 q (D)]
Mass (Weight) Approx. 115g (Approx. 0.25 lbs.)
HDCSD10_TM10_TM15P-VQT2H52_eng.book  139 ページ  ２００９年７月６日　月曜日　午後１時４６分

140VQT2H52

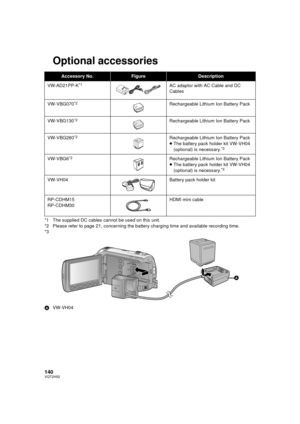

Optional accessories
*1 The supplied DC cables cannot be used on this unit.
*2 Please refer to page 21, concerning the battery charging time and available recording time.
*3
A VW-VH04
Accessory No.FigureDescription
VW-AD21PP-K
*1AC adaptor with AC Cable and DC
Cables
VW-VBG070
*2Rechargeable Lithium Ion Battery Pack
VW-VBG130
*2Rechargeable Lithium Ion Battery Pack
VW-VBG260
*2Rechargeable Lithium Ion Battery Pack
≥ The battery pack holder kit VW-VH04
(optional) is necessary.
*3...
