Panasonic Hdc Sd10 Operating Instructions

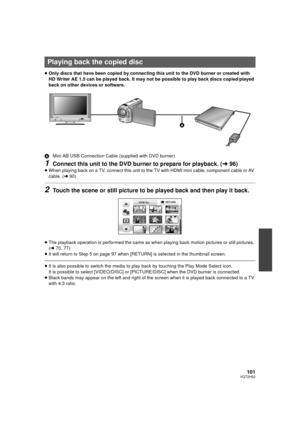

101VQT2H52
≥Only discs that have been copied by connecting this unit to the DVD burner or created with
HD Writer AE 1.5 can be played back. It may not be possible to play back discs copied/played
back on other devices or software.
A Mini AB USB Connection Cable (supplied with DVD burner)
1Connect this unit to the DVD burner to prepare for playback. ( l96)
≥When playing back on a TV, connect this unit to the TV with HDMI mini cable, component cable or AV
cable. ( l90)
2Touch the scene or still picture...

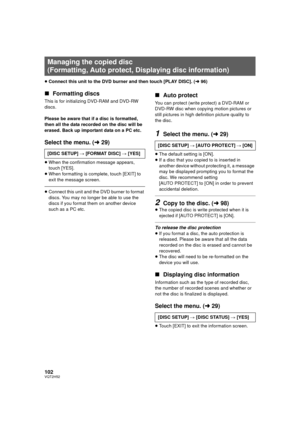

102VQT2H52
≥Connect this unit to the DVD burner and then touch [PLAY DISC]. ( l96)
∫ Formatting discs
This is for initializ ing DVD-RAM and DVD-RW
discs.
Please be aware that if a disc is formatted,
then all the data recorded on the disc will be
erased. Back up important data on a PC etc.
Select the menu. ( l29)
≥When the confirmation message appears,
touch [YES].
≥ When formatting is complete, touch [EXIT] to
exit the message screen.
≥Connect this unit and the DVD burner to format
discs. You may...

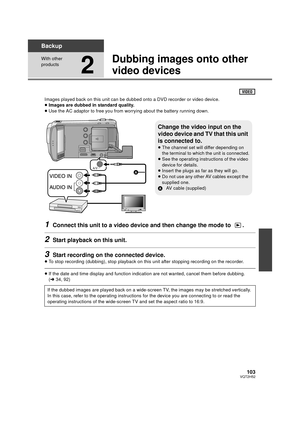

103VQT2H52
Backup
With other
products
2
Dubbing images onto other
video devices
Images played back on this unit can be dubbed onto a DVD recorder or video device.
≥ Images are dubbed in standard quality.
≥ Use the AC adaptor to free you from worrying about the battery running down.
1Connect this unit to a video device and then change the mode to  .
2Start playback on this unit.
3Start recording on the connected device.
≥To stop recording (dubbing), stop playback on this unit after stopping recording on...

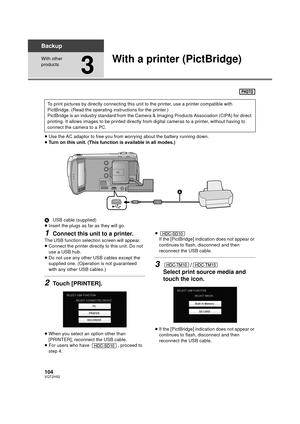

104VQT2H52
Backup
With other
products
3
With a printer (PictBridge)
≥Use the AC adaptor to free you from worrying about the battery running down.
≥ Turn on this unit. (This function is available in all modes.)
A USB cable (supplied)
≥ Insert the plugs as far as they will go.
1Connect this unit to a printer.
The USB function selection screen will appear.
≥Connect the printer directly to this unit. Do not
use a USB hub.
≥ Do not use any other USB cables except the
supplied one. (Operation is not...

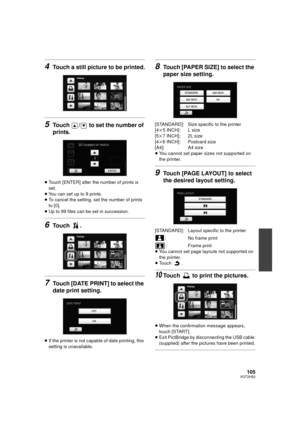

105VQT2H52
4Touch a still picture to be printed.
5Touch  /  to set the number of
prints.
≥Touch [ENTER] after the number of prints is
set.
≥ You can set up to 9 prints.
≥ To cancel the setting, set the number of prints
to [0].
≥ Up to 99 files can be set in succession.
6Touch .
7Touch [DATE PRINT] to select the
date print setting.
≥If the printer is not capable of date printing, this
setting is unavailable.
8Touch [PAPER SIZE] to select the
paper size setting.
[STANDARD]: Size specific to the...

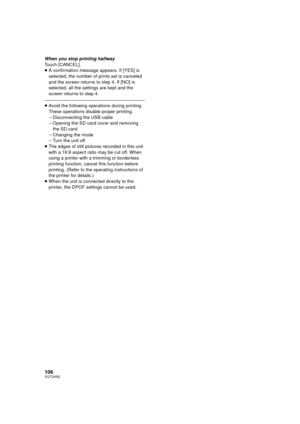

106VQT2H52
When you stop printing halfway
Touch [CANCEL].
≥A confirmation message appears. If [YES] is
selected, the number of prints set is canceled
and the screen returns to step 4. If [NO] is
selected, all the settings are kept and the
screen returns to step 4.
≥Avoid the following operations during printing.
These operations disable proper printing.
jDisconnecting the USB cable
j Opening the SD card cover and removing
the SD card
j Changing the mode
j Turn the unit off
≥ The edges of still...

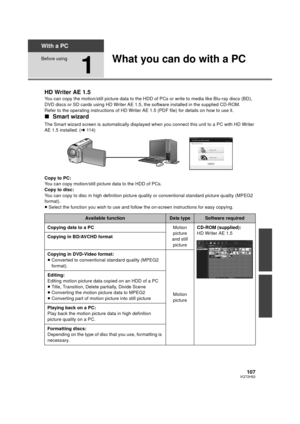

107VQT2H52
With a PC
Before using
1
What you can do with a PC
HD Writer AE 1.5
You can copy the motion/still picture data to the HDD of PCs or write to media like Blu-ray discs (BD),
DVD discs or SD cards using HD Writer AE 1.5, the software installed in the supplied CD-ROM.
Refer to the operating instructions of HD Writer AE 1.5 (PDF file) for details on how to use it.
∫ Smart wizard
The Smart wizard screen is automat ically displayed when you connect th is unit to a PC with HD Writer
AE 1.5...

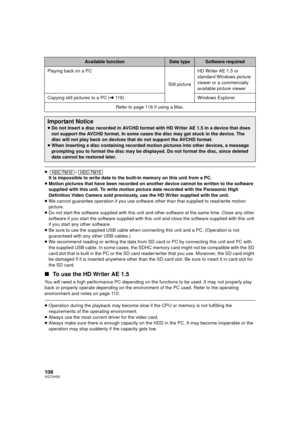

108VQT2H52
≥/
It is impossible to write data to the built-in memory on this unit from a PC.
≥ Motion pictures that have been recorded on another device cannot be written to the software
supplied with this unit. To write motion picture data recorded with the Panasonic High
Definition Video Camera sold previously, use the HD Writer supplied with the unit.
≥ We cannot guarantee operation if you use software  other than that supplied to read/write motion
picture.
≥ Do not start the software supplied with...

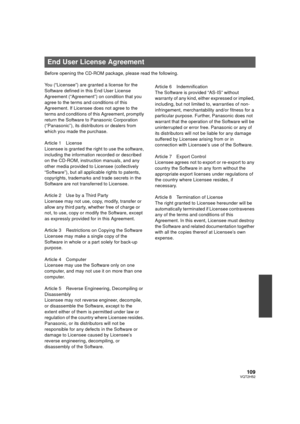

109VQT2H52
Before opening the CD-ROM package, please read the following.
You (“Licensee”) are granted a license for the
Software defined in this End User License
Agreement (“Agreement”) on condition that you
agree to the terms and conditions of this
Agreement. If Licensee does not agree to the
terms and conditions of this Agreement, promptly
return the Software to Panasonic Corporation
(“Panasonic”), its distributors or dealers from
which you made the purchase.
Article 1 License
Licensee is...

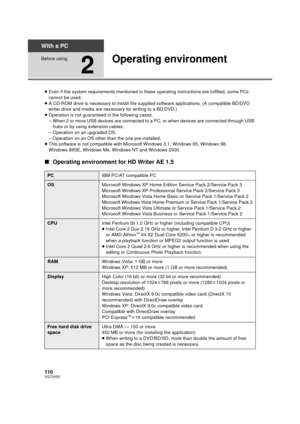

110VQT2H52
With a PC
Before using
2
Operating environment
≥Even if the system requirements mentioned in these operating instructions are fulfilled, some PCs
cannot be used.
≥ A CD-ROM drive is necessary to install the supplied software applications. (A compatible BD/DVD
writer drive and media are necessary for writing to a BD/DVD.)
≥ Operation is not guaranteed in the following cases.
jWhen 2 or more USB devices are connected to  a PC, or when devices are connected through USB
hubs or by using...
