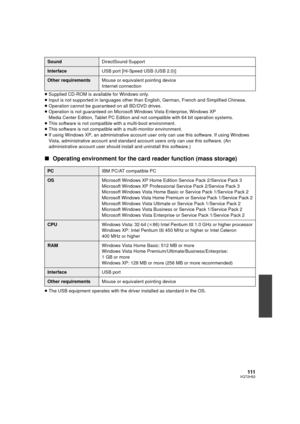

Panasonic Hdc Sd10 Operating Instructions

111VQT2H52
≥Supplied CD-ROM is available for Windows only.
≥ Input is not supported in languages other than English, German, French and Simplified Chinese.
≥ Operation cannot be guaranteed on all BD/DVD drives.
≥ Operation is not guaranteed on Microsoft Windows Vista Enterprise, Windows XP
Media Center Edition, Tablet PC Edition and not compatible with 64 bit operation systems.
≥ This software is not compatib le with a multi-boot environment.
≥ This software is not compatible with a multi-monitor...

112VQT2H52
With a PC
Setup
1
Installation
When installing the software, log on to your computer as the Administrator or with a user name with
equivalent authorization. (If you do not have authorization to do this, consult your manager.)
≥ Before starting the installation, cl ose all applications that are running.
≥ Do not perform any other operations on your PC while the software is being installed.
For Windows Vista:
If [User Account Control] dialog appears, click [Continue].
1Insert the CD-RO M into...

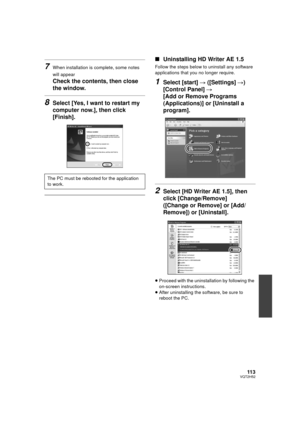

11 3VQT2H52
7When installation is complete, some notes
will appear
Check the contents, then close
the window.
8Select [Yes, I want to restart my
computer now.], then click
[Finish].
∫Uninstalling HD Writer AE 1.5
Follow the steps below to uninstall any software
applications that you no longer require.
1Select [start]  # ([Settings]  #)
[Control Panel]  #
[Add or Remove Programs
(Applications)] or [Uninstall a
program].
2Select [HD Writer AE 1.5], then
click [Change/Remove]
([Change or Remove]...

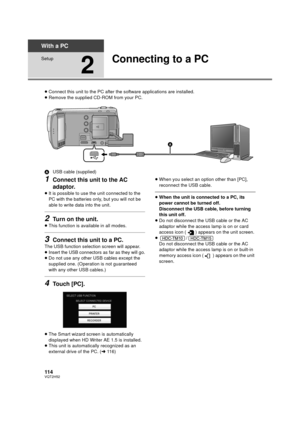

114VQT2H52
With a PC
Setup
2
Connecting to a PC
≥Connect this unit to the PC after the software applications are installed.
≥ Remove the supplied CD-ROM from your PC.
A USB cable (supplied)
1Connect this unit to the AC
adaptor.
≥It is possible to use the unit connected to the
PC with the batteries only, but you will not be
able to write data into the unit.
2Turn on the unit.
≥This function is available in all modes.
3Connect this unit to a PC.
The USB function selection screen will appear.
≥
Insert...

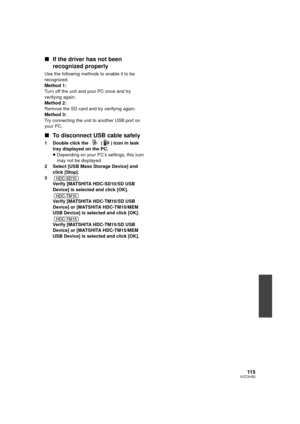

11 5VQT2H52
∫If the driver has not been
recognized properly
Use the following methods to enable it to be
recognized.
Method 1:
Turn off the unit and your PC once and try
verifying again.
Method 2:
Remove the SD card and try verifying again.
Method 3:
Try connecting the unit to another USB port on
your PC.
∫To disconnect USB cable safely
1 Double click the   ( ) icon in task
tray displayed on the PC.
≥Depending on your PC’s settings, this icon
may not be displayed.
2 Select [USB Mass Storage Device]...

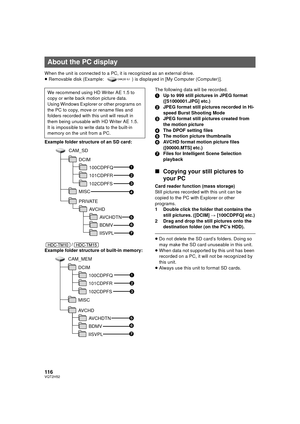

116VQT2H52
When the unit is connected to a PC, it is recognized as an external drive.
≥Removable disk (Example:  ) is displayed in [My Computer (Computer)].
Example folder structure of an SD card:
/
Example folder structure of built-in memory: The following data will be recorded.
1
Up to 999 still pictures in JPEG format
([S1000001.JPG] etc.)
2 JPEG format still pictures recorded in Hi-
speed Burst Shooting Mode
3 JPEG format still pictures created from
the motion picture
4 The DPOF setting files
5 The...

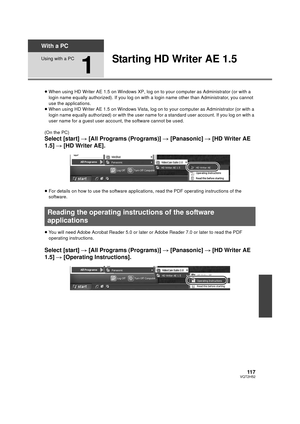

11 7VQT2H52
With a PC
Using with a PC
1
Starting HD Writer AE 1.5
≥When using HD Writer AE 1.5 on Windows XP, log on to your computer as Administrator (or with a
login name equally authorized). If you log on with a  login name other than Administrator, you cannot
use the applications.
≥ When using HD Writer AE 1.5 on Windows Vista, log on to your computer as Administrator (or with a
login name equally authorized) or with the user nam e for a standard user account. If you log on with a
user name for a...

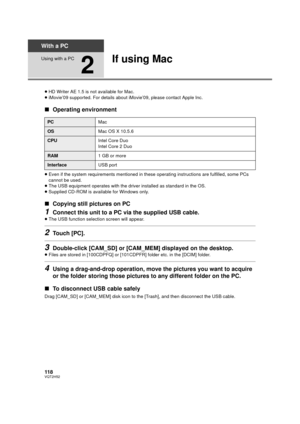

118VQT2H52
With a PC
Using with a PC
2
If using Mac
≥HD Writer AE 1.5 is not available for Mac.
≥ iMovie’09 supported. For details about iMovie’09, please contact Apple Inc.
∫ Operating environment
≥Even if the system requirements mentioned in these operating instructions are fulfilled, some PCs
cannot be used.
≥ The USB equipment operates with the driver installed as standard in the OS.
≥ Supplied CD-ROM is available for Windows only.
∫ Copying still pictures on PC
1Connect this unit to a PC via the...

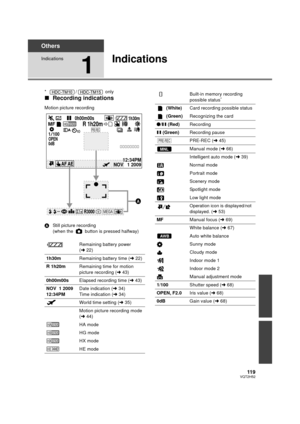

11 9VQT2H52
Others
Indications
1
Indications
*/ only
∫Recording indications
Motion picture recording
A Still picture recording
(when the   button is pressed halfway)
Remaining battery power
(l22)
1h30m Remaining battery time ( l22)
R 1h20m Remaining time for motion
picture recording ( l43)
0h00m00s Elapsed recording time ( l43)
NOV 1 2009
12:34PM Date indication (
l34)
Time indication ( l34)
World time setting ( l35)
Motion picture recording mode
(l 44)
HA mode
HG mode
HX mode
HE mode
1h30mHG1920R...

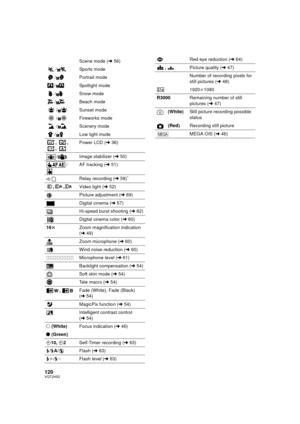

120VQT2H52
Scene mode (l56)
5 / Sports mode
/ Portrait mode
/ Spotlight mode
/ Snow mode
/ Beach mode
/ Sunset mode
/ Fireworks mode
/ Scenery mode
/ Low light mode
, ,
,  Power LCD (
l36)
/ Image stabilizer ( l50)
/ AF tracking ( l51)
Relay recording ( l58)
*
,, Video light (l52)
Picture adjustment ( l69)
Digital cinema ( l57)
Hi-speed burst shooting ( l62)
Digital cinema color ( l60)
16t Zoom magnification indication
(l49)
Zoom microphone ( l60)
Wind noise reduction ( l60)
Microphone level ( l61)...
