Panasonic Hdc Sd10 Operating Instructions

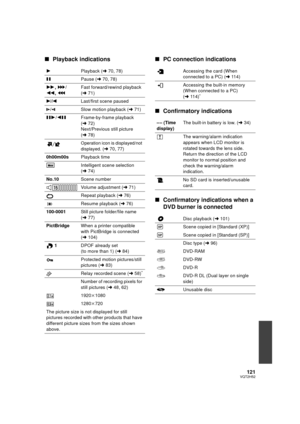

121VQT2H52
∫Playback indications ∫PC connection indications
∫ Confirmatory indications
∫ Confirmatory indications when a
DVD burner is connected
1 Playback (l70, 78)
; Pause (l70, 78)
5 , /
6 ,  Fast forward/rewind playback
(l
71)
7 /8 Last/first scene paused
D /E Slow motion playback ( l71)
;1 /2; Frame-by-frame playback
(l72)
Next/Previous still picture
(l 78)
Operation icon is displayed/not
displayed. (l70, 77)
0h00m00s Playback time
Intelligent scene selection
(l74)
No.10 Scene number
Volume...

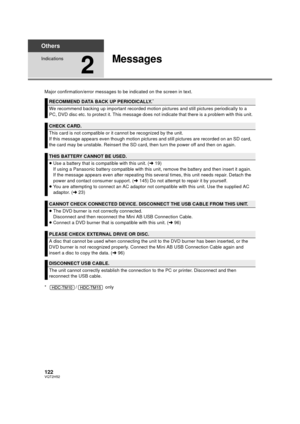

122VQT2H52
Others
Indications
2
Messages
Major confirmation/error messages to be indicated on the screen in text.
* /  only
RECOMMEND DATA BACK UP PERIODICALLY.*
We recommend backing up important recorded motion pictures and still pictures periodically to a
PC, DVD disc etc. to protect it. This message does no t indicate that there is a problem with this unit.
CHECK CARD.
This card is not compatible or it cannot be recognized by the unit.
If this message appears even though motion pictures and still...

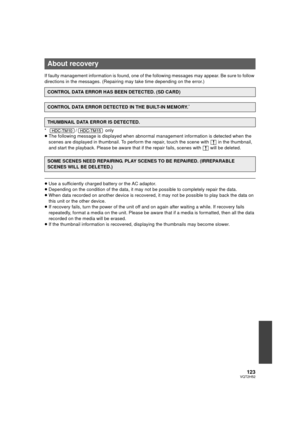

123VQT2H52
If faulty management information is found, one of the following messages may appear. Be sure to follow
directions in the messages. (Repairing may take time depending on the error.)
* /  only
≥The following message is displayed when abnormal management information is detected when the
scenes are displayed in thumbnail. To perform the repair, touch the scene with  ° in the thumbnail,
and start the playback. Please be aware t hat if the repair fails, scenes with ° will be deleted.
≥Use a...

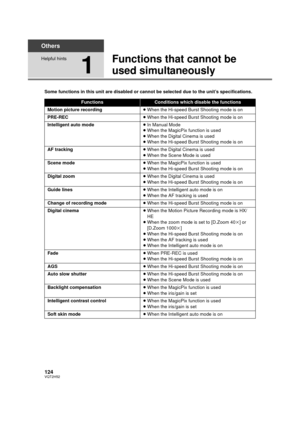

124VQT2H52
Others
Helpful hints
1
Functions that cannot be
used simultaneously
Some functions in this unit are disabled or cannot be selected due to the unit’s specifications.
FunctionsConditions which disable the functions
Motion picture recording ≥When the Hi-speed Burst Shooting mode is on
PRE-REC ≥When the Hi-speed Burst Shooting mode is on
Intelligent auto mode ≥In Manual Mode
≥ When the MagicPix function is used
≥ When the Digital Cinema is used
≥ When the Hi-speed Burst Shooting mode is on
AF...

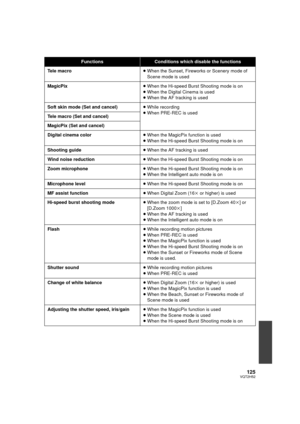

125VQT2H52
FunctionsConditions which disable the functions
Tele macro ≥When the Sunset, Fireworks or Scenery mode of
Scene mode is used
MagicPix ≥When the Hi-speed Burst Shooting mode is on
≥ When the Digital Cinema is used
≥ When the AF tracking is used
Soft skin mode (Set and cancel) ≥While recording
≥ When PRE-REC is used
Tele macro (Set and cancel)
MagicPix (Set and cancel)
Digital cinema color ≥When the MagicPix function is used
≥ When the Hi-speed Burst Shooting mode is on
Shooting guide ≥When the...

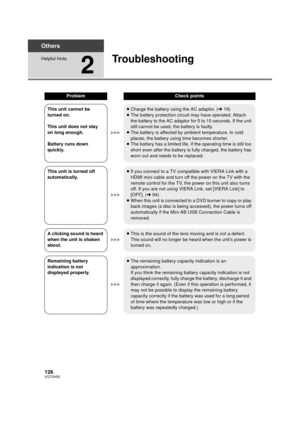

126VQT2H52
Others
Helpful hints
2
Troubleshooting
ProblemCheck points
This unit cannot be
turned on.
This unit does not stay
on long enough.
Battery runs down
quickly. ≥
Charge the battery using the AC adaptor. ( l19)
≥ The battery protection circuit may have operated. Attach
the battery to the AC adaptor for 5 to 10 seconds. If the unit
still cannot be used, the battery is faulty.
≥ The battery is affected by ambient temperature. In cold
places, the battery usi ng time becomes shorter.
≥ The...

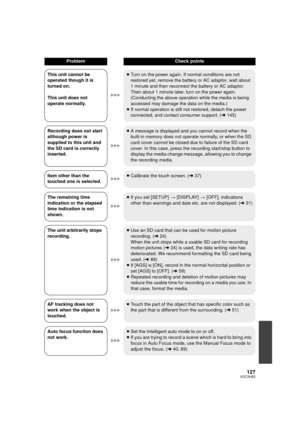

127VQT2H52
ProblemCheck points
This unit cannot be
operated though it is
turned on.
This unit does not
operate normally. ≥
Turn on the power again. If normal conditions are not
restored yet, remove the battery or AC adaptor, wait about
1 minute and then reconnect the battery or AC adaptor.
Then about 1 minute later, turn on the power again.
(Conducting the above operation while the media is being
accessed may damage the data on the media.)
≥ If normal operation is still not restored, detach the...

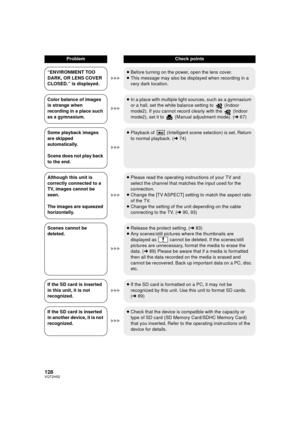

128VQT2H52
“ENVIRONMENT TOO
DARK, OR LENS COVER
CLOSED.” is displayed.≥
Before turning on the power, open the lens cover.
≥ This message may also be displayed when recording in a
very dark location.
Color balance of images
is strange when
recording in a place such
as a gymnasium. ≥
In a place with multiple light sources, such as a gymnasium
or a hall, set the white balance setting to   (Indoor
mode2). If you cannot record clearly with the   (Indoor
mode2), set it to   (Manual adjustment mode). (...

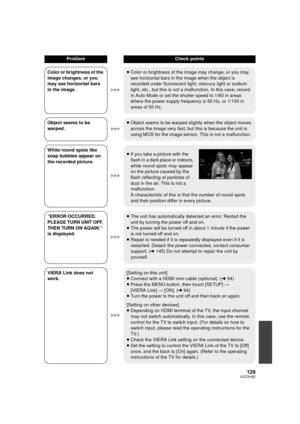

129VQT2H52
Color or brightness of the
image changes, or you
may see horizontal bars
in the image.≥
Color or brightness of the image may change, or you may
see horizontal bars in the image when the object is
recorded under fluorescent light, mercury light or sodium
light, etc., but this is not a malfunction. In this case, record
in Auto Mode or set the shutter speed to 1/60 in areas
where the power supply frequency is 60 Hz, or 1/100 in
areas of 50 Hz.
Object seems to be
warped. ≥
Object seems...

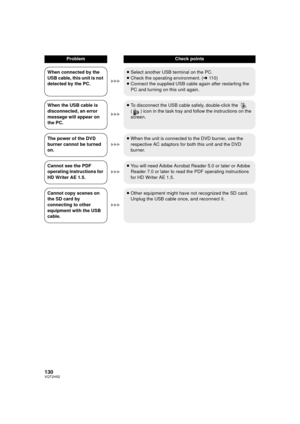

130VQT2H52
When connected by the
USB cable, this unit is not
detected by the PC.≥
Select another USB terminal on the PC.
≥ Check the operating environment. ( l110)
≥ Connect the supplied USB cable again after restarting the
PC and turning on this unit again.
When the USB cable is
disconnected, an error
message will appear on
the PC. ≥
To disconnect the USB cable safely, double-click the
( ) icon in the task tray and follow the instructions on the
screen.
The power of the DVD
burner cannot be...
