Panasonic Hdc Sd10 Operating Instructions

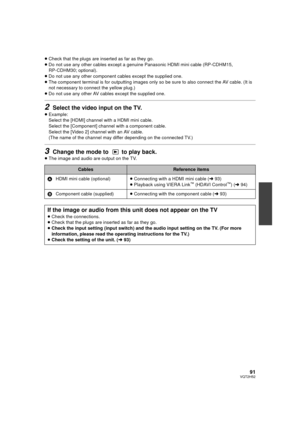

91VQT2H52
≥Check that the plugs are inserted as far as they go.
≥ Do not use any other cables except a genuine Panasonic HDMI mini cable (RP-CDHM15,
RP-CDHM30; optional).
≥ Do not use any other component cables except the supplied one.
≥ The component terminal is for outputting images only so  be sure to also connect the AV cable. (It is
not necessary to connect the yellow plug.)
≥ Do not use any other AV c ables except the supplied one.
2Select the video input on the TV.
≥Example:
Select the [HDMI]...

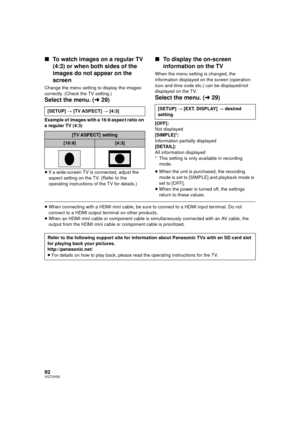

92VQT2H52
∫To watch images on a regular TV
(4:3) or when both sides of the
images do not appear on the
screen
Change the menu setting to display the images
correctly. (Check the TV setting.)
Select the menu. ( l29)
Example of images with a 16:9 aspect ratio on
a regular TV (4:3)
≥If a wide-screen TV is connected, adjust the
aspect setting on the TV. (Refer to the
operating instructions of the TV for details.)
∫ To display the on-screen
information on the TV
When the menu setting is changed, the...

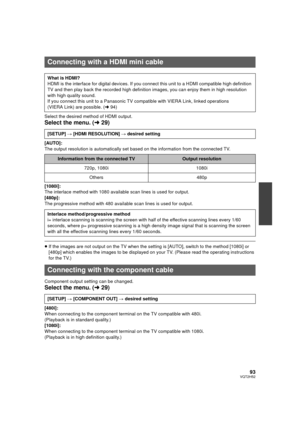

93VQT2H52
Select the desired method of HDMI output.
Select the menu. (l29)
[AUTO]:
The output resolution is automatically set bas ed on the information from the connected TV.
[1080i]:
The interlace method with 1080 available scan lines is used for output.
[480p]:
The progressive method with 480 available scan lines is used for output.
≥ If the images are not output on the TV when the se tting is [AUTO], switch to the method [1080i] or
[480p] which enables the images to be displayed on  your TV. (Please...

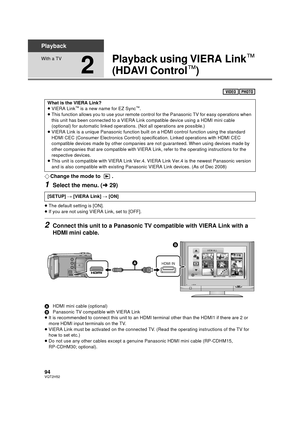

94VQT2H52
Playback
With a TV
2
Playback using VIERA Link™
(HDAVI Control
™)
¬ Change the mode to  .
1Select the menu. ( l29)
≥The default setting is [ON].
≥ If you are not using VIERA Link, set to [OFF].
2Connect this unit to a Panasonic TV compatible with VIERA Link with a
HDMI mini cable.
A HDMI mini cable (optional)
B Panasonic TV compatible with VIERA Link
≥ It is recommended to connect this unit to an HDMI terminal other than the HDMI1 if there are 2 or
more HDMI input terminals on the TV.
≥...

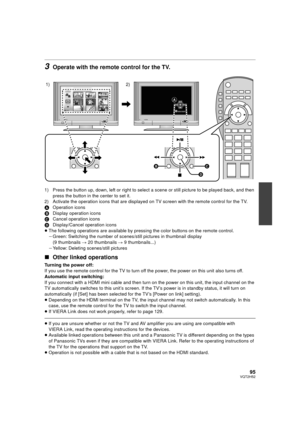

95VQT2H52
3Operate with the remote control for the TV.
1) Press the button up, down, left or right to select a scene or still picture to be played back, and then press the button in the center to set it.
2) Activate the operation icons that are displayed on TV screen with the remote control for the TV.
A Operation icons
B Display operation icons
C Cancel operation icons
D Display/Cancel operation icons
≥ The following operations are av ailable by pressing the color buttons on the remote control.
j Green:...

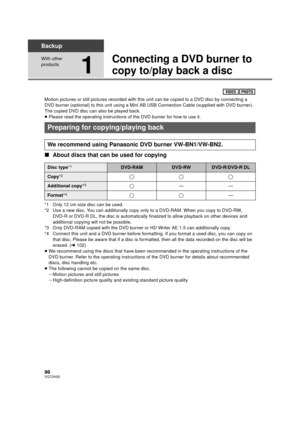

96VQT2H52
Backup
With other
products
1
Connecting a DVD burner to
copy to/play back a disc
Motion pictures or still pictures recorded with this unit can be copied to a DVD disc by connecting a
DVD burner (optional) to this unit using a MiniAB USB Connection Cable (supplied with DVD burner).
The copied DVD disc can also be played back.
≥ Please read the operating instructions of the DVD burner for how to use it.
∫ About discs that can be used for copying
*1 Only 12 cm size disc can be used.
*2 Use a...

97VQT2H52

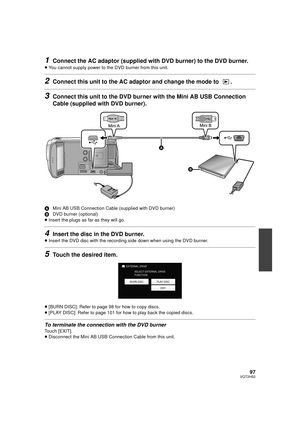

1Connect the AC adaptor (supplied with DVD burner) to the DVD burner.
≥You cannot supply power to t he DVD burner from this unit.
2Connect this unit to the AC adaptor and change the mode to  .
3Connect this unit to the DVD bur ner with the Mini AB USB Connection
Cable (supplied with DVD burner).
A Mini AB USB Connection Cable (supplied with DVD burner)
B DVD burner (optional)
≥ Insert the plugs as far as they will go.
4Insert the disc in the DVD burner.
≥Insert the DVD disc with the recording...

98VQT2H52

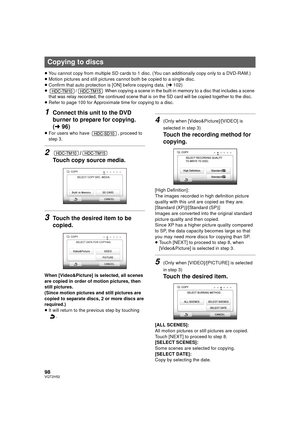

≥You cannot copy from multiple SD cards to 1 disc.  (You can additionally copy only to a DVD-RAM.)
≥ Motion pictures and still pictures cannot both be copied to a single disc.
≥ Confirm that auto protection is [ON] before copying data. ( l102)
≥
/  When copying a scene in the built-in memory to a disc that includes a scene
that was relay recorded, the contin ued scene that is on the SD card will be copied together to the disc.
≥Refer to page 100 for Approximate time for copying to a disc....

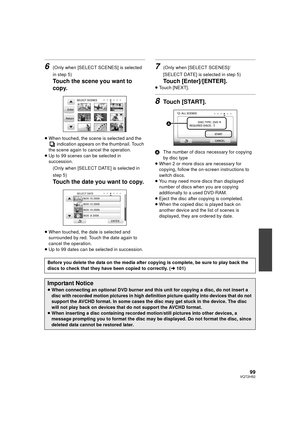

99VQT2H52
6(Only when [SELECT SCENES] is selected
in step 5)
Touch the scene you want to
copy.
≥When touched, the scene is selected and the
 indication appears on the thumbnail. Touch
the scene again to cancel the operation.
≥ Up to 99 scenes can be selected in
succession.
(Only when [SELECT DATE] is selected in
step 5)
Touch the date you want to copy.
≥When touched, the date is selected and
surrounded by red. Touch the date again to
cancel the operation.
≥ Up to 99 dates can be selected in...

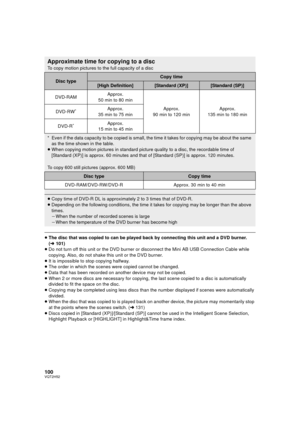

100VQT2H52
≥The disc that was copied to can be played back by connecting this unit and a DVD burner.
(l 101)
≥ Do not turn off this unit or the DVD burner or  disconnect the Mini AB USB Connection Cable while
copying. Also, do not shake this unit or the DVD burner.
≥ It is impossible to stop copying halfway.
≥ The order in which the scenes were copied cannot be changed.
≥ Data that has been recorded on another device may not be copied.
≥ When 2 or more discs are necessary for copying,  the last scene...
