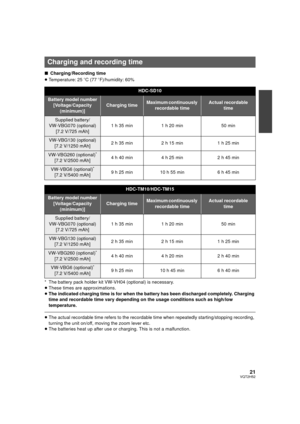

∫Charging/Recording time
≥ Temperature: 25 oC (77oF)/humidity: 60%
* The battery pack holder kit VW-VH04 (optional) is necessary.
≥ These times are approximations.
≥ The indicated charging time is for when the battery has been discharged completely. Charging
time and recordable time vary depending on the usage conditions such as high/low
temperature.
≥The actual recordable time refers to the recordable time when repeatedly starting/stopping recording,
turning the unit on/off, moving the zoom...

22VQT2H52

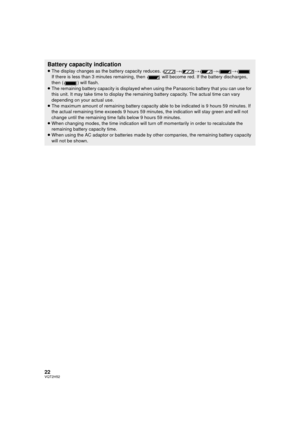

Battery capacity indication
≥The display changes as the battery capacity reduces.  ####
If there is less than 3 minutes remaining, then   will become red. If the battery discharges,
then ( ) will flash.
≥ The remaining battery capacity is displayed when  using the Panasonic battery that you can use for
this unit. It may take time to display the remaining battery capacity. The actual time can vary
depending on your actual use.
≥ The maximum amount of remaining battery capacity able to be...

23VQT2H52

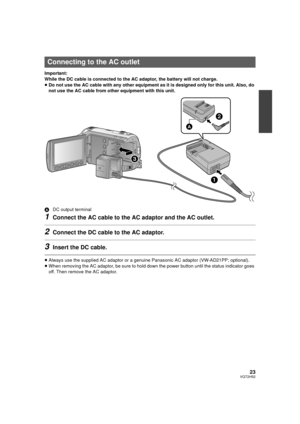

Important:
While the DC cable is connected to the AC adaptor, the battery will not charge.
≥Do not use the AC cable with any other equipment as it is designed only for this unit. Also, do
not use the AC cable from other equipment with this unit.
A DC output terminal
1Connect the AC cable to the AC adaptor and the AC outlet.
2Connect the DC cable to the AC adaptor.
3Insert the DC cable.
≥Always use the supplied AC adaptor or a  genuine Panasonic AC adaptor (VW-AD21PP; optional).
≥ When removing...

24VQT2H52
Preparation
Setup
2

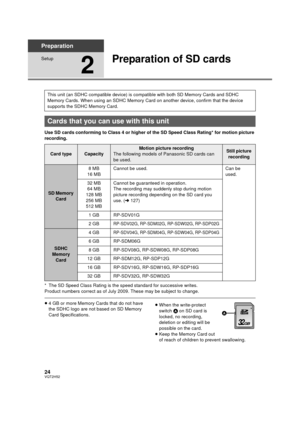

Preparation of SD cards
Use SD cards conforming to Class 4 or higher of the SD Speed Class Rating* for motion picture
recording.
* The SD Speed Class Rating is the speed standard for successive writes.
Product numbers correct as of July 2009. These may be subject to change.
≥4 GB or more Memory Cards that do not have
the SDHC logo are not based on SD Memory
Card Specifications. ≥
When the write-protect
switch  A on SD card is
locked, no recording,
deletion or editing...

25VQT2H52

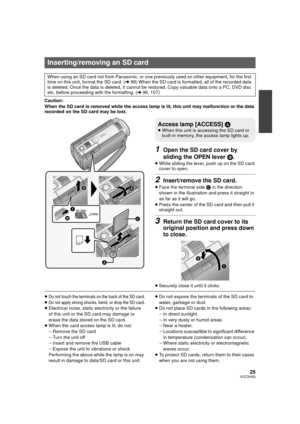

Caution:
When the SD card is removed while the access lamp is lit, this unit may malfunction or the data
recorded on the SD card may be lost.
1Open the SD card cover by
sliding the OPEN lever B.
≥While sliding the lever, push up on the SD card
cover to open.
2Insert/remove the SD card.
≥Face the terminal side  C in the direction
shown in the illustration and press it straight in
as far as it will go.
≥ Press the center of the SD card and then pull it
straight out.
3Return the SD card...

26VQT2H52
Preparation
Setup
3

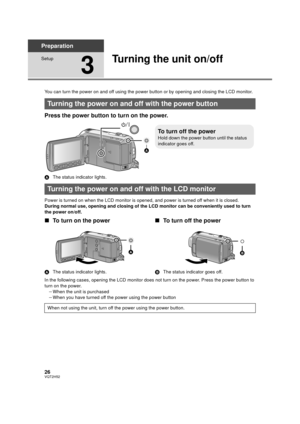

Turning the unit on/off
You can turn the power on and off using the power button or by opening and closing the LCD monitor.
Press the power button to turn on the power.
AThe status indicator lights.
Power is turned on when the LCD monitor is opened,  and power is turned off when it is closed.
During normal use, opening and closing of the LCD monitor can be conveniently used to turn
the power on/off.
∫ To turn on the power
A The status indicator lights.
∫To turn off the...

27VQT2H52
Preparation
Setup
4

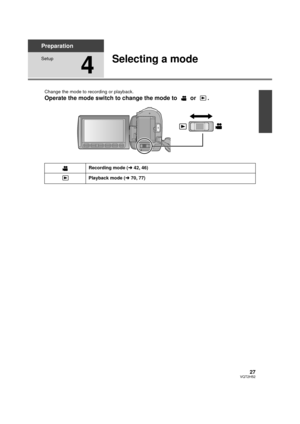

Selecting a mode
Change the mode to recording or playback.
Operate the mode switch to change the mode to   or  .
Recording mode (l42, 46)
Playback mode ( l70, 77)
HDCSD10_TM10_TM15P-VQT2H52_eng.book  27 ページ  ２００９年７月６日　月曜日　午後１時４６分

28VQT2H52
Preparation
Setup
5

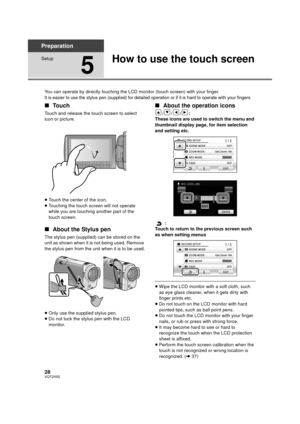

How to use the touch screen
You can operate by directly touching the LCD monitor (touch screen) with your finger.
It is easier to use the stylus pen (supplied) for detailed operation or if it is hard to operate with your fingers.
∫Touch
Touch and release the touch screen to select
icon or picture.
≥Touch the center of the icon.
≥ Touching the touch screen will not operate
while you are touching another part of the
touch screen.
∫ About the Stylus pen
The stylus pen...

29VQT2H52
Preparation
Setup
6

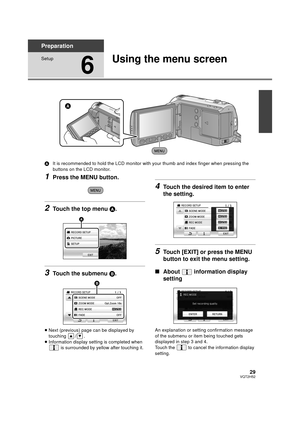

Using the menu screen
AIt is recommended to hold the LCD monitor with your thumb and index finger when pressing the
buttons on the LCD monitor.
1Press the MENU button.
2Touch the top menu A.
3Touch the submenu  B.
≥Next (previous) page can be displayed by
touching / .
≥ Information display setting is completed when
 is surrounded by yellow after touching it.
4Touch the desired item to enter
the setting.
5Touch [EXIT] or press the MENU
button to exit the menu setting.
∫...

30VQT2H52

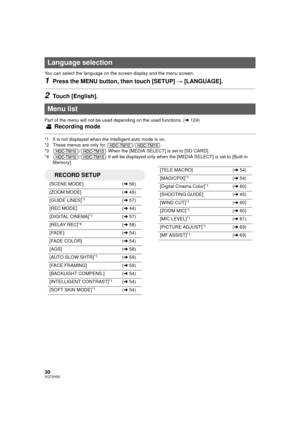

You can select the language on the screen display and the menu screen.
1Press the MENU button, then touch [SETUP] # [LANGUAGE].
2Touch [English].
Part of the menu will not be used depending on the used functions. ( l124)
Recording mode
*1 It is not displayed when the Intelligent auto mode is on.
*2 These menus are only for  /.
*3 / When the [MEDIA SELECT] is set to [SD CARD].
*4 / It will be displayed only when the [MEDIA SELECT] is set to [Built-in
Memory].
Language selection
Menu list
RECORD...
