Panasonic Hdc Sd10 Operating Instructions

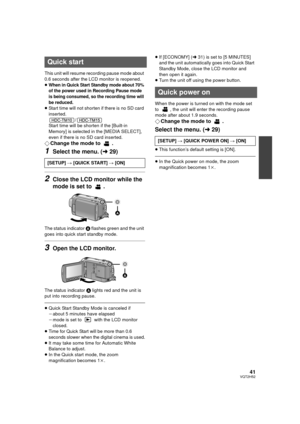

41VQT2H52
This unit will resume recording pause mode about
0.6 seconds after the LCD monitor is reopened.
≥When in Quick Start Standby mode about 70%
of the power used in Recording Pause mode
is being consumed, so the recording time will
be reduced.
≥Start time will not shorten if there is no SD card
inserted.
/
Start time will be shorten if the [Built-in
Memory] is selected in the [MEDIA SELECT],
even if there is no SD card inserted.
¬ Change the mode to  .
1Select the menu. ( l29)
2Close the LCD...

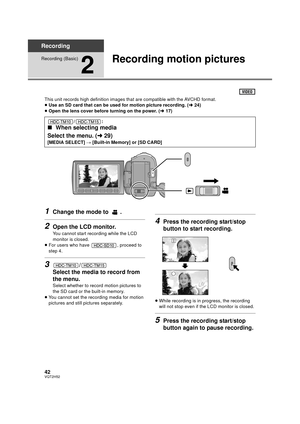

42VQT2H52
Recording
Recording (Basic)
2
Recording motion pictures
This unit records high definition images that are compatible with the AVCHD format.
≥Use an SD card that can be used for motion picture recording. ( l24)
≥ Open the lens cover before turning on the power. ( l17)
1Change the mode to  .
2Open the LCD monitor.
You cannot start recording while the LCD
monitor is closed.
≥ For users who have  , proceed to
step 4.
3/
Select the media to record from
the menu.
Select whether to record motion...

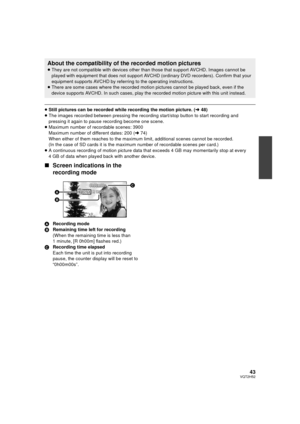

43VQT2H52
≥Still pictures can be recorded while recording the motion picture. ( l48)
≥ The images recorded between pressing the recording start/stop button to start recording and
pressing it again to pause recording become one scene.
≥ Maximum number of recordable scenes: 3900
Maximum number of different dates: 200 ( l74)
When either of them reaches to the maximum limit, additional scenes cannot be recorded.
(In the case of SD cards it is the maximum number of recordable scenes per card.)
≥ A continuous...

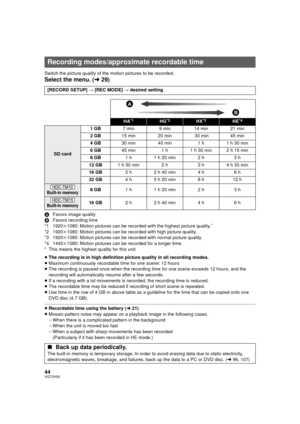

44VQT2H52
Switch the picture quality of the motion pictures to be recorded.
Select the menu. (l29)
A Favors image quality
B Favors recording time
*1 1920k 1080: Motion pictures can be recorded with the highest picture quality.
*
*2 1920k1080: Motion pictures can be recorded with high picture quality.
*3 1920k 1080: Motion pictures can be recorded with normal picture quality.
*4 1440k 1080: Motion pictures can be recorded for a longer time.
* This means the highest quality for this unit.
≥ The recording...

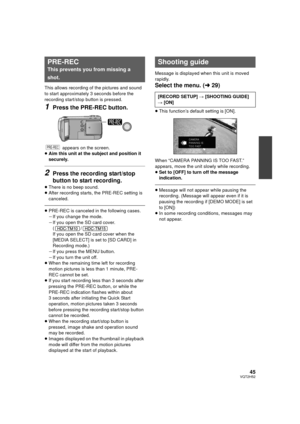

45VQT2H52
This allows recording of the pictures and sound
to start approximately 3 seconds before the
recording start/stop button is pressed.
1Press the PRE-REC button.
 appears on the screen.
≥ Aim this unit at the subject and position it
securely.
2Press the recording start/stop
button to start recording.
≥There is no beep sound.
≥ After recording starts, the PRE-REC setting is
canceled.
≥PRE-REC is canceled in the following cases.
jIf you change the mode.
j If you open the SD card cover.
(/
If...

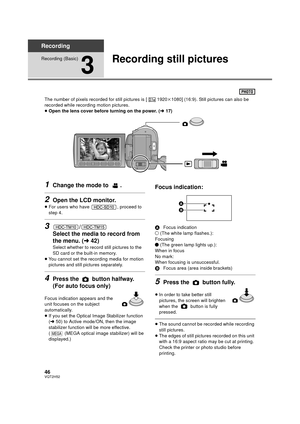

46VQT2H52
Recording
Recording (Basic)
3
Recording still pictures
The number of pixels recorded for still pictures is [ 1920k1080] (16:9). Still pictures can also be
recorded while recording motion pictures.
≥ Open the lens cover before turning on the power. ( l17)
1Change the mode to  .
2Open the LCD monitor.
≥For users who have  , proceed to
step 4.
3/
Select the media to record from
the menu. ( l42)
Select whether to record still pictures to the
SD card or the built-in memory.
≥ You cannot set the...

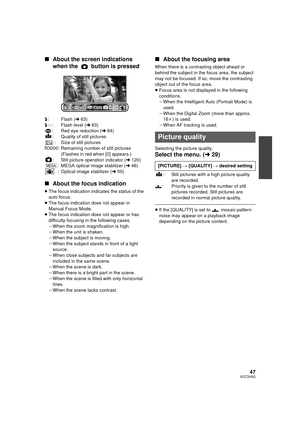

47VQT2H52
∫About the screen indications
when the   button is pressed
ß: Flash ( l63)
ß j : Flash level ( l63)
: Red eye reduction ( l64)
: Quality of still pictures
: Size of still pictures
R3000: Remaining number of still pictures (Flashes in red when [0] appears.)
: Still picture operation indicator ( l120)
: MEGA optical image stabilizer ( l46)
: Optical image stabilizer (l 50)
∫About the focus indication
≥The focus indication indicates the status of the
auto focus.
≥ The focus indication does not...

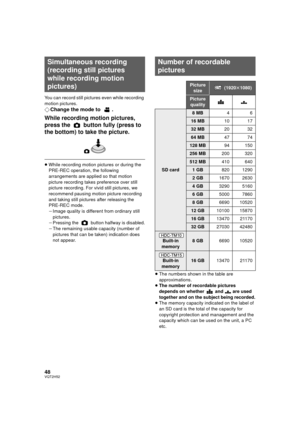

48VQT2H52
You can record still pictures even while recording
motion pictures.
¬Change the mode to  .
While recording motion pictures,
press the   button fully (press to
the bottom) to take the picture.
≥While recording motion pictures or during the
PRE-REC operation, the following
arrangements are applied so that motion
picture recording takes preference over still
picture recording. For vivid still pictures, we
recommend pausing motion picture recording
and taking still pictures after releasing...

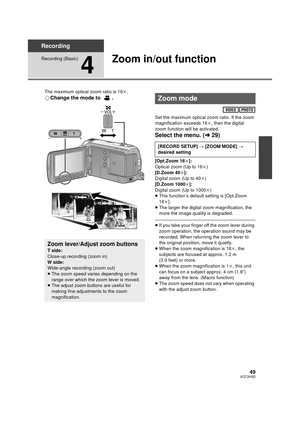

49VQT2H52
Recording
Recording (Basic)
4
Zoom in/out function
The maximum optical zoom ratio is 16k.
¬ Change the mode to  .
Set the maximum optical zoom ratio. If the zoom
magnification exceeds 16 k, then the digital
zoom function will be activated.
Select the menu. ( l29)
[Opt.Zoom 16 k]:
Optical zoom (Up to 16 k)
[D.Zoom 40 k]:
Digital zoom (Up to 40k )
[D.Zoom 1000 k]:
Digital zoom (Up to 1000 k)
≥ This function’s default setting is [Opt.Zoom
16k ].
≥ The larger the digital zoom magnification, the...

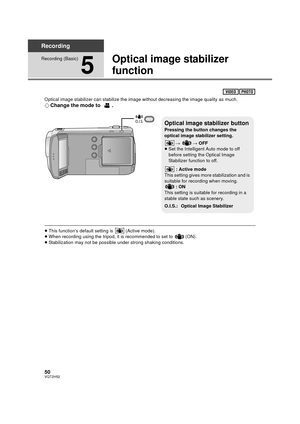

50VQT2H52
Recording
Recording (Basic)
5
Optical image stabilizer
function
Optical image stabilizer can stabilize the image without decreasing the image quality as much.
¬Change the mode to  .
≥This function’s default setting is   (Active mode).
≥ When recording using the tripod, it is recommended to set to   (ON).
≥ Stabilization may not be possible under strong shaking conditions.
0ð0Ï0ê0Ï0ô0ÏOptical image stabilizer button
Pressing the button changes the
optical image stabilizer setting.
 #    # OFF...
