Panasonic Hdc Sd10 Operating Instructions
Here you can view all the pages of manual Panasonic Hdc Sd10 Operating Instructions. The Panasonic manuals for Camcorder are available online for free. You can easily download all the documents as PDF.
Page 61

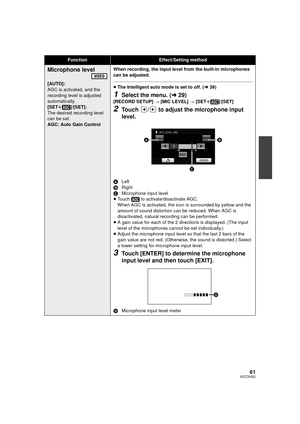

![Page 61
61VQT2H52
Microphone level
[AUTO]:
AGC is activated, and the
recording level is adjusted
automatically.
[SETr ]/[SET]:
The desired recording level
can be set.
AGC: Auto Gain Control When recording, the input level from the built-in microphones
can be adjusted.≥
The Intelligent auto mode is set to off. ( l39)
1Select the menu. ( l29)
[RECORD SETUP] # [MIC LEVEL] # [SETr]/[SET]
2Touch / to adjust the microphone input
level.
ALeft
B Right
C Microphone input level
≥ Touch to activate/disactivate...](http://img.usermanuals.tech/thumb/58/64340/w300_hdc-sd10_mul_om_d-60.png "Page 61
61VQT2H52
Microphone level
[AUTO]:
AGC is activated, and the
recording level is adjusted
automatically.
[SETr ]/[SET]:
The desired recording level
can be set.
AGC: Auto Gain Control When recording, the input level from the built-in microphones
can be adjusted.≥
The Intelligent auto mode is set to off. ( l39)
1Select the menu. ( l29)
[RECORD SETUP] # [MIC LEVEL] # [SETr]/[SET]
2Touch / to adjust the microphone input
level.
ALeft
B Right
C Microphone input level
≥ Touch to activate/disactivate...")
61VQT2H52 Microphone level [AUTO]: AGC is activated, and the recording level is adjusted automatically. [SETr ]/[SET]: The desired recording level can be set. AGC: Auto Gain Control When recording, the input level from the built-in microphones can be adjusted.≥ The Intelligent auto mode is set to off. ( l39) 1Select the menu. ( l29) [RECORD SETUP] # [MIC LEVEL] # [SETr]/[SET] 2Touch / to adjust the microphone input level. ALeft B Right C Microphone input level ≥ Touch to activate/disactivate...

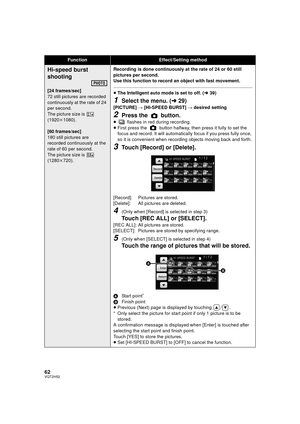

Page 62
![Page 62
62VQT2H52
Hi-speed burst
shooting
[24 frames/sec]
72 still pictures are recorded
continuously at the rate of 24
per second.
The picture size is
(1920k1080).
[60 frames/sec]
180 still pictures are
recorded continuously at the
rate of 60 per second.
The picture size is
(1280k 720). Recording is done continuously at the rate of 24 or 60 still
pictures per second.
Use this function to record an object with fast movement.≥
The Intelligent auto mode is set to off. ( l39)
1Select the menu. ( l29)...](http://img.usermanuals.tech/thumb/58/64340/w300_hdc-sd10_mul_om_d-61.png "Page 62
62VQT2H52
Hi-speed burst
shooting
[24 frames/sec]
72 still pictures are recorded
continuously at the rate of 24
per second.
The picture size is
(1920k1080).
[60 frames/sec]
180 still pictures are
recorded continuously at the
rate of 60 per second.
The picture size is
(1280k 720). Recording is done continuously at the rate of 24 or 60 still
pictures per second.
Use this function to record an object with fast movement.≥
The Intelligent auto mode is set to off. ( l39)
1Select the menu. ( l29)...")
62VQT2H52 Hi-speed burst shooting [24 frames/sec] 72 still pictures are recorded continuously at the rate of 24 per second. The picture size is (1920k1080). [60 frames/sec] 180 still pictures are recorded continuously at the rate of 60 per second. The picture size is (1280k 720). Recording is done continuously at the rate of 24 or 60 still pictures per second. Use this function to record an object with fast movement.≥ The Intelligent auto mode is set to off. ( l39) 1Select the menu. ( l29)...
Page 63

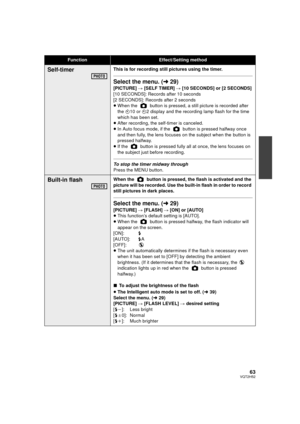

![Page 63
63VQT2H52
Self-timerThis is for recording still pictures using the timer.
Select the menu. (l29)
[PICTURE] # [SELF TIMER] # [10 SECONDS] or [2 SECONDS]
[10 SECONDS]: Records after 10 seconds
[2 SECONDS]: Records after 2 seconds
≥ When the button is pressed, a still picture is recorded after
the Ø10 or Ø2 display and the recording lamp flash for the time
which has been set.
≥ After recording, the self-timer is canceled.
≥ In Auto focus mode, if the button is pressed halfway once
and then...](http://img.usermanuals.tech/thumb/58/64340/w300_hdc-sd10_mul_om_d-62.png "Page 63
63VQT2H52
Self-timerThis is for recording still pictures using the timer.
Select the menu. (l29)
[PICTURE] # [SELF TIMER] # [10 SECONDS] or [2 SECONDS]
[10 SECONDS]: Records after 10 seconds
[2 SECONDS]: Records after 2 seconds
≥ When the button is pressed, a still picture is recorded after
the Ø10 or Ø2 display and the recording lamp flash for the time
which has been set.
≥ After recording, the self-timer is canceled.
≥ In Auto focus mode, if the button is pressed halfway once
and then...")
63VQT2H52 Self-timerThis is for recording still pictures using the timer. Select the menu. (l29) [PICTURE] # [SELF TIMER] # [10 SECONDS] or [2 SECONDS] [10 SECONDS]: Records after 10 seconds [2 SECONDS]: Records after 2 seconds ≥ When the button is pressed, a still picture is recorded after the Ø10 or Ø2 display and the recording lamp flash for the time which has been set. ≥ After recording, the self-timer is canceled. ≥ In Auto focus mode, if the button is pressed halfway once and then...

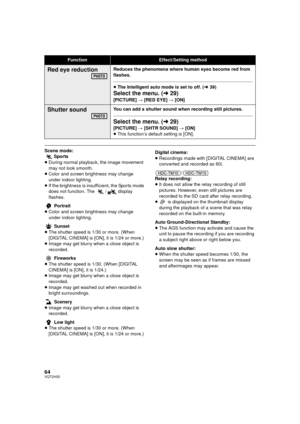

Page 64
![Page 64
64VQT2H52
Scene mode:
5Sports
≥ During normal playback, the image movement
may not look smooth.
≥ Color and screen brightness may change
under indoor lighting.
≥ If the brightness is insufficient, the Sports mode
does not function. The 5/ display
flashes.
Portrait
≥ Color and screen brightness may change
under indoor lighting.
Sunset
≥ The shutter speed is 1/30 or more. (When
[DIGITAL CINEMA] is [ON], it is 1/24 or more.)
≥ Image may get blurry when a close object is
recorded.
Fireworks
≥ The...](http://img.usermanuals.tech/thumb/58/64340/w300_hdc-sd10_mul_om_d-63.png "Page 64
64VQT2H52
Scene mode:
5Sports
≥ During normal playback, the image movement
may not look smooth.
≥ Color and screen brightness may change
under indoor lighting.
≥ If the brightness is insufficient, the Sports mode
does not function. The 5/ display
flashes.
Portrait
≥ Color and screen brightness may change
under indoor lighting.
Sunset
≥ The shutter speed is 1/30 or more. (When
[DIGITAL CINEMA] is [ON], it is 1/24 or more.)
≥ Image may get blurry when a close object is
recorded.
Fireworks
≥ The...")
64VQT2H52 Scene mode: 5Sports ≥ During normal playback, the image movement may not look smooth. ≥ Color and screen brightness may change under indoor lighting. ≥ If the brightness is insufficient, the Sports mode does not function. The 5/ display flashes. Portrait ≥ Color and screen brightness may change under indoor lighting. Sunset ≥ The shutter speed is 1/30 or more. (When [DIGITAL CINEMA] is [ON], it is 1/24 or more.) ≥ Image may get blurry when a close object is recorded. Fireworks ≥ The...
Page 65

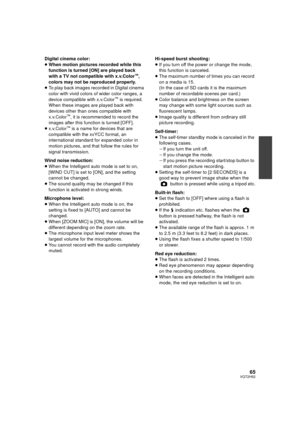

![Page 65
65VQT2H52
Digital cinema color:
≥When motion pictures recorded while this
function is turned [ON] are played back
with a TV not compatible with x.v.Color
™,
colors may not be reproduced properly.
≥ To play back images recorded in Digital cinema
color with vivid colors of wider color ranges, a
device compatible with x.v.Color
™ is required.
When these images are played back with
devices other than ones compatible with
x.v.Color
™, it is recommended to record the
images after this function is...](http://img.usermanuals.tech/thumb/58/64340/w300_hdc-sd10_mul_om_d-64.png "Page 65
65VQT2H52
Digital cinema color:
≥When motion pictures recorded while this
function is turned [ON] are played back
with a TV not compatible with x.v.Color
™,
colors may not be reproduced properly.
≥ To play back images recorded in Digital cinema
color with vivid colors of wider color ranges, a
device compatible with x.v.Color
™ is required.
When these images are played back with
devices other than ones compatible with
x.v.Color
™, it is recommended to record the
images after this function is...")
65VQT2H52 Digital cinema color: ≥When motion pictures recorded while this function is turned [ON] are played back with a TV not compatible with x.v.Color ™, colors may not be reproduced properly. ≥ To play back images recorded in Digital cinema color with vivid colors of wider color ranges, a device compatible with x.v.Color ™ is required. When these images are played back with devices other than ones compatible with x.v.Color ™, it is recommended to record the images after this function is...
Page 66

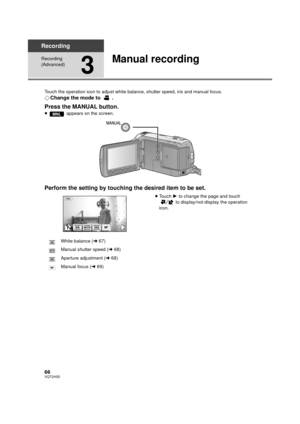

66VQT2H52 Recording Recording (Advanced) 3 Manual recording Touch the operation icon to adjust white balance, shutter speed, iris and manual focus. ¬Change the mode to . Press the MANUAL button. ≥ appears on the screen. Perform the setting by touching the desired item to be set. ≥Touch 1 to change the page and touch to display/not-display the operation icon. MNL White balance ( l67) Manual shutter speed ( l68) Aperture adjustment ( l68) Manual focus ( l69) FIRISSHTRWBMF WB SHTR IRIS MF FF...
Page 67

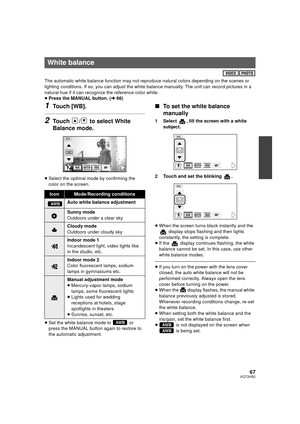

![Page 67
67VQT2H52
The automatic white balance function may not reproduce natural colors depending on the scenes or
lighting conditions. If so, you can adjust the white balance manually. The unit can record pictures in a
natural hue if it can recognize the reference color white.
≥ Press the MANUAL button. ( l66)
1Touch [WB].
2Touch / to select White
Balance mode.
≥Select the optimal mode by confirming the
color on the screen.
≥ Set the white balance mode to or
press the MANUAL button again to restore to...](http://img.usermanuals.tech/thumb/58/64340/w300_hdc-sd10_mul_om_d-66.png "Page 67
67VQT2H52
The automatic white balance function may not reproduce natural colors depending on the scenes or
lighting conditions. If so, you can adjust the white balance manually. The unit can record pictures in a
natural hue if it can recognize the reference color white.
≥ Press the MANUAL button. ( l66)
1Touch [WB].
2Touch / to select White
Balance mode.
≥Select the optimal mode by confirming the
color on the screen.
≥ Set the white balance mode to or
press the MANUAL button again to restore to...")
67VQT2H52 The automatic white balance function may not reproduce natural colors depending on the scenes or lighting conditions. If so, you can adjust the white balance manually. The unit can record pictures in a natural hue if it can recognize the reference color white. ≥ Press the MANUAL button. ( l66) 1Touch [WB]. 2Touch / to select White Balance mode. ≥Select the optimal mode by confirming the color on the screen. ≥ Set the white balance mode to or press the MANUAL button again to restore to...
Page 68

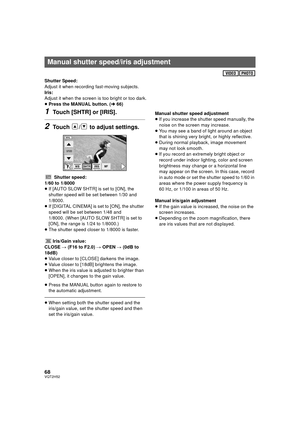

![Page 68
68VQT2H52
Shutter Speed:
Adjust it when recording fast-moving subjects.
Iris:
Adjust it when the screen is too bright or too dark.
≥Press the MANUAL button. ( l66)
1Touch [SHTR] or [IRIS].
2Touch / to adjust settings.
Shutter speed:
1/60 to 1/8000
≥ If [AUTO SLOW SHTR] is set to [ON], the
shutter speed will be set between 1/30 and
1/8000.
≥ If [DIGITAL CINEMA] is set to [ON], the shutter
speed will be set between 1/48 and
1/8000. (When [AUTO SLOW SHTR] is set to
[ON], the range is 1/24 to...](http://img.usermanuals.tech/thumb/58/64340/w300_hdc-sd10_mul_om_d-67.png "Page 68
68VQT2H52
Shutter Speed:
Adjust it when recording fast-moving subjects.
Iris:
Adjust it when the screen is too bright or too dark.
≥Press the MANUAL button. ( l66)
1Touch [SHTR] or [IRIS].
2Touch / to adjust settings.
Shutter speed:
1/60 to 1/8000
≥ If [AUTO SLOW SHTR] is set to [ON], the
shutter speed will be set between 1/30 and
1/8000.
≥ If [DIGITAL CINEMA] is set to [ON], the shutter
speed will be set between 1/48 and
1/8000. (When [AUTO SLOW SHTR] is set to
[ON], the range is 1/24 to...")
68VQT2H52 Shutter Speed: Adjust it when recording fast-moving subjects. Iris: Adjust it when the screen is too bright or too dark. ≥Press the MANUAL button. ( l66) 1Touch [SHTR] or [IRIS]. 2Touch / to adjust settings. Shutter speed: 1/60 to 1/8000 ≥ If [AUTO SLOW SHTR] is set to [ON], the shutter speed will be set between 1/30 and 1/8000. ≥ If [DIGITAL CINEMA] is set to [ON], the shutter speed will be set between 1/48 and 1/8000. (When [AUTO SLOW SHTR] is set to [ON], the range is 1/24 to...
Page 69

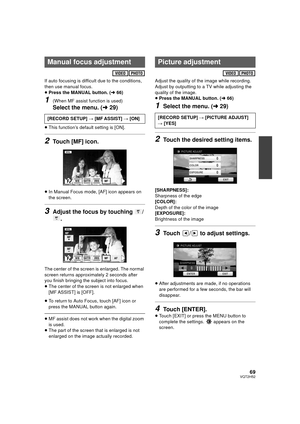

![Page 69
69VQT2H52
If auto focusing is difficult due to the conditions,
then use manual focus.
≥Press the MANUAL button. ( l66)
1(When MF assist function is used)
Select the menu. ( l29)
≥This function’s default setting is [ON].
2Touch [MF] icon.
≥In Manual Focus mode, [AF] icon appears on
the screen.
3Adjust the focus by touching /
.
The center of the screen is enlarged. The normal
screen returns approximately 2 seconds after
you finish bringing the subject into focus.
≥The center of the screen is not...](http://img.usermanuals.tech/thumb/58/64340/w300_hdc-sd10_mul_om_d-68.png "Page 69
69VQT2H52
If auto focusing is difficult due to the conditions,
then use manual focus.
≥Press the MANUAL button. ( l66)
1(When MF assist function is used)
Select the menu. ( l29)
≥This function’s default setting is [ON].
2Touch [MF] icon.
≥In Manual Focus mode, [AF] icon appears on
the screen.
3Adjust the focus by touching /
.
The center of the screen is enlarged. The normal
screen returns approximately 2 seconds after
you finish bringing the subject into focus.
≥The center of the screen is not...")
69VQT2H52 If auto focusing is difficult due to the conditions, then use manual focus. ≥Press the MANUAL button. ( l66) 1(When MF assist function is used) Select the menu. ( l29) ≥This function’s default setting is [ON]. 2Touch [MF] icon. ≥In Manual Focus mode, [AF] icon appears on the screen. 3Adjust the focus by touching / . The center of the screen is enlarged. The normal screen returns approximately 2 seconds after you finish bringing the subject into focus. ≥The center of the screen is not...
Page 70

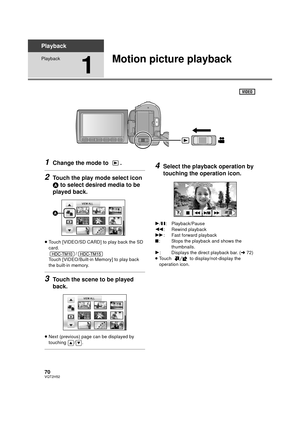

![Page 70
70VQT2H52
Playback
Playback
1
Motion picture playback
1Change the mode to .
2Touch the play mode select icon
A to select desired media to be
played back.
≥ Touch [VIDEO/SD CARD] to play back the SD
card.
/
Touch [VIDEO/Built-in Memory] to play back
the built-in memory.
3Touch the scene to be played
back.
≥ Next (previous) page can be displayed by
touching / .
4Select the playback operation by
touching the operation icon.
1/ ;: Playback/Pause
6 : Rewind playback
5 : Fast forward playback
∫: Stops...](http://img.usermanuals.tech/thumb/58/64340/w300_hdc-sd10_mul_om_d-69.png "Page 70
70VQT2H52
Playback
Playback
1
Motion picture playback
1Change the mode to .
2Touch the play mode select icon
A to select desired media to be
played back.
≥ Touch [VIDEO/SD CARD] to play back the SD
card.
/
Touch [VIDEO/Built-in Memory] to play back
the built-in memory.
3Touch the scene to be played
back.
≥ Next (previous) page can be displayed by
touching / .
4Select the playback operation by
touching the operation icon.
1/ ;: Playback/Pause
6 : Rewind playback
5 : Fast forward playback
∫: Stops...")
70VQT2H52 Playback Playback 1 Motion picture playback 1Change the mode to . 2Touch the play mode select icon A to select desired media to be played back. ≥ Touch [VIDEO/SD CARD] to play back the SD card. / Touch [VIDEO/Built-in Memory] to play back the built-in memory. 3Touch the scene to be played back. ≥ Next (previous) page can be displayed by touching / . 4Select the playback operation by touching the operation icon. 1/ ;: Playback/Pause 6 : Rewind playback 5 : Fast forward playback ∫: Stops...
