Panasonic Hdc Sd10 Operating Instructions

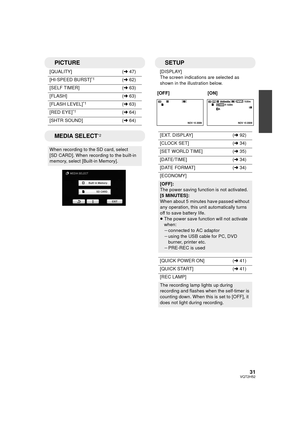

31VQT2H52
[QUALITY](l 47)
[HI-SPEED BURST]
*1(l 62)
[SELF TIMER] ( l63)
[FLASH] (l63)
[FLASH LEVEL]
*1(l 63)
[RED EYE]
*1(l 64)
[SHTR SOUND] (l 64)
MEDIA SELECT*2
When recording to the SD card, select
[SD CARD]. When recording to the built-in
memory, select [Built-in Memory].
SETUP
[DISPLAY]
The screen indications are selected as
shown in the illustration below.
[OFF] [ON]
[EXT. DISPLAY] (l 92)
[CLOCK SET] (l 34)
[SET WORLD TIME] (l 35)
[DATE/TIME] (l 34)
[DATE FORMAT] (l 34)
[ECONOMY]
[OFF]:...

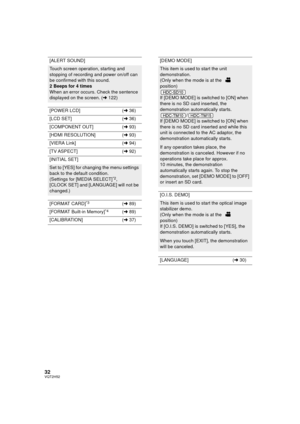

32VQT2H52
[ALERT SOUND]
Touch screen operation, starting and
stopping of recording and power on/off can
be confirmed with this sound.
2 Beeps for 4 times
When an error occurs. Check the sentence
displayed on the screen. (l122)
[POWER LCD] (l 36)
[LCD SET] (l 36)
[COMPONENT OUT] (l 93)
[HDMI RESOLUTION] (l 93)
[VIERA Link] (l 94)
[TV ASPECT] (l92)
[INITIAL SET]
Set to [YES] for changing the menu settings
back to the default condition.
(Settings for [MEDIA SELECT]
*2,
[CLOCK SET] and [LANGUAGE] will...

33VQT2H52

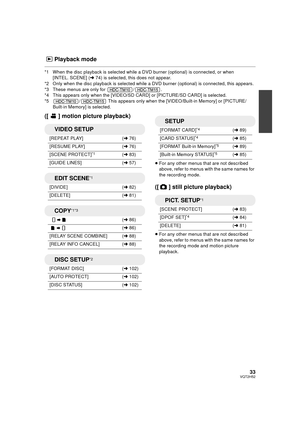

Playback mode
*1 When the disc playback is selected while a DVD burner (optional) is connected, or when
[INTEL. SCENE] ( l74) is selected, this does not appear.
*2 Only when the disc playback is selected while a DVD burner (optional) is connected, this appears.
*3 These menus are only for  /.
*4 This appears only when the [VIDEO/SD CARD] or [PICTURE/SD CARD] is selected.
*5 / This appears only when the [VIDEO/Built-in Memory] or [PICTURE/
Built-in Memory] is selected.
([ ] motion picture...

34VQT2H52
Preparation
Setup
7

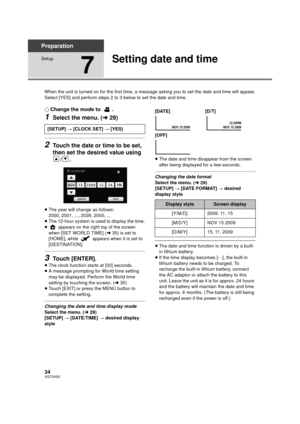

Setting date and time
When the unit is turned on for the first time, a message asking you to set the date and time will appear.
Select [YES] and perform steps 2 to 3 below to set the date and time.
¬Change the mode to  .
1Select the menu. ( l29)
2Touch the date or time to be set,
then set the desired value using
/.
≥The year will change as follows:
2000, 2001, ..., 2039, 2000, ...
≥ The 12-hour system is used to display the time.
≥  appears on the right top of the screen...

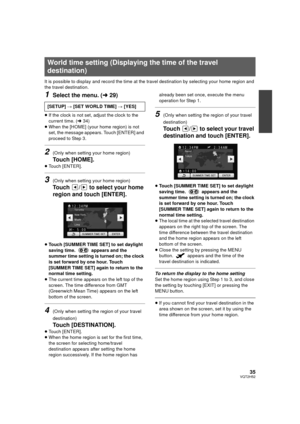

35VQT2H52
It is possible to display and record the time at the travel destination by selecting your home region and
the travel destination.
1Select the menu. (l29)
≥If the clock is not set, adjust the clock to the
current time. ( l34)
≥ When the [HOME] (your home region) is not
set, the message appears. Touch [ENTER] and
proceed to Step 3.
2(Only when setting your home region)
Touch [HOME].
≥Touch [ENTER].
3(Only when setting your home region)
Touch  /  to select your home
region and touch [ENTER]....

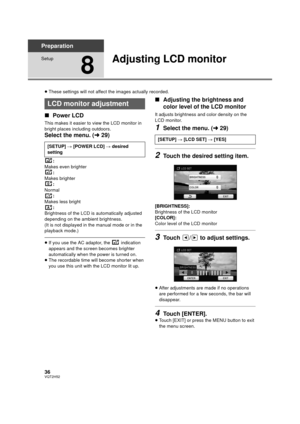

36VQT2H52
Preparation
Setup
8
Adjusting LCD monitor
≥These settings will not affect the images actually recorded.
∫ Power LCD
This makes it easier to view the LCD monitor in
bright places including outdoors.
Select the menu. ( l29)
:
Makes even brighter
:
Makes brighter :
Normal :
Makes less bright
:
Brightness of the LCD is automatically adjusted
depending on the ambient brightness.
(It is not displayed in the manual mode or in the
playback mode.)
≥ If you use the AC adaptor, the   indication...

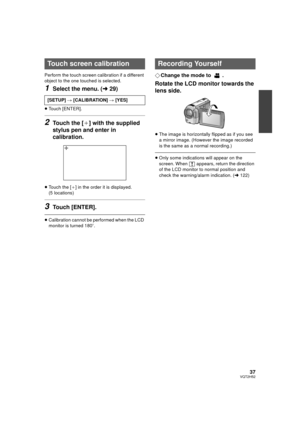

37VQT2H52
Perform the touch screen calibration if a different
object to the one touched is selected.
1Select the menu. (l29)
≥Touch [ENTER].
2Touch the [_] with the supplied
stylus pen and enter in
calibration.
≥ Touch the [ _] in the order it is displayed.
(5 locations)
3Touch [ENTER].
≥ Calibration cannot be performed when the LCD
monitor is turned 180 o.
¬Change the mode to  .
Rotate the LCD monitor towards the
lens side.
≥The image is horizontally  flipped as if you see
a mirror image....

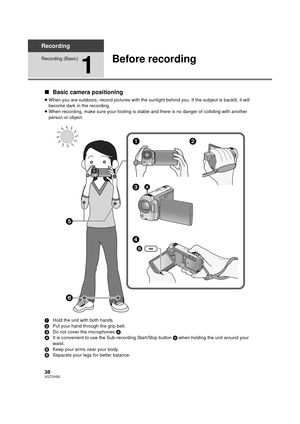

38VQT2H52
Recording
Recording (Basic)
1
Before recording
∫Basic camera positioning
≥When you are outdoors, record pictur es with the sunlight behind you. If the subject is backlit, it will
become dark in the recording.
≥ When recording, make sure your footing is stable and there is no danger of colliding with another
person or object.
1 Hold the unit with both hands.
2 Put your hand through the grip belt.
3 Do not cover the microphones  A.
4 It is convenient to use the Sub-recording Start/Stop button...

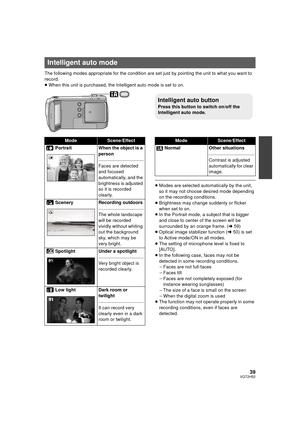

39VQT2H52
The following modes appropriate for the condition are set just by pointing the unit to what you want to
record.
≥ When this unit is purchased, the In telligent auto mode is set to on.
≥Modes are selected automatically by the unit,
so it may not choose desired mode depending
on the recording conditions.
≥ Brightness may change suddenly or flicker
when set to on.
≥ In the Portrait mode, a subject that is bigger
and close to center of the screen will be
surrounded by an orange frame. ( l59)...

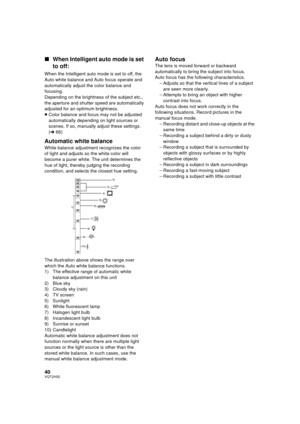

40VQT2H52
∫When Intelligent auto mode is set
to off:
When the Intelligent auto mode is set to off, the
Auto white balance and Auto focus operate and
automatically adjust the color balance and
focusing.
Depending on the brightness of the subject etc.,
the aperture and shutter  speed are automatically
adjusted for an optimum brightness.
≥ Color balance and focus may not be adjusted
automatically depending on light sources or
scenes. If so, manually adjust these settings.
(l 66)
Automatic white...
