Panasonic Hdc Sd10 Operating Instructions

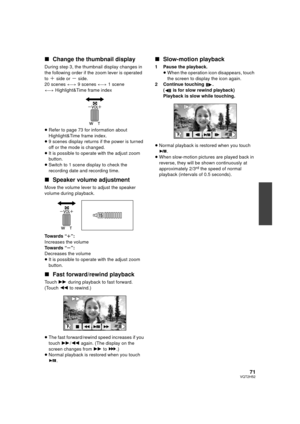

71VQT2H52
∫Change the thumbnail display
During step 3, the thumbnail display changes in
the following order if the zoom lever is operated
to
_ side or ` side.
20 scenes  () 9 scenes  () 1 scene
()  Highlight&Time frame index
≥ Refer to page 73 for information about
Highlight&Time frame index.
≥ 9 scenes display returns if the power is turned
off or the mode is changed.
≥ It is possible to operate with the adjust zoom
button.
≥ Switch to 1 scene display to check the
recording date and recording...

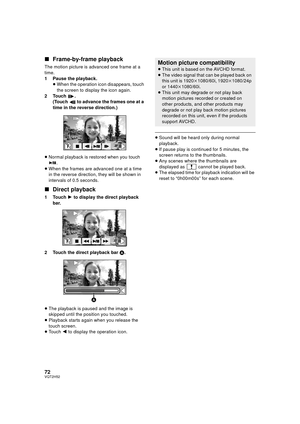

72VQT2H52
∫Frame-by-frame playback
The motion picture is advanced one frame at a
time.
1 Pause the playback.
≥When the operation icon disappears, touch
the screen to display the icon again.
2Touch . (Touch   to advance the frames one at a
time in the reverse direction.)
≥ Normal playback is restored when you touch
.
≥ When the frames are advanced one at a time
in the reverse direction, they will be shown in
intervals of 0.5 seconds.
∫ Direct playback
1Touch  1 to display the direct playback
bar.
2...

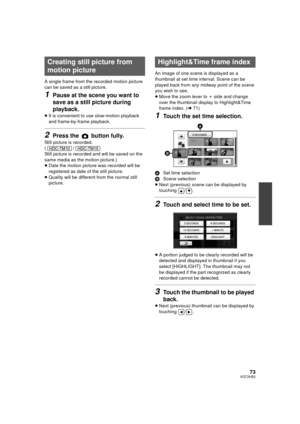

73VQT2H52
A single frame from the recorded motion picture
can be saved as a still picture.
1Pause at the scene you want to
save as a still picture during
playback.
≥It is convenient to use slow-motion playback
and frame-by-frame playback.
2Press the   button fully.
Still picture is recorded.
(/
Still picture is recorded and will be saved on the
same media as the motion picture.)
≥Date the motion picture was recorded will be
registered as date of the still picture.
≥ Quality will be different from...

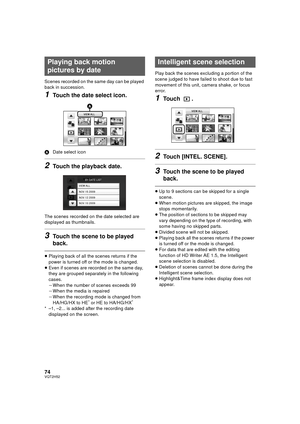

74VQT2H52
Scenes recorded on the same day can be played
back in succession.
1Touch the date select icon.
ADate select icon
2Touch the playback date.
The scenes recorded on the date selected are
displayed as thumbnails.
3Touch the scene to be played
back.
≥Playing back of all the scenes returns if the
power is turned off or the mode is changed.
≥ Even if scenes are recorded on the same day,
they are grouped separately in the following
cases.
jWhen the number of scenes exceeds 99
j When the media is...

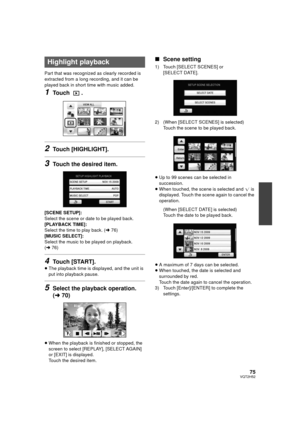

75VQT2H52
Part that was recognized as clearly recorded is
extracted from a long recording, and it can be
played back in short time with music added.
1Touch .
2Touch [HIGHLIGHT].
3Touch the desired item.
[SCENE SETUP]:
Select the scene or date to be played back.
[PLAYBACK TIME]:
Select the time to play back. (l76)
[MUSIC SELECT]:
Select the music to be played on playback.
(l 76)
4Touch [START].
≥The playback time is displayed, and the unit is
put into playback pause.
5Select the playback operation....

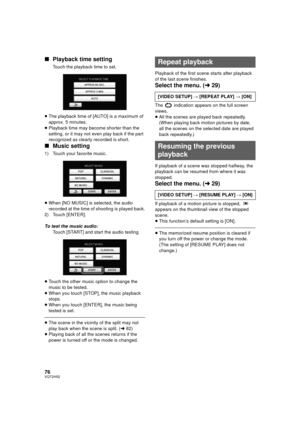

76VQT2H52
∫Playback time setting
Touch the playback time to set.
≥ The playback time of [AUTO] is a maximum of
approx. 5 minutes.
≥ Playback time may become shorter than the
setting, or it may not even play back if the part
recognized as clearly recorded is short.
∫ Music setting
1) Touch your favorite music.
≥When [NO MUSIC] is selected, the audio
recorded at the time of shooting is played back.
2) Touch [ENTER].
To test the music audio: Touch [START] and start the audio testing.
≥ Touch the other...

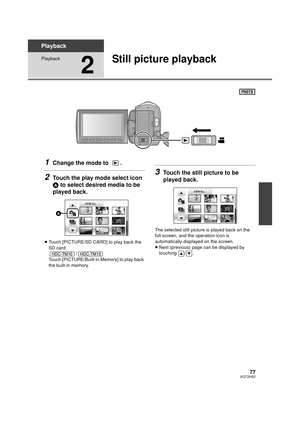

77VQT2H52
Playback
Playback
2
Still picture playback
1Change the mode to  .
2Touch the play mode select icon
A to select desired media to be
played back.
≥ Touch [PICTURE/SD CARD] to play back the
SD card.
/
Touch [PICTURE/Built-in Memory] to play back
the built-in memory.
3Touch the still picture to be
played back.
The selected still picture is played back on the
full screen, and the operation icon is
automatically displayed on the screen.
≥ Next (previous) page can be displayed by
touching / ....

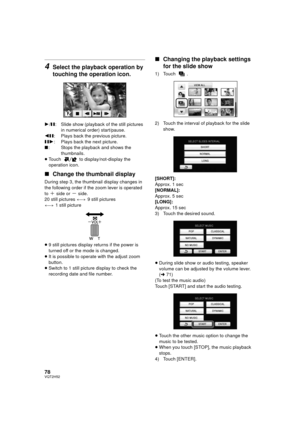

78VQT2H52
4Select the playback operation by
touching the operation icon.
1/; : Slide show (playback of the still pictures
in numerical order) start/pause.
2; : Plays back the previous picture.
;1 : Plays back the next picture.
∫ : Stops the playback and shows the
thumbnails.
≥ Touch   to display/not-display the
operation icon.
∫ Change the thumbnail display
During step 3, the thumbnail display changes in
the following order if the zoom lever is operated
to
_ side or ` side.
20 still pictures () 9...

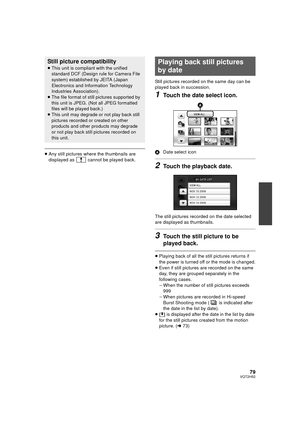

79VQT2H52
≥Any still pictures where the thumbnails are
displayed as   cannot be played back. Still pictures recorded on the same day can be
played back in succession.
1Touch the date select icon.
A
Date select icon
2Touch the playback date.
The still pictures recorded on the date selected
are displayed as thumbnails.
3Touch the still picture to be
played back.
≥Playing back of all the still pictures returns if
the power is turned off or the mode is changed.
≥ Even if still pictures are recorded on...

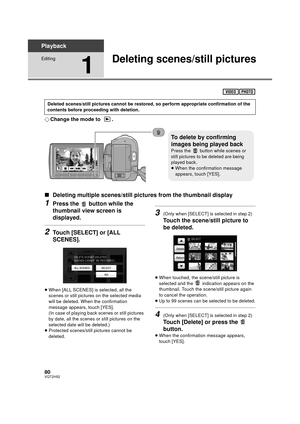

80VQT2H52
Playback
Editing
1
Deleting scenes/still pictures
¬Change the mode to  .
∫ Deleting multiple scenes/still pict ures from the thumbnail display
1Press the   button while the
thumbnail view screen is
displayed.
2Touch [SELECT] or [ALL
SCENES].
≥When [ALL SCENES] is selected, all the
scenes or still pictures on the selected media
will be deleted. When the confirmation
message appears, touch [YES].
(In case of playing back scenes or still pictures
by date, all the scenes or still pictures on...
