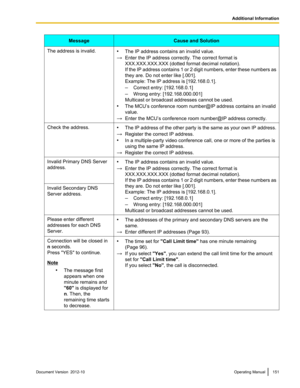

MessageCause and SolutionThe address is invalid.•The IP address contains an invalid value.
→ Enter the IP address correctly. The correct format is
XXX.XXX.XXX.XXX (dotted format decimal notation).
If the IP address contains 1 or 2 digit numbers, enter these numbers as
they are. Do not enter like [.001].
Example: The IP address is [192.168.0.1].
– Correct entry: [192.168.0.1]
– Wrong entry: [192.168.000.001]
Multicast or broadcast addresses cannot be used.
• The MCU’s conference room number@IP address...

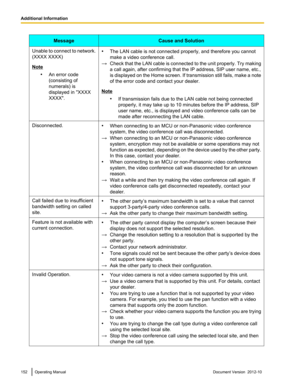

MessageCause and SolutionUnable to connect to network.
(XXXX XXXX)
Note
•An error code
(consisting of
numerals) is
displayed in "XXXX
XXXX".
• The LAN cable is not connected properly, and therefore you cannot
make a video conference call.
→ Check that the LAN cable is connected to the unit properly. Try making
a call again, after confirming that the IP address, SIP user name, etc.,
is displayed on the Home screen. If transmission still fails, make a note
of the error code and contact your...

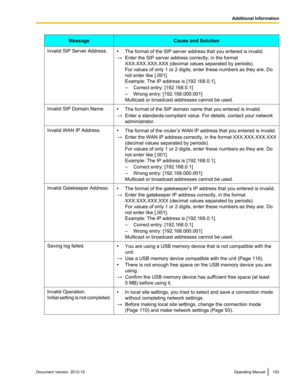

MessageCause and SolutionInvalid SIP Server Address.•The format of the SIP server address that you entered is invalid.
→ Enter the SIP server address correctly, in the format
XXX.XXX.XXX.XXX (decimal values separated by periods).
For values of only 1 or 2 digits, enter these numbers as they are. Do
not enter like [.001].
Example: The IP address is [192.168.0.1].
– Correct entry: [192.168.0.1]
– Wrong entry: [192.168.000.001]
Multicast or broadcast addresses cannot be used.Invalid SIP Domain Name.• The...

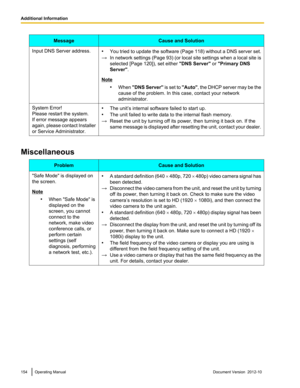

MessageCause and SolutionInput DNS Server address.•You tried to update the software ( Page 118) without a DNS server set.
→ In network settings ( Page 93) (or local site settings when a local site is
selected [Page 120]), set either  "DNS Server" or "Primary DNS
Server" .
Note
•When  "DNS Server " is set to  "Auto", the DHCP server may be the
cause of the problem. In this case, contact your network
administrator.
System Error!
Please restart the system.
If error message...

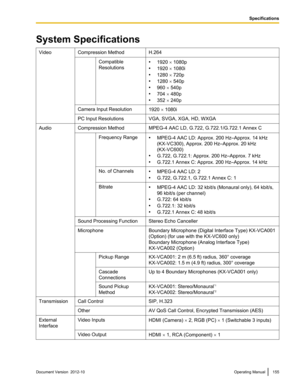

System SpecificationsVideoCompression MethodH.264Compatible
Resolutions• 1920  ´ 1080p
• 1920  ´ 1080i
• 1280  ´ 720p
• 1280  ´ 540p
• 960  ´ 540p
• 704  ´ 480p
• 352  ´ 240pCamera Input Resolution1920  ´ 1080iPC Input ResolutionsVGA, SVGA, XGA, HD, WXGAAudioCompression MethodMPEG-4 AAC LD, G.722, G.722.1/G.722.1 Annex CFrequency Range• MPEG-4 AAC LD: Approx. 200 Hz–Approx. 14 kHz
(KX-VC300), Approx. 200 Hz–Approx. 20 kHz
(KX-VC600)
• G.722, G.722.1: Approx. 200 Hz–Approx. 7 kHz
• G.722.1 Annex C:...

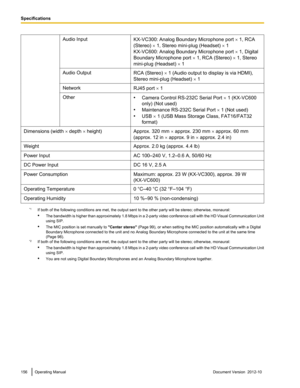

Audio InputKX-VC300: Analog Boundary Microphone port ´ 1, RCA
(Stereo)  ´ 1, Stereo mini-plug (Headset)  ´ 1
KX-VC600: Analog Boundary Microphone port  ´ 1, Digital
Boundary Microphone port  ´ 1, RCA (Stereo)  ´ 1, Stereo
mini-plug (Headset)  ´ 1Audio OutputRCA (Stereo)  ´ 1 (Audio output to display is via HDMI),
Stereo mini-plug (Headset)  ´ 1NetworkRJ45 port  ´ 1Other• Camera Control RS-232C Serial Port  ´ 1 (KX-VC600
only) (Not used)
• Maintenance RS-232C Serial Port  ´ 1 (Not used)
• USB  ´ 1 (USB...

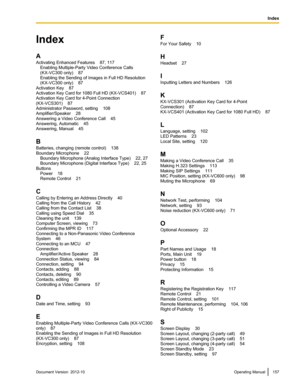

Index
A
Activating Enhanced Features    87, 117 Enabling Multiple-Party Video Conference Calls
(KX-VC300 only)    87
Enabling the Sending of Images in Full HD Resolution
(KX-VC300 only)    87
Activation Key    87
Activation Key Card for 1080 Full HD (KX-VCS401)    87
Activation Key Card for 4-Point Connection
(KX-VCS301)    87
Administrator Password, setting    108
Amplifier/Speaker    28
Answering a Video Conference Call    45
Answering, Automatic    45
Answering, Manual    45
B
Batteries, changing...

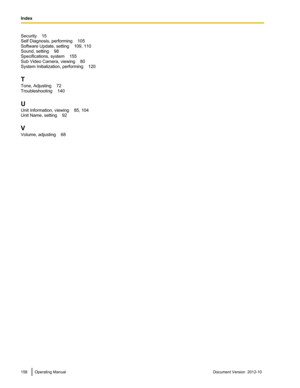

Security    15
Self Diagnosis, performing    105
Software Update, setting    109, 110
Sound, setting    98
Specifications, system    155
Sub Video Camera, viewing    80
System Initialization, performing    120
T
Tone, Adjusting    72
Troubleshooting    140
U
Unit Information, viewing    85, 104
Unit Name, setting    92
V
Volume, adjusting    68158Operating ManualDocument Version  2012-10
Index

Document Version  2012-10  Operating Manual159
Notes

carton.
DO NOT
arranty. fices. They are NOT

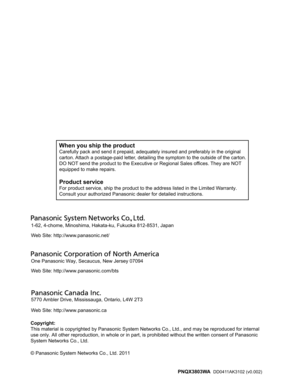

When you ship the product
Carefully pack and send it prepaid, adequately insured and preferably in the original
Attach a postage-paid letter, detailing the symptom to the outside of the carton.
 send the product to the Executive or Regional Sales of
equipped to make repairs.
Product service
For product service, ship the product to the address listed in the Limited W
Consult your authorized Panasonic dealer for detailed instructions.
