5.Use  [][] to select  "Yes" and press  [Enter].
• The system will automatically restart to reflect
changes to system settings.
Note
•When changing the connection mode, the
time required for a restart may depend on
network conditions.
Making Call Type Settings
Note •These settings can only be made in IP mode
(Page 110).
1. Login to the administrator menu (Page 107).
• The admin menu screen is displayed.
2. Press  [
].
• The second page is displayed.
3. Use  [
][] to select  "Call Type...

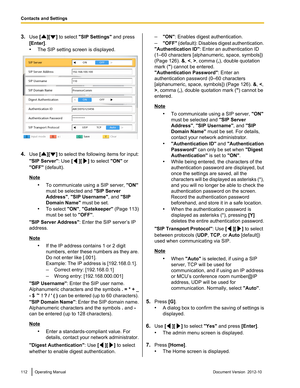

3.Use  [][] to select  "SIP Settings"  and press
[Enter] .
• The SIP setting screen is displayed.
4.Use  [][] to select the following items for input:
"SIP Server" : Use [
][] to select  "ON" or
"OFF"  (default).
Note
•To communicate using a SIP server,  "ON"
must be selected and  "SIP Server
Address" , "SIP Username" , and "SIP
Domain Name"  must be set.
• To select  "ON", "Gatekeeper"  (Page 113)
must be set to...

Making H.323 Settings
Note•These settings can only be made in IP mode
( Page  110) and when  "H.323" is set to  "ON" on
the call type settings screen.
• When connecting to an MCU by entering the
MCU’s conference room number@IP address,
"SIP Server"  (Page 112) and  "Gatekeeper"
must be set to  "OFF".
• If video conference calls cannot be made
because there is a problem with the gatekeeper
and H.460 server, the H.323 settings are
incorrect (on the gatekeeper and the...

•This setting is available only when  "OFF" is
selected for  "Static NAT"  (Page 114) and
"ON"  is selected for  "Gatekeeper".

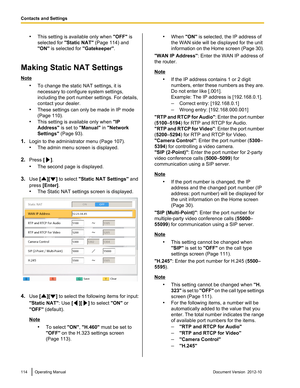

Making Static NAT Settings
Note •To change the static NAT settings, it is
necessary to configure system settings,
including the port number settings. For details,
contact your dealer.
• These settings can only be made in IP mode
(Page 110).
• This setting is available only when  "IP
Address"  is set to "Manual"  in "Network...

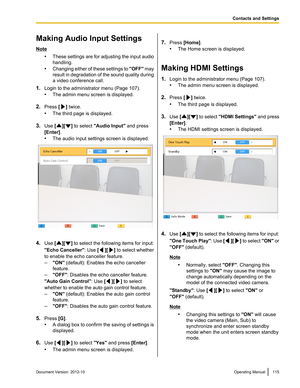

Making Audio Input Settings
Note•These settings are for adjusting the input audio
handling.
• Changing either of these settings to  "OFF" may
result in degradation of the sound quality during
a video conference call.
1. Login to the administrator menu (Page 107).
• The admin menu screen is displayed.
2. Press  [
] twice.
• The third page is displayed.
3. Use  [
][] to select  "Audio Input"  and press
[Enter] .
• The audio input settings screen is displayed.
4.Use  [][] to select the...

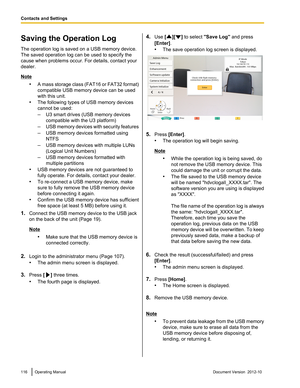

Saving the Operation Log
The operation log is saved on a USB memory device.
The saved operation log can be used to specify the
cause when problems occur. For details, contact your
dealer.
Note
•A mass storage class (FAT16 or FAT32 format)
compatible USB memory device can be used
with this unit.
• The following types of USB memory devices
cannot be used:
– U3 smart drives (USB memory devices
compatible with the U3 platform)
– USB memory devices with security features
– USB memory devices formatted using...

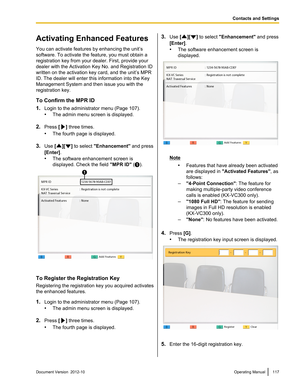

Activating Enhanced Features
You can activate features by enhancing the unit’s
software. To activate the feature, you must obtain a
registration key from your dealer. First, provide your
dealer with the Activation Key No. and Registration ID
written on the activation key card, and the unit’s MPR
ID. The dealer will enter this information into the Key
Management System and then issue you with the
registration key.
To Confirm the MPR ID
1. Login to the administrator menu (Page 107).
• The admin menu screen...

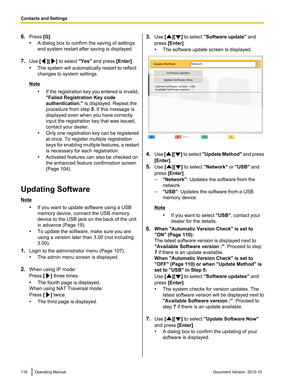

6.Press  [G].
• A dialog box to confirm the saving of settings
and system restart after saving is displayed.
7. Use  [
][] to select  "Yes" and press  [Enter].
• The system will automatically restart to reflect
changes to system settings.
Note
•If the registration key you entered is invalid,
"Failed Registration Key code
authentication."  is displayed. Repeat the
procedure from step  5. If this message is
displayed even when you have correctly
input the registration key that was issued,...

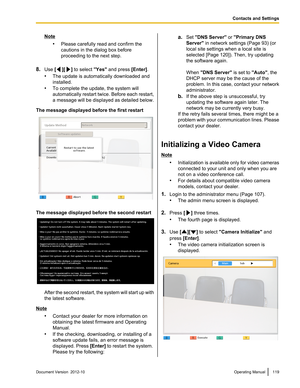

Note•Please carefully read and confirm the
cautions in the dialog box before
proceeding to the next step.
8. Use  [
][] to select  "Yes" and press  [Enter].
• The update is automatically downloaded and
installed.
• To complete the update, the system will
automatically restart twice. Before each restart,
a message will be displayed as detailed below.
The message displayed before the first restart
The message displayed before the second restart
After the second restart, the system will start up...

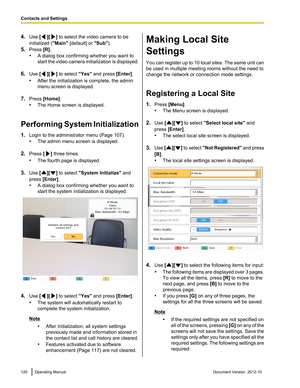

4.Use  [][] to select the video camera to be
initialized ( "Main" [default] or  "Sub").
5. Press  [R].
• A dialog box confirming whether you want to
start the video camera initialization is displayed.
6. Use  [
][] to select  "Yes" and press  [Enter].
• After the initialization is complete, the admin
menu screen is displayed.
7. Press  [Home] .
• The Home screen is displayed.
Performing System Initialization
1. Login to the administrator menu (Page 107).
• The admin menu screen is...
