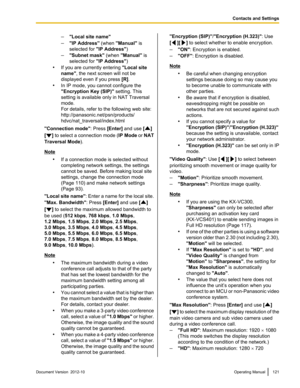

Page 121
![Page 121
–"Local site name"
– "IP Address" (when "Manual" is
selected for "IP Address" )
– "Subnet mask" (when "Manual" is
selected for "IP Address" )
• If you are currently entering "Local site
name" , the next screen will not be
displayed even if you press [R].
• In IP mode, you cannot configure the
"Encryption Key (SIP)" setting. This
setting is available only in NAT Traversal
mode.
For details, refer to the following web site:...](http://img.usermanuals.tech/thumb/58/64369/w300_kx-vc300_en_hdcomm_om_d-120.png "Page 121
–\"Local site name\"
– \"IP Address\" (when \"Manual\" is
selected for \"IP Address\" )
– \"Subnet mask\" (when \"Manual\" is
selected for \"IP Address\" )
• If you are currently entering \"Local site
name\" , the next screen will not be
displayed even if you press [R].
• In IP mode, you cannot configure the
\"Encryption Key (SIP)\" setting. This
setting is available only in NAT Traversal
mode.
For details, refer to the following web site:...")
–"Local site name" – "IP Address" (when "Manual" is selected for "IP Address" ) – "Subnet mask" (when "Manual" is selected for "IP Address" ) • If you are currently entering "Local site name" , the next screen will not be displayed even if you press [R]. • In IP mode, you cannot configure the "Encryption Key (SIP)" setting. This setting is available only in NAT Traversal mode. For details, refer to the following web site:...

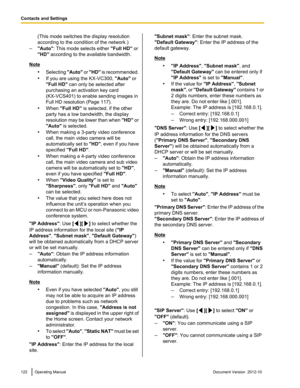

Page 122
(This mode switches the display resolution according to the condition of the network.) – "Auto" : This mode selects either "Full HD" or "HD" according to the available bandwidth. Note •Selecting "Auto" or "HD" is recommended. • If you are using the KX-VC300, "Auto" or "Full HD" can only be selected after purchasing an activation key card (KX-VCS401) to enable sending images in Full HD resolution (Page 117). • When "Full HD" is...
Page 123
Note•If SIP settings have not been configured on the SIP settings screen, you cannot select "ON" (Page 111). For details, contact your network administrator. • To select "ON", "Gatekeeper" must be set to "OFF" . • If video conference calls cannot be made because there is a problem with the SIP server, the SIP settings are incorrect (on the server, or on the unit), etc., "SIP is not registered" will be displayed on the Home screen instead of the SIP user name....
Page 124
![Page 124
2.Use [][] to select "Select local site" and
press [Enter] .
• The select local site screen is displayed.
3.Use [][] to select the local site you want to use.
Note
•For the currently selected local site,
"
" is displayed in "Selected".
• "Not Registered " is displayed for sites that
have not been registered.
• When "SIP" is set to "OFF" on the call type
settings screen (Page 111), you cannot
select a local site whose SIP server settings
have been...](http://img.usermanuals.tech/thumb/58/64369/w300_kx-vc300_en_hdcomm_om_d-123.png "Page 124
2.Use [][] to select \"Select local site\" and
press [Enter] .
• The select local site screen is displayed.
3.Use [][] to select the local site you want to use.
Note
•For the currently selected local site,
\"
\" is displayed in \"Selected\".
• \"Not Registered \" is displayed for sites that
have not been registered.
• When \"SIP\" is set to \"OFF\" on the call type
settings screen (Page 111), you cannot
select a local site whose SIP server settings
have been...")
2.Use [][] to select "Select local site" and press [Enter] . • The select local site screen is displayed. 3.Use [][] to select the local site you want to use. Note •For the currently selected local site, " " is displayed in "Selected". • "Not Registered " is displayed for sites that have not been registered. • When "SIP" is set to "OFF" on the call type settings screen (Page 111), you cannot select a local site whose SIP server settings have been...

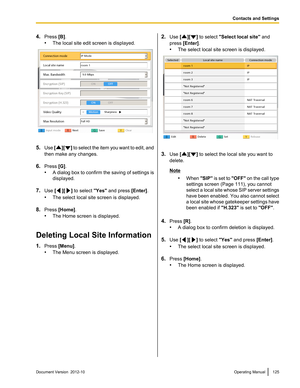

Page 125
![Page 125
4.Press [B].
• The local site edit screen is displayed.
5.Use [][] to select the item you want to edit, and
then make any changes.
6. Press [G].
• A dialog box to confirm the saving of settings is
displayed.
7. Use [
][] to select "Yes" and press [Enter].
• The select local site screen is displayed.
8. Press [Home] .
• The Home screen is displayed.
Deleting Local Site Information
1. Press [Menu] .
• The Menu screen is displayed.
2.Use [][] to select "Select local site" and...](http://img.usermanuals.tech/thumb/58/64369/w300_kx-vc300_en_hdcomm_om_d-124.png "Page 125
4.Press [B].
• The local site edit screen is displayed.
5.Use [][] to select the item you want to edit, and
then make any changes.
6. Press [G].
• A dialog box to confirm the saving of settings is
displayed.
7. Use [
][] to select \"Yes\" and press [Enter].
• The select local site screen is displayed.
8. Press [Home] .
• The Home screen is displayed.
Deleting Local Site Information
1. Press [Menu] .
• The Menu screen is displayed.
2.Use [][] to select \"Select local site\" and...")
4.Press [B]. • The local site edit screen is displayed. 5.Use [][] to select the item you want to edit, and then make any changes. 6. Press [G]. • A dialog box to confirm the saving of settings is displayed. 7. Use [ ][] to select "Yes" and press [Enter]. • The select local site screen is displayed. 8. Press [Home] . • The Home screen is displayed. Deleting Local Site Information 1. Press [Menu] . • The Menu screen is displayed. 2.Use [][] to select "Select local site" and...

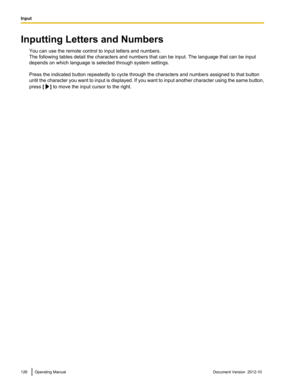

Page 126
![Page 126
Inputting Letters and NumbersYou can use the remote control to input letters and numbers.
The following tables detail the characters and numbers that can be input. The language that can be input
depends on which language is selected through system settings.
Press the indicated button repeatedly to cycle through the characters and numbers assigned to that button
until the character you want to input is displayed. If you want to input another character using the same button,
press [
] to move the input...](http://img.usermanuals.tech/thumb/58/64369/w300_kx-vc300_en_hdcomm_om_d-125.png "Page 126
Inputting Letters and NumbersYou can use the remote control to input letters and numbers.
The following tables detail the characters and numbers that can be input. The language that can be input
depends on which language is selected through system settings.
Press the indicated button repeatedly to cycle through the characters and numbers assigned to that button
until the character you want to input is displayed. If you want to input another character using the same button,
press [
] to move the input...")
Inputting Letters and NumbersYou can use the remote control to input letters and numbers. The following tables detail the characters and numbers that can be input. The language that can be input depends on which language is selected through system settings. Press the indicated button repeatedly to cycle through the characters and numbers assigned to that button until the character you want to input is displayed. If you want to input another character using the same button, press [ ] to move the input...
Page 127

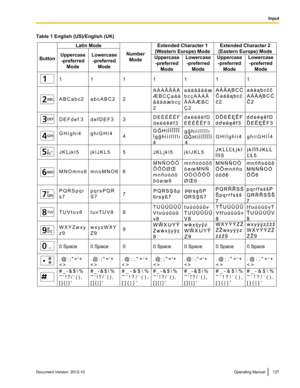

Table 1 English (US)/English (UK)Document Version 2012-10 Operating Manual127 InputButtonLatin Mode Uppercase -preferred ModeUppercase -preferred ModeLowercase -preferred ModeUppercase -preferred ModeLowercase -preferred Mode Lowercase -preferred ModeExtended Character 1 (Western Europe) ModeExtended Character 2 (Eastern Europe) Mode Number Mode 111111 A B C a b c 2A À Á Â Ã Ä Å Æ B C Ç a à á â ã ä å æ b c ç 2a à á â ã ä å æ b c ç A À Á Â Ã Ä Å Æ B C Ç 2 2 D E F d e f 3 3 G H I g h i 4 4 J K L j...

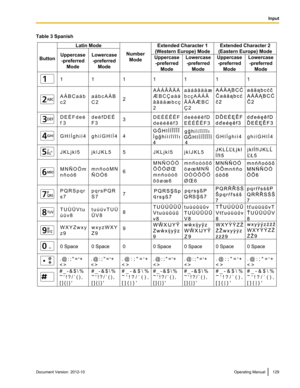

Page 128

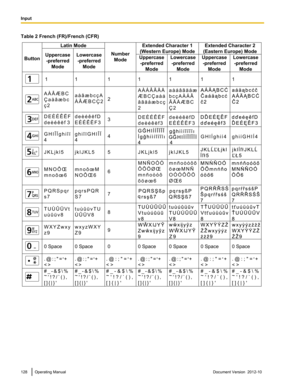

Table 2 French (FR)/French (CFR)128Operating ManualDocument Version 2012-10 InputButtonLatin Mode Uppercase -preferred ModeUppercase -preferred ModeLowercase -preferred ModeUppercase -preferred ModeLowercase -preferred Mode Lowercase -preferred ModeExtended Character 1 (Western Europe) ModeExtended Character 2 (Eastern Europe) Mode Number Mode 111111 A À Â Æ B C Ç a à â æ b c ç 2A À Á Â Ã Ä Å Æ B C Ç a à á â ã ä å æ b c ç 2a à á â ã ä å æ b c ç A À Á Â Ã Ä Å Æ B C Ç 2 2 D E È É Ê Ë F d e è é...
Page 129
Table 3 SpanishDocument Version 2012-10 Operating Manual129 InputButtonLatin Mode Uppercase -preferred ModeUppercase -preferred ModeLowercase -preferred ModeUppercase -preferred ModeLowercase -preferred Mode Lowercase -preferred ModeExtended Character 1 (Western Europe) ModeExtended Character 2 (Eastern Europe) Mode Number Mode 111111 A Á B C a á b c 2A À Á Â Ã Ä Å Æ B C Ç a à á â ã ä å æ b c ç 2a à á â ã ä å æ b c ç A À Á Â Ã Ä Å Æ B C Ç 2 2 D E É F d e é f 33 G H I Í g h i í 4 4 J K L j k l...

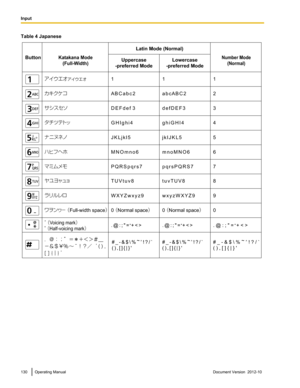

Page 130
![Page 130
Table 4 Japanese130Operating ManualDocument Version 2012-10
Input1
A B C a b c 2
D E F d e f 3
G H I g h i 4
J K L j k l 5
M N O m n o 6
P Q R S p q r s 7
T U V t u v 8
W X Y Z w x y z 9
0
¢Normal space£
. @ : ; = + < >
# _ - & $ % ~
^ ! ? / `
( ) , [ ] { | } 1
a b c A B C 2
d e f D E F 3
g h i G H I 4
j k l J K L 5
m n o M N O 6
p q r s P Q R S 7
t u v T U V 8
w x y z W X Y Z 9
0
¢Normal space£
. @ : ; = + < >
# _ - & $ % ~
^ ! ? / `
( ) , [ ] { | } Button
Katakana Mode...](http://img.usermanuals.tech/thumb/58/64369/w300_kx-vc300_en_hdcomm_om_d-129.png "Page 130
Table 4 Japanese130Operating ManualDocument Version 2012-10
Input1
A B C a b c 2
D E F d e f 3
G H I g h i 4
J K L j k l 5
M N O m n o 6
P Q R S p q r s 7
T U V t u v 8
W X Y Z w x y z 9
0
¢Normal space£
. @ : ; = + < >
# _ - & $ % ~
^ ! ? / `
( ) , [ ] { | } 1
a b c A B C 2
d e f D E F 3
g h i G H I 4
j k l J K L 5
m n o M N O 6
p q r s P Q R S 7
t u v T U V 8
w x y z W X Y Z 9
0
¢Normal space£
. @ : ; = + < >
# _ - & $ % ~
^ ! ? / `
( ) , [ ] { | } Button
Katakana Mode...")
Table 4 Japanese130Operating ManualDocument Version 2012-10
Input1
A B C a b c 2
D E F d e f 3
G H I g h i 4
J K L j k l 5
M N O m n o 6
P Q R S p q r s 7
T U V t u v 8
W X Y Z w x y z 9
0
¢Normal space£
. @ : ; = + < >
# _ - & $ % ~
^ ! ? / `
( ) , [ ] { | } 1
a b c A B C 2
d e f D E F 3
g h i G H I 4
j k l J K L 5
m n o M N O 6
p q r s P Q R S 7
t u v T U V 8
w x y z W X Y Z 9
0
¢Normal space£
. @ : ; = + < >
# _ - & $ % ~
^ ! ? / `
( ) , [ ] { | } Button
Katakana Mode...
