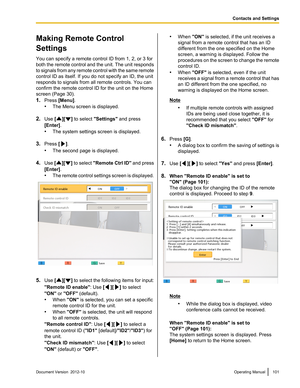

Making Remote Control
Settings
You can specify a remote control ID from 1, 2, or 3 for
both the remote control and the unit. The unit responds
to signals from any remote control with the same remote
control ID as itself. If you do not specify an ID, the unit
responds to signals from all remote controls. You can
confirm the remote control ID for the unit on the Home
screen (Page 30).
1. Press  [Menu] .
• The Menu screen is displayed.
2. Use  [
][] to select  "Settings"  and press
[Enter] .
• The...

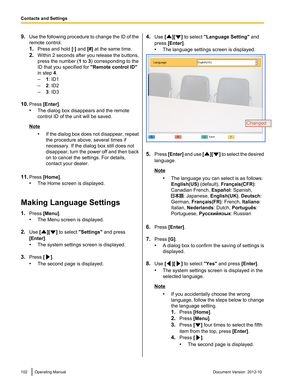

9.Use the following procedure to change the ID of the
remote control.
1. Press and hold  [·] and  [#] at the same time.
2. Within 2 seconds after you release the buttons,
press the number ( 1 to  3) corresponding to the
ID that you specified for  "Remote control ID"
in step  4.
– 1: ID1
– 2: ID2
– 3: ID3
10. Press  [Enter] .
• The dialog box disappears and the remote
control ID of the unit will be saved.
Note
•If the dialog box does not disappear, repeat
the procedure above, several times if...

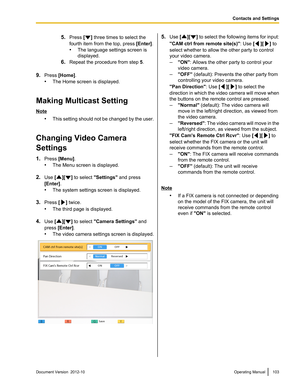

5.Press  [] three times to select the
fourth item from the top, press  [Enter].
• The language settings screen is
displayed.
6. Repeat the procedure from step  5.
9. Press  [Home] .
• The Home screen is displayed.
Making Multicast Setting
Note •This setting should not be changed by the user.
Changing Video Camera
Settings
1. Press  [Menu] .
• The Menu screen is displayed.
2. Use  [
][] to select  "Settings"  and press
[Enter] .
• The system settings screen is displayed.
3. Press  [
] twice.
• The...

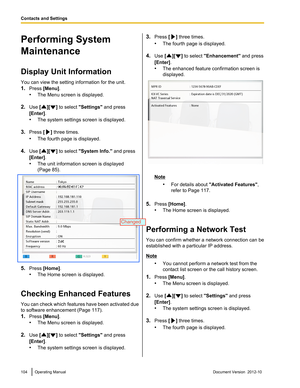

Performing System
Maintenance
Display Unit Information
You can view the setting information for the unit.
1. Press  [Menu] .
• The Menu screen is displayed.
2. Use  [
][] to select  "Settings"  and press
[Enter] .
• The system settings screen is displayed.
3. Press  [
] three times.
• The fourth page is displayed.
4. Use  [
][] to select  "System Info."  and press
[Enter] .
• The unit information screen is displayed
(Page 85).
5. Press  [Home] .
• The Home screen is displayed.
Checking...

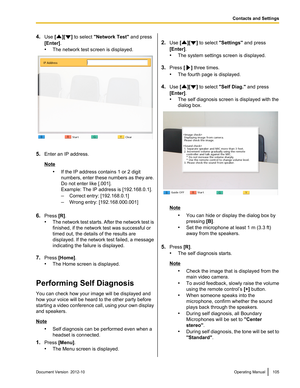

4.Use  [][] to select  "Network Test"  and press
[Enter] .
• The network test screen is displayed.
5.Enter an IP address.
Note
•If the IP address contains 1 or 2 digit
numbers, enter these numbers as they are.
Do not enter like [.001].
Example: The IP address is [192.168.0.1].
– Correct entry: [192.168.0.1]
– Wrong entry: [192.168.000.001]
6. Press  [R].
• The network test starts. After the network test is
finished, if the network test was successful or
timed out, the details of the results are...

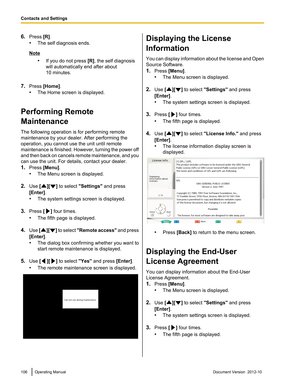

6.Press  [R].
• The self diagnosis ends.
Note
•If you do not press  [R], the self diagnosis
will automatically end after about
10 minutes.
7. Press  [Home] .
• The Home screen is displayed.
Performing Remote
Maintenance
The following operation is for performing remote
maintenance by your dealer. After performing the
operation, you cannot use the unit until remote
maintenance is finished. However, turning the power off
and then back on cancels remote maintenance, and you
can use the unit. For details,...

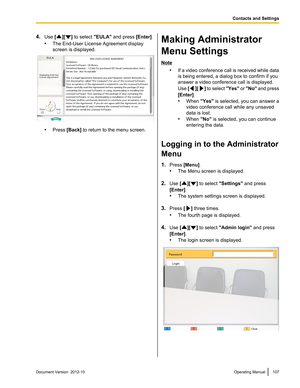

4.Use  [][] to select  "EULA" and press  [Enter].
• The End-User License Agreement display
screen is displayed.
• Press  [Back]  to return to the menu screen.
Making Administrator
Menu Settings
Note •If a video conference call is received while data
is being entered, a dialog box to confirm if you
answer a video conference call is displayed.
Use  [
][] to select  "Yes" or "No"  and press
[Enter] .
• When  "Yes" is selected, you can answer a
video conference call while any...

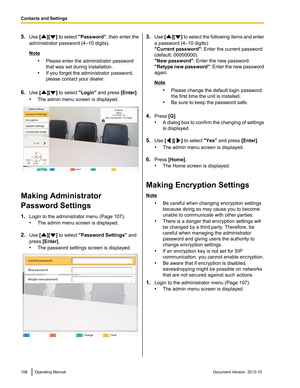

5.Use  [][] to select  "Password" , then enter the
administrator password (4–10 digits).
Note
•Please enter the administrator password
that was set during installation.
• If you forget the administrator password,
please contact your dealer.
6. Use  [
][] to select  "Login" and press  [Enter].
• The admin menu screen is displayed.
Making Administrator
Password Settings
1. Login to the administrator menu (Page 107).
• The admin menu screen is displayed.
2. Use  [
][] to select...

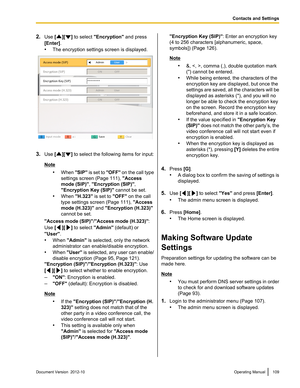

2.Use  [][] to select  "Encryption"  and press
[Enter] .
• The encryption settings screen is displayed.
3.Use  [][] to select the following items for input:
Note
•When  "SIP" is set to  "OFF" on the call type
settings screen (Page 111),  "Access
mode (SIP)" , "Encryption (SIP)" ,
"Encryption Key (SIP)"  cannot be set.
• When  "H.323"  is set to  "OFF" on the call
type settings screen (Page 111),  "Access
mode (H.323)"  and...

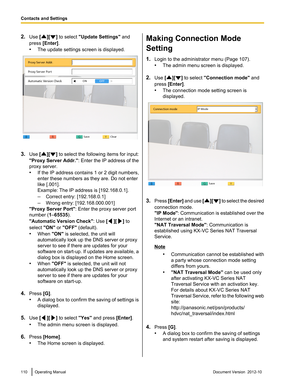

2.Use  [][] to select  "Update Settings"  and
press  [Enter] .
• The update settings screen is displayed.
3.Use  [][] to select the following items for input:
"Proxy Server Addr." : Enter the IP address of the
proxy server.
• If the IP address contains 1 or 2 digit numbers,
enter these numbers as they are. Do not enter
like [.001].
Example: The IP address is [192.168.0.1].
– Correct entry: [192.168.0.1]
– Wrong entry: [192.168.000.001]
"Proxy Server Port" : Enter the proxy server...
