Panasonic Lumix Flash Dmw-fl360l Operating Instructions

GKE
Operating InstructionsManuel d’utilisation
使用说明书
FLASH
闪光灯
PP
until
2012/10/22
VQT4Q07F1012CT0
Please read these instructions carefully before using this product, and save this manual for future use.
Il est recommandé de lire attentivement ce manuel avant d’utiliserl’appareil et de le conserver pour consultation ultérieure.
请于使用前仔细阅读操作使用说明书 , 并妥善保管。
DMW-FL360L
Model No.
Modèle型号
For USA and Puerto Rico assistance, please call: 1-800-211-PANA(7262) or,
contact us via the web at:...

VQT4Q07 (ENG) 2
Operating Instructions
FLASH
Thank you for purchasing Panasonic product.
Please read these instructions carefully before using this product, and save this
manual for future use.
Contents
Information for Your Safety
Information for Your Safety..............2
Precautions ......................................6
Supplied Accessories ......................6
Names of Parts ................................7
Control Panel ...................................7
Continuous...

3 (ENG) VQT4Q07
ENGLISH
IMPORTANT SAFETY
INSTRUCTIONS
When using your photographic equipment, basic safety
precautions should always be followed, including the following:
≥Read and understand all instructions before using.
≥Close supervision is necessary when any appliance is
used by or near children. Do not leave appliance
unattended while in use.
≥Care must be taken as burns can occur from touching hot
parts.
≥Do not operate if the appliance has been dropped or
damaged - until it has been...

VQT4Q07 (ENG) 4
∫About the batteries
• Do not heat or expose to flame.
• Do not leave the battery(ies) in a car exposed to direct sunlight for a long period of time with doors and windows closed.
• If rechargeable batteries are to be used, then rechargeable batteries  manufactured by Panasonic are recommended.
THE FOLLOWING APPLIES ONLY IN THE U.S.A.
CAUTION• Danger of explosion if battery is incorrectly replaced. Replace only with  the type recommended by the manufacturer.
• When disposing the...

5 (ENG) VQT4Q07

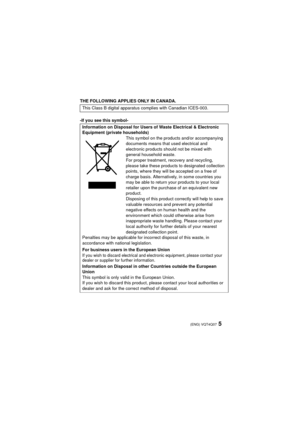

THE FOLLOWING APPLIES ONLY IN CANADA.
-If you see this symbol-This Class B digital apparatus co
mplies with Canadian ICES-003.
Information on Disposal for Users of Waste Electrical & Electronic
Equipment (private households)
This symbol on the products and/or accompanying
documents means that used electrical and
electronic products should not be mixed with
general household waste.
For proper treatment, recovery and recycling,
please take these products to designated collection...

VQT4Q07 (ENG) 6

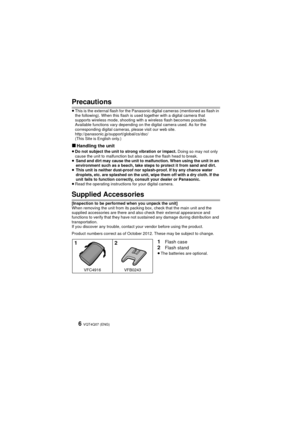

Precautions
≥This is the external flash for the Panasonic digital cameras (mentioned as flash in
the following). When this flash is used together with a digital camera that
supports wireless mode, shooting with a wireless flash becomes possible.
Available functions vary depending on the digital camera used. As for the
corresponding digital cameras, please visit our web site.
http://panasonic.jp/support/global/cs/dsc/
(This Site is English only.)
∫Handling the unit≥Do not subject the...

7 (ENG) VQT4Q07

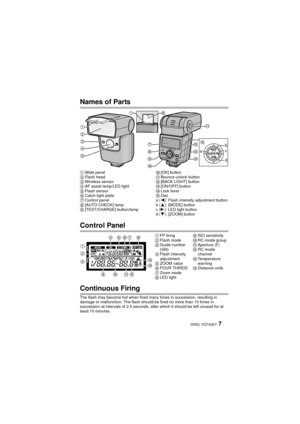

Names of Parts
Control Panel
Continuous Firing
The flash may become hot when fired many times in succession, resulting in
damage or malfunction. The flash should be fired no more than 10 times in
succession at intervals of 2.5 seconds, after which it should be left unused for at
least 10 minutes.
1Wide panel
2 Flash head
3 Wireless sensor
4 AF assist lamp/LED light
5 Flash sensor
6 Catch light plate
7 Control panel
8 [AUTO CHECK] lamp
9 [TEST/CHARGE] button/lamp:[OK] button
; Bounce...

VQT4Q07 (ENG) 8

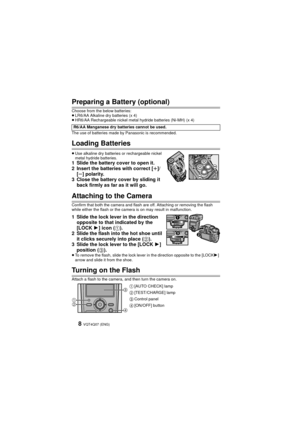

Preparing a Battery (optional)
Choose from the below batteries:
≥LR6/AA Alkaline dry batteries (x 4)
≥ HR6/AA Rechargeable nickel metal hydride batteries (Ni-MH) (x 4)
The use of batteries made by Panasonic is recommended.
Loading Batteries
≥ Use alkaline dry batteries or rechargeable nickel
metal hydride batteries.
1 Slide the battery cover to open it.
2 Insert the batteries with correct [ r]/
[ s ] polarity.
3 Close the battery cover by sliding it  back firmly as far as it will go....

9 (ENG) VQT4Q07

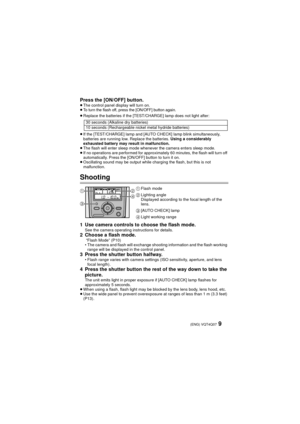

Press the [ON/OFF] button.≥The control panel display will turn on.
≥To turn the flash off, press the [ON/OFF] button again.
≥ Replace the batteries if the [TEST/CHARGE] lamp does not light after:
≥ If the [TEST/CHARGE] lamp and [AUTO CHECK] lamp blink simultaneously,
batteries are running low. Replace the batteries.  Using a considerably
exhausted battery may result in malfunction.
≥ The flash will enter sleep mode whenever the camera enters sleep mode.
≥ If no operations are performed...

VQT4Q07 (ENG) 10

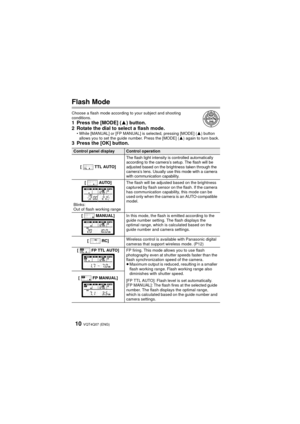

Flash Mode
Choose a flash mode according to your subject and shooting
conditions.
1 Press the [MODE] (3) button.
2 Rotate the dial to select a flash mode.
• While [MANUAL] or [FP MANUAL] is selected, pressing [MODE] ( 3) button
allows you to set the guide number. Press the [MODE] ( 3) again to turn back.
3 Press the [OK] button.
Control panel displayControl operation
[ TTL AUTO]
The flash light intensity is controlled automatically
according to the camera’s setup. The flash will be...
