Panasonic Lumix Flash Dmw-fl360l Operating Instructions
Here you can view all the pages of manual Panasonic Lumix Flash Dmw-fl360l Operating Instructions. The Panasonic manuals for Camera Flash are available online for free. You can easily download all the documents as PDF.

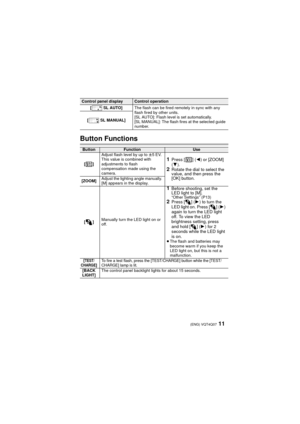

Page 11
![Page 11
11 (ENG) VQT4Q07
Button Functions
[ SL AUTO]The flash can be fired remotely in sync with any
flash fired by other units.
[SL AUTO]: Flash level is set automatically.
[SL MANUAL]: The flash fires at the selected guide
number.
[ SL MANUAL]
ButtonFunctionUse
[] Adjust flash level by up to w
5 EV.
This value is combined with
adjustments to flash
compensation made using the
camera.
1Press [ ] ( 2) or [ZOOM]
( 4 ).
2Rotate the dial to select the
value, and then press the
[OK] button.
[ZOOM] Adjust...](http://img.usermanuals.tech/thumb/58/61489/w300_dmw-fl360l_mul_om_d-10.png "Page 11
11 (ENG) VQT4Q07
Button Functions
[ SL AUTO]The flash can be fired remotely in sync with any
flash fired by other units.
[SL AUTO]: Flash level is set automatically.
[SL MANUAL]: The flash fires at the selected guide
number.
[ SL MANUAL]
ButtonFunctionUse
[] Adjust flash level by up to w
5 EV.
This value is combined with
adjustments to flash
compensation made using the
camera.
1Press [ ] ( 2) or [ZOOM]
( 4 ).
2Rotate the dial to select the
value, and then press the
[OK] button.
[ZOOM] Adjust...")
11 (ENG) VQT4Q07 Button Functions [ SL AUTO]The flash can be fired remotely in sync with any flash fired by other units. [SL AUTO]: Flash level is set automatically. [SL MANUAL]: The flash fires at the selected guide number. [ SL MANUAL] ButtonFunctionUse [] Adjust flash level by up to w 5 EV. This value is combined with adjustments to flash compensation made using the camera. 1Press [ ] ( 2) or [ZOOM] ( 4 ). 2Rotate the dial to select the value, and then press the [OK] button. [ZOOM] Adjust...

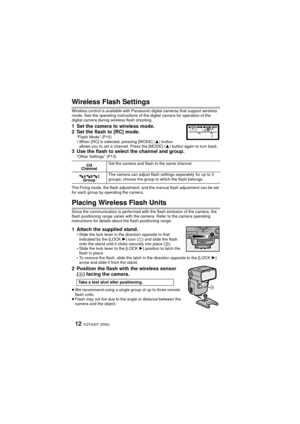

Page 12
![Page 12
VQT4Q07 (ENG) 12
Wireless Flash Settings
Wireless control is available with Panasonic digital cameras that support wireless
mode. See the operating instructions of the digital camera for operation of the
digital camera during wireless flash shooting.
1 Set the camera to wireless mode.
2 Set the flash to [RC] mode.
“Flash Mode” (P10)
• When [RC] is selected, pressing [MODE] (3) button
allows you to set a channel. Press the [MODE] ( 3) button again to turn back.
3 Use the flash to select the channel and...](http://img.usermanuals.tech/thumb/58/61489/w300_dmw-fl360l_mul_om_d-11.png "Page 12
VQT4Q07 (ENG) 12
Wireless Flash Settings
Wireless control is available with Panasonic digital cameras that support wireless
mode. See the operating instructions of the digital camera for operation of the
digital camera during wireless flash shooting.
1 Set the camera to wireless mode.
2 Set the flash to [RC] mode.
“Flash Mode” (P10)
• When [RC] is selected, pressing [MODE] (3) button
allows you to set a channel. Press the [MODE] ( 3) button again to turn back.
3 Use the flash to select the channel and...")
VQT4Q07 (ENG) 12 Wireless Flash Settings Wireless control is available with Panasonic digital cameras that support wireless mode. See the operating instructions of the digital camera for operation of the digital camera during wireless flash shooting. 1 Set the camera to wireless mode. 2 Set the flash to [RC] mode. “Flash Mode” (P10) • When [RC] is selected, pressing [MODE] (3) button allows you to set a channel. Press the [MODE] ( 3) button again to turn back. 3 Use the flash to select the channel and...

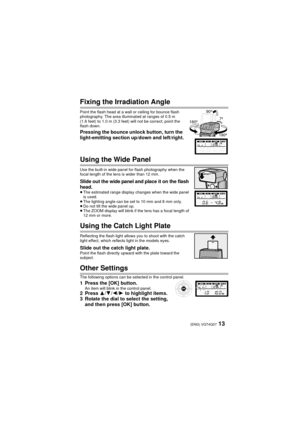

Page 13
13 (ENG) VQT4Q07 Fixing the Irradiation Angle Point the flash head at a wall or ceiling for bounce flash photography. The area illuminated at ranges of 0.5 m (1.6 feet) to 1.0 m (3.3 feet) will not be correct; point the flash down. Pressing the bounce unlock button, turn the light-emitting section up/down and left/right. Using the Wide Panel Use the built-in wide panel for flash photography when the focal length of the lens is wider than 12 mm. Slide out the wide panel and place it on the flash...

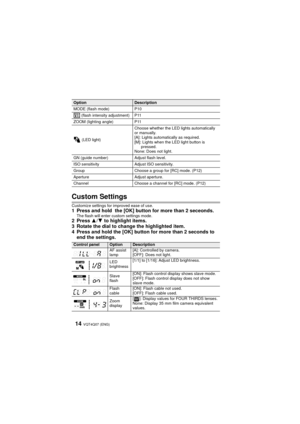

Page 14
![Page 14
VQT4Q07 (ENG) 14
Custom Settings
Customize settings for improved ease of use.1 Press and hold the [OK] button for more than 2 seceonds.The flash will enter custom settings mode.2 Press 3/4 to highlight items.
3 Rotate the dial to change the highlighted item.
4 Press and hold the [OK] button for more than 2 seconds to end the settings.
OptionDescription
MODE (flash mode) P10
(flash intensity adjustment) P11
ZOOM (lighting angle) P11
(LED light) Choose whether the LED lights automatically
or...](http://img.usermanuals.tech/thumb/58/61489/w300_dmw-fl360l_mul_om_d-13.png "Page 14
VQT4Q07 (ENG) 14
Custom Settings
Customize settings for improved ease of use.1 Press and hold the [OK] button for more than 2 seceonds.The flash will enter custom settings mode.2 Press 3/4 to highlight items.
3 Rotate the dial to change the highlighted item.
4 Press and hold the [OK] button for more than 2 seconds to end the settings.
OptionDescription
MODE (flash mode) P10
(flash intensity adjustment) P11
ZOOM (lighting angle) P11
(LED light) Choose whether the LED lights automatically
or...")
VQT4Q07 (ENG) 14 Custom Settings Customize settings for improved ease of use.1 Press and hold the [OK] button for more than 2 seceonds.The flash will enter custom settings mode.2 Press 3/4 to highlight items. 3 Rotate the dial to change the highlighted item. 4 Press and hold the [OK] button for more than 2 seconds to end the settings. OptionDescription MODE (flash mode) P10 (flash intensity adjustment) P11 ZOOM (lighting angle) P11 (LED light) Choose whether the LED lights automatically or...

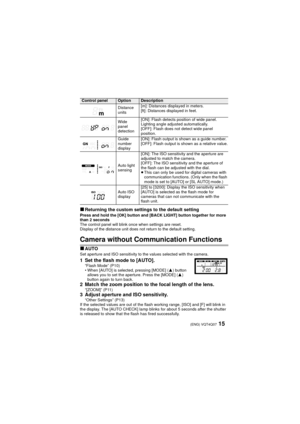

Page 15
![Page 15
15 (ENG) VQT4Q07
∫Returning the custom settings to the default settingPress and hold the [OK] button and [BACK LIGHT] button together for more
than 2 seconds
The control panel will blink once when settings are reset.
Display of the distance unit does not return to the default setting.
Camera without Communication Functions
∫AUTOSet aperture and ISO sensitivity to the values selected with the camera.
1 Set the flash mode to [AUTO].“Flash Mode” (P10)
• When [AUTO] is selected, pressing [MODE] (3) button...](http://img.usermanuals.tech/thumb/58/61489/w300_dmw-fl360l_mul_om_d-14.png "Page 15
15 (ENG) VQT4Q07
∫Returning the custom settings to the default settingPress and hold the [OK] button and [BACK LIGHT] button together for more
than 2 seconds
The control panel will blink once when settings are reset.
Display of the distance unit does not return to the default setting.
Camera without Communication Functions
∫AUTOSet aperture and ISO sensitivity to the values selected with the camera.
1 Set the flash mode to [AUTO].“Flash Mode” (P10)
• When [AUTO] is selected, pressing [MODE] (3) button...")
15 (ENG) VQT4Q07 ∫Returning the custom settings to the default settingPress and hold the [OK] button and [BACK LIGHT] button together for more than 2 seconds The control panel will blink once when settings are reset. Display of the distance unit does not return to the default setting. Camera without Communication Functions ∫AUTOSet aperture and ISO sensitivity to the values selected with the camera. 1 Set the flash mode to [AUTO].“Flash Mode” (P10) • When [AUTO] is selected, pressing [MODE] (3) button...

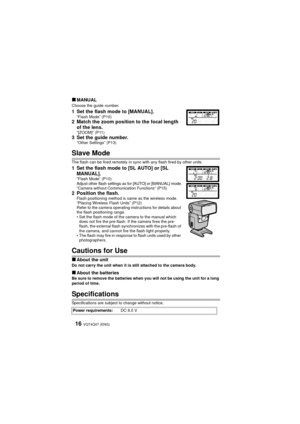

Page 16
![Page 16
VQT4Q07 (ENG) 16
∫MANUALChoose the guide number.
1 Set the flash mode to [MANUAL].“Flash Mode” (P10)2 Match the zoom position to the focal length of the lens.
“[ZOOM]” (P11)3 Set the guide number.“Other Settings” (P13)
Slave Mode
The flash can be fired remotely in sync with any flash fired by other units.
1 Set the flash mode to [SL AUTO] or [SL MANUAL].
“Flash Mode” (P10)
Adjust other flash settings as for [AUTO] or [MANUAL] mode.
“Camera without Communication Functions” (P15)
2 Position the flash.Flash...](http://img.usermanuals.tech/thumb/58/61489/w300_dmw-fl360l_mul_om_d-15.png "Page 16
VQT4Q07 (ENG) 16
∫MANUALChoose the guide number.
1 Set the flash mode to [MANUAL].“Flash Mode” (P10)2 Match the zoom position to the focal length of the lens.
“[ZOOM]” (P11)3 Set the guide number.“Other Settings” (P13)
Slave Mode
The flash can be fired remotely in sync with any flash fired by other units.
1 Set the flash mode to [SL AUTO] or [SL MANUAL].
“Flash Mode” (P10)
Adjust other flash settings as for [AUTO] or [MANUAL] mode.
“Camera without Communication Functions” (P15)
2 Position the flash.Flash...")
VQT4Q07 (ENG) 16 ∫MANUALChoose the guide number. 1 Set the flash mode to [MANUAL].“Flash Mode” (P10)2 Match the zoom position to the focal length of the lens. “[ZOOM]” (P11)3 Set the guide number.“Other Settings” (P13) Slave Mode The flash can be fired remotely in sync with any flash fired by other units. 1 Set the flash mode to [SL AUTO] or [SL MANUAL]. “Flash Mode” (P10) Adjust other flash settings as for [AUTO] or [MANUAL] mode. “Camera without Communication Functions” (P15) 2 Position the flash.Flash...

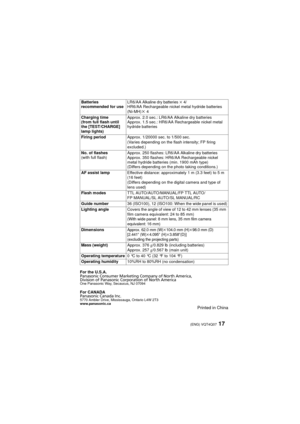

Page 17
![Page 17
17 (ENG) VQT4Q07
For the U.S.A.Panasonic Consumer Marketing Company of North America,
Division of Panasonic Corporation of North America
One Panasonic Way, Secaucus, NJ 07094
For CANADAPanasonic Canada Inc.
5770 Ambler Drive, Mississauga, Ontario L4W 2T3
www.panasonic.ca
Printed in China
Batteries
recommended for useLR6/AA Alkaline dry batteries k 4/HR6/AA Rechargeable nickel metal hydride batteries
(Ni-MH)k 4
Charging time
(from full flash until
the [TEST/CHARGE]
lamp lights) Approx. 2.0 sec.:...](http://img.usermanuals.tech/thumb/58/61489/w300_dmw-fl360l_mul_om_d-16.png "Page 17
17 (ENG) VQT4Q07
For the U.S.A.Panasonic Consumer Marketing Company of North America,
Division of Panasonic Corporation of North America
One Panasonic Way, Secaucus, NJ 07094
For CANADAPanasonic Canada Inc.
5770 Ambler Drive, Mississauga, Ontario L4W 2T3
www.panasonic.ca
Printed in China
Batteries
recommended for useLR6/AA Alkaline dry batteries k 4/HR6/AA Rechargeable nickel metal hydride batteries
(Ni-MH)k 4
Charging time
(from full flash until
the [TEST/CHARGE]
lamp lights) Approx. 2.0 sec.:...")
17 (ENG) VQT4Q07 For the U.S.A.Panasonic Consumer Marketing Company of North America, Division of Panasonic Corporation of North America One Panasonic Way, Secaucus, NJ 07094 For CANADAPanasonic Canada Inc. 5770 Ambler Drive, Mississauga, Ontario L4W 2T3 www.panasonic.ca Printed in China Batteries recommended for useLR6/AA Alkaline dry batteries k 4/HR6/AA Rechargeable nickel metal hydride batteries (Ni-MH)k 4 Charging time (from full flash until the [TEST/CHARGE] lamp lights) Approx. 2.0 sec.:...

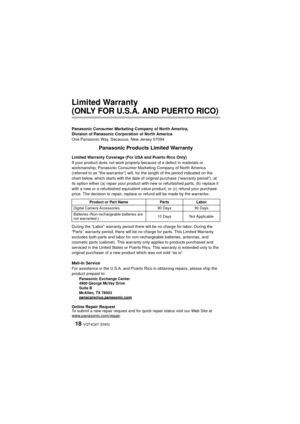

Page 18
VQT4Q07 (ENG) 18 Limited Warranty (ONLY FOR U.S.A. AND PUERTO RICO) Panasonic Consumer Marketing Company of North America, Division of Panasonic Corporation of North America One Panasonic Way, Secaucus, New Jersey 07094 Panasonic Products Limited Warranty Limited Warranty Coverage (For USA and Puerto Rico Only) If your product does not work properly because of a defect in materials or workmanship, Panasonic Consumer Marketing Company of North America (referred to as “the warrantor”) will, for the...

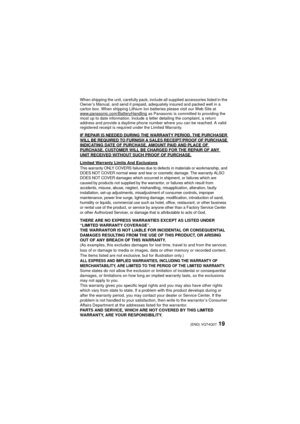

Page 19
19 (ENG) VQT4Q07 When shipping the unit, carefully pack, include all supplied accessories listed in the Owner’s Manual, and send it prepaid, adequately insured and packed well in a carton box. When shipping Lithium Ion batteries please visit our Web Site at www.panasonic.com/BatteryHandling as Panasonic is committed to providing the most up to date information. Include a letter detailing the complaint, a return address and provide a daytime phone number where you can be reached. A valid registered...

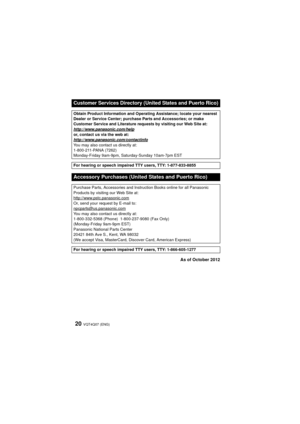

Page 20
VQT4Q07 (ENG) 20 As of October 2012 Customer Services Directory (United States and Puerto Rico) Obtain Product Information and Operating Assistance; locate your nearest Dealer or Service Center; purchase Parts and Accessories; or make Customer Service and Literature requests by visiting our Web Site at: http://www.panasonic.com/help or, contact us via the web at: http://www.panasonic.com/contactinfo You may also contact us directly at: 1-800-211-PANA (7262) Monday-Friday 9am-9pm, Saturday-Sunday...
