Panasonic Multi Hybrid Control Panel Aw Rp505 Operating Instructions

Multi Hybrid Control Panel
AW-RP505
Before attempting to connect or operate this product,
please read these instructions completely.
â

Warning:
Do not install this product near any object that burns easily.
In case of using a halogen lamp, installation of it near such
an object could cause a fire due to the heat generated by the
lamp.
This digital apparatus does not exceed the Class A limits for
radio noise emissions from digital apparatus set out in the
Radio Interference Regulations of the Canadian Department
of Communications.
WARNING:
TO PREVENT FIRE OR ELECTRIC SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOIS
TURE.
The...

-1-
CONTENTS
FEATURES .......................................................................................................................................................................................... 2
PRECAUTIONS ................................................................................................................................................................................... 3
MAJOR OPERATING CONTROLS AND THEIR FUNCTIONS...

-2-
FEATURES• The Multi Hybrid Control Panel AW-RP505 is combined
with the Multiport Hub (AW-HB505) to control up to five
Pan/tilt Heads (AW-PH300) and Color Video Cameras
(AW-E560).  With the Control Panel AW-RP505 con-
nected to the multiport hub with three coaxial cables
(5C-2V) and a single 10BASE-T straight cable (UTP
category 5), and with the Multiport Hub connected to
each camera and pan/tilt head with three coaxial
cables (5C-2V) and a single 10BASE-T straight cable
(UTP category 5), the Control...

-3-
PRECAUTIONS• Use only with AC Adaptor AW-PS301.
• Handle the control panel with care.
Dropping the control panel or subjecting it to a strong
shock can cause a failure or an accident.
• Operating temperature range –10°C to +45°C
Avoid using it in a cold place below –10°C or a hot
place above +45°C because low or high temperature
will adversely affect the parts inside.
• Switch power off before power cable connection or
disconnection.
Be sure to switch power off before connecting or dis-
connecting...

-4-
SPEED FOCUS PA N  /  T I LT
ZOOM
TELE
WIDEFA R
LEFT RIGHTUP
DOWN
NEAR
DEFON
OFF ON
OFF
POWEROPERATE
IRISCAM
CONT
BAR
CAMMODEGAIN AWC
SCENE
FILEABC
AT W
A
B
AUTO/ATW
ELC LOW MID
MANUON SC H
OFF HIGH AGC
OFF 1 / 100SHUTTER
ON
OFF
LAMP
MEMORY
ON
OFF AUTO
MANUON
OFFON
OFFON
OFF ON
OFFON
OFF
WIP
EXT ND OPH / F
1 .
2 .
3 .
4 .
G/L PHASE
PRESET
T.PEDMulti Hybrid Control Panel AW-RP505
154 3 2 154 3 2
2 1345
67891090¡  180¡
0¡      270¡
LEVEL
TALLYCONTROL

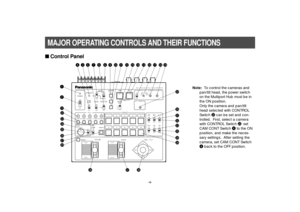

MAJOR OPERATING CONTROLS AND THEIR FUNCTIONS
Note:To...

-5-
qPower Indicator [POWER]
Lights red when POWER ON/OFF Switch wis in the
ON position, and goes out when the same switch is set
to the OFF position.
wPower CONTROL Switch [POWER, ON/OFF]
All the connected cameras and pan/tilt heads are
switched on when this switch is set to the ON position.
(The power indicator lights.)  The camera and pan/tilt
head are partially switched off when this switch is set to
the OFF position.
Note:When the switch is set to the OFF position, the
camera is totally switched off...

-6-
uGain Selection Switch [GAIN, HIGH/MID/LOW]
This switch is valid only when GAIN AGC/MANU
Switch yis in the MANU position. Select a camera
with CONTROL Switch @2, set CAM CONT Switch rto
the ON position, then select HIGH, MID, or LOW.
Normally, keep it in the LOW position.  When the cam-
era is used in a dark place or when video output level
is not high enough even if the iris is wide open, set the
switch to the MID or HIGH position.After selecting it,
set CAM CONT Switch rback to the OFF position....

-7-
Note:White balance may not be adjustable if there is
no white in the image being taken by the camera.
For details, refer to the Operating Instructions for
the Camera.
!3Auto Black Start Switch [ABC]
When this switch is depressed, the lens iris is
automatically closed to set black balance on the
camera selected with CONTROL Switch @2.   Be sure to
keep the IRIS AUTO/MANU switch @5in the AUTO
position in setting black balance.  Auto Set Indicator !4
flashes while ABC is in operation, and goes out when...

-8-
adjustment range of over 360°.  Before making an
adjustment, set CAM CONT Switch rand G/L PHASE
Switch  !6to the ON position.  After the adjustment, set
both CAM CONT Switch rand G/L PHASE Switch !6
back to the OFF position.
!8Genlock Subcarrier Phase Fine Control
[G/L PHASE, SC]
Used for fine adjustment of the color phases of gen-
lock input and video output signals in operating the
camera in external sync mode.  Use this switch in
combination with G/L PHASE Coarse Switch !7.
Before making an...
