-19-

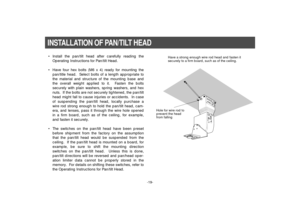

INSTALLATION OF PAN/TILT HEAD
Have a strong enough wire rod head and fasten it
securely to a firm board, such as of the ceiling.
Hole for wire rod to
prevent the head
from falling
• Install the pan/tilt head after carefully reading the
Operating Instructions for Pan/tilt Head.
• Have four hex bolts (M6 x 4) ready for mounting the
pan/title head.  Select bolts of a length appropriate to
the material and structure of the mounting base and
the overall weight applied to it.  Fasten the bolts
securely...

-20-
SW 2 SW 1 SW 3
SW 2 SW 1 DESKTOP
HANGING
• Changing Switch Settings on Pan/tilt Head
qRemove the cover from the pan/tilt head.
* Be careful of the Tally Indicator wire.
wShift the mounting direction switches (SW1, SW2) on
the pan/tilt head depending on whether the head is
suspended from the ceiling or mounted on the floor.
They are originally set for suspended installation.
* Do not change the original set position of SW3.  If it is
changed, no operation can be controlled from the con-
trol panel....

-21-
ON
OFF
• Shifting Cable Compensation Switch on Pan/tilt
Head
If the distance from the control panel to the pan/tilt
head is longer than 300 meters, set the cable compen-
sation switch to the ON position by observing the fol-
lowing procedure.
qRemove the controller connection panel from the
pan/tilt head.
* Be careful of the wires.
wShift the cable compensation switch on the inner side
of the controller connection panel of the pan/tilt head to
the ON position.
ePlace the controller connection panel...

-22-

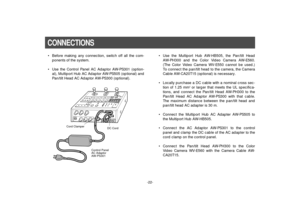

CONNECTIONS• Before making any connection, switch off all the com-
ponents of the system.
• Use the Control Panel AC Adaptor AW-PS301 (option-
al), Multiport Hub AC Adaptor AW-PS505 (optional) and
Pan/tilt Head AC Adaptor AW-PS300 (optional).• Use the Multiport Hub AW-HB505, the Pan/tilt Head
AW-PH300 and the Color Video Camera AW-E560.
(The Color Video Camera WV-E550 cannot be used.)
To connect the pan/tilt head to the camera, the Camera
Cable AW-CA20T15 (optional) is necessary.
• Locally purchase...

-23-
ITEM(AWC) UP(ABC)PAGEDOWN
  (BAR)IRIS
G/L  INVIDEO  OUT
ZOOM/FOCUS
REMOTEVD
VIDEO/RGB VBS/HD
    75ON
OFF
CONTROL
EXT DC INSEE MANUALCAUTION
• Connect the iris control cable of the motor-driven zoom
lens to the camera and the remote (zoom/focus control)
cable to the pan/tilt head.  If the remote (zoom/focus
control) cable of the motor-driven zoom lens is con-
nected to the camera, the lens cannot be controlled.• Connect the control panel to the multiport hub with the
three coaxial cables (video...

-24-
CAMERA
CONTROL OUTCAMERA
CONTROL IN VIDEO OUTPAM/TILT
CONTROL OUTPAM/TILT
CONTROL IN
S-VIDEO OUT VIDEO
IN
G/L
OUTG/L
IN
CAMERA
CONTROL OUTVIDEO OUTPAM/TILT
CONTROL OUT
S-VIDEO OUT VIDEO
IN
G/L
OUT
CAMERA
CONTROL OUTVIDEO OUTPAM/TILT
CONTROL OUT
S-VIDEO OUT VIDEO
IN
G/L
OUT
CAMERA
CONTROL OUTVIDEO OUTPAM/TILT
CONTROL OUT
S-VIDEO OUT VIDEO
IN
G/L
OUT
CAMERA
CONTROL OUTVIDEO OUTPAM/TILT
CONTROL OUT
S-VIDEO OUT VIDEO
IN
G/L
OUT
4
3
2
1 5
DC12V  IN
TO CAMERA PAM/TILT HEAD
TO CONTROL PANELPREVIEW OUT
SEE...

-25-
S-VIDEO VIDEO
PREVIEW
VIDEO
VIDEO
CONTACT PAN/TILT
CONTROL
PAN/TILT
CONTROL CAMERA CONTROL
CAMERA CONTROL SYSTEM
TALLY
G/L
G/L  DC15V
OPTION
SWITCH
CONTROL
PREVIEW
VIDEO
G/L
ONPOWER
OFFPOWER
O    I
FUSE(POWER)
3.15AFUSEFUSE
Option UnitSEG, Switcher etc.
POWERON
OFF
Color  Monitor  WV-CM   1470
PUSH
POWERON
OFF
Color  Monitor  WV-CM   1470
PUSH
ZOOM/FOCUS CONTROL
IRIS CONTROL
LAMPCONTROL
SPEED FOUCUS PA N  /  T I LT
ZOOMTELE
WIDEFA R
LEFT RIGHTUP
DOWN
NEAR
DEFON
OFF ON
OFF
POWEROPERATE
IRISCAM
CONT...

-26-
OPERATING PROCEDURES1.Power
Press the power switch on each pan/tilt head AC
adapter and the power switch on the multiport hub AC
adapter to the ON position, then press the power
switch on the multiport hub to the ON position.  Finally,
press the power control switch on the multi hybrid con-
trol panel to the ON position.
2. Pan/tilt Limiter Setting for Each
Pan/tilt Heads
If there are obstacles around the pan/tilt head, set the
limiters to limit the operating range (pan left and right
ends, tilt up...

-27-
eRight Panning Limiter
Turn the pan/tilt head to the desired right panning limit
with PAN/TILT Lever #8, keep MEMORY Switch @7
depressed, and simultaneously press buttons [4] and
[9] of PRESET Switch @8for 5 seconds or more.  When
the desired limit has been set, button [5] of PRESET
Switch @8lights.
To reset the limit, keep the MEMORY Switch @7
depressed, and simultaneously press buttons [4] and
[9] of PRESET Switch @8again for 5 seconds or more.
When the set limit is reset, button [10] of PRESET...

-28-
POWER
1
YC2
YC3
YC4
YC5
YC
OFF ON
CABLE  COMP
Multl  Port  Hub  AW-H8505
Waveform Monitor
Vector ScopeColor Monitor
(75Wtermination)CABLE COMP C Control  CABLE COMP Y Control
Multiport Hub
AW-HB505
ON position, the settings of the selected camera
will be similarly changed.  Set the CAM CONT
Switch rback to the OFF position before chang-
ing one camera for another with the CONTROL
Switch @2.
2) Adjust the cable compensation, genlock, and total
pedestal of the selected camera.
• Cable Compensation...
