Panasonic Network Scan Functions Dp 190 Operating Instruction
Here you can view all the pages of manual Panasonic Network Scan Functions Dp 190 Operating Instruction. The Panasonic manuals for Scanner are available online for free. You can easily download all the documents as PDF.

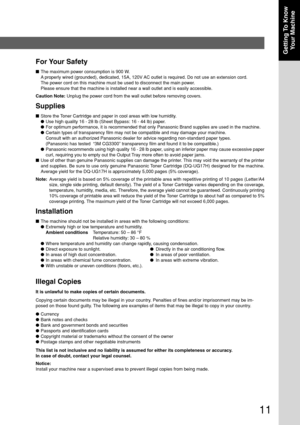

Page 11
![Page 11
11
Getting To KnowYour Machine
For Your Safety
■ The maximum power consumption is 900 W.
A properly wired (grounded), dedicated, 15A, 120V AC outlet is required. Do not use an extension cord.
The power cord on this machine must be used to disconnect the main power\
.
Please ensure that the machine is installed near a wall outlet and is ea\
sily accessible.
Caution Note: Unplug the power cord from the wall outlet before removing covers.
Supplies
■Store the Toner Cartridge and paper in cool areas with low...](http://img.usermanuals.tech/thumb/58/65162/w300_dp-190_en_copy-netscan_om_d-10.png "Page 11
11
Getting To KnowYour Machine
For Your Safety
■ The maximum power consumption is 900 W.
A properly wired (grounded), dedicated, 15A, 120V AC outlet is required. Do not use an extension cord.
The power cord on this machine must be used to disconnect the main power\
.
Please ensure that the machine is installed near a wall outlet and is ea\
sily accessible.
Caution Note: Unplug the power cord from the wall outlet before removing covers.
Supplies
■Store the Toner Cartridge and paper in cool areas with low...")
11 Getting To KnowYour Machine For Your Safety ■ The maximum power consumption is 900 W. A properly wired (grounded), dedicated, 15A, 120V AC outlet is required. Do not use an extension cord. The power cord on this machine must be used to disconnect the main power\ . Please ensure that the machine is installed near a wall outlet and is ea\ sily accessible. Caution Note: Unplug the power cord from the wall outlet before removing covers. Supplies ■Store the Toner Cartridge and paper in cool areas with low...

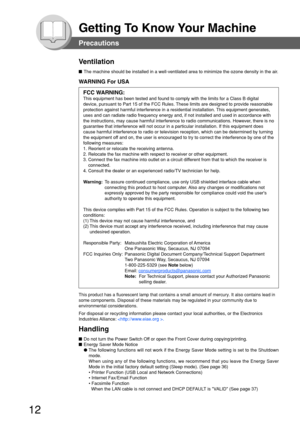

Page 12
![Page 12
12
Getting To Know Your Machine
Ventilation
■ The machine should be installed in a well-ventilated area to minimize th\
e ozone density in the air.
WARNING For USA
FCC WARNING:
This equipment has been tested and found to comply with the limits for a\
Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and,...](http://img.usermanuals.tech/thumb/58/65162/w300_dp-190_en_copy-netscan_om_d-11.png "Page 12
12
Getting To Know Your Machine
Ventilation
■ The machine should be installed in a well-ventilated area to minimize th\
e ozone density in the air.
WARNING For USA
FCC WARNING:
This equipment has been tested and found to comply with the limits for a\
Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and,...")
12 Getting To Know Your Machine Ventilation ■ The machine should be installed in a well-ventilated area to minimize th\ e ozone density in the air. WARNING For USA FCC WARNING: This equipment has been tested and found to comply with the limits for a\ Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and,...

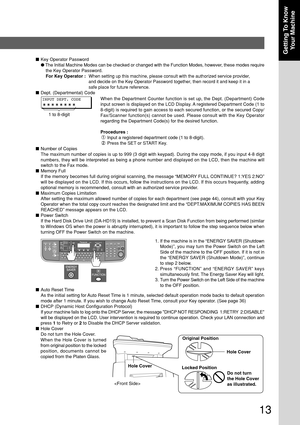

Page 13
![Page 13
13
Getting To KnowYour Machine
Hole Cover
Do not turn
the Hole Cover
as illustrated.
Original Position
Hole Cover
Locked Position
■ Key Operator Password
● The Initial Machine Modes can be checked or changed with the Function Mo\
des, however, these modes require
the Key Operator Password.
For Key Operator :
When setting up this machine, please consult with the authorized service\
provider,
and decide on the Key Operator Password together, then record it and keep it in a
safe place for future...](http://img.usermanuals.tech/thumb/58/65162/w300_dp-190_en_copy-netscan_om_d-12.png "Page 13
13
Getting To KnowYour Machine
Hole Cover
Do not turn
the Hole Cover
as illustrated.
Original Position
Hole Cover
Locked Position
■ Key Operator Password
● The Initial Machine Modes can be checked or changed with the Function Mo\
des, however, these modes require
the Key Operator Password.
For Key Operator :
When setting up this machine, please consult with the authorized service\
provider,
and decide on the Key Operator Password together, then record it and keep it in a
safe place for future...")
13 Getting To KnowYour Machine Hole Cover Do not turn the Hole Cover as illustrated. Original Position Hole Cover Locked Position ■ Key Operator Password ● The Initial Machine Modes can be checked or changed with the Function Mo\ des, however, these modes require the Key Operator Password. For Key Operator : When setting up this machine, please consult with the authorized service\ provider, and decide on the Key Operator Password together, then record it and keep it in a safe place for future...

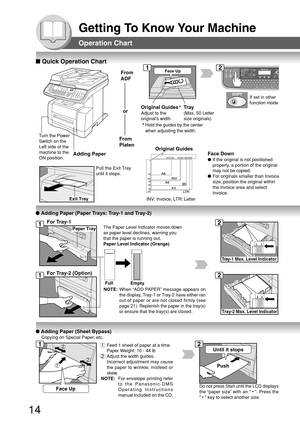

Page 14
14 Getting To Know Your Machine Tray-2 Max. Level Indicator Paper Tray EmptyFull *Hold the guides by the center when adjusting the width. Face Up Until it stops Push Tray-1 Max. Level Indicator Operation Chart Face Up A B C From ADF From Platen Face Down ●If the original is not positioned properly, a portion of the original may not be copied. ●For originals smaller than Invoice size, position the original within the Invoice area and select Invoice. or ● Adding Paper (Sheet Bypass) Copying on Special...

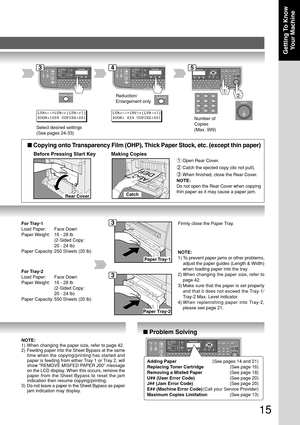

Page 15
![Page 15
15
Getting To KnowYour Machine
Paper Tray-2
Reduction/
Enlargement only
■ Problem Solving
34
Number of
Copies
(Max. 999)
5
Select desired settings
(See pages 24-33)
LTR ->INV [LTR 1]
ZOOM: 65% COPIES:001
Paper Tray-1
For Tray-1
Load Paper: Face Down
Paper Weight: 16 - 28 lb
(2-Sided Copy:
20 - 24 lb)
Paper Capacity: 250 Sheets (20 lb)
NOTE:
1) To prevent paper jams or other problems,
adjust the paper guides (Length & Width)
when loading paper into the tray.
2) When changing the paper size, refer to...](http://img.usermanuals.tech/thumb/58/65162/w300_dp-190_en_copy-netscan_om_d-14.png "Page 15
15
Getting To KnowYour Machine
Paper Tray-2
Reduction/
Enlargement only
■ Problem Solving
34
Number of
Copies
(Max. 999)
5
Select desired settings
(See pages 24-33)
LTR ->INV [LTR 1]
ZOOM: 65% COPIES:001
Paper Tray-1
For Tray-1
Load Paper: Face Down
Paper Weight: 16 - 28 lb
(2-Sided Copy:
20 - 24 lb)
Paper Capacity: 250 Sheets (20 lb)
NOTE:
1) To prevent paper jams or other problems,
adjust the paper guides (Length & Width)
when loading paper into the tray.
2) When changing the paper size, refer to...")
15 Getting To KnowYour Machine Paper Tray-2 Reduction/ Enlargement only ■ Problem Solving 34 Number of Copies (Max. 999) 5 Select desired settings (See pages 24-33) LTR ->INV [LTR 1] ZOOM: 65% COPIES:001 Paper Tray-1 For Tray-1 Load Paper: Face Down Paper Weight: 16 - 28 lb (2-Sided Copy: 20 - 24 lb) Paper Capacity: 250 Sheets (20 lb) NOTE: 1) To prevent paper jams or other problems, adjust the paper guides (Length & Width) when loading paper into the tray. 2) When changing the paper size, refer to...

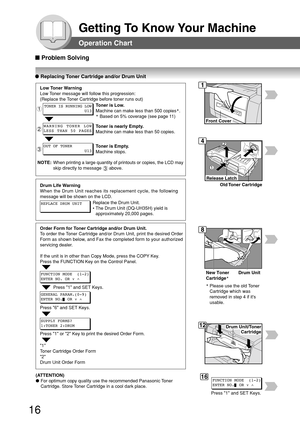

Page 16
16 Getting To Know Your Machine Drum Unit/Toner Cartridge Release Latch Old Toner Cartridge Drum UnitNew Toner Cartridge* Front Cover Operation Chart ■ Problem Solving ● Replacing Toner Cartridge and/or Drum Unit 1Low Toner Warning Low Toner message will follow this progression: (Replace the Toner Cartridge before toner runs out) TONER IS RUNNING LOW U13 WARNING TONER LOW LESS THAN 50 PAGES OUT OF TONER U13 Toner is Low. Machine can make less than 500 copies*. * Based on 5% coverage (see page 11) Toner...

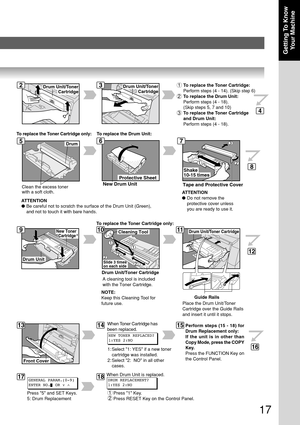

Page 17
17 Getting To KnowYour Machine Clean the excess toner with a soft cloth. Drum Drum Unit/Toner Cartridge Cleaning Tool A cleaning tool is included with the Toner Cartridge. Slide 3 times on each side Guide Rails Drum Unit/Toner Cartridge Place the Drum Unit/Toner Cartridge over the Guide Rails and insert it until it stops. Protective Sheet New Drum Unit Shake 10-15 times Tape and Protective Cover New Toner Cartridge* Drum Unit Drum Unit/Toner Cartridge 4 3 ATTENTION ● Do not remove the protective...

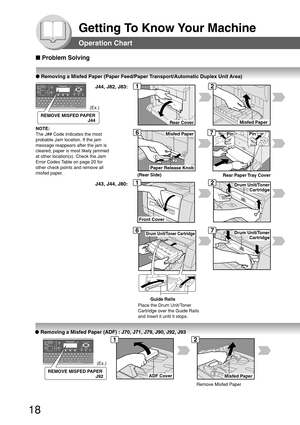

Page 18
18 Getting To Know Your Machine J44, J82, J83: J43, J44, J80: Rear Paper Tray Cover PinPin Guide Rails Drum Unit/Toner Cartridge Place the Drum Unit/Toner Cartridge over the Guide Rails and insert it until it stops. Misfed Paper Front Cover Paper Release Knob Misfed Paper Drum Unit/Toner Cartridge Drum Unit/Toner Cartridge Rear Cover Operation Chart ■ Problem Solving ● Removing a Misfed Paper (Paper Feed/Paper Transport/Automatic Duplex Unit Area) 12 12 REMOVE MISFED PAPER J44 67 (Rear Side) Misfed...

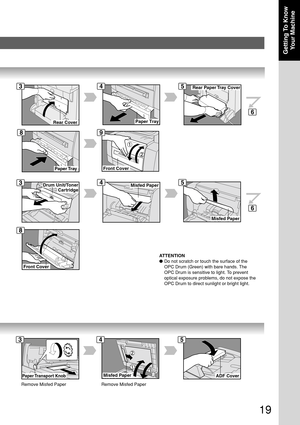

Page 19
19 Getting To KnowYour Machine Rear Paper Tray Cover P aper Tray Rear Cover Misfed Paper Misfed Paper Paper Tray Front Cover Drum Unit/Toner Cartridge 345 6 3 6 45 8 8 ATTENTION ● Do not scratch or touch the surface of the OPC Drum (Green) with bare hands. The OPC Drum is sensitive to light. To prevent optical exposure problems, do not expose the OPC Drum to direct sunlight or bright light. Front Cover 9 Misfed Paper Remove Misfed Paper ADF CoverPaper Transport Knob 345 Remove Misfed Paper

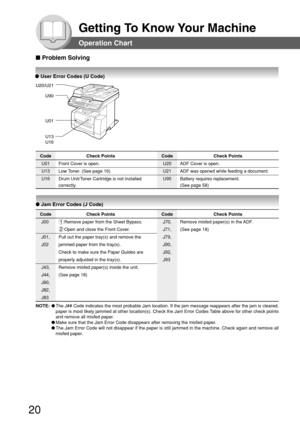

Page 20
20 Getting To Know Your Machine Code Check Points J70, Remove misfed paper(s) in the ADF. J71, (See page 18) J79, J90, J92, J93Code Check Points J00 Remove paper from the Sheet Bypass. Open and close the Front Cover. J01, Pull out the paper tray(s) and remove the J02 jammed paper from the tray(s). Check to make sure the Paper Guides are properly adjusted in the tray(s). J43, Remove misfed paper(s) inside the unit. J44, (See page 18) J80, J82, J83 Code Check Points U20 ADF Cover is open. U21 ADF was...
