Panasonic Network Scan Functions Dp 190 Operating Instruction

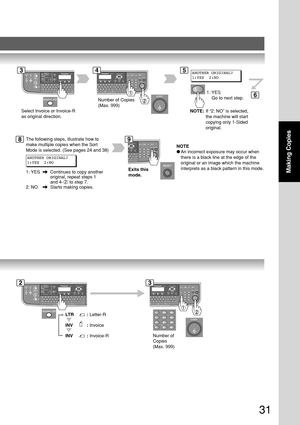

31
Making Copies
Number of
Copies
(Max. 999)
LT R: Letter-R
INV
: Invoice
INV
: Invoice-R
Exits this
mode.
Number of Copies
(Max. 999)
ANOTHER ORIGINAL?
1:YES  2:NO
NOTE
●An incorrect exposure may occur when
there is a black line at the edge of the
original or an image which the machine
interprets as a black pattern in this mode. The following steps, illustrate how to
make multiple copies when the Sort
Mode is selected. (See pages 24 and 38)
ANOTHER ORIGINAL?
1:YES  2:NO
1: YES Continues to copy another...

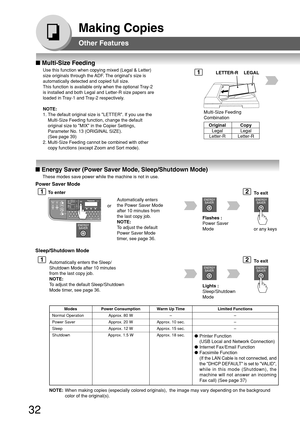

32
Making Copies
■ Energy Saver (Power Saver Mode, Sleep/Shutdown Mode)
These modes save power while the machine is not in use.
To enter
To exit
orAutomatically enters
the Power Saver Mode
after 10 minutes from
the last copy job.
NOTE:
To adjust the default
Power Saver Mode
timer, see page 36.
Automatically enters the Sleep/
Shutdown Mode after 10 minutes
from the last copy job.
NOTE:
To adjust the default Sleep/Shutdown
Mode timer, see page 36.
Flashes :
Power Saver
Mode
To exit
Lights :
Sleep/Shutdown...

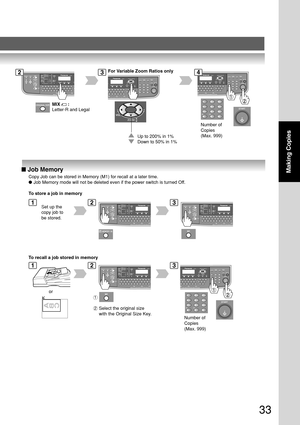

33
Making Copies
Number of
Copies
(Max. 999)
For Variable Zoom Ratios only
Up to 200% in 1%
Down to 50% in 1%
MIX
 :
Letter-R  and Legal
■  Job Memory
Copy Job can be stored in Memory (M1) for recall at a later time.
● Job Memory mode will not be deleted even if the power switch is turned O\
ff.
To  store a job in memory
Set up the
copy job to
be stored.
To recall a job stored in memory
A
B
C
or
Number of
Copies
(Max. 999)
234
1
12
23
3
2
1
Select the original size
with the Original Size Key.

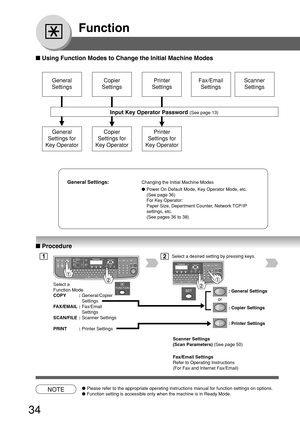

34
Function
General
Settings
General
Settings for
Key OperatorCopier
Settings
Copier
Settings for
Key OperatorPrinter
Settings
Printer
Settings for
Key OperatorFax/Email
SettingsScanner
Settings
Input Key Operator Password
(See page 13)
General Settings:Changing the Initial Machine Modes
●Power On Default Mode, Key Operator Mode, etc.
(See page 36)
For Key Operator:
Paper Size, Department Counter, Network TCP/IP
settings, etc.
(See pages 36 to 38)
■ Procedure
Select a
Function Mode
COPY :General/Copier...

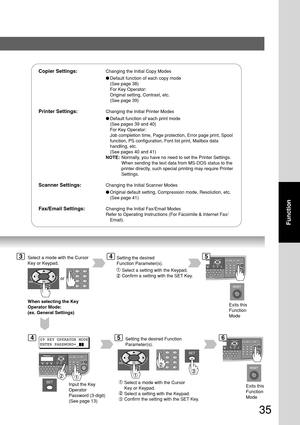

35
Function
Exits this
Function
ModeWhen selecting the Key
Operator Mode:
(ex. General Settings)
09 KEY OPERATOR MODE
ENTER PASSWORD=_
Input the Key
Operator
Password (3-digit)
(See page 13) Select a mode with the Cursor
Key or Keypad.
Select a setting with the Keypad.
Confirm a setting with the SET Key.
Copier Settings:Changing the Initial Copy Modes
●Default function of each copy mode
(See page 38)
For Key Operator:
Original setting, Contrast, etc.
(See page 39)
Printer Settings:Changing the Initial...

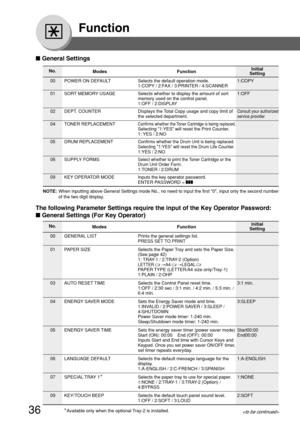

36
Function
00 POWER ON DEFAULT Selects the default operation mode. 1:COPY
1:COPY / 2:FAX / 3:PRINTER / 4:SCANNER
01 SORT MEMORY USAGE Selects whether to display the amount of sort 1:OFF
memory used on the control panel.
1:OFF / 2:DISPLAY
02 DEPT. COUNTER Displays the Total Copy usage and copy limit of
Consult your authorized
the selected department.service provider
04 TONER REPLACEMENTConfirms whether the Toner Cartridge is being replaced.Selecting 1:YES will reset the Print Counter.
1: YES / 2:NO
05...

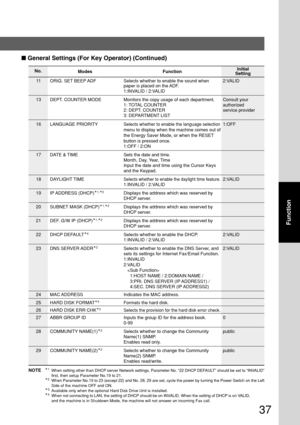

37
Function
11ORIG. SET BEEP ADF Selects whether to enable the sound when 2:VALID
paper is placed on the ADF.
1:INVALID / 2:VALID
13 DEPT. COUNTER MODE Monitors the copy usage of each department. Consult your
1: TOTAL COUNTER authorized
2: DEPT. COUNTER service provider
3: DEPARTMENT LIST
16 LANGUAGE PRIORITY
Selects whether to enable the language selection1:OFF
menu to display when the machine comes out of
the Energy Saver Mode, or when the RESET
button is pressed once.
1:OFF / 2:ON
17 DATE & TIME Sets...

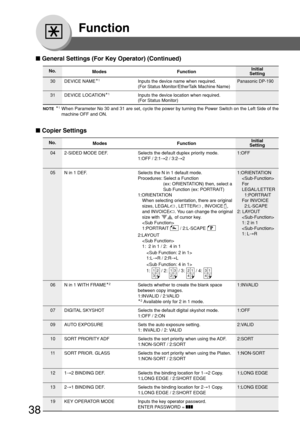

38
Function
04 2-SIDED MODE DEF. Selects the default duplex priority mode. 1:OFF1:OFF / 2:1→2 / 3:2 →2
05 N in 1 DEF. Selects the N in 1 default mode. 1:ORIENTATION
Procedures: Select a Function

               (ex: ORIENTATION) then, select a
    For
               Sub Function (ex: PORTRAIT)
    LEGAL/LETTER
1:ORIENTATION
      1:PORTRAIT
When selecting orientation, there are original
    For INVOICE
sizes, LEGAL     , LETTER     , INVOICE   ,
      2:L-SCAPE
and INVOICE    . You can change the...

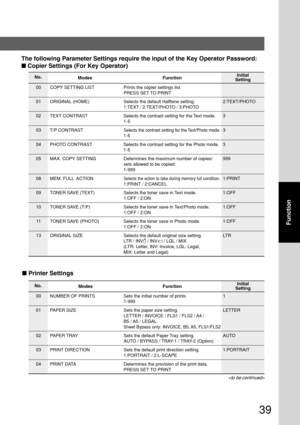

39
Function
00 COPY SETTING LIST Prints the copier settings list.
PRESS SET TO PRINT
01 ORIGINAL (HOME) Selects the default Halftone setting. 2:TEXT/PHOTO
1:TEXT / 2:TEXT/PHOTO / 3:PHOTO
02 TEXT CONTRAST Selects the contrast setting for the Text mode. 3
1-5
03 T/P CONTRAST
Selects the contrast setting for the Text/Photo mode.3
1-5
04 PHOTO CONTRAST Selects the contrast setting for the Photo mode. 3
1-5
05 MAX. COPY SETTING Determines the maximum number of copies/ 999
sets allowed to be copied.
1-999
08...

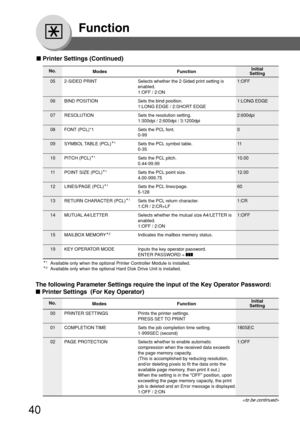

40
Function
05 2-SIDED PRINT Selects whether the 2-Sided print setting is 1:OFF
enabled.
1:OFF / 2:ON
06 BIND POSITION Sets the bind position. 1:LONG EDGE
1:LONG EDGE / 2:SHORT EDGE
07 RESOLUTION Sets the resolution setting. 2:600dpi
1:300dpi / 2:600dpi / 3:1200dpi
08 FONT (PCL)*1 Sets the PCL font. 0
0-99
09 SYMBOL TABLE (PCL)*
1Sets the PCL symbol table. 11
0-35
10 PITCH (PCL)*
1Sets the PCL pitch. 10.00
0.44-99.99
11POINT SIZE (PCL)*
1Sets the PCL point size. 12.00
4.00-999.75
12 LINES/PAGE (PCL)*...
