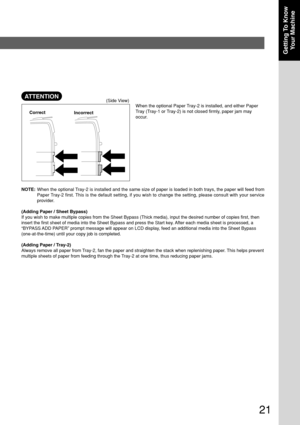

21
Getting To Know
Your Machine
When the optional Paper Tray-2 is installed, and either Paper
Tray (Tray-1 or Tray-2) is not closed firmly, paper jam may
occur.
(Side View)
Correct
Incorrect
NOTE:When the optional Tray-2 is installed and the same size of paper is loaded in both trays, the paper will feed from
Paper Tray-2 first. This is the default setting, if you wish to change the setting, please consult with your service
provider.
(Adding Paper / Sheet Bypass)
If you wish to make multiple copies from...

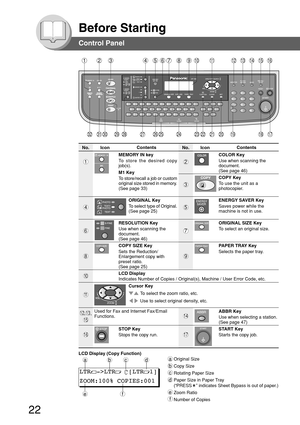

22
Before Starting
LTR->LTR  [LTR1]
ZOOM:100% COPIES:001
Contents
MEMORY IN key
To  store the desired copy
job(s).
M1 Key
To  store/recall a job or custom
original size stored in memory.
(See page 33)
ORIGINAL Key
To  select type of Original.
(See page 25)
RESOLUTION Key
Use when scanning the
document.
(See page 46)
COPY SIZE Key
Sets the Reduction/
Enlargement copy with
preset ratio.
(See page 25)
LCD Display
Cursor Key
STOP Key
Stops the copy run.
Control Panel
123456789101516111213...

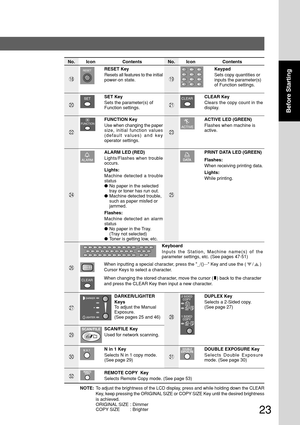

23
Before Starting
Contents
RESET Key
Resets all features to the initial
power-on state.
SET Key
Sets the parameter(s) of
Function settings.
FUNCTION Key
Use when changing the paper
size, initial function values
(default values) and key
operator settings.
ALARM LED (RED)
Lights/Flashes when trouble
occurs.
Lights:
Machine detected a trouble
status
●No paper in the selected
tray or toner has run out.
●Machine detected trouble,
such as paper misfed or
jammed.
Flashes:
Machine detected an alarm
status
●No...

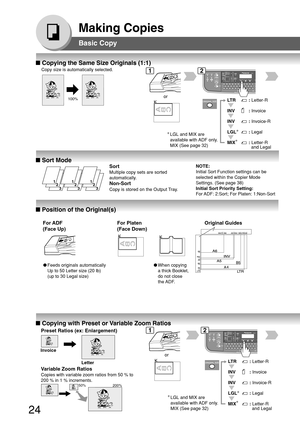

24
Making Copies
50%
200%
A
B
C
■ Copying the Same Size Originals (1:1)
Copy size is automatically selected.
100%or
12
■ Position of the Original(s)
For ADF
(Face Up)For Platen
(Face Down)
●Feeds originals automatically
Up to 50 Letter size (20 lb)
(up to 30 Legal size)
■ Copying with Preset or Variable Zoom Ratios
Invoice
Letter
A
B
C
or
12
Basic Copy
LT R: Letter-R
INV
: Invoice
INV
: Invoice-R
LGL∗
: Legal
MIX∗
: Letter-R
  and Legal
∗
LGL and MIX are
available with ADF only.
MIX (See page 32)...

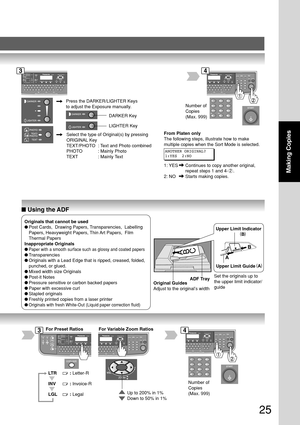

25
Making Copies
Number of
Copies
(Max. 999)
Number of
Copies
(Max. 999)
A
B
CAB
Upper Limit Indicator
(
B)
Upper Limit Guide(
A)
■ Using the ADF
Originals that cannot be used
●Post Cards,  Drawing Papers, Transparencies,  Labelling
Papers, Heavyweight Papers, Thin Art Papers,  Film
Thermal Papers
Inappropriate Originals
●
Paper with a smooth surface such as glossy and coated papers
●Transparencies
●Originals with a Lead Edge that is ripped, creased, folded,
punched, or glued.
●Mixed width size...

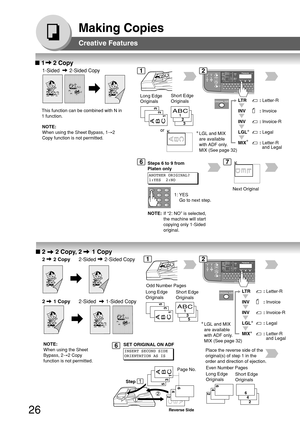

26
Making Copies
246
Long Edge
Originals
6
4
2
Short Edge
Originals
135
A
B
C
Long Edge
Originals
1
3
5A
B
C
Short Edge
Originals
123
A
B
C
Long Edge
Originals
12
3
ABC
Short Edge
Originals
Creative Features
■ 1     2 Copy
1-Sided       2-Sided Copy
2      2 Copy2-Sided      2-Sided Copy
A
B
C
or
Steps 6 to 9 from
Platen onlyDEF
Next Original
ANOTHER ORIGINAL?
1:YES  2:NO
1: YES
    Go to next step.
■ 2      2 Copy, 2      1 Copy
2      1 Copy2-Sided       1-Sided Copy
A
B
C
Odd Number Pages
Place...

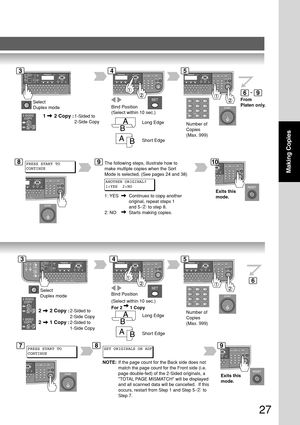

27
Making Copies
Exits this
mode.
Select
Duplex mode
Number of
Copies
(Max. 999)
Bind Position
(Select within 10 sec.)
1      2 Copy :1-Sided to
2-Side Copy
~
From
Platen only.
Select
Duplex mode
Number of
Copies
(Max. 999)
Bind Position
(Select within 10 sec.)
For 2      1 Copy
2      2 Copy : 2-Sided to
2-Side Copy
2      1 Copy :2-Sided to
1-Side Copy
NOTE: If the page count for the Back side does not
match the page count for the Front side (i.e.
page double-fed) of the 2-Sided originals, a
TOTAL PAGE...

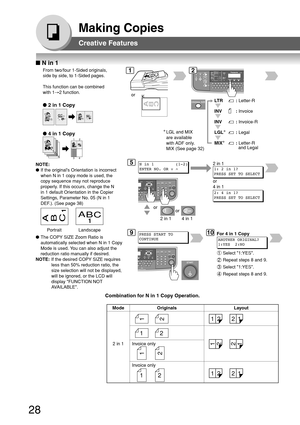

28
Making Copies
Creative Features
■ N in 1
From two/four 1-Sided originals,
side by side, to 1-Sided pages.
This function can be combined
with 1 →2 function.
3
4
12
4
3
1
2
●  2 in 1 Copy
●  4 in 1 Copy
A
B
C
or
1: 2 in 1?
PRESS SET TO SELECT
2: 4 in 1?
PRESS SET TO SELECT
or
2 in 1
NOTE:
●
If the originals Orientation is incorrect
when N in 1 copy mode is used, the
copy sequence may not reproduce
properly. If this occurs, change the N
in 1 default Orientation in the Copier
Settings, Parameter No. 05 (N...

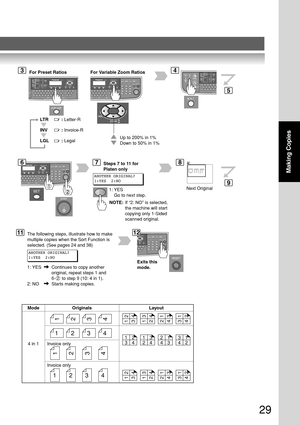

29
Making Copies
1: YES Continues to copy another
original, repeat steps 1 and
6-     to step 9 (10: 4 in 1).
2: NO Starts making copies.
Steps 7 to 11 for
Platen only
ANOTHER ORIGINAL?
1:YES  2:NO
1: YES
    Go to next step.
DEF
Next Original
The following steps, illustrate how to make
multiple copies when the Sort Function is
selected. (See pages 24 and 38)
ANOTHER ORIGINAL?
1:YES  2:NO
2
Exits this
mode. NOTE:If “2: NO” is selected,
the machine will start
copying only 1-Sided
scanned original.
For...

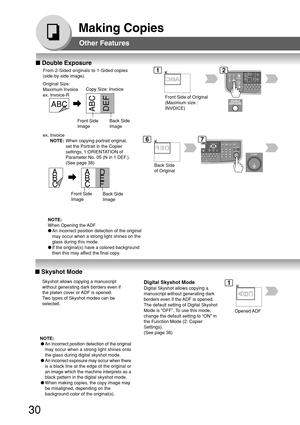

30
Making Copies
Back Side
Image Front Side
A
B
CA
B
CD
E
F
ABCABC
DEF
Front Side
ImageBack Side
Other Features
■ Skyshot Mode
Digital Skyshot Mode
Digital Skyshot allows copying a
manuscript without generating dark
borders even if the ADF is opened.
The default setting of Digital Skyshot
Mode is “OFF”. To use this mode,
change the default setting to “ON” in
the Function Mode (2: Copier
Settings).
(See page 38)
Opened ADF
NOTE:
●An incorrect position detection of the original
may occur when a...
