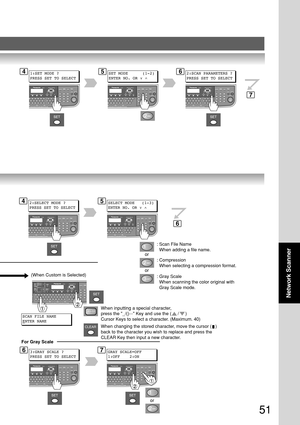

Panasonic Network Scan Functions Dp 190 Operating Instruction

51
Network Scanner
1:SET MODE ?
PRESS SET TO SELECTSET MODE      (1-2)
ENTER NO. OR ∨
^
63:GRAY SCALE ?
PRESS SET TO SELECT
For Gray Scale
7GRAY SCALE=OFF
1:OFF    2:ON
SCAN FILE NAME
ENTER NAME
(When Custom is Selected)
2:SELECT MODE ?
PRESS SET TO SELECTSELECT MODE   (1-3)
ENTER NO. OR ∨
^
or
or
2:SCAN PARAMETERS ?
PRESS SET TO SELECT
6
7
When inputting a special character,
press the _/()...
 Key and use the (     /     )
Cursor Keys to select a character. (Maximum. 40)
When changing the stored...

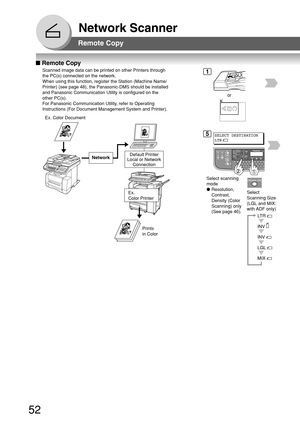

52
Network Scanner
Select
Scanning Size
(LGL and MIX:
with ADF  only)
LTR
INV
INV
LGL
MIX
Select scanning
mode
● Resolution,
Contrast,
Density (Color
Scanning) only
(See page 46).
A
B
C
■  Remote Copy
or
Remote Copy
Scanned image data can be printed on other Printers through
the PC(s) connected on the network.
When using this function, register the Station (Machine Name/
Printer) (see page 48), the Panasonic-DMS should be installed
and Panasonic Communication Utility is configured on the
other...

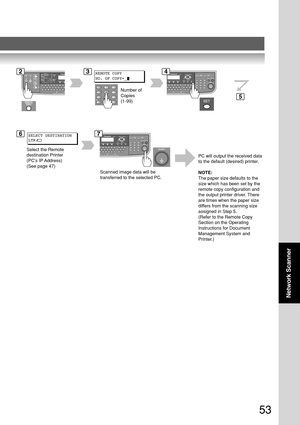

53
Network Scanner
SELECT DESTINATION
LTR
REMOTECOPY
REMOTE COPY
NO. OF COPY=_
Number of
Copies
(1-99)
Scanned image data will be
transferred to the selected PC. PC will output the received data
to the default (desired) printer.
NOTE:
The paper size defaults to the
size which has been set by the
remote copy configuration and
the output printer driver. There
are times when the paper size
differs from the scanning size
assigned in Step 5.
(Refer to the Remote Copy
Section on the Operating
Instructions for...

54
Network Scanner

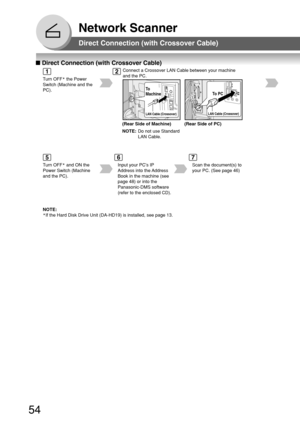

■ Direct Connection (with Crossover Cable)
Direct Connection (with Crossover Cable)
Turn OFF* the Power
Switch (Machine and the
PC).
Connect a Crossover LAN Cable between your machine
and the PC.
LAN Cable (Crossover)
To  PC
(Rear Side of Machine) (Rear Side of PC)
NOTE:Do not use Standard
LAN Cable.
Turn OFF* and ON the
Power Switch (Machine
and the PC).Input your PCs IP
Address into the Address
Book in the machine (see
page 48) or into the
Panasonic-DMS software
(refer to the...

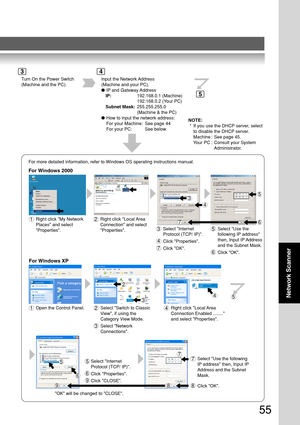

55
Network Scanner
Turn On the Power Switch
(Machine and the PC). Input the Network Address
(Machine and your PC).
●
IP and Gateway Address
IP: 192.168.0.1 (Machine)
192.168.0.2 (Your PC)
Subnet Mask: 255.255.255.0
(Machine & the PC)
● How to input the network address:
For your Machine: See page 44
For your PC: See below
For more detailed information, refer to Windows OS operating instruction\
s manual.
For Windows 2000
9
1
4
5
67Right click My Network
Places and select
Properties.2Right click Local...

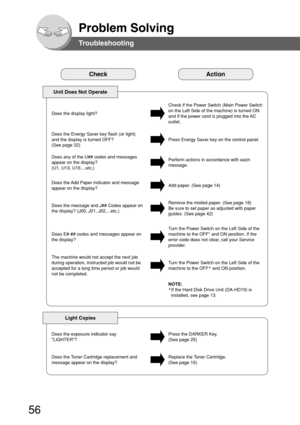

56
Problem Solving
Troubleshooting
CheckAction
Unit Does Not Operate
Check if the Power Switch (Main Power Switch
on the Left Side of the machine) is turned ON
and if the power cord is plugged into the AC
outlet. Does the display light?
Press Energy Saver key on the control panel. Does the Energy Saver key flash (or light)
and the display is turned OFF?
(See page 32)
Perform actions in accordance with each
message. Does any of the U## codes and messages
appear on the display?
(U1, U13, U16....etc.)
Add...

57
Problem Solving
Separation
RubberRollers ADF Cover
Paper Transport  Knob
Feed Rollers
CheckAction
Marked Copies
Clean the Platen Glass or Sheet.
(See below) Is the machine’s Platen Glass or Platen Sheet
dirty?
Cover the original with a sheet of white paper
before copying or lighten the exposure setting. Is the original a transparency film or a dark
original?
■ If the measures outlined above do not solve the problem, call your Service Provider.
Machine Care
■ As a rule, clean weekly.
Platen...

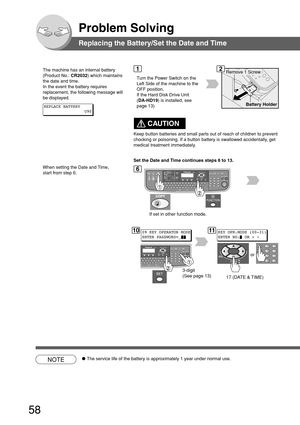

58
Problem Solving
Replacing the Battery/Set the Date and Time
The machine has an internal battery
(Product No.: CR2032) which maintains
the date and time.
In the event the battery requires
replacement, the following message will
be displayed.
Turn the Power Switch on the
Left Side of the machine to the
OFF position.
If the Hard Disk Drive Unit
(DA-HD19) is installed, see
page 13)
12
6
REPLACE BATTERY
U90
1009 KEY OPERATOR MODE
ENTER PASSWORD=_11KEY OPR.MODE (00-31)
ENTER NO. OR ∨
^
or
17 (DATE & TIME)...

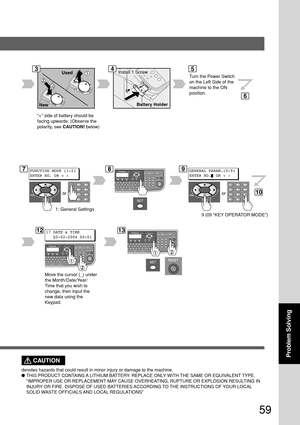

59
Problem Solving
Turn the Power Switch
on the Left Side of the
machine to the ON
position.
345
6
Used
New
7FUNCTION MODE (1-2)
ENTER NO. OR ∨
^
or
89GENERAL PARAM.(0-9)
ENTER NO. OR ∨
^
or
1: General Settings
9 (09 KEY OPERATOR MODE)
10
1217 DATE & TIME
   _05-02-2004 00:0113
Move the cursor (_) under
the Month/Date/Year/
Time that you wish to
change, then input the
new data using the
Keypad.Install 1 Screw
Battery Holder
CAUTION
denotes hazards that could result in minor injury or damage to the...

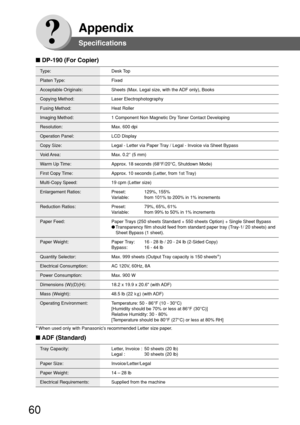

60
Appendix
Type: Desk Top
Platen Type: Fixed
Acceptable Originals: Sheets (Max. Legal size, with the ADF only), Books
Copying Method: Laser Electrophotography
Fusing Method: Heat Roller
Imaging Method: 1 Component Non Magnetic Dry Toner Contact Developing
Resolution: Max. 600 dpi
Operation Panel: LCD Display
Copy Size: Legal - Letter via Paper Tray / Legal - Invoice via Sheet Bypass
V oid Area: Max.  0.2 ″ (5 mm)
Wa rm Up Time: Approx. 18 seconds (68 °F/20 °C, Shutdown Mode)
First Copy Time: Approx. 10...
